Chanto
VM810 Series
VM810 Series

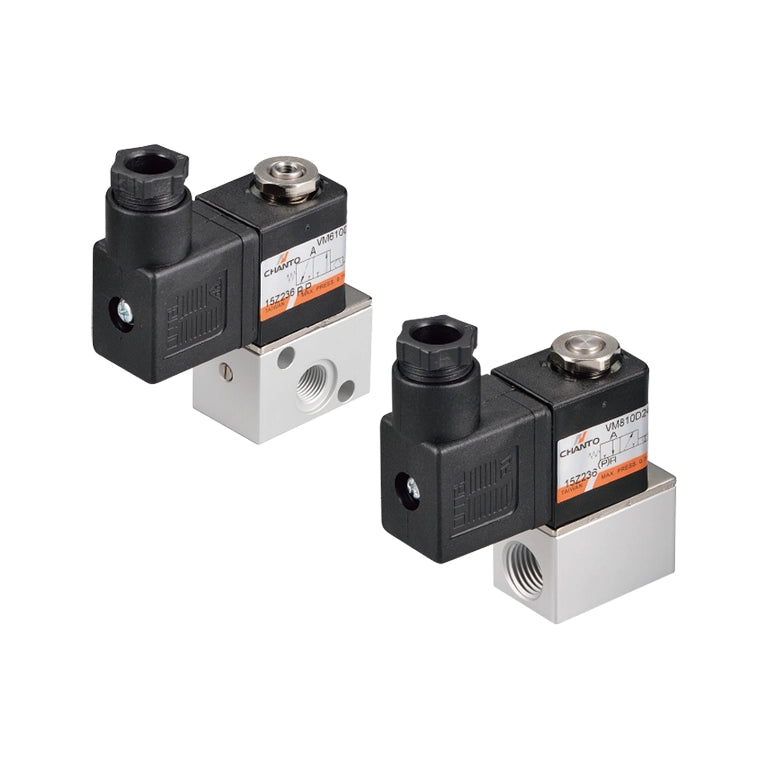

The Chanto VM810 Series is an ultra-lightweight, sub-miniature pneumatic solenoid valve lineup engineered specifically for high-precision logic control, micro-fluidic pilot routing, and high-density space-restricted applications. Positioned slightly above the VM610 series in flow capacity while maintaining a microscopic external envelope, these micro valves interface seamlessly onto multi-station printed circuit board (PCB) blocks or dense analytical manifolds.
Featuring an ultra-low wattage design, the VM810 series minimizes system power consumption and thermal radiation, ensuring stable performance in tightly enclosed electronic modules. They provide rapid, reliable response times for precise micro air routing tasks. Ardee Hi-Tech Pvt. Ltd. is the official and authorized dealer of Chanto products in India.
General Specifications
General Specifications
Valve Function Type: 3-Port, 2-Position (3/2-Way) Micro Valve
Fluid Medium: Clean, dry, filtered compressed air (40-micron filtration or finer highly recommended)
Operating Pressure Range: 0 to 7.0 bar (0 to 0.7 MPa)
Ambient & Fluid Temperature: -5°C to 50°C (Avoid freezing environments)
Standard Interface Size: Sub-miniature footprint optimized for base/manifold direct block mounting
Available Coil Voltages: DC 6V, DC 12V, DC 24V (High-efficiency micro coils)
Electrical Entry Formats: Direct solder pins, plug-in wire harnesses, or flying lead wires
Maximum Operating Frequency: Up to 10 cycles per second (High-speed shifting capable)
Material
Material
Main Valve Body: High-performance, lightweight engineering Polymer / Aluminum Alloy composite
Internal Plunger/Spool: Precision-ground Stainless Steel and ultra-lightweight aluminum elements
Seals & O-Rings: High-purity Nitrile Butadiene Rubber (NBR) and resilient Viton compounds
Pilot Guide Components: Corrosion-resistant Stainless Steel core guide tubes and low-fatigue springs
Solenoid Coil Housing: Heat-resistant Thermoplastic encapsulation with high-grade copper micro-windings
Share
Product Knowledge
Areas of Application
Semiconductor Assembly: Actuating lightweight pneumatic pick-and-place suction headers and component sorting gates.
Medical Diagnostic Devices: Non-fluid contact micro air routing for automated lab testing machinery and blood analyzers.
Electronic Testing Jigs: High-density pneumatic logic control loops inside compact automated quality inspection benches.
Precision Inkjet Printing: Managing clean micro air purge cycles and printhead positioning modules.
Sub-Pilot Network Control: Functioning as a high-density primary pilot array to actuate much larger process valves.
Part Numbers
CHANTO VM810 SERIES
- VM810-D24-P: Micro 3/2-Way Solenoid Valve, Standard DC 24V, Plug-in PCB Pin Configuration
- VM810-D12-L: Micro 3/2-Way Solenoid Valve, Standard DC 12V, Flying Lead Wire Configuration
- VM810-D24-H: Micro 3/2-Way Solenoid Valve, Standard DC 24V, Dedicated Wire Harness Interface
- VM810-D06-P: Micro 3/2-Way Solenoid Valve, Low-Voltage DC 6V, Plug-in PCB Pin Configuration
