Chanto
VEC1000 Series
VEC1000 Series

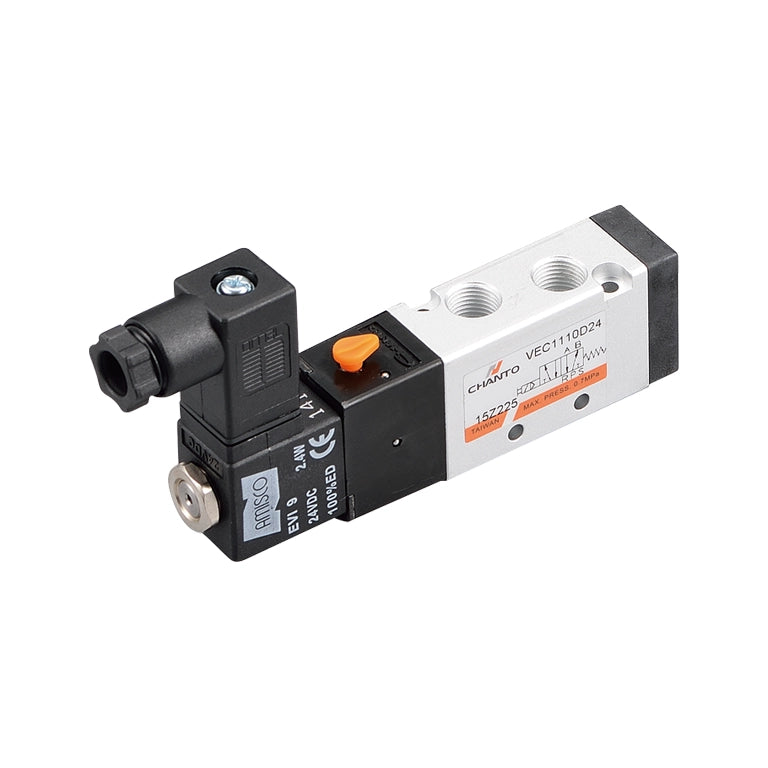

The Chanto VEC1000 Series is a mini-scale, space-saving compact pneumatic solenoid valve lineup engineered for environments where installation space is severely restricted. It offers a highly dense footprint that allows engineers to pack substantial fluid power routing capabilities into tight control panels or micro-manifold blocks without compromising flow efficiency.
Built with a balanced internal spool structure and integrated low-wattage miniature pilots, these compact valves switch quickly while keeping heat generation to an absolute minimum. They are the ideal choice for integration into multi-station manifold setups where reducing overall machine weight and physical footprint is a priority.
Ardee Hi-Tech Pvt Ltd. is the official and authorized distributor of Chanto Solenoid Valves in India.
General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)
Operating Pressure Range: 1.5 to 7.0 bar (0.15 to 0.7 MPa)
Ambient & Fluid Temperature: -5°C to 50°C (Prevent freezing conditions)
Standard Port Sizes: Threaded M5 main connection ports or dedicated integrated manifold interface seals
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz configurations)
Electrical Entry Formats: Vertical/horizontal plug-in connectors or direct flying lead wires
Maximum Operating Frequency: Up to 5 cycles per second
Material
Material
Main Valve Body: High-tensile precision extruded Aluminum Alloy (Anodized surface coating)
Internal Spool: Lightweight ground Aluminum Alloy treated with a low-friction wear compound
Seals & O-Rings: High-resiliency Nitrile Butadiene Rubber (NBR) and specialized HNBR composite seals
Pilot Guide Components: Corrosion-resistant Stainless Steel guide tubes and low-fatigue internal springs
Solenoid Coil Housing: Glass-reinforced Thermoplastic resin encapsulation with high-purity copper windings
Share
Product Knowledge
Areas of Application
Semiconductor Assembly: Actuating miniature pick-and-place arms, vacuum component handlers, and sorting gates.
Electronic Component Manufacturing: High-density control within compact testing jigs and printed circuit board (PCB) routing lines.
Medical & Lab Automation: Direct non-fluid contact pneumatic routing for automated sample analysis equipment and testing fluid headers.
Dense Control Cabinets: Building high-station manifold banks within highly enclosed, dust-proof pneumatic control boxes.
Precision Packaging Lines: Powering lightweight miniature cylinders on high-speed small box carton folding and labeling setups.
Part Numbers
CHANTO VEC1000 SERIES
1. VEC1100 Series (5/2 Way, Single Solenoid)
VEC1110-G • VEC1120-G • VEC1130-G • VEC1140-G
VEC1110-D • VEC1120-D • VEC1130-D • VEC1140-D
VEC1110-L • VEC1120-L • VEC1130-L • VEC1140-L
VEC1110-M • VEC1120-M • VEC1130-M • VEC1140-M
2. VEC1200 Series (5/2 Way, Double Solenoid)
VEC1210-G • VEC1220-G • VEC1230-G • VEC1240-G
VEC1210-D • VEC1220-D • VEC1230-D • VEC1240-D
VEC1210-L • VEC1220-L • VEC1230-L • VEC1240-L
VEC1210-M • VEC1220-M • VEC1230-M • VEC1240-M
3. VEC1300 Series (5/3 Way, Closed Center)
VEC1310-G • VEC1320-G • VEC1330-G • VEC1340-G
VEC1310-D • VEC1320-D • VEC1330-D • VEC1340-D
VEC1310-L • VEC1320-L • VEC1330-L • VEC1340-L
VEC1310-M • VEC1320-M • VEC1330-M • VEC1340-M
4. VEC1400 Series (5/3 Way, Exhaust Center)
VEC1410-G • VEC1420-G • VEC1430-G • VEC1440-G
VEC1410-D • VEC1420-D • VEC1430-D • VEC1440-D
VEC1410-L • VEC1420-L • VEC1430-L • VEC1440-L
VEC1410-M • VEC1420-M • VEC1430-M • VEC1440-M
5. VEC1500 Series (5/3 Way, Pressure Center)
VEC1510-G • VEC1520-G • VEC1530-G • VEC1540-G
VEC1510-D • VEC1520-D • VEC1530-D • VEC1540-D
VEC1510-L • VEC1520-L • VEC1530-L • VEC1540-L
VEC1510-M • VEC1520-M • VEC1530-M • VEC1540-M
6. VEC1600 Series (3/2 Way, Single Solenoid)
VEC1610-G • VEC1620-G • VEC1630-G • VEC1640-G
VEC1610-D • VEC1620-D • VEC1630-D • VEC1640-D
VEC1610-L • VEC1620-L • VEC1630-L • VEC1640-L
VEC1610-M • VEC1620-M • VEC1630-M • VEC1640-M
