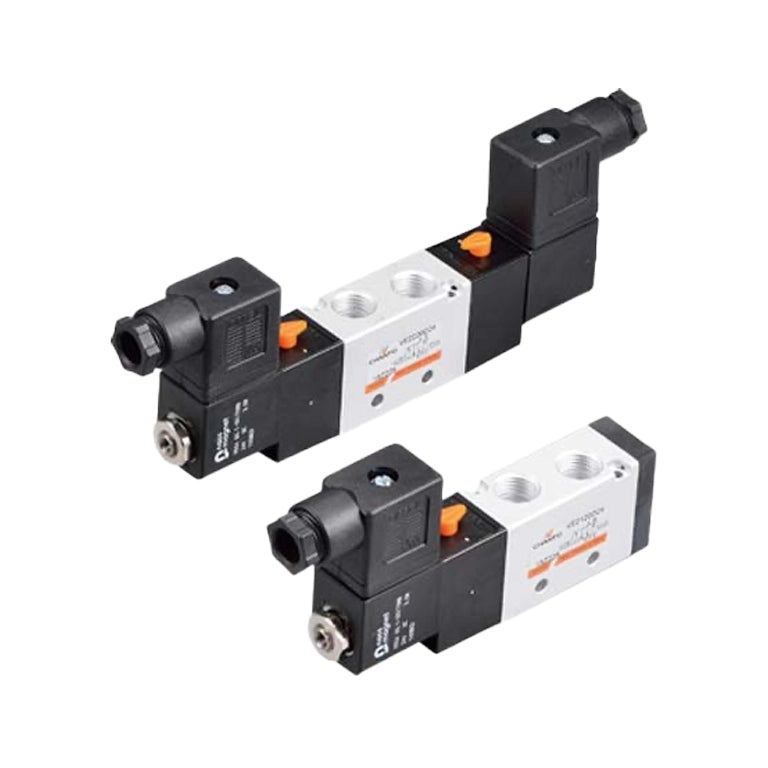

VE2000 Series
VE2000 Series
The Chanto VE2000 Series is an intermediate-scale, body-ported pneumatic solenoid valve lineup designed to deliver higher flow capacities while maintaining a highly efficient installation profile. The VE2000 series bridges the gap between micro-pneumatic controls and heavy-duty process valves.
Featuring balanced internal spool mechanics, these pilot-assisted valves offer swift response times and minimal shifting friction. The series supports both direct inline rigid tube piping and multi-station sub-base manifold configurations, acting as a reliable cornerstone for medium-duty machinery automation.
Ardee Hi-Tech Pvt Ltd. is the official and authorized distributor of Chanto Solenoid Valves in India.
General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)
Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)
Ambient & Fluid Temperature: -5°C to 60°C (Avoid freezing environments)
Standard Port Sizes: G 1/4" threaded main connection ports (Exhaust: G 1/8")
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz options)
Electrical Entry Formats: DIN plug connector block or direct grommet lead wires
Maximum Operating Frequency: Up to 5 cycles per second
Material
Material
Main Valve Body: Premium anodized Extruded Aluminum Alloy for enhanced wear resistance
Internal Spool: Micro-ground Aluminum Alloy coated with low-friction polymer treatment
Seals & O-Rings: High-durability Nitrile Butadiene Rubber (NBR) and resilient Viton elements
Pilot Guide Components: Corrosion-resistant Stainless Steel core armature and springs
Solenoid Coil Housing: PBT Thermoplastic encapsulation with premium copper windings
Share
Product Knowledge
Areas of Application
Automotive Assembly Automation: Actuating medium-bore pneumatic cylinders, clamping fixtures, and heavy grippers.
Food and Beverage Packaging: Operating high-speed cartooning machinery, capping stations, and conveyor diverters.
Material Handling Systems: Controlling heavy pneumatic lifting lifts, sorting gates, and palletizing line pushers.
Machine Tool Systems: Powering pneumatic work-holding chucks, door interlocks, and tool-changer carousels.
Woodworking Machinery: Driving pneumatic alignment stops, safety guards, and board feed rollers.
Part Numbers
CHANTO VE2000 SERIES
1. VE2100 Series (5/2 Way, Single Solenoid Body-Ported)
VE210A11 • VE210A22 • VE210D12 • VE210D24
VE210A11L • VE210A22L • VE210D12L • VE210D24L
VE210A11S • VE210A22S • VE210D12S • VE210D24S
2. VE2200 Series (5/2 Way, Double Solenoid Body-Ported)
VE220A11 • VE220A22 • VE220D12 • VE220D24
VE220A11L • VE220A22L • VE220D12L • VE220D24L
VE220A11S • VE220A22S • VE220D12S • VE220D24S
3. VE2300 Series (5/3 Way, Closed Center Body-Ported)
VE230A11 • VE230A22 • VE230D12 • VE230D24
VE230A11L • VE230A22L • VE230D12L • VE230D24L
VE230A11S • VE230A22S • VE230D12S • VE230D24S
4. VE2400 Series (5/3 Way, Exhaust Center Body-Ported)
VE240A11 • VE240A22 • VE240D12 • VE240D24
VE240A11L • VE240A22L • VE240D12L • VE240D24L
VE240A11S • VE240A22S • VE240D12S • VE240D24S
5. VE2500 Series (5/3 Way, Pressure Center Body-Ported)
VE250A11 • VE250A22 • VE250D12 • VE250D24
VE250A11L • VE250A22L • VE250D12L • VE250D24L
VE250A11S • VE250A22S • VE250D12S • VE250D24S
FAQ
1. Does Ardee Hi-Tech Pvt Ltd supply products across India?
Yes, Ardee Hi-Tech Pvt Ltd serves customers across India with reliable supply and distribution support.
2. Does Ardee Hi-Tech Pvt Ltd supply products internationally?
Yes, Ardee Hi-Tech Pvt Ltd serves customers across Asia with reliable supply and distribution support. Please get in touch with our team to help guide you further.
3. How do I choose the right pneumatic fitting or automation component?
Product selection depends on operating pressure, tubing size, media compatibility, temperature conditions, and application requirements. Get in touch with our specialists to help guide you based on your specific requirements.
4. Does Ardee Hi-Tech Pvt Ltd provide technical support for product selection?
Yes, Ardee Hi-Tech Pvt Ltd assists customers with product selection, technical consultation, and application-specific automation solutions.
5. Can I purchase replacement parts and accessories from Ardee Hi-Tech?
Yes, replacement fittings, tubing, valves, connectors, accessories, and other automation components are available. Our team of specialists can help find the right replacement part depending on your industrial needs.
6. How do I place an order?
Visit the Ardee Hi-Tech Pvt Ltd official website to explore products, request quotations and connect with our technical sales team. You can also add products to the “Quote Cart” and submit your request for quotation.
