Chanto
TH Series
TH Series

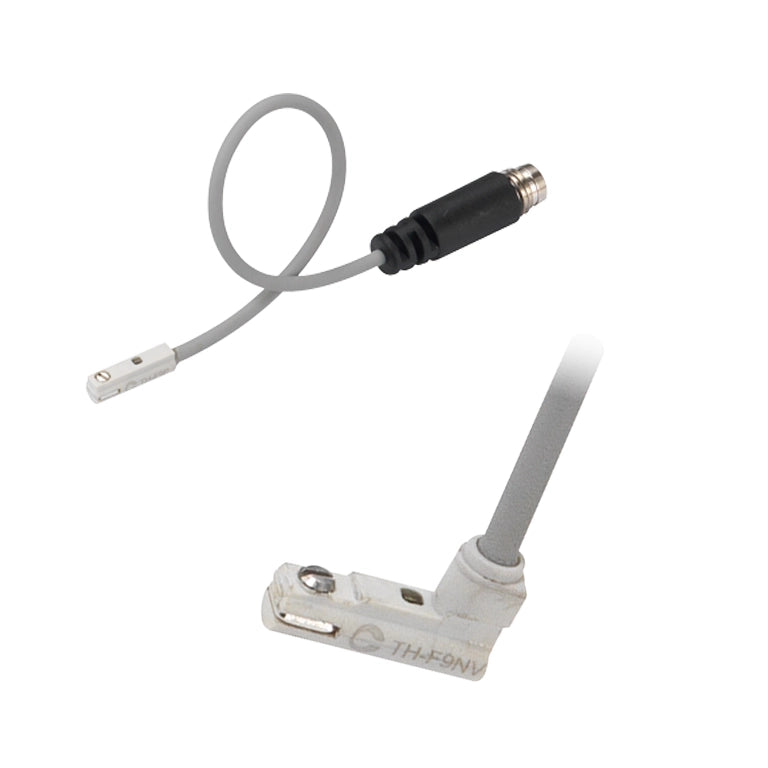

The CHANTO TH Series Reed Switch is a compact magnetic cylinder sensor engineered to provide accurate piston position detection in compatible CHANTO pneumatic cylinders. Utilizing dependable reed switch technology, the TH Series delivers consistent switching performance, reliable cylinder position feedback, and seamless integration with industrial automation systems. Its compact slide-in design, integrated LED operation indicator, and robust construction enable quick installation, simplified maintenance, and long-term operational reliability, making it an ideal solution for demanding pneumatic automation applications.
As an authorized distributor, Ardee Hi-Tech Pvt. Ltd. supplies genuine CHANTO TH Series Reed Switches across India for OEMs, machine builders, industrial automation integrators, and maintenance professionals.
General Specifications
General Specifications
Product Type: Reed Switch
Operating Principle: Magnetic piston detection
Sensor Type: Magnetic reed switch
Switching Element: Hermetically sealed reed contact
Compatible Cylinders: CHANTO magnetic pneumatic cylinders
Mounting Style: Groove-mounted, slide-in installation
Indicator: LED operation indicator
Connection Type: Flying lead cable
Output Type: Two-wire reed switch output
Application: Pneumatic cylinder position sensing and end-of-stroke detection
Design: Compact design for space-saving installations
Installation: Easy installation and replacement
Manufacturer: CHANTO AIR HYDRAULICS CO., LTD., Taiwan
Material
Material
- Engineering-grade plastic housing
- Hermetically sealed reed switch element
- Industrial-grade electrical lead cable
- Durable internal electrical components
- Sealed construction for industrial automation environments
Share
Product Knowledge
Areas of Application
Factory Automation: Automated production lines, conveyor systems, indexing tables, transfer systems, pneumatic workstations.
Packaging Machinery: Carton erecting machines, filling machines, sealing machines, labeling systems, wrapping machines, palletizing equipment.
Assembly & Manufacturing: Automated assembly lines, component feeding systems, clamping and pressing stations, pick-and-place systems, inspection stations.
Material Handling: Conveyor automation, pneumatic lifters, sorting systems, transfer arms, loading and unloading equipment.
Robotics: Pneumatic grippers, end-of-arm tooling (EOAT), robotic assembly cells, robotic material handling.
Machine Tools: CNC machining centers, workholding fixtures, tool changing systems, chip handling equipment.
Food & Beverage Processing: Filling and dispensing equipment, packaging lines, bottling systems, conveying equipment.
Pharmaceutical Manufacturing: Tablet and capsule production, packaging machines, inspection systems, automated handling equipment.
Electronics Manufacturing: PCB assembly lines, component placement machines, test fixtures, semiconductor handling equipment.
Textile Industry: Fabric feeding machines, cutting systems, clamping mechanisms, material transfer equipment.
Automotive Industry: Assembly lines, welding fixtures, painting systems, component handling, quality inspection equipment.
OEM & Special Purpose Machinery: Custom automation machines, pneumatic fixtures, testing equipment, industrial process automation, machine building, system integration.

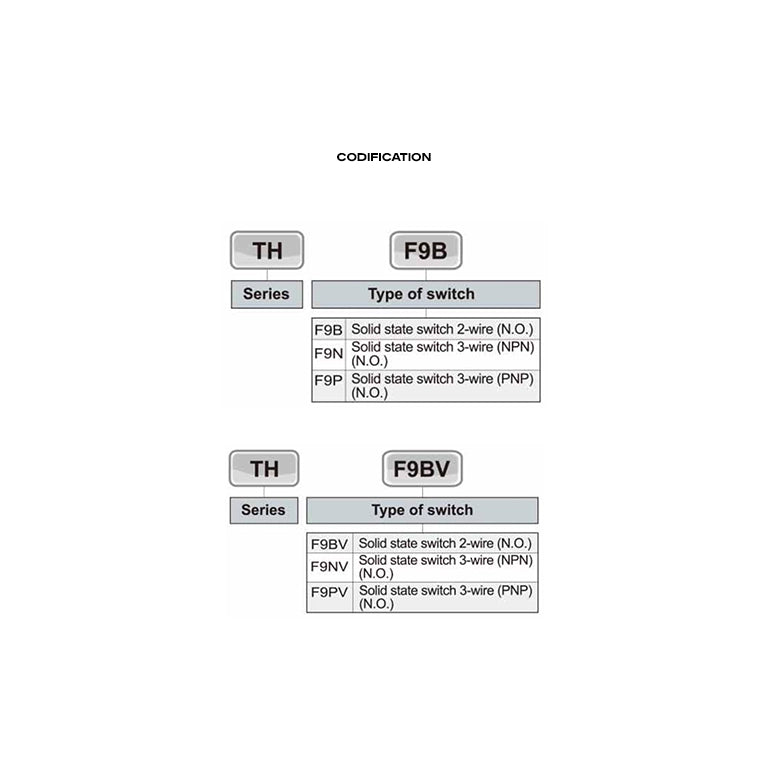

Part Numbers
CHANTO TH Series
TH-F9B • TH-F9B-D • TH-F9N • TH-F9N-D • TH-F9P • TH-F9P-D
