Chanto

TG Series

TG Series

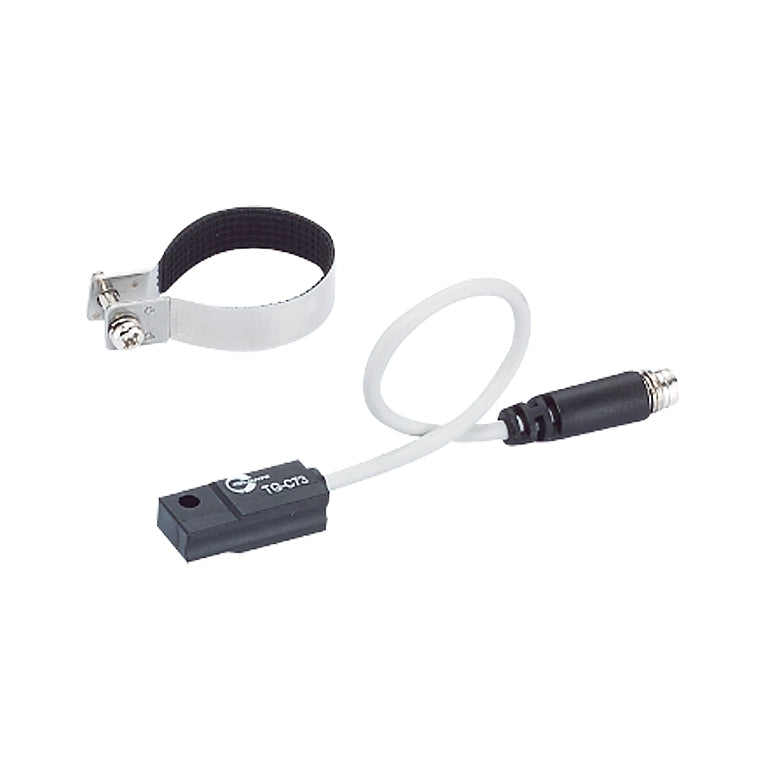

The CHANTO TG Series Reed Switch is a compact magnetic cylinder sensor designed to accurately detect the piston position in compatible CHANTO pneumatic cylinders. Utilizing reliable reed switch technology, the TG Series provides consistent switching performance, dependable cylinder position feedback, and easy integration into industrial automation systems. Its compact slide-in design, integrated LED operation indicator, and durable construction enable quick installation, simplified maintenance, and long-term reliability for demanding factory automation applications.

As an authorized distributor, Ardee Hi-Tech Pvt. Ltd. supplies genuine CHANTO TG Series Reed Switches across India for OEMs, machine builders, automation system integrators, and maintenance professionals.

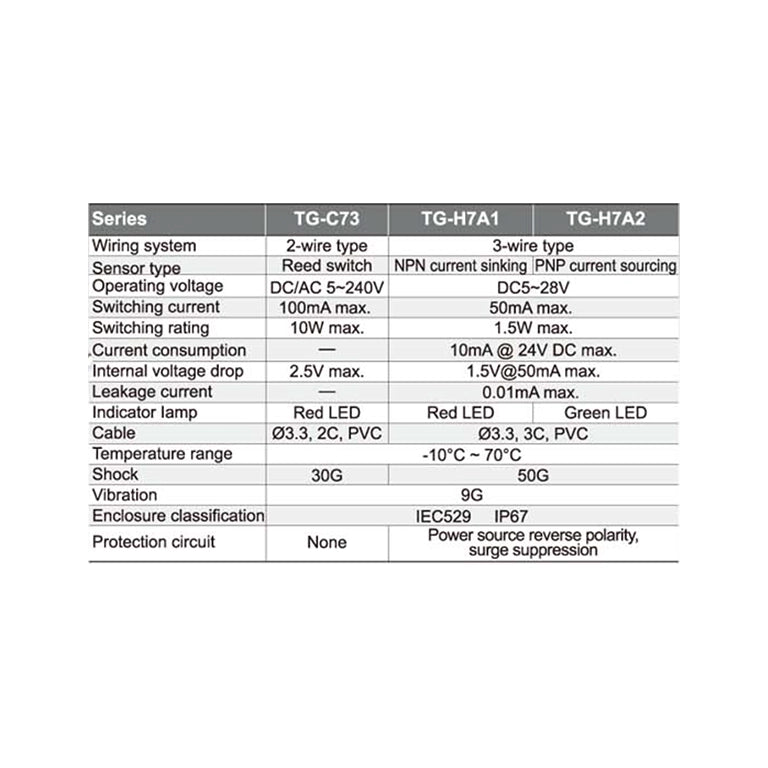

General Specifications

  • Product Series: TG Series
  • Product Type: Reed Switch
  • Operating Principle: Magnetic piston detection
  • Sensor Type: Magnetic reed switch
  • Switching Element: Hermetically sealed reed contact
  • Compatible Cylinders: CHANTO magnetic pneumatic cylinders
  • Mounting Style: Groove-mounted, slide-in installation
  • Indicator: LED operation indicator
  • Connection Type: Flying lead cable
  • Output Type: Two-wire reed switch output
  • Application: Pneumatic cylinder position sensing and end-of-stroke detection
  • Compact design for space-saving installations
  • Easy installation and replacement

Material

  • Engineering-grade plastic housing
  • Hermetically sealed reed switch element
  • Industrial-grade electrical lead cable
  • Durable internal electrical components
  • Sealed construction for industrial automation environments
View full details

Product Knowledge

Areas of Application

Factory Automation: Automated production lines, conveyor systems, indexing tables, transfer systems, pneumatic workstations.

Packaging Machinery: Carton erecting machines, filling machines, sealing machines, labeling systems, wrapping machines, palletizing equipment.

Assembly & Manufacturing: Automated assembly lines, component feeding systems, clamping and pressing stations, pick-and-place systems, inspection stations.

Material Handling: Conveyor automation, pneumatic lifters, sorting systems, transfer arms, loading and unloading equipment.

Robotics: Pneumatic grippers, end-of-arm tooling (EOAT), robotic assembly cells, robotic material handling.

Machine Tools: CNC machining centers, workholding fixtures, tool changing systems, chip handling equipment.

Food & Beverage Processing: Filling and dispensing equipment, packaging lines, bottling systems, conveying equipment.

Pharmaceutical Manufacturing: Tablet and capsule production, packaging machines, inspection systems, automated handling equipment.

Electronics Manufacturing: PCB assembly lines, component placement machines, test fixtures, semiconductor handling equipment.

Textile Industry: Fabric feeding machines, cutting systems, clamping mechanisms, material transfer equipment.

Automotive Industry: Assembly lines, welding fixtures, painting systems, component handling, quality inspection equipment.

OEM & Special Purpose Machinery: Custom automation machines, pneumatic fixtures, testing equipment, industrial process automation, machine building, system integration.

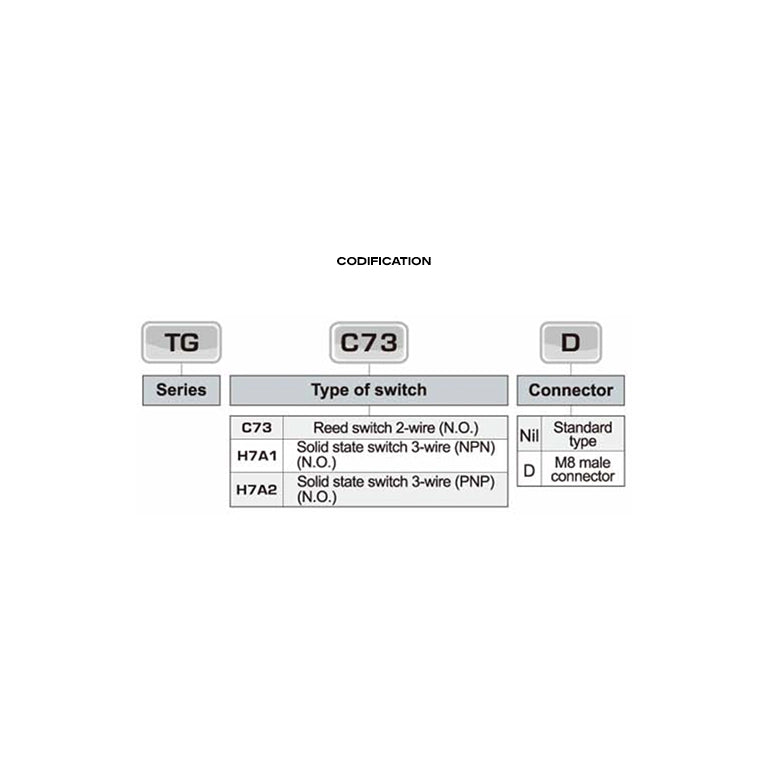

Part Numbers

CHANTO TG Series

TG-C73 • TG-C73-D • TG-H7A1 • TG-H7A1-D • TG-H7A2 • TG-H7A2-D
