Chanto

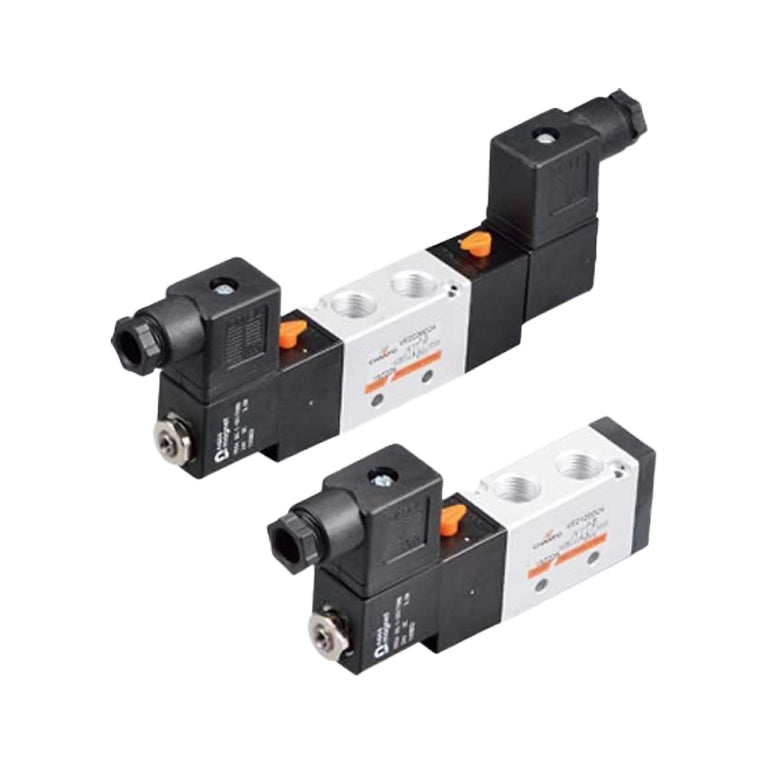

VE4000 Series
VE4000 Series
The Chanto VE4000 Series is the largest and most robust body-ported pneumatic solenoid valve family in the standard line, engineered specifically for high-capacity industrial environments that demand maximum air volume distribution. The VE4000 series is built to actuate massive large-bore linear cylinders and heavy-duty rotary systems rapidly without causing downstream pressure drops.
Featuring a highly responsive, pilot-assisted spool design, these valves combine high mechanical reliability with minimal shifting friction under heavy continuous loads. They can be installed as standalone inline heavy-flow blocks or grouped onto dedicated sub-base manifolds, offering dependable performance for the most demanding factory automation applications.
Ardee Hi-Tech Pvt Ltd. is the official and authorized distributor of Chanto Solenoid Valves in India.
General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)
Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)
Ambient & Fluid Temperature: -5°C to 60°C (Avoid freezing environments)
Standard Port Sizes: G 1/2" threaded main connection ports (Exhaust: G 1/2")
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz options)
Electrical Entry Formats: DIN plug connector block or direct grommet lead wires
Maximum Operating Frequency: Up to 3 cycles per seconds
Material
Material
Main Valve Body: Premium heavy-duty die-cast/extruded Aluminum Alloy (Anodized finish)
Internal Spool: Precision-ground Aluminum Alloy treated with a low-friction wear layer
Seals & O-Rings: High-performance Nitrile Butadiene Rubber (NBR) and resilient Viton elements
Pilot Guide Components: Corrosion-resistant Stainless Steel core armature and internal springs
Solenoid Coil Housing: Impact-resistant PBT Thermoplastic encapsulation with premium copper windings
Share
Product Knowledge
Areas of Application
Steel Mills & Foundries: Direct actuation of high-tonnage heavy pneumatic dumping hoppers and material positioning cylinders.
Heavy Machinery Press Lines: Powering safety brakes, heavy-duty pneumatic clutches, and part ejection gates.
Bulk Concrete & Batching Plants: Controlling high-volume air distribution for slide gates, mixer gates, and silo aeration valves.
Automotive Stamping Facilities: Actuating large-bore air cylinders on body-in-white pressing lines and raw stamping panels.
Chemical and Paper Processing: Operating high-flow auxiliary pilot networks for large process ball or butterfly valve actuators.
Part Numbers
CHANTO VE4000 SERIES
1. VE4100 Series (5/2 Way, Single Solenoid)
VE4110 • VE4120 • VE4130 • VE4140
VE4111 • VE4121 • VE4131 • VE4141
VE4112 • VE4122 • VE4132 • VE4142
2. VE4200 Series (5/2 Way, Double Solenoid)
VE4210 • VE4220 • VE4230 • VE4240
VE4211 • VE4221 • VE4231 • VE4241
VE4212 • VE4222 • VE4232 • VE4242
3. VE4300 Series (5/3 Way, Closed Center)
VE4310 • VE4320 • VE4330 • VE4340
VE4311 • VE4321 • VE4331 • VE4341
VE4312 • VE4322 • VE4332 • VE4342
4. VE4400 Series (5/3 Way, Exhaust Center)
VE4410 • VE4420 • VE4430 • VE4440
VE4411 • VE4421 • VE4431 • VE4441
VE4412 • VE4422 • VE4432 • VE4442
