Chanto
VE1000 Series
VE1000 Series

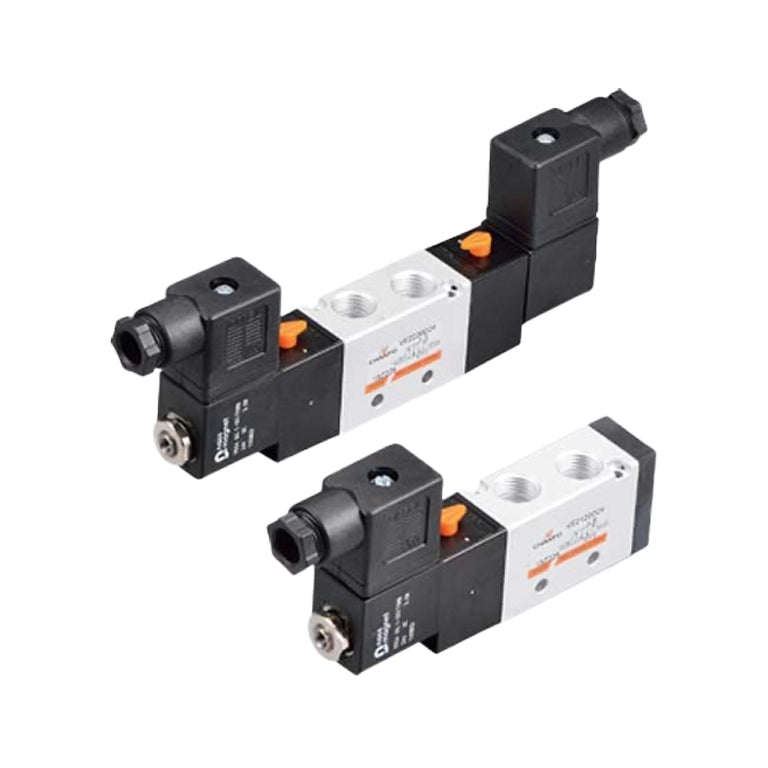

The Chanto VE1000 Series is a high-performance, micro-scale body-ported solenoid valve lineup engineered for precise directional control in pneumatic systems. These compact valves feature a space-saving footprint without sacrificing pneumatic throughput.
Designed for high-frequency switching and rapid cycle times, the VE1000 series utilizes a low-wattage pilot-actuated spool mechanism. This minimizes heat generation and system power draw. They support versatile inline plumbing and multi-station manifold mounting, making them ideal for modern, dense industrial automation setups.
Ardee Hi-Tech Pvt Ltd. is the official and authorized distributor of Chanto Solenoid Valves in India.

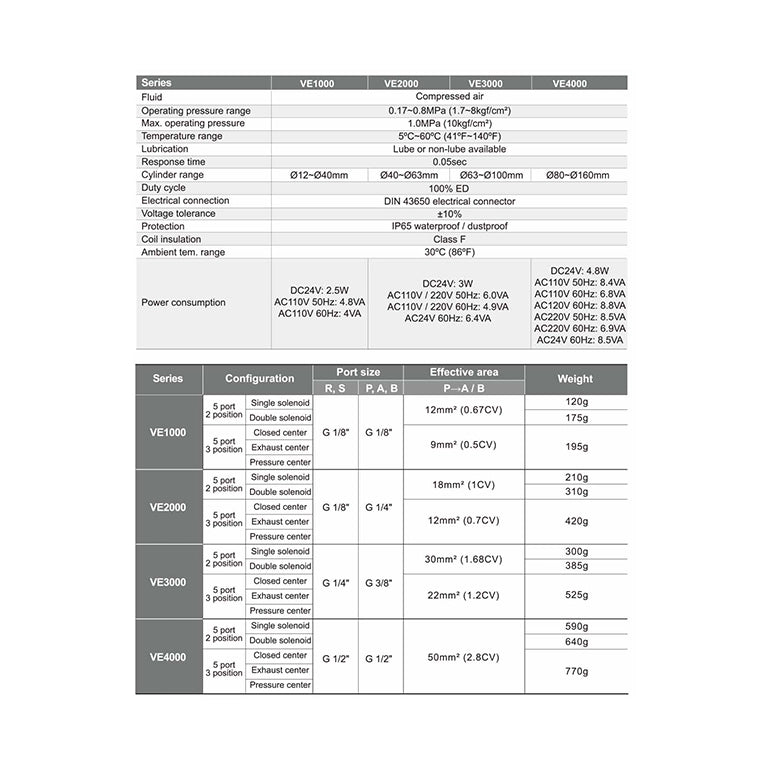

General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered and lubricated/non-lubricated compressed air (40-micron filtration recommended)
Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)
Ambient & Fluid Temperature: -5°C to 60°C (Non-freezing conditions)
Standard Port Sizes: G 1/8" or M5 threaded connection ports
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz)
Electrical Entry Formats: Grommet lead wire style or DIN plug connector type
Maximum Operating Frequency: Up to 5 cycles per second
Material
Material
Main Valve Body: High-grade extruded Aluminum Alloy (Anodized for corrosion resistance)
Internal Spool: Precision-machined Aluminum Alloy with low-friction surface treatment
Seals & O-Rings: Premium Nitrile Butadiene Rubber (NBR) and Hydrogenated NBR (HNBR)
Pilot Valve Components: Stainless Steel armature tube and internal springs
Solenoid Coil Housing: Thermoplastic resin encapsulation with copper magnet wire winding
Share
Product Knowledge
Areas of Application
Electronic Assembly Lines: Direct control of small-bore double-acting micro linear cylinders.
Packaging Machinery: Powering pick-and-place headers, vacuum ejector pilots, and sorting gates.
Textile Automation: High-speed yarn feeding control and pneumatic tensioning systems.
Pneumatic Control Cabinets: High-density manifold grouping within compact control enclosures.
Medical Equipment Manufacturing: Non-fluid contact air routing for testing and automated sorting apparatuses.

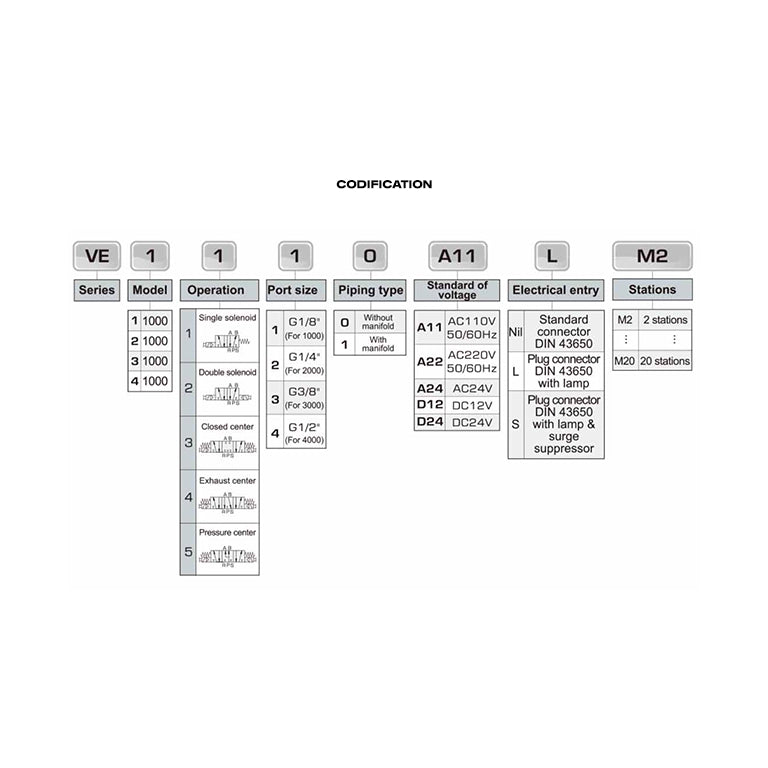

Part Numbers
CHANTO VE1000 SERIES
1. VE1100 Series (5/2 Way, Single Solenoid Body-Ported)
VE110A11 • VE110A22 • VE110D12 • VE110D24
VE110A11L • VE110A22L • VE110D12L • VE110D24L
VE110A11S • VE110A22S • VE110D12S • VE110D24S
2. VE1200 Series (5/2 Way, Double Solenoid Body-Ported)
VE120A11 • VE120A22 • VE120D12 • VE120D24
VE120A11L • VE120A22L • VE120D12L • VE120D24L
VE120A11S • VE120A22S • VE120D12S • VE120D24S
3. VE1300 Series (5/3 Way, Closed Center Body-Ported)
VE130A11 • VE130A22 • VE130D12 • VE130D24
VE130A11L • VE130A22L • VE130D12L • VE130D24L
VE130A11S • VE130A22S • VE130D12S • VE130D24S
4. VE1400 Series (5/3 Way, Exhaust Center Body-Ported)
VE140A11 • VE140A22 • VE140D12 • VE140D24
VE140A11L • VE140A22L • VE140D12L • VE140D24L
VE140A11S • VE140A22S • VE140D12S • VE140D24S
5. VE1500 Series (5/3 Way, Pressure Center Body-Ported)
VE150A11 • VE150A22 • VE150D12 • VE150D24
VE150A11L • VE150A22L • VE150D12L • VE150D24L
VE150A11S • VE150A22S • VE150D12S • VE150D24S
