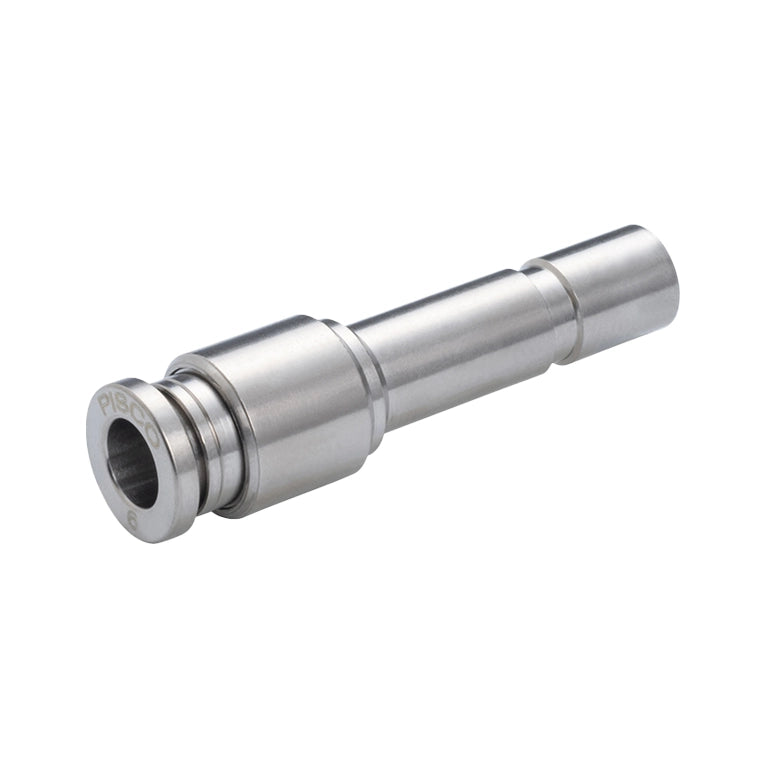

Tube Fitting Brass
Tube Fitting Brass

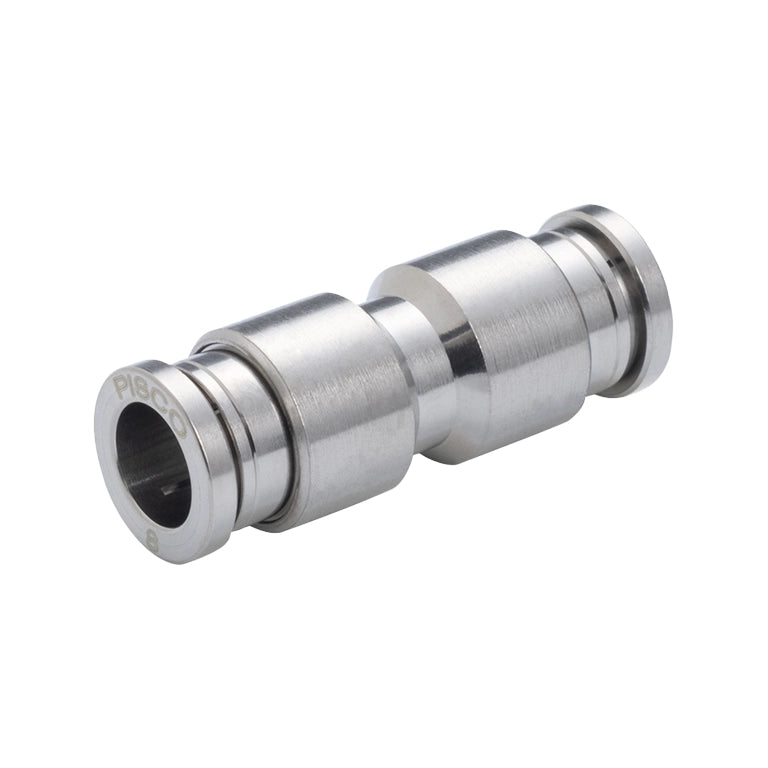

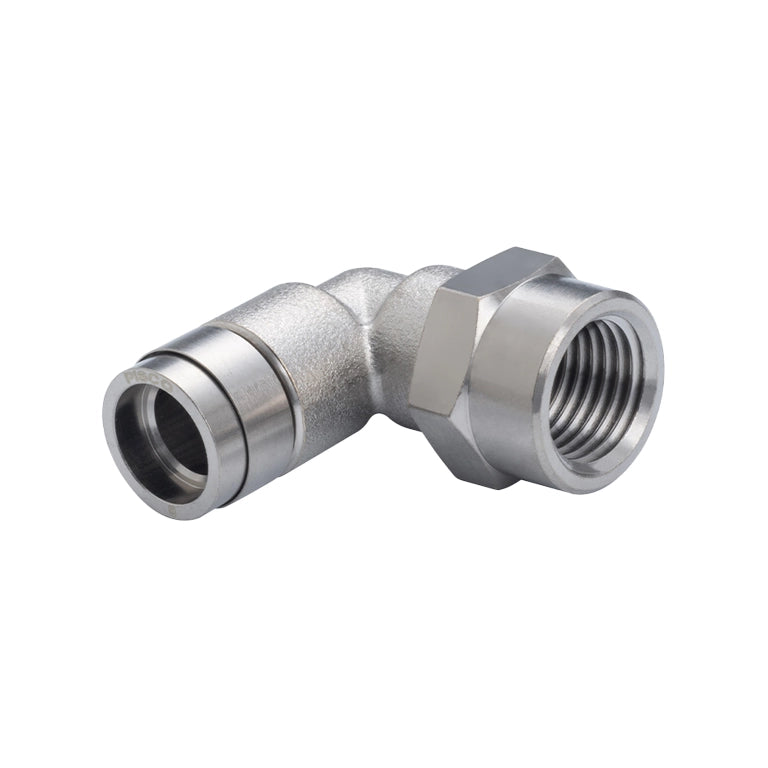

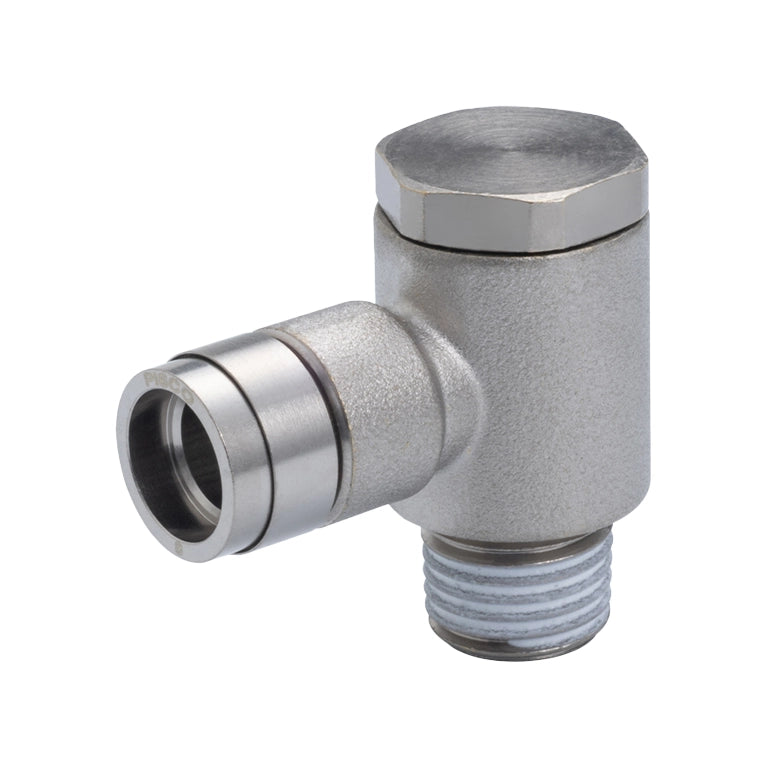

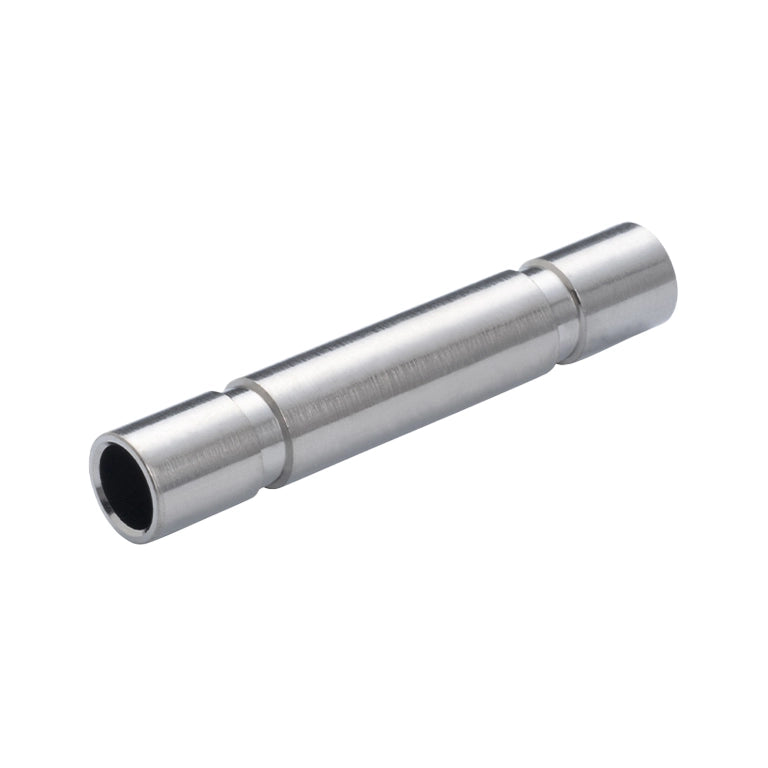

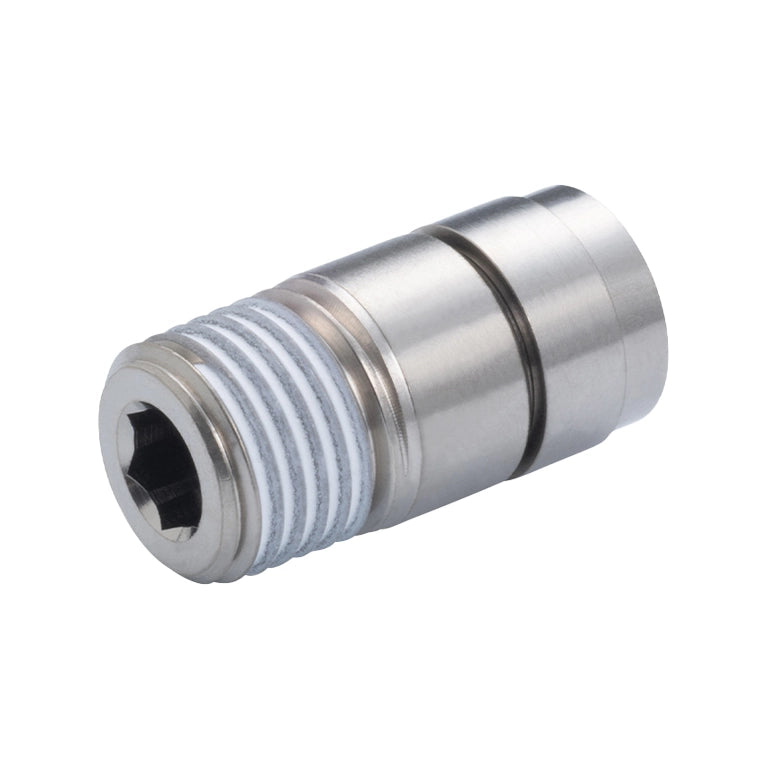

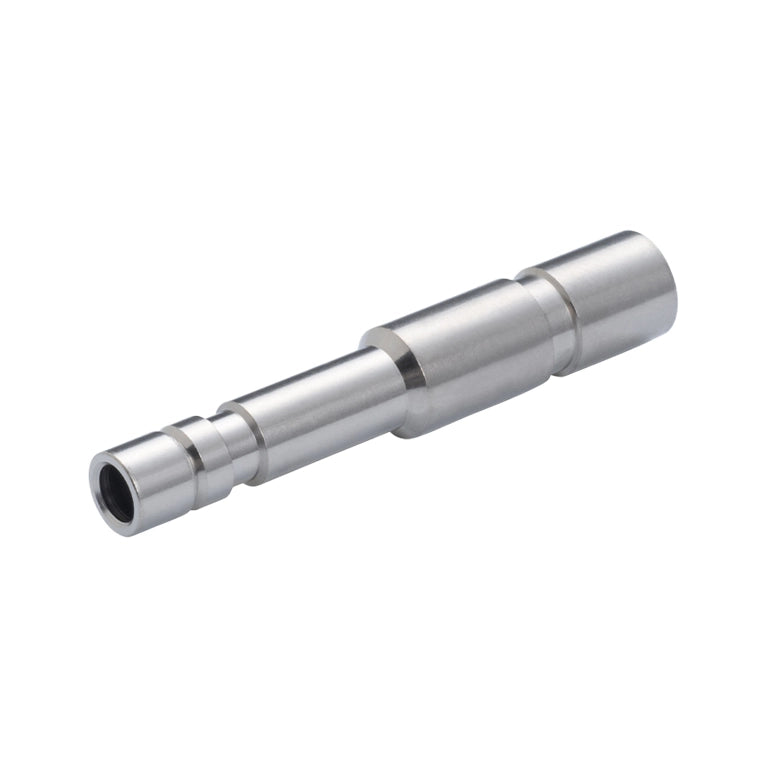

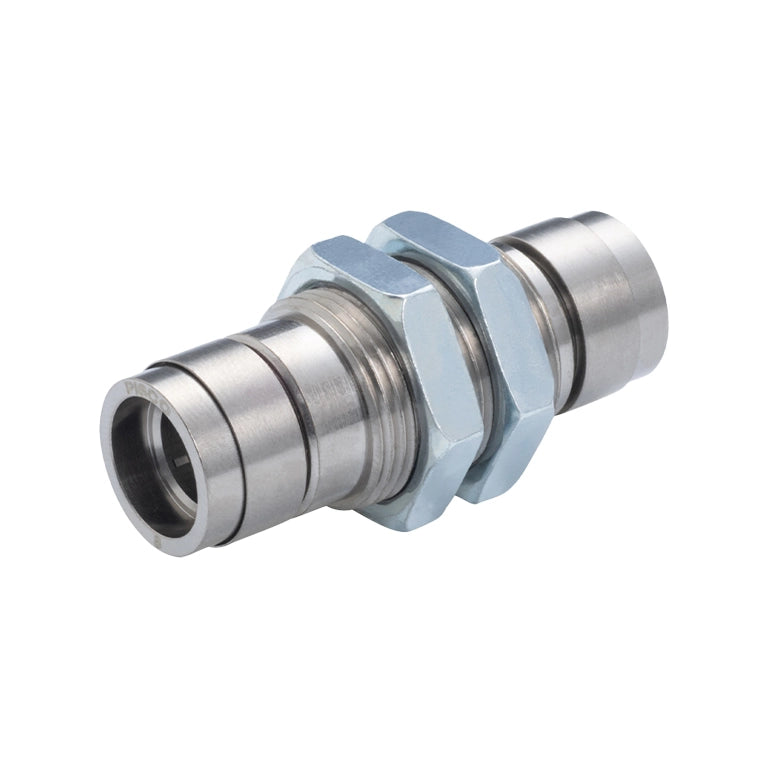

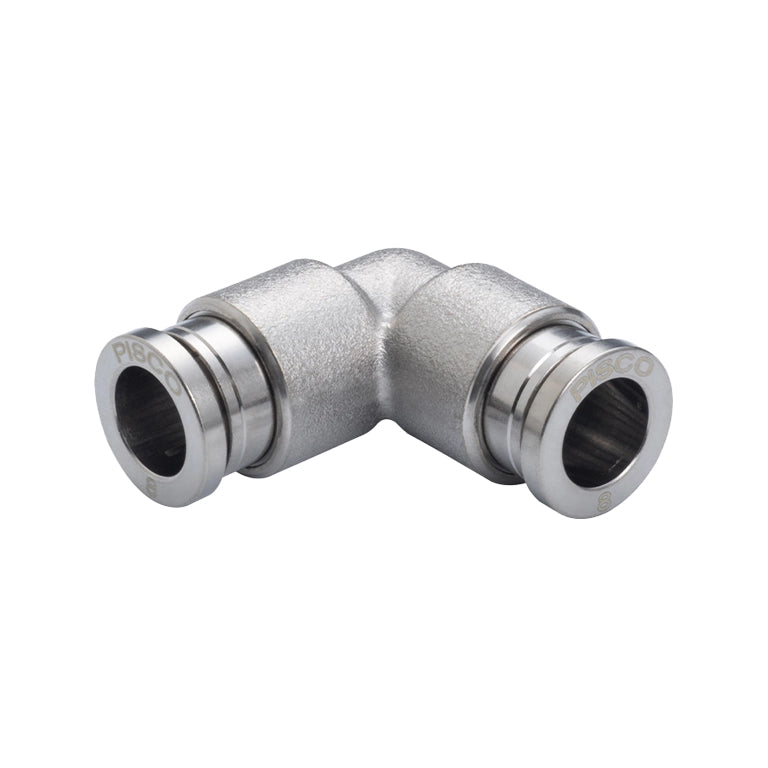

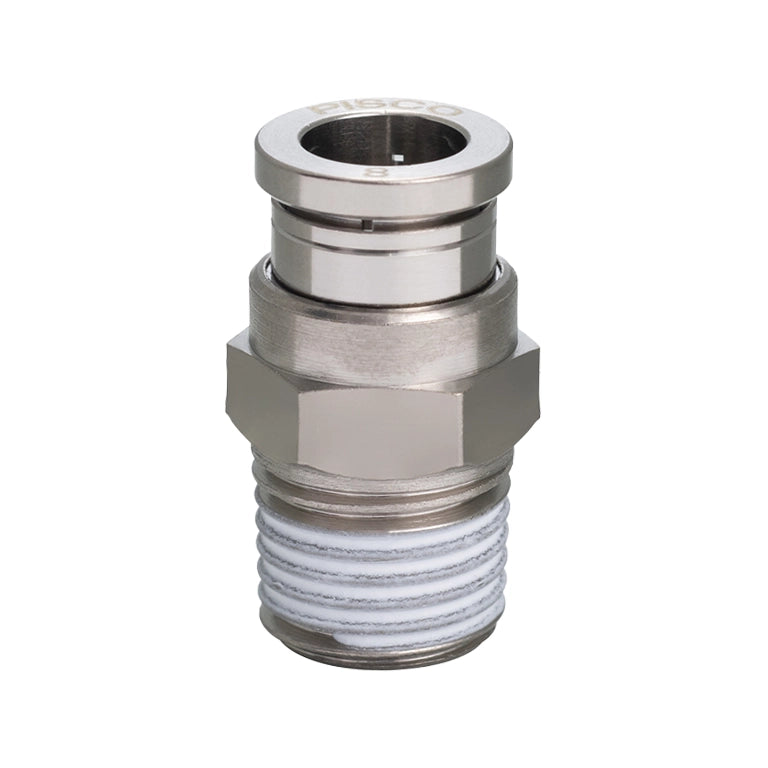

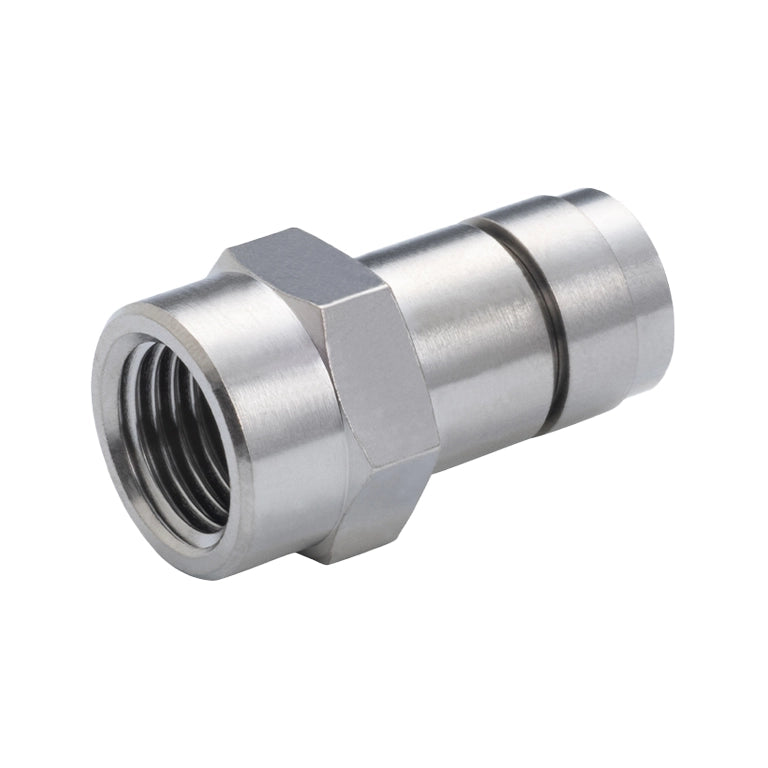

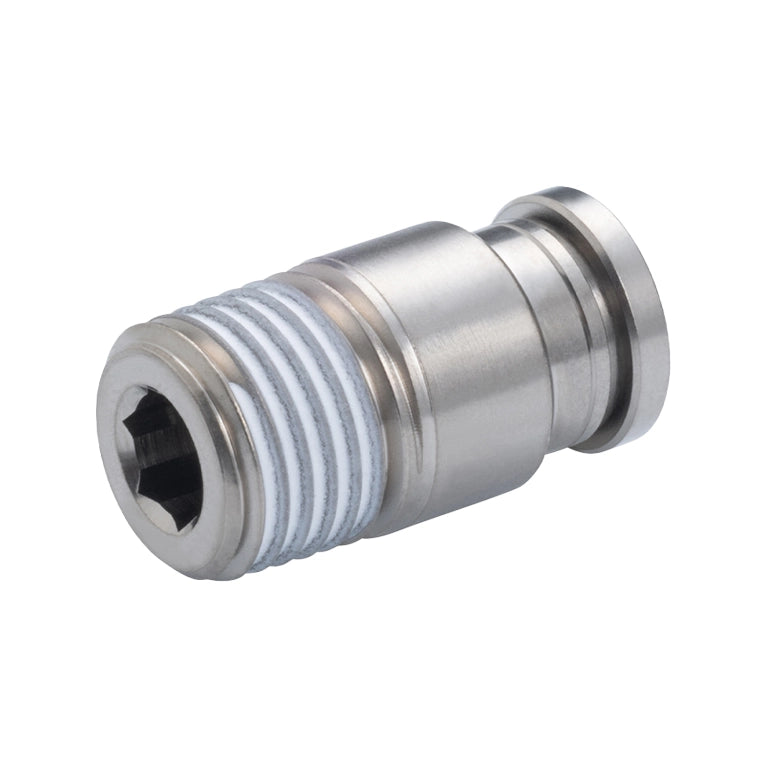

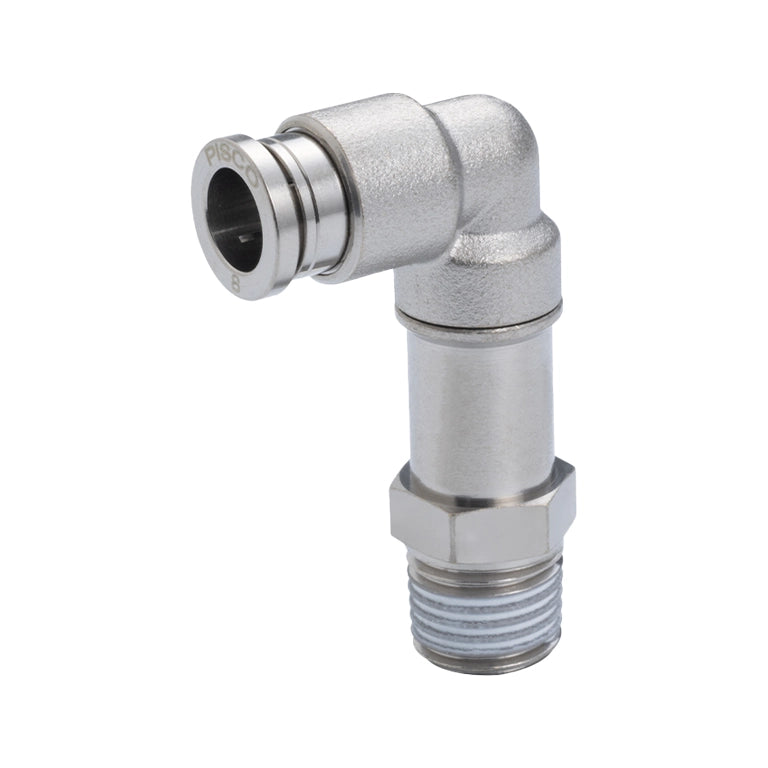

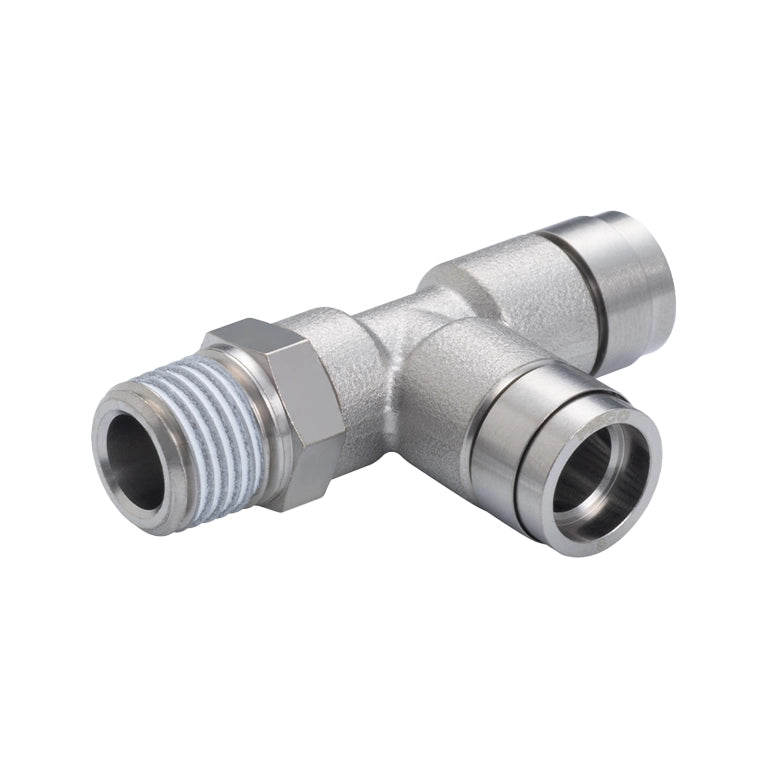

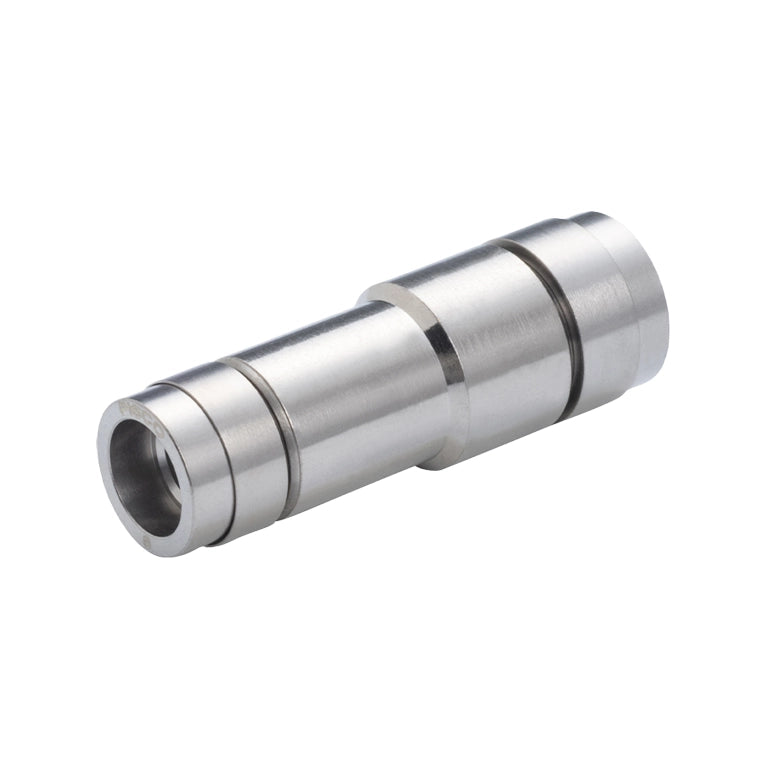

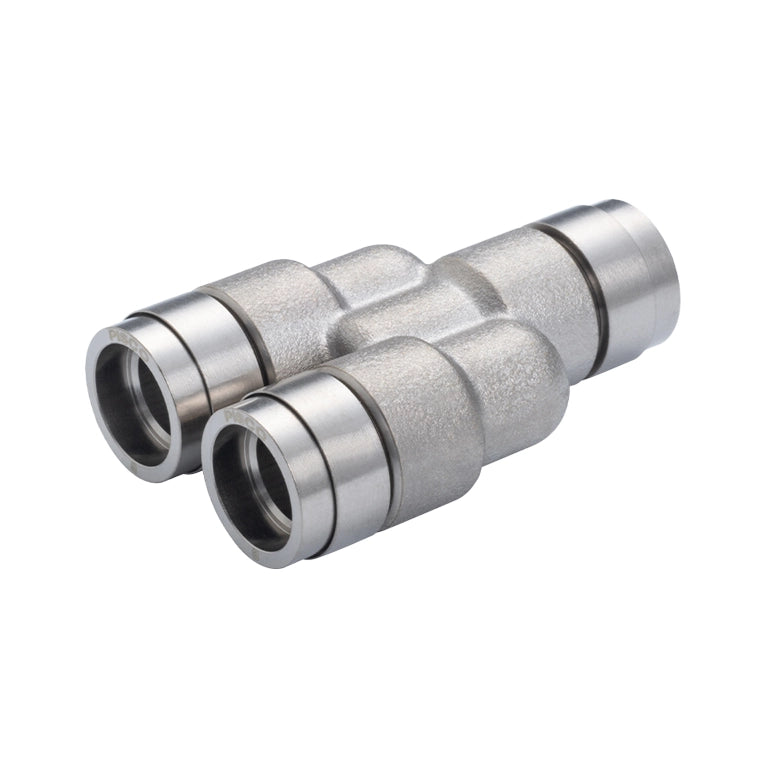

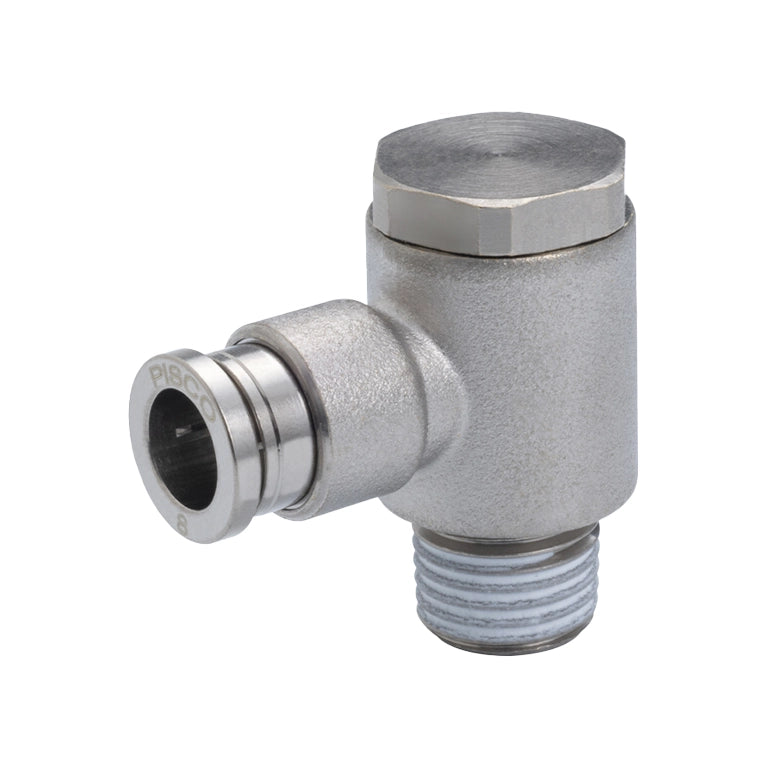

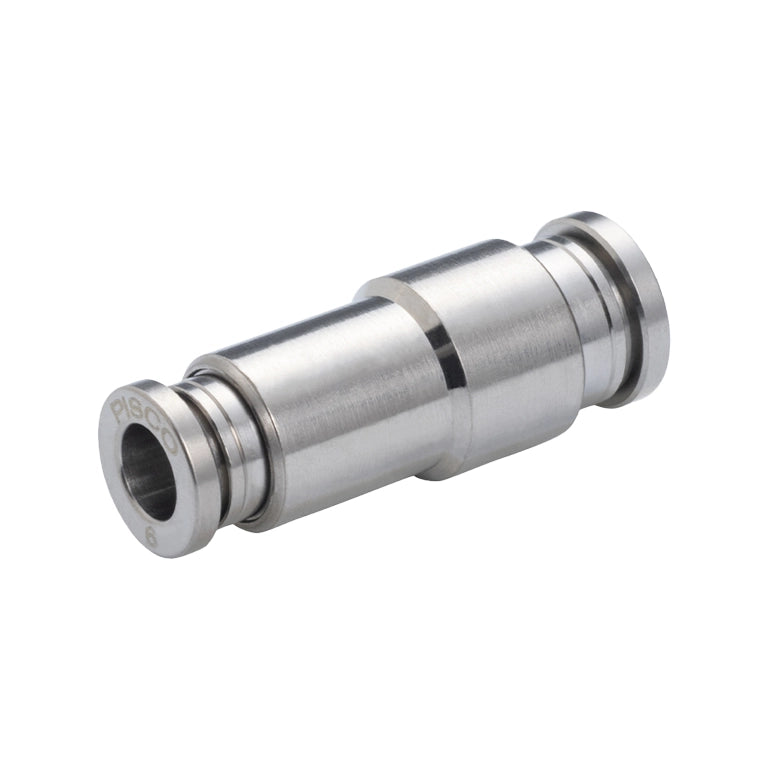

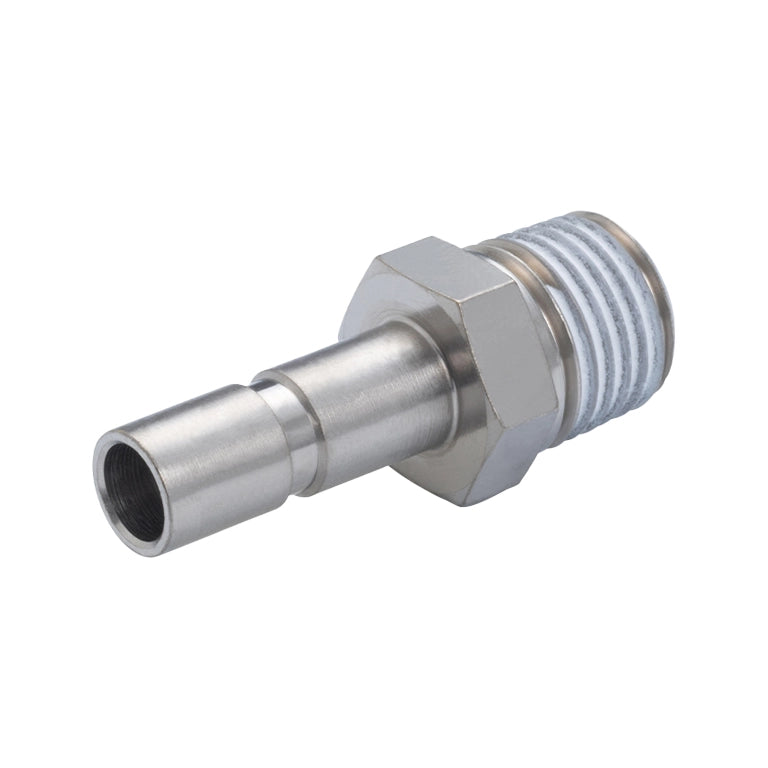

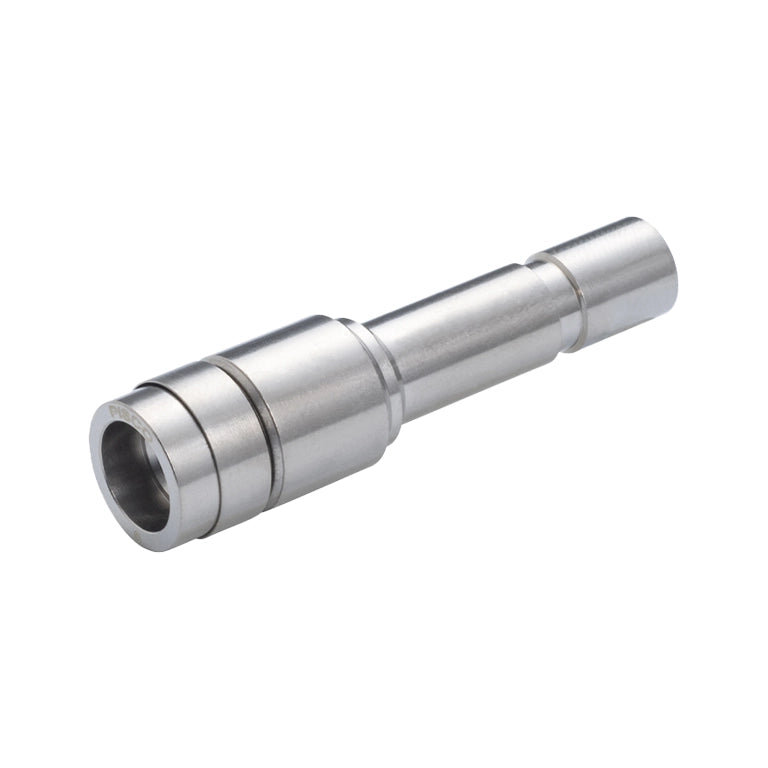

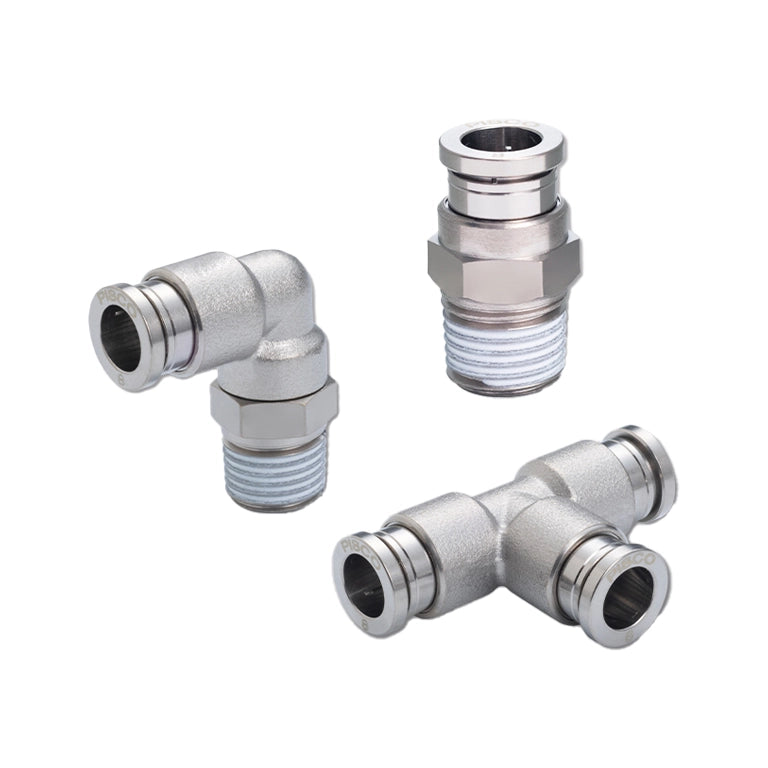

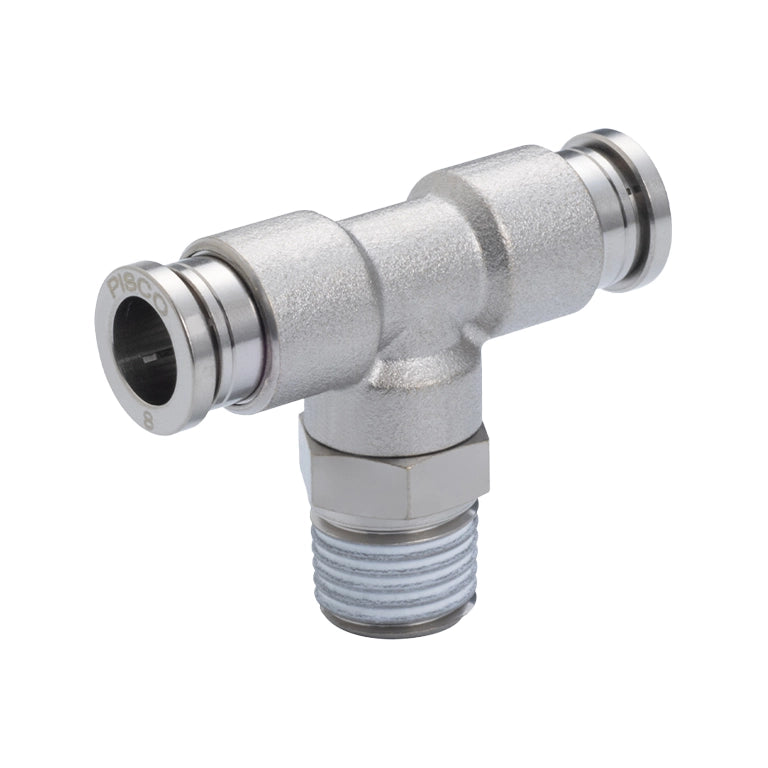

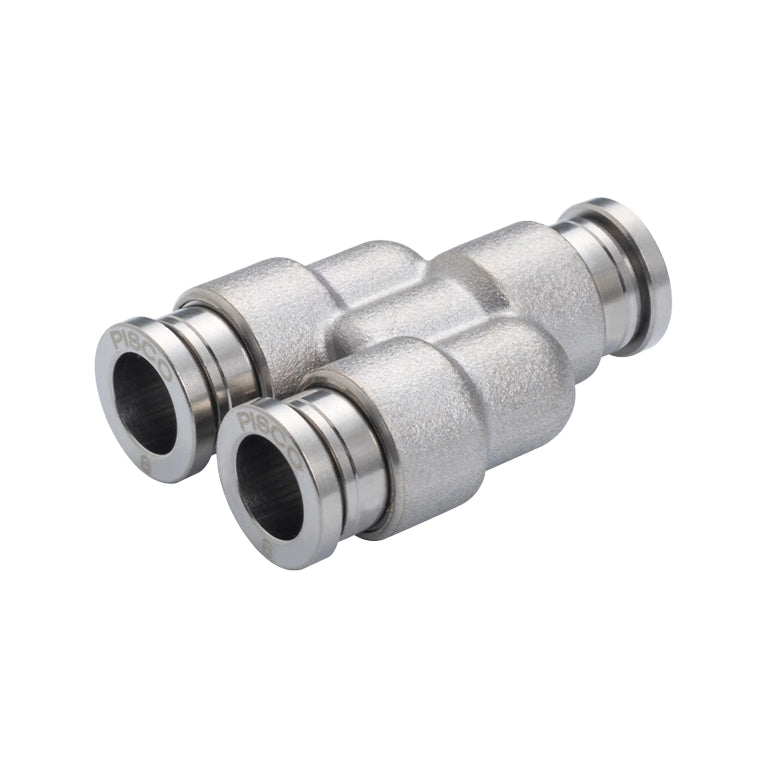

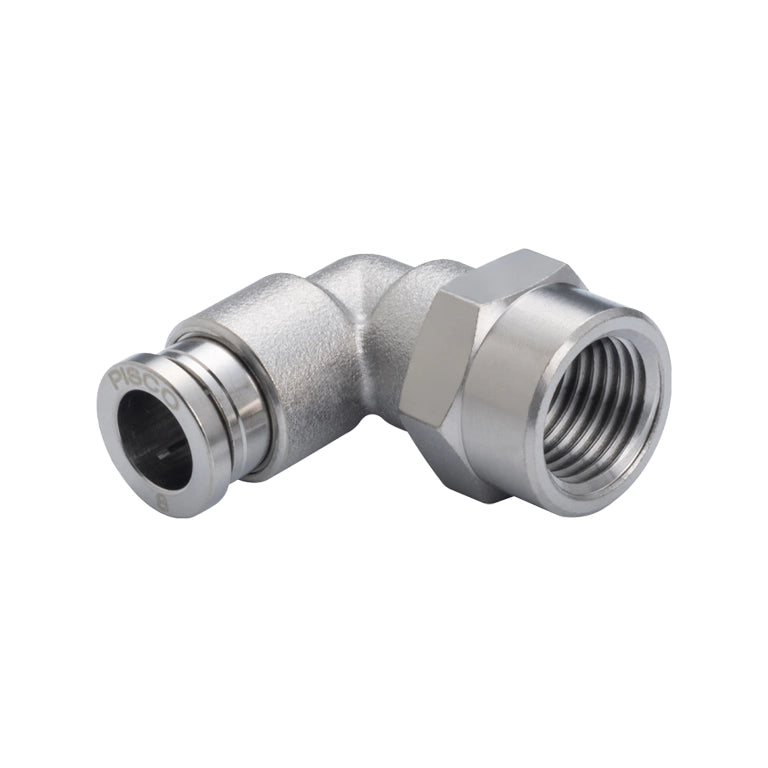

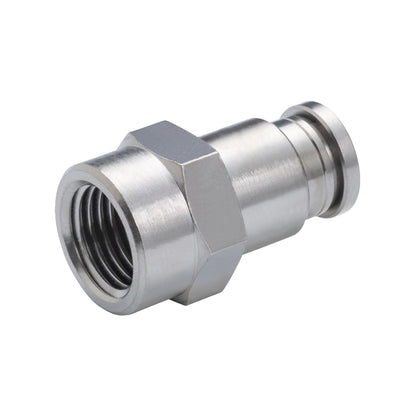

PISCO Tube Fitting Brass Series is an all-metal, high-performance pneumatic push-in connector designed for aggressive environments requiring extreme heat and flame resistance. Unlike standard fittings, both its heavy-duty body and its release ring are constructed entirely from premium brass, providing robust protection against flying weld spatter and molten slag. Available in variants with protective covers to prevent spark penetration, or without covers for mold cooling applications, this series eliminates traditional plastic degradation issues while allowing free 360-degree tube rotation after installation.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of PISCO Brass Fittings in India.
General Specifications
General Specifications
Fluid Media: Compressed air, industrial water, and specialized heat carrier oils (subject to strict operational conditions).
Max Pressure: 1.0 MPa (145 PSI / 10 bar).
Vacuum Rating: -100 kPa (-29.5 in.Hg).
Temperature Range: Dependent on seal option; HNBR spans 0°C to 100°C, FKM handles up to 120°C (150°C for specific variants), and NBR covers 0°C to 60°C.
Tube Sizes: Accommodates outer diameter (OD) sizes of ø4mm, ø6mm, ø8mm, ø10mm, ø12mm, and ø16mm, along with selected fractional inch sizes.
Thread Sizes: Standard metric (M5x0.8, M6x1) and taper pipe threads (R1/8, R1/4, R3/8, R1/2).
Thread Seal: Taper threads feature a factory-applied, heat-resistant Sealock coating; metric connections utilize a physical seal gasket.
Design Configurations: Available in 20 distinct shapes and over 1,100 specific models to support flexible circuit building.
Material
Material
Metallic Body: Premium Brass treated with a durable, scratch-resistant nickel plating.
Release Ring: Solid Nickel-plated Brass for complete spatter, crack, and thermal degradation resistance.
Locking Claws: Industrial-grade Stainless Steel for a secure, long-term mechanical tube grip.
Protective Cover: Spatter-resistant brass or matching structural metal alloys.
Elastic Seals & O-Rings: Interchangeable configurations including standard Hydrogenated Nitrile (HNBR), high-temp Fluoroelastomer (FKM), or Nitrile Rubber (NBR).
Share
Product Knowledge
Areas of Application
Automotive Industry / Body Shops: Engineered for automated spot-welding cells, assembly line jigs, and robotic welding gun manifolds exposed directly to open arcs and sparks.
Die & Mold Temperature Control: Widely used in mold cooling systems, die casting operations, and heat exchanger lines handling high-temperature fluid circuits.
Heavy Industrial Machinery: Suited for lubrication piping systems, packaging equipment, and high-vibration factory automation setups utilizing fine-pitch M6 thread profiles.
High-Ambient Environments: Optimized for pneumatic lines routing through iron foundries, glass blowing factories, and steel fabrication shops where ambient heat quickly warps plastic alternatives.
Part Numbers
