Alwitco

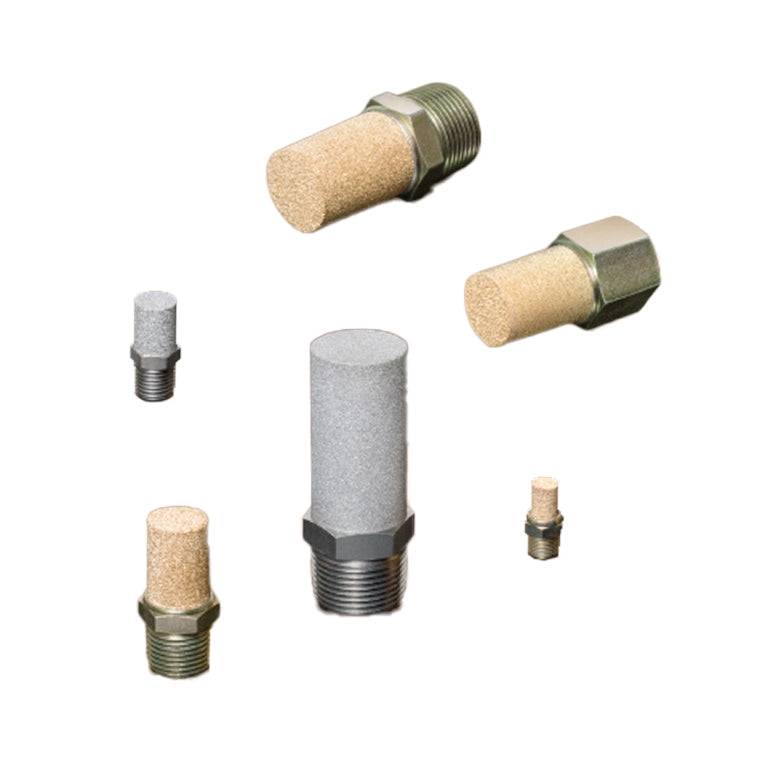

Porous Metal Filter-Muffler
Porous Metal Filter-Muffler
The ALWITCO Porous Metal Filter-Muffler is a compact, low-profile noise reduction component designed for selective permeability with optimum filtering and diffusion. It features a tough cellular porous metal element bonded securely to a heavy-duty steel ferrule, providing a high-strength design that excels in confined workspaces. This dual-action device safely vents exhausting pneumatic air blasts while separating oil mists, trapping water vapors, and catching micro-particulates. It serves as a reliable solution for maintaining stable pressure or vacuum equalization across systems.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Filtration Threshold: Equipped with a standard 40-micron or 50-micron filtration rating for positive particle retention.
Connection Type: Available in standard male NPT and BSP pipe thread configurations.
Connection Sizes: Spans sizes from miniature 10-32 ports up to standard 1/8” to 1” NPT connections.
Multi-Fluid Compatibility: Formulated for the uniform diffusion of compressed air, industrial gases, and liquids.
Flow Performance: Retains a balanced flow rating to safely exhaust pneumatic cylinders without creating backend line restrictions.
Material
Material
Sintered Porous Bronze: Built with standard sintered porous bronze structures for high-density impact absorption.
Zinc-Plated Steel Ferrules: Reinforced with zinc-plated steel or industrial brass base attachments to prevent thread stripping.
All-Stainless Steel Variant: Available in an all-stainless steel formulation (Model P18–P88) for highly corrosive fluid paths.
Coalescing Stability: Media prevents degradation from constant exposure to petroleum lubricants, oil mist, and humidity.
Share
Product Knowledge
Areas of Application
Air Valve Silencing: Mounts onto the exhaust ports of directional pneumatic control valves to curb high-frequency noise.
Cryogenic Phase Separation: Handles extreme low-temperature fluid gas lines to safeguard thermal processing machinery.
Pressure & Vacuum Equalization: Regulates ambient internal pressures within storage tanks, vessels, and enclosures.
Oil Mist Coalescing: Traps synthetic compressor oil carryover before it can exhaust into facility breathing zones.
Compact Breather Vents: Acts as a low-profile protective breather on hydraulic reservoirs, small cylinders, and gearboxes.

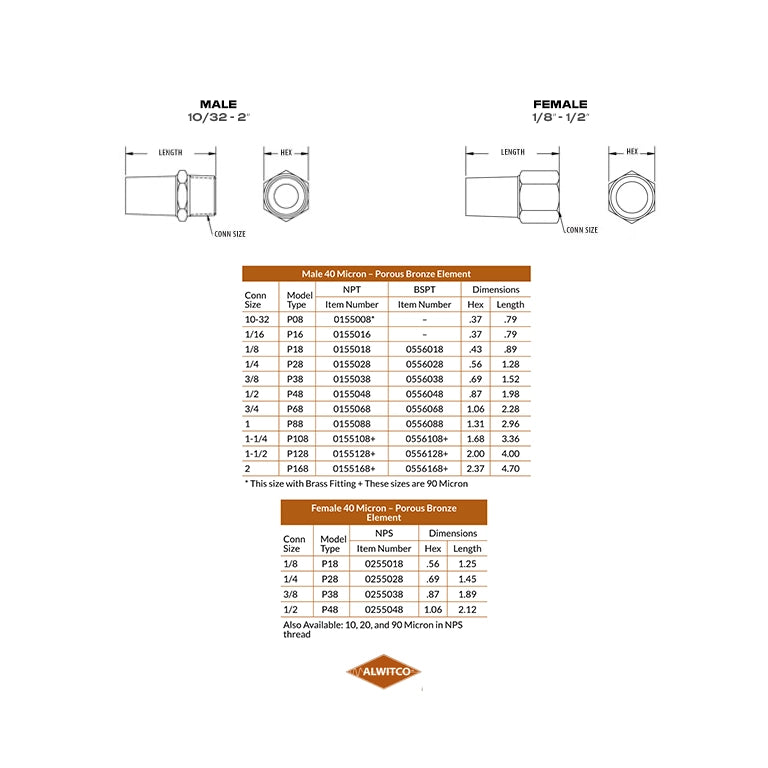

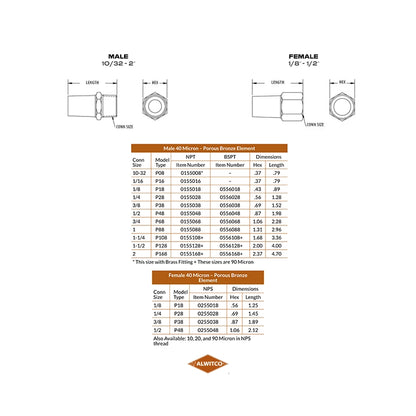

Part Numbers
P08 0155008 • P16 0155016 • P18 0155018 • P18 0556018 • P28 0155028 • P28 0556028 • P38 0155038 • P38 0556038 • P48 0155048 • P48 0556048 • P68 0155068 • P68 0556068 • P88 0155088 • P88 0556088 • P108 0155108 • P108 0556108 • P128 0155128 • P128 0556128 • P168 0155168 • P168 0556168 • P18 0255018 • P28 0255028 • P38 0255038 • P48 0255048
