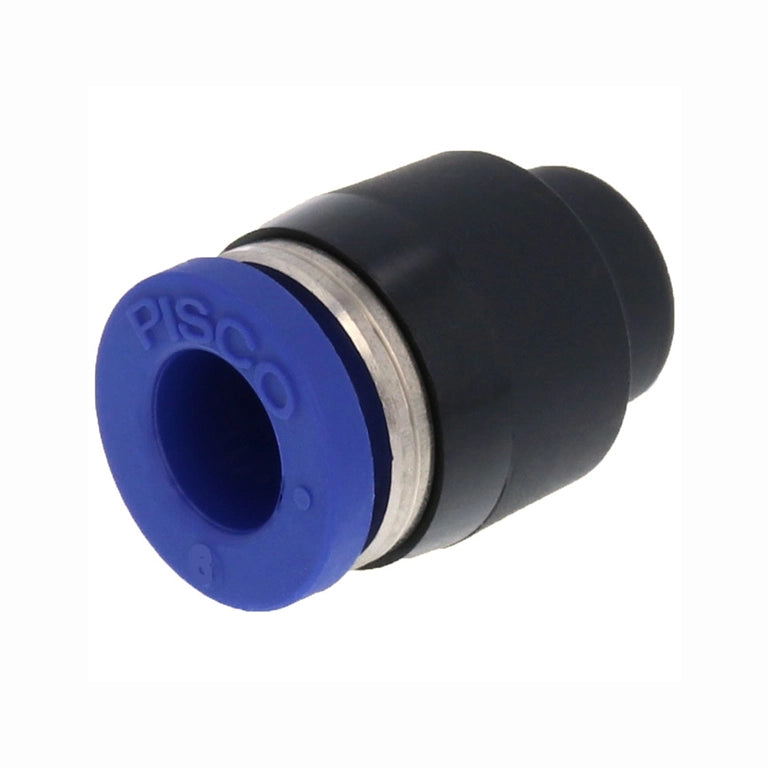

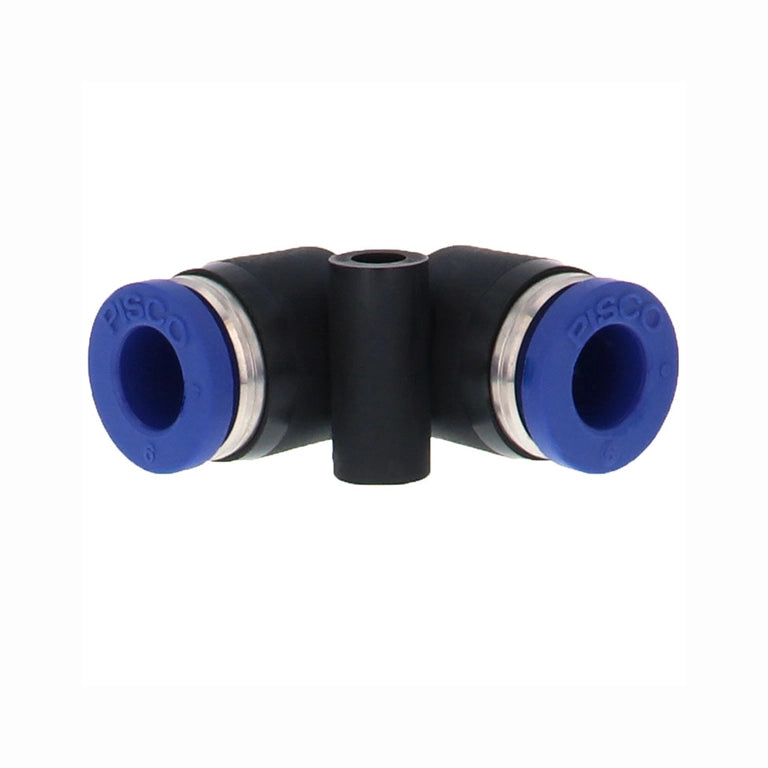

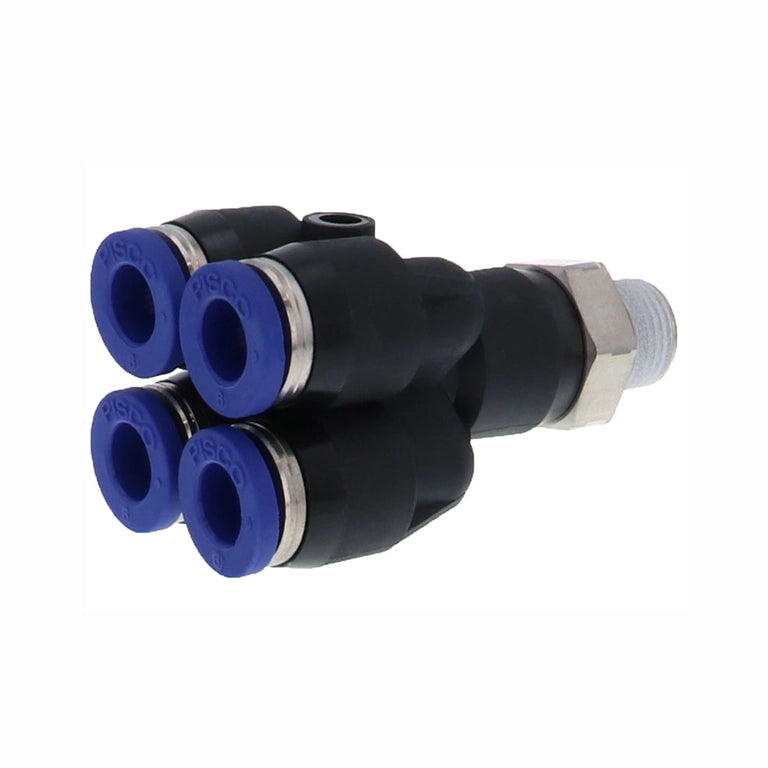

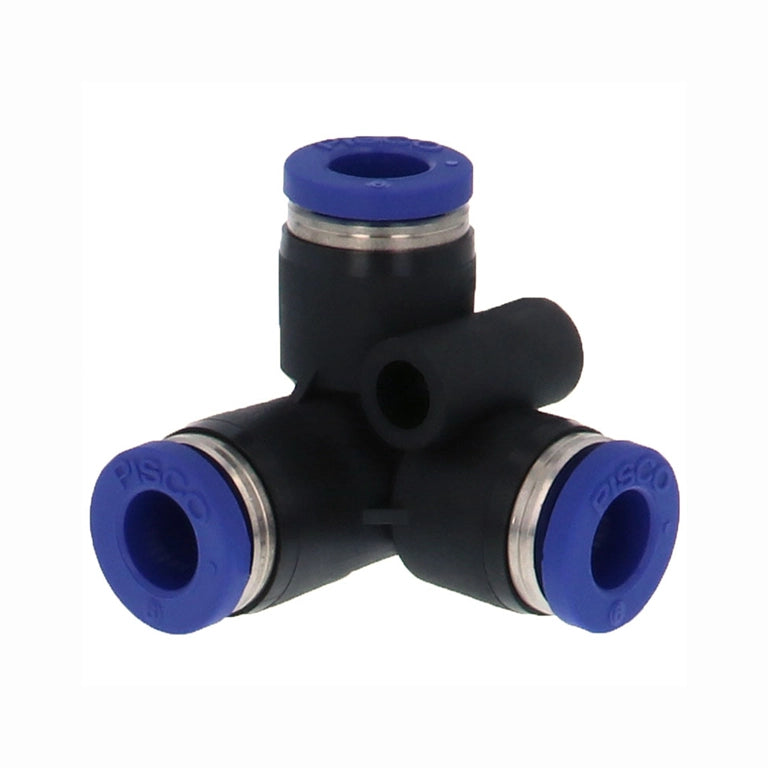

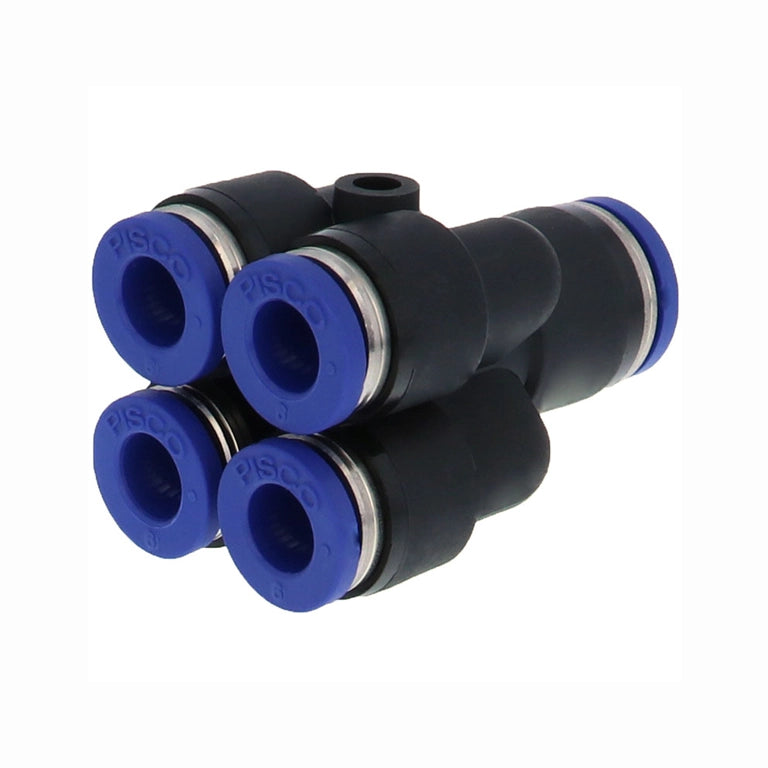

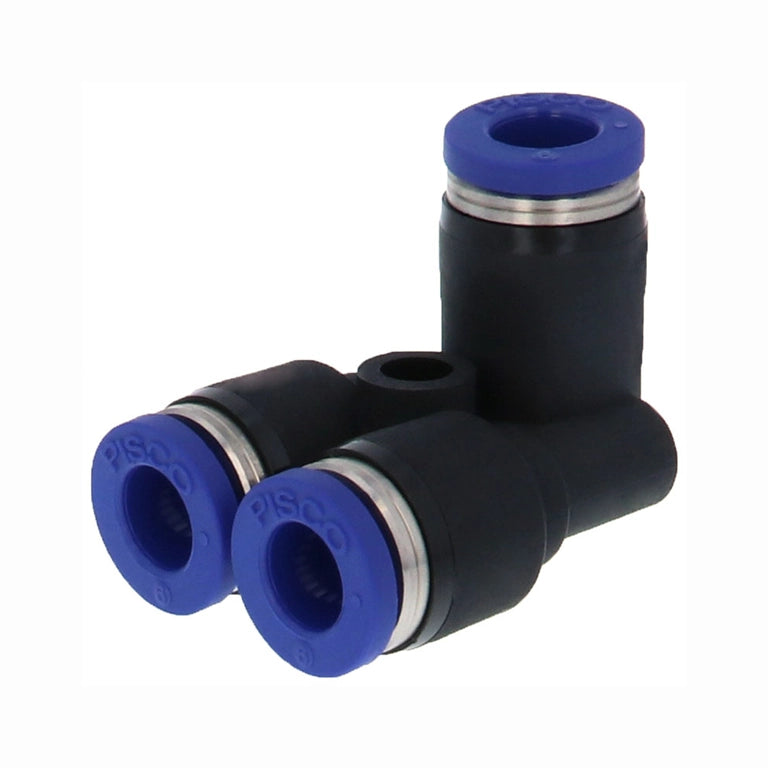

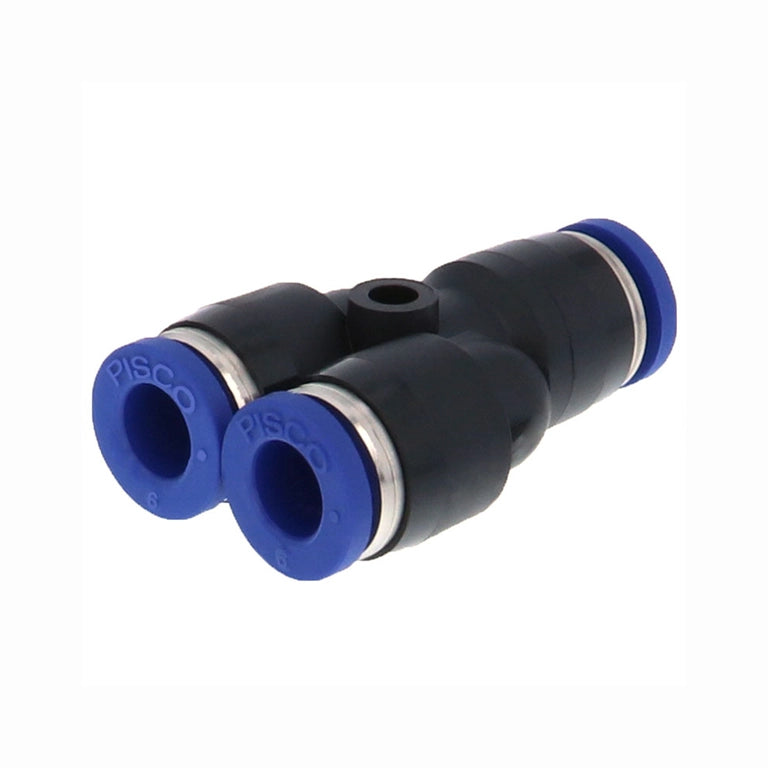

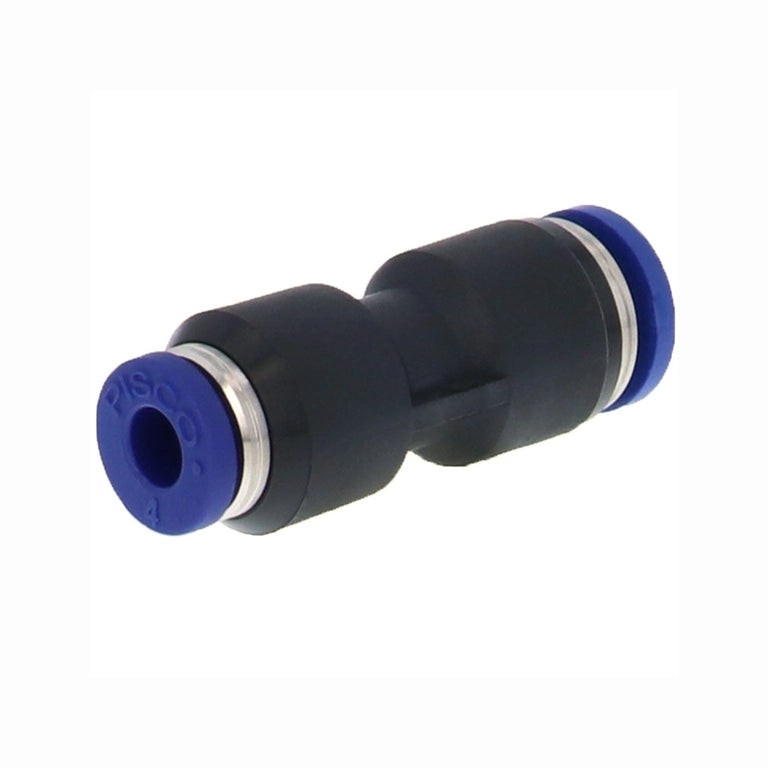

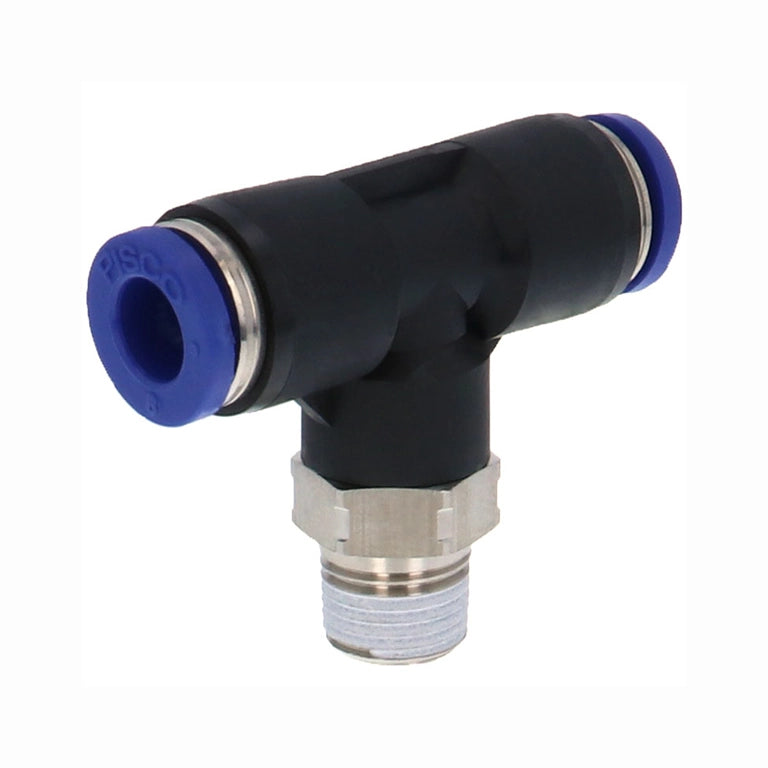

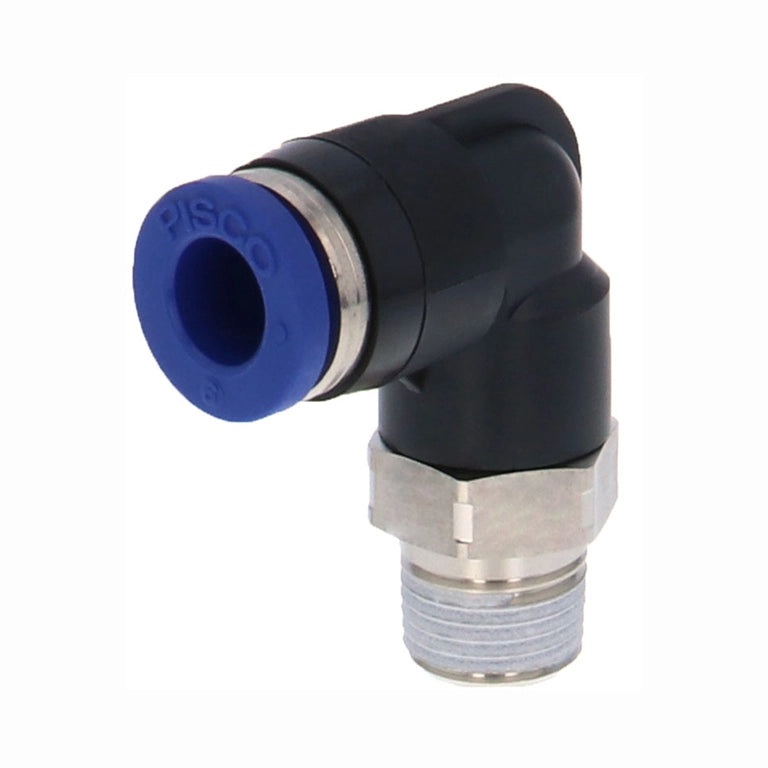

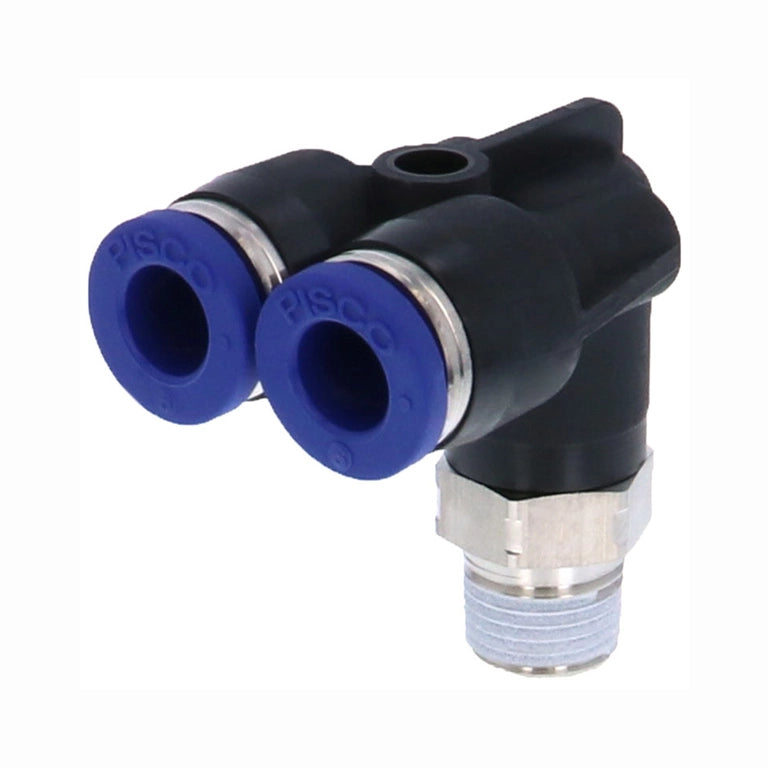

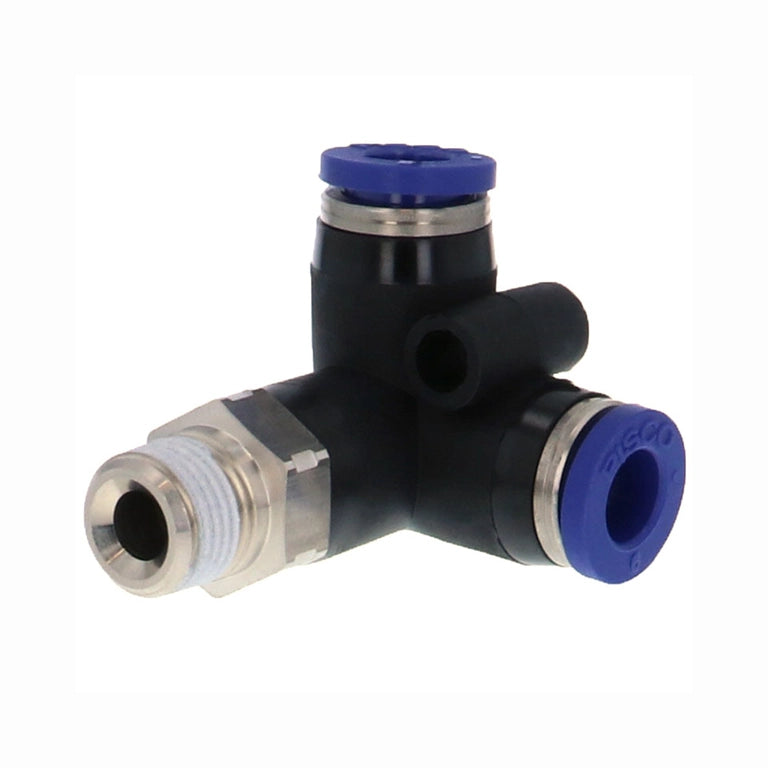

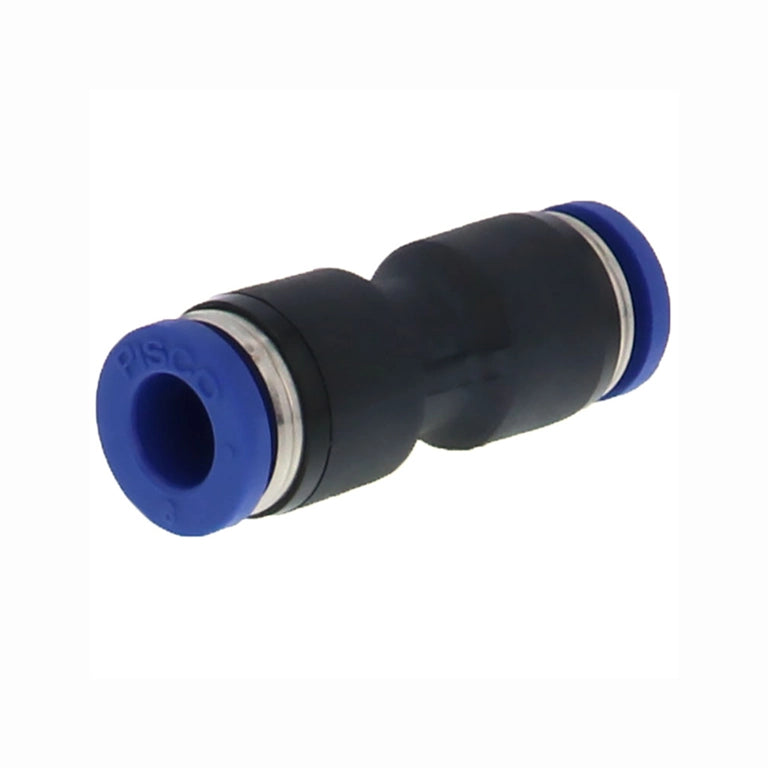

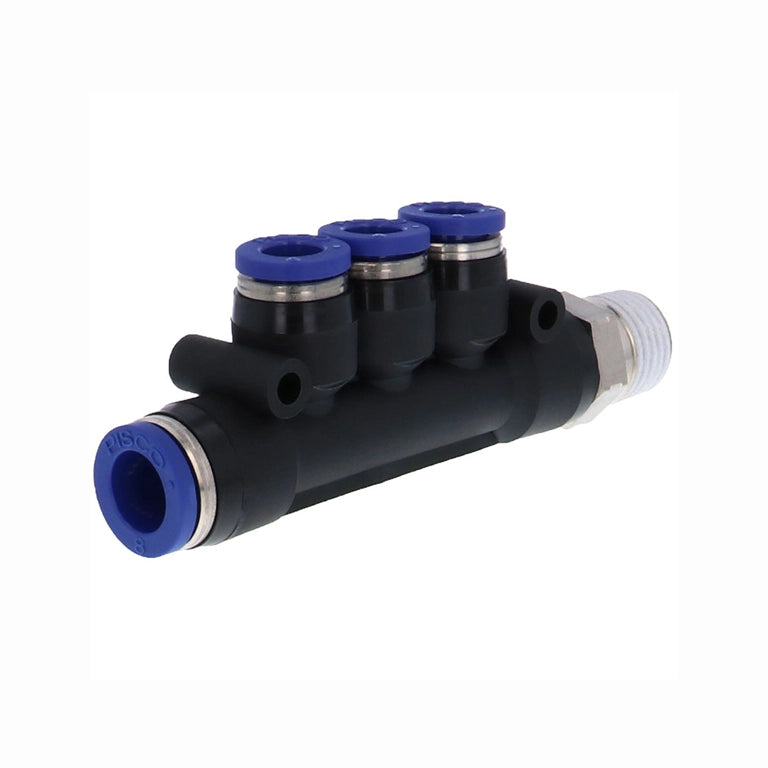

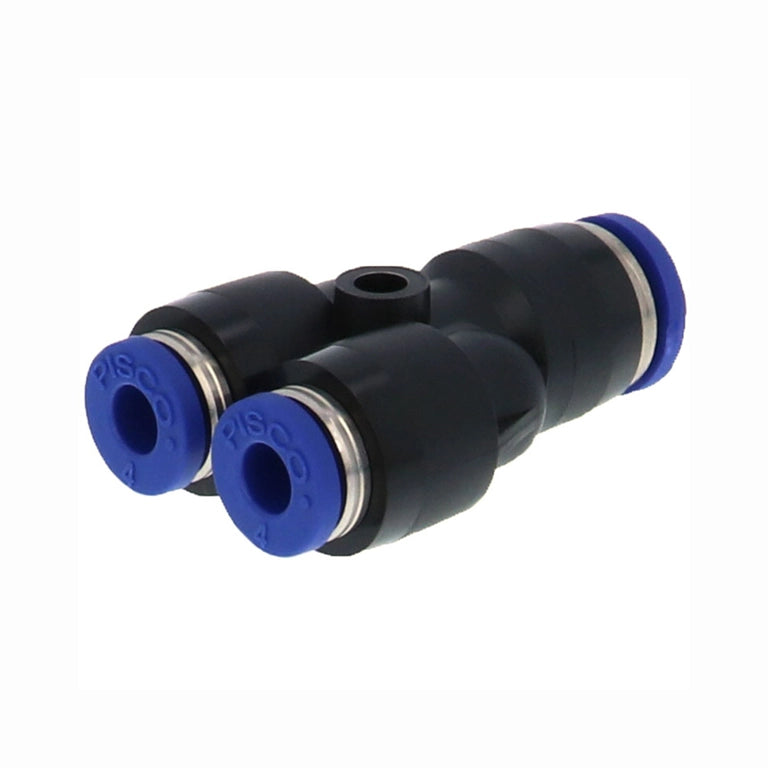

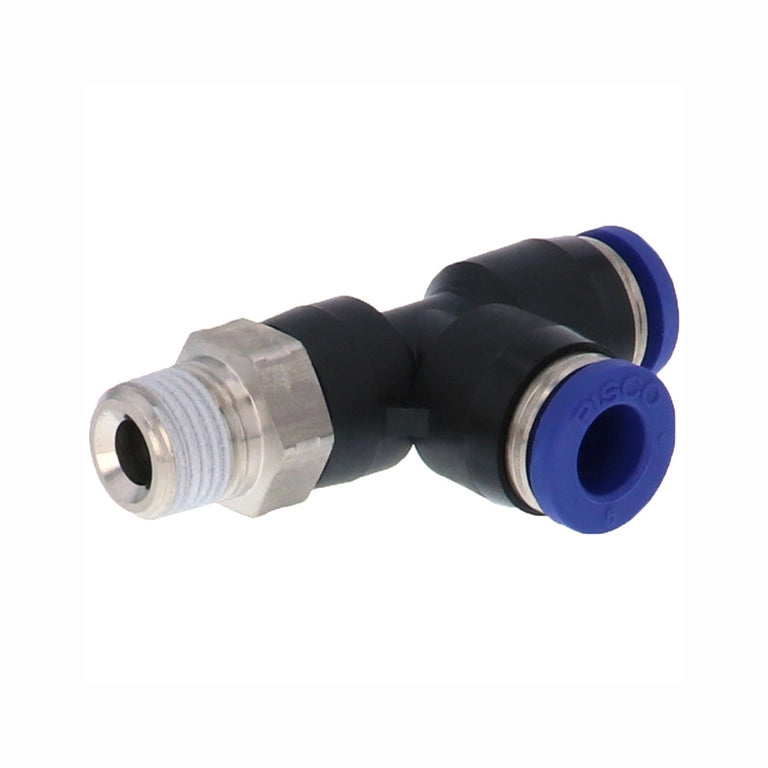

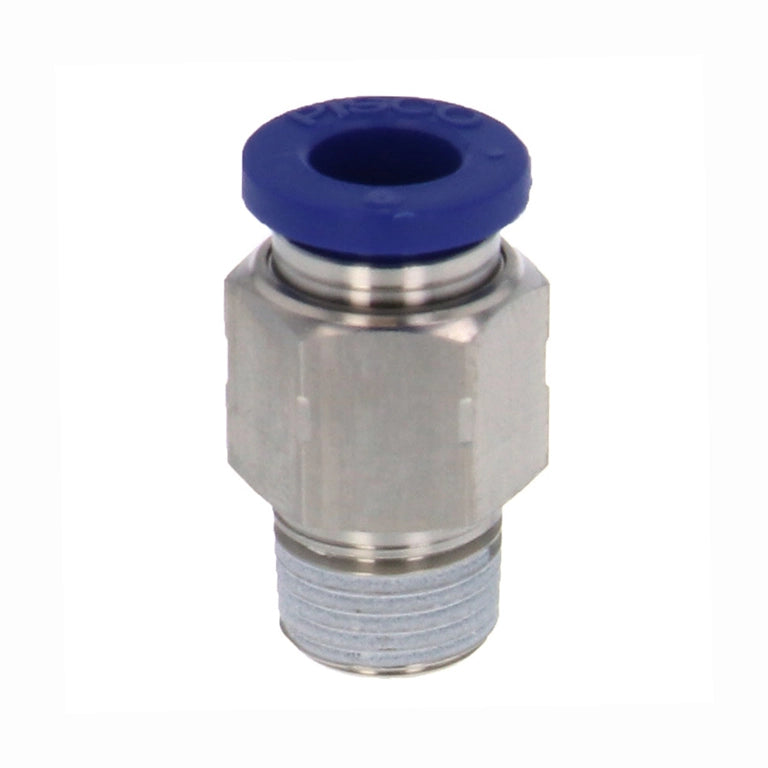

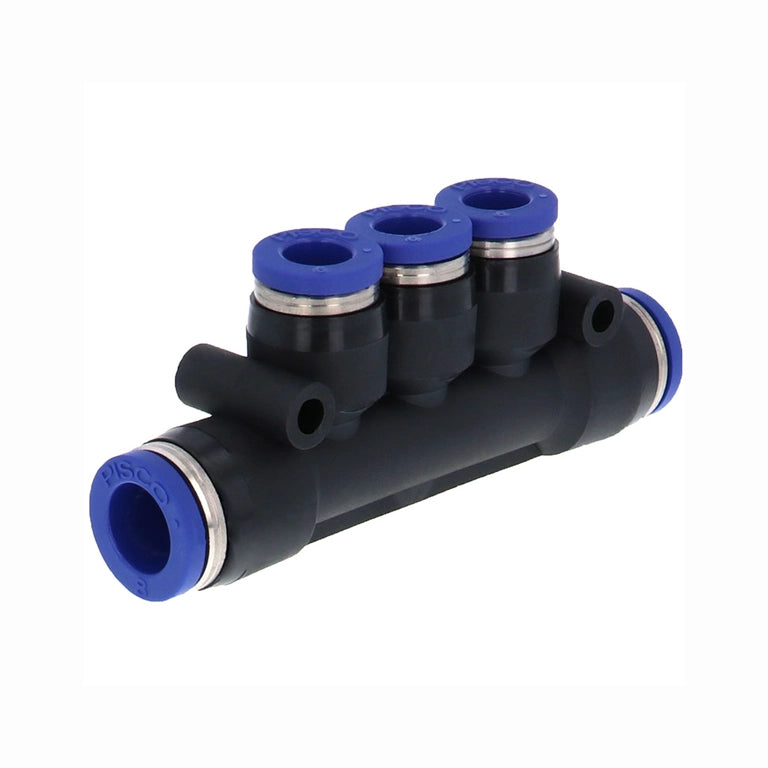

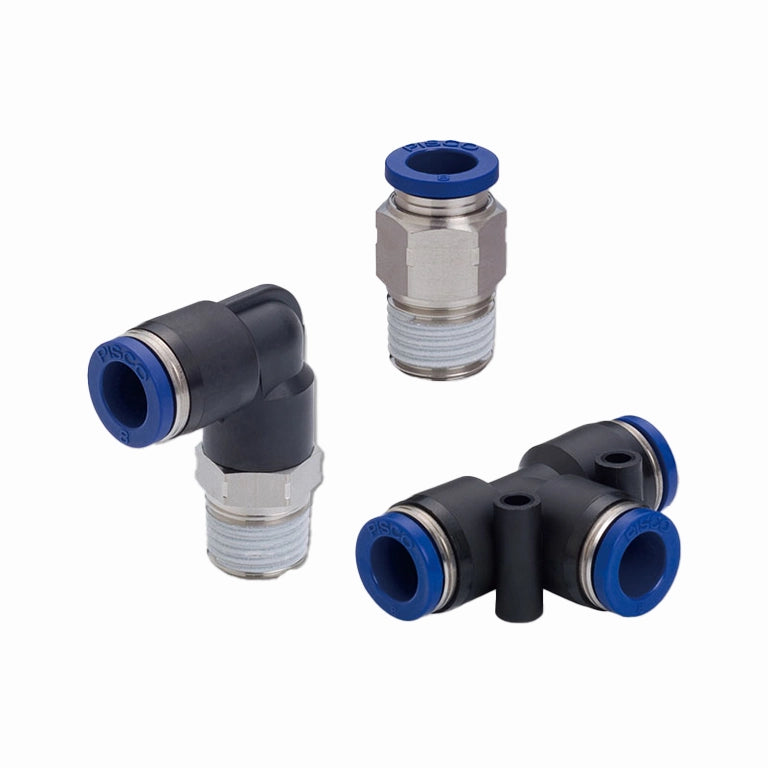

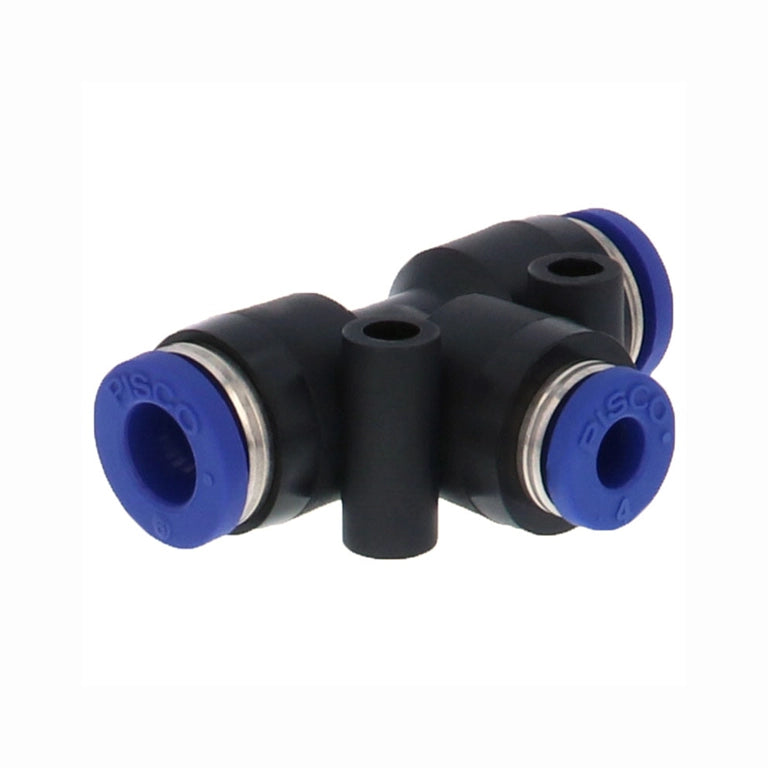

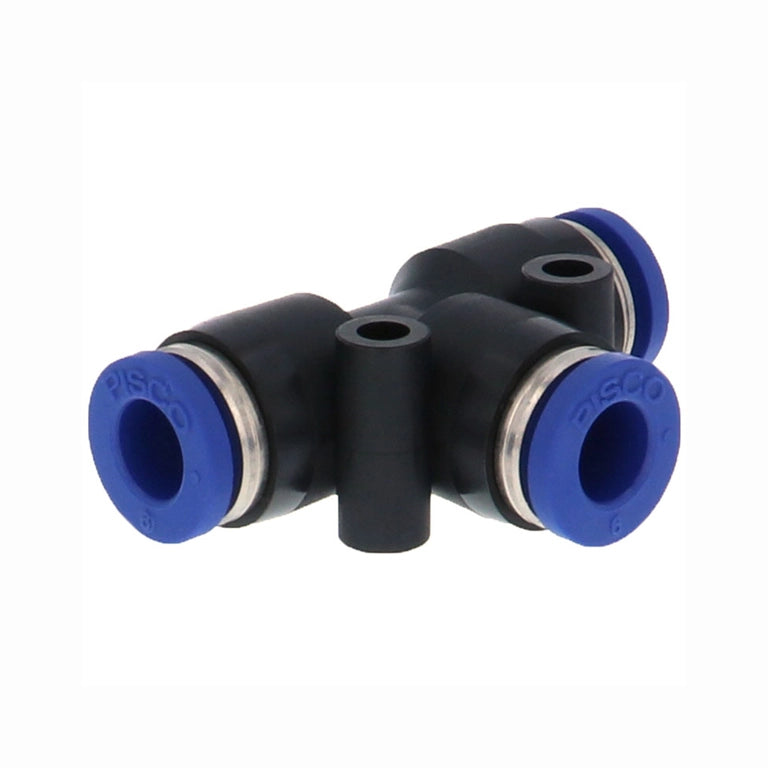

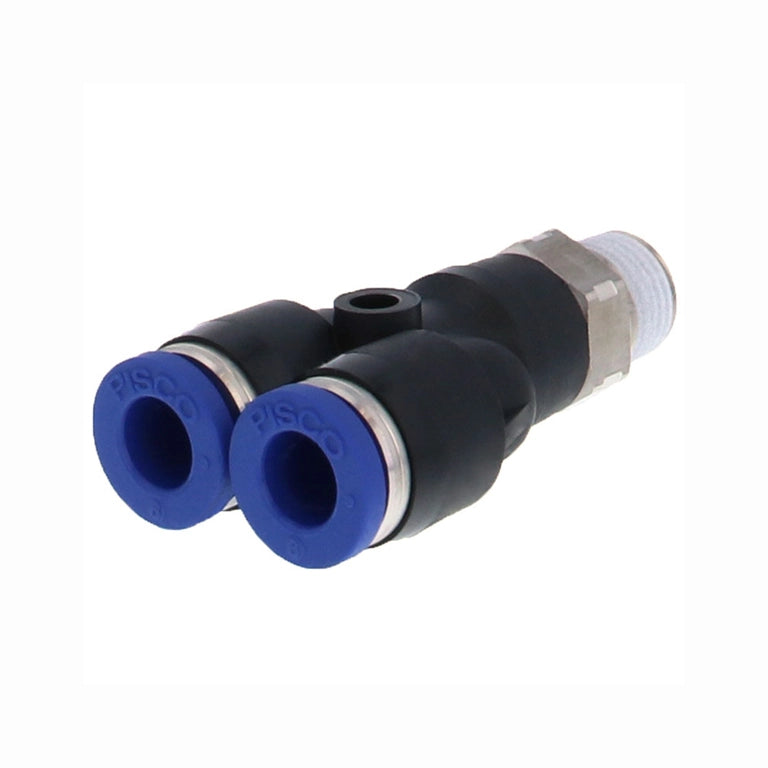

SUS304 Tube Fittings

The structural design framework strictly regulates connection geometry, tightening requirements, and safe physical parameters:

• Fluid Media: This series safely routes air, water, and specialized chemical liquids, subject to pre-verified installation conditions.
• Max Operating Pressure: The standard operational pressure tolerance is rated up to 1.0 MPa.
• Max Vacuum Level: The connection interface sustains a continuous maximum internal vacuum pressure down to -100 kPa.
• Operating Temp Range: The fitting operates across a standard temperature spectrum of 0 to 60°C, provided environment conditions remain strictly non-freezing.
• Port Size - Metric Tube OD: Accommodates metric tube outside diameters of 4mm, 6mm, 8mm, 10mm, 12mm, and 16mm.
• Port Size - Connection Threads: Features choice connections comprising Metric male threads (M5x0.8 and M6x1) alongside standard Taper Pipe threads (R1/8, R1/4, R3/8, and R1/2).
• Thread Tightening Guide: While taper pipe threads do not come pre-coated with PISCO Sealock coating, manual sealing tapes or liquid sealants must be applied starting 1.5 to 2 screw ridges away from the thread tip.
• Torque Warning: Rigid manual tightening must align with standard steel thread limits; applying excessive over-torque can permanently deform the metal hexagonal columns, leading to rotational thread failure and micro-leaks.
• Lubrication Code: These components support a clean, non-grease or oil-free specification assembly option upon request.
• Visual Identification Note: Genuine SUS304 variants are explicitly distinguished from look-alike SUS303 units via a specific V-groove stamped into the guide ring and a flat groove marked across the outer hexagonal column.

The internal and external composition of this series utilizes distinct, copper-free materials to guard against environmental degradation:

• Main Metal Parts: The heavy-duty metallic body and internal guide-ring are constructed using high-grade SUS304 stainless stee
• Main Resin Parts: The release-ring and external resin body are molded from a durable glass-reinforced Polybutylene Terephthalate (PBT) compound.
• Seal Rubber Material: The internal elastic sleeve and O-rings are manufactured from Fluorocarbon Rubber (FKM) to ensure optimal sealing integrity, with options for EPDM or HNBR compounds depending on the target medium
• Locking Claws: The critical gripping elements that bite into the outer walls of the tubing are constructed using resilient stainless steel.
