Pisco

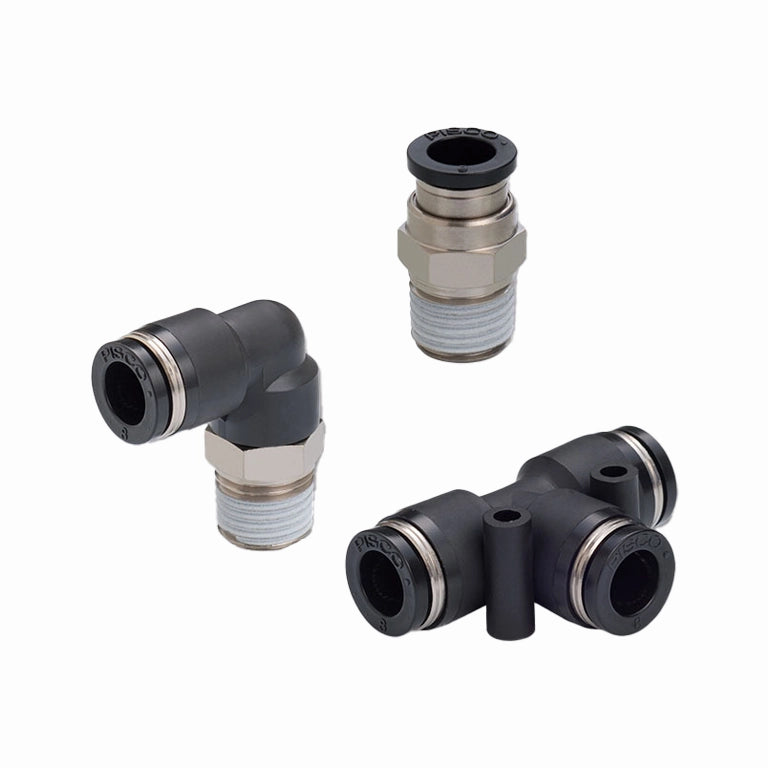

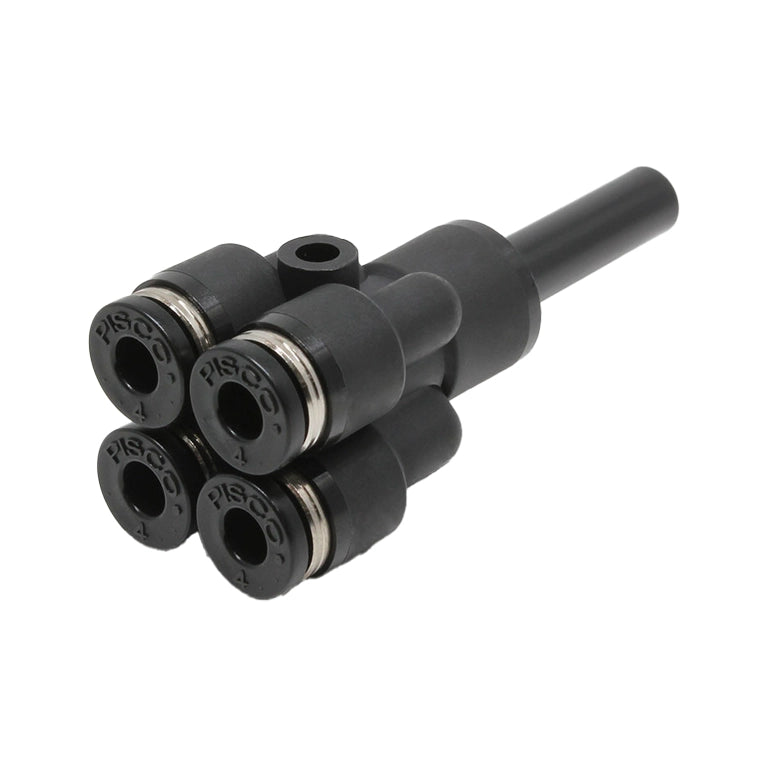

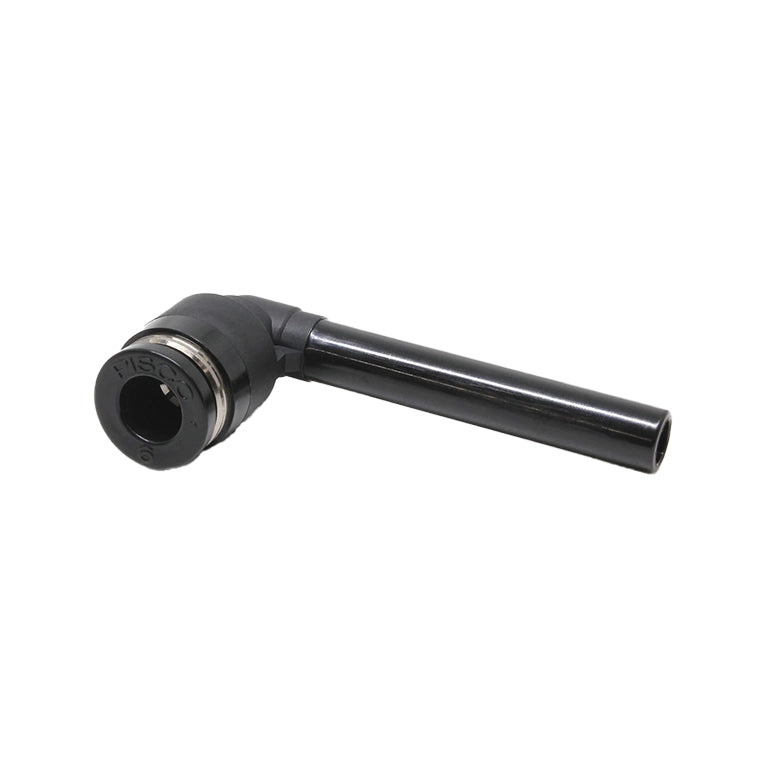

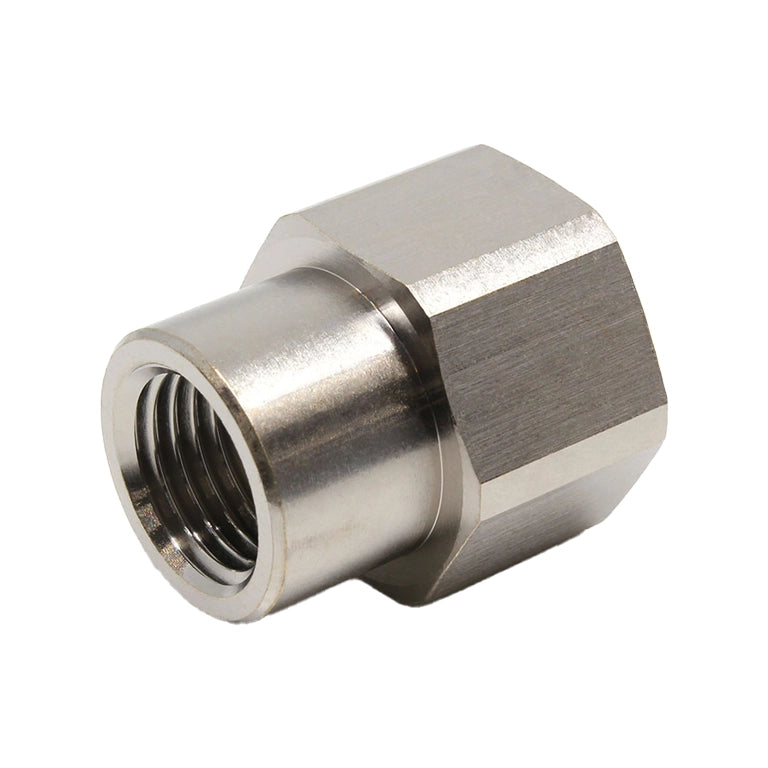

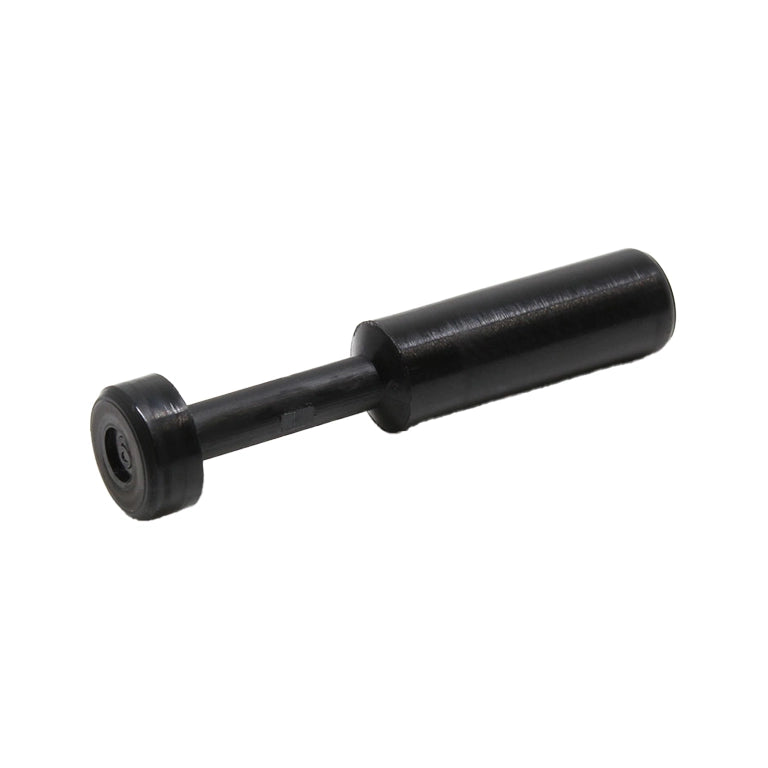

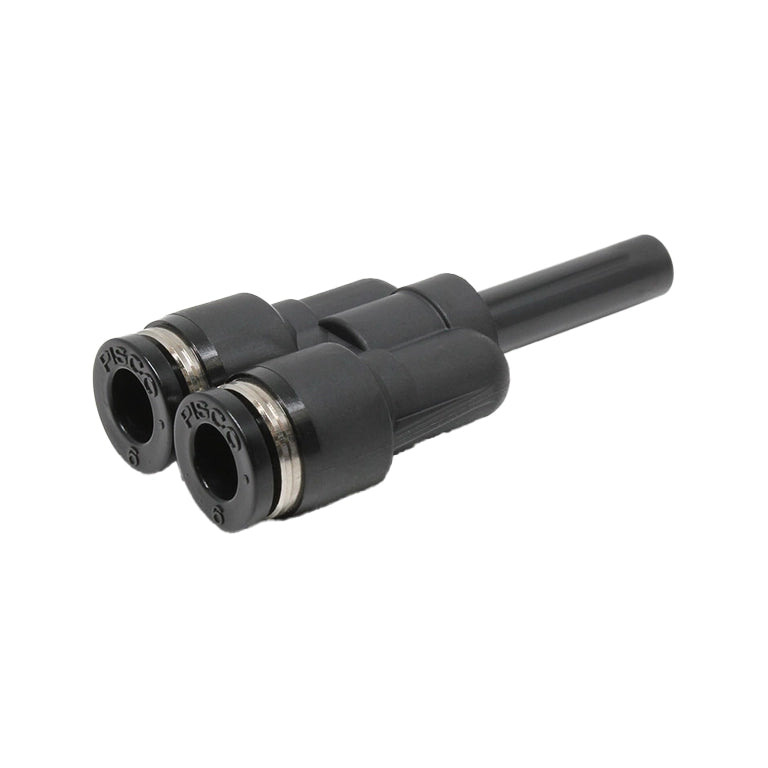

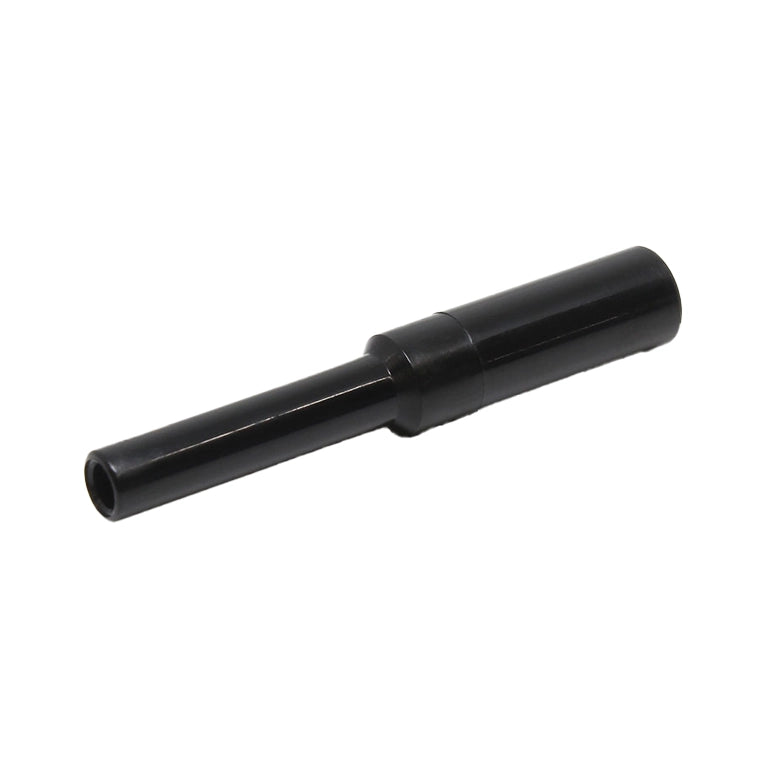

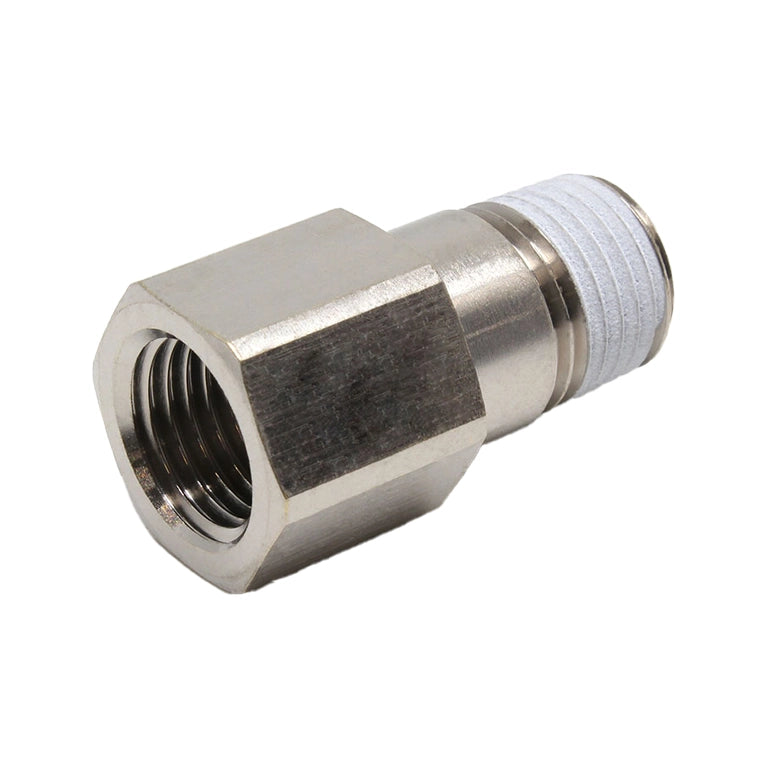

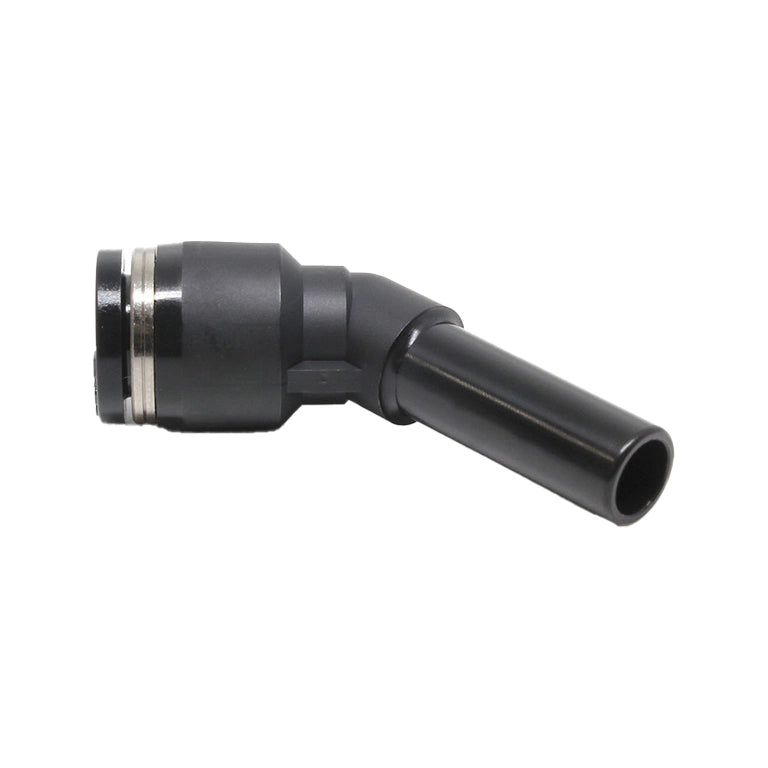

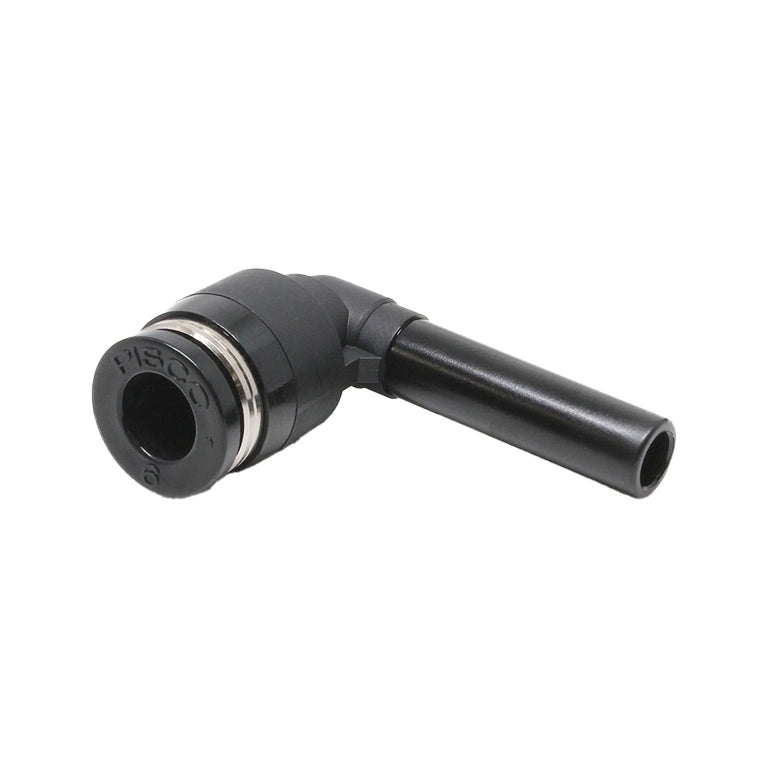

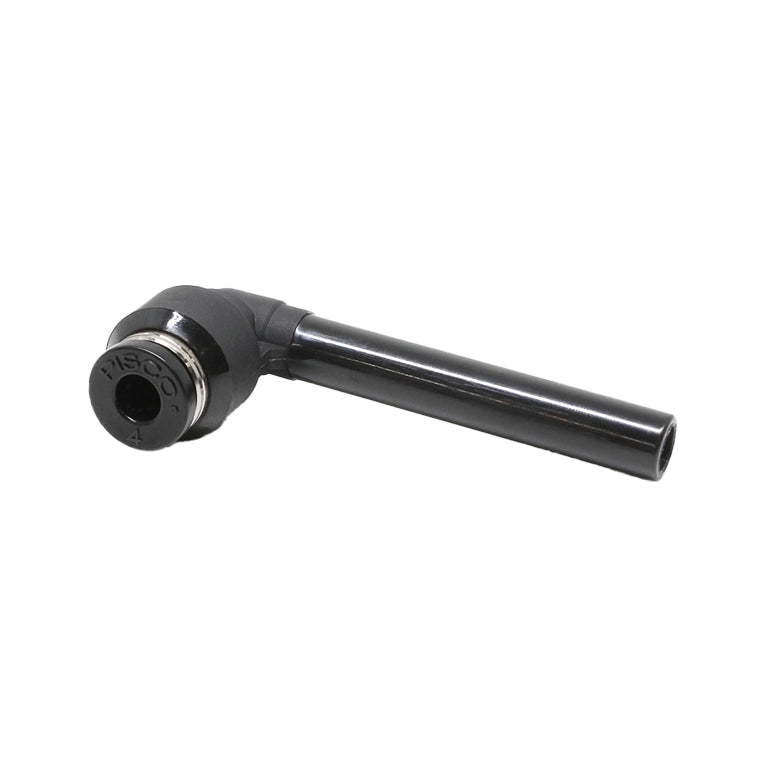

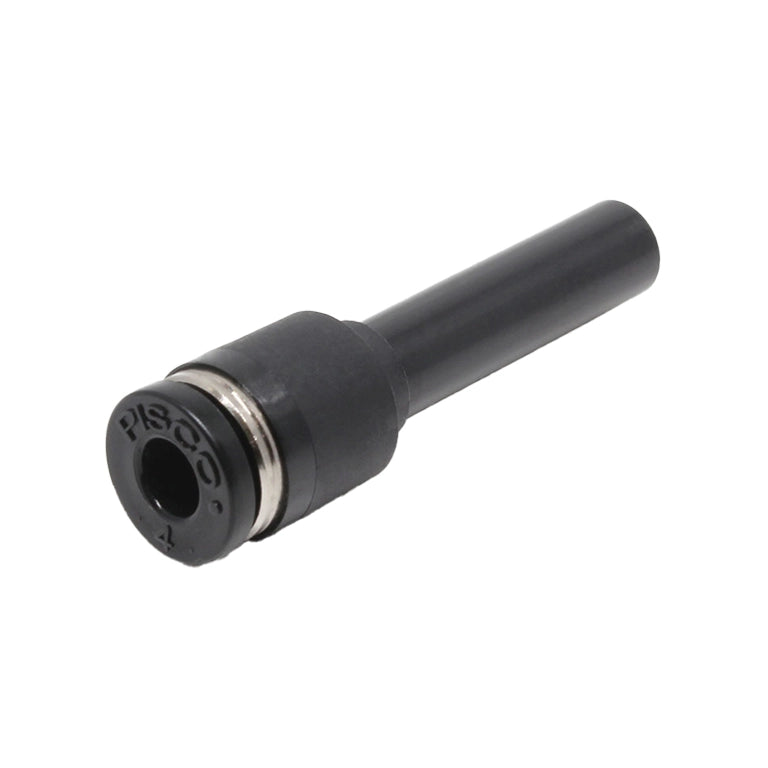

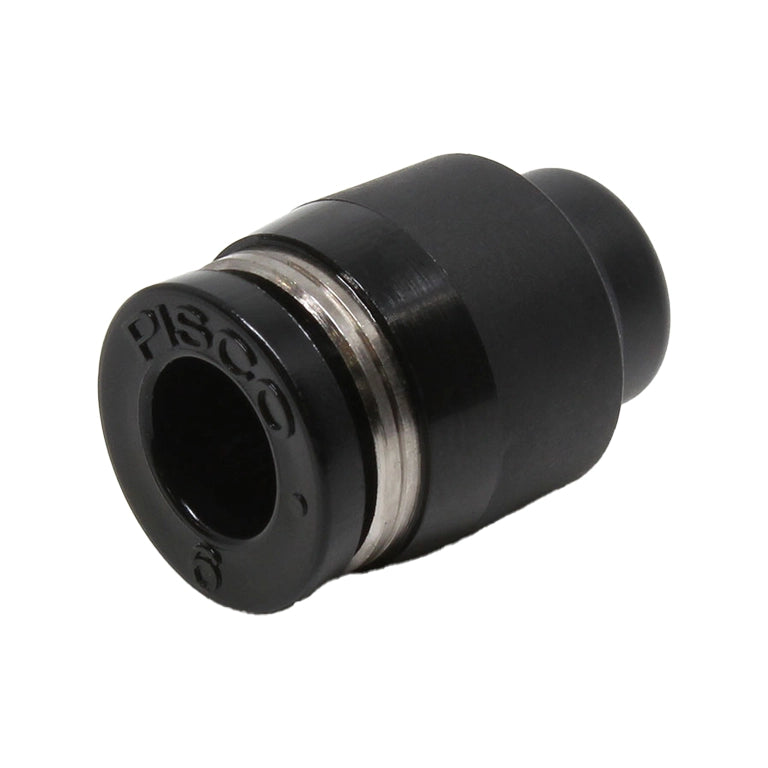

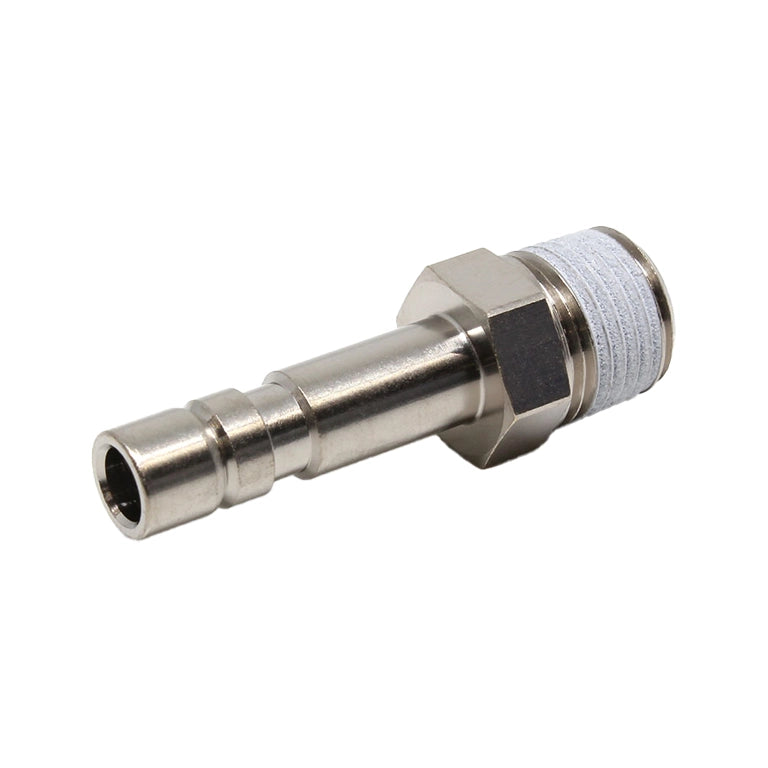

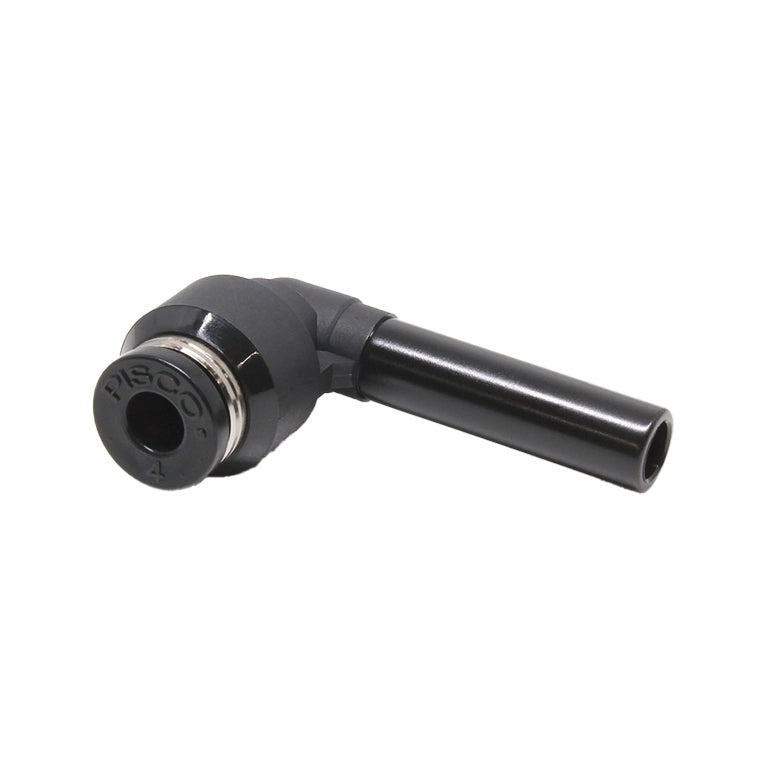

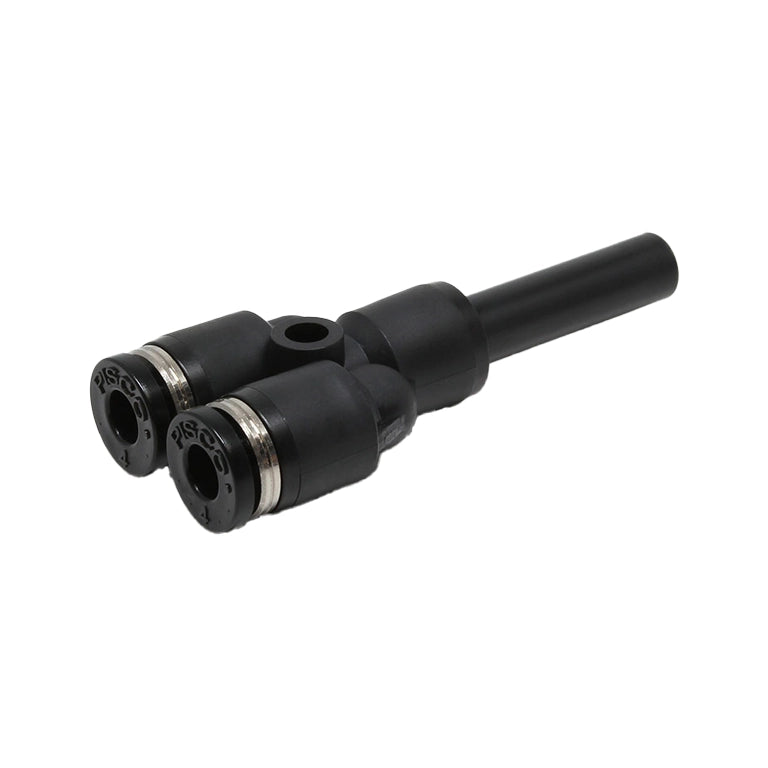

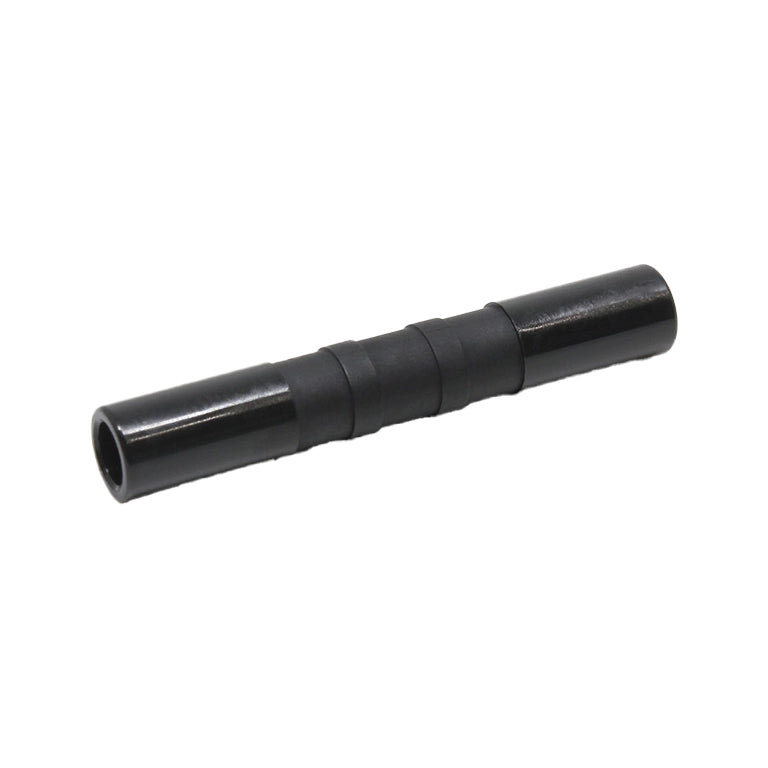

Tube Fittings Standard

Tube Fittings Standard

PISCO’s Standard Tube Fittings is a premier line of quick-connect, push-in joints engineered for general-purpose pneumatic piping and fluid systems. Known for their tool-free connection mechanism, these fittings automatically grip and seal pneumatic tubing (such as polyurethane or nylon) simply by pushing the tube into the port.

Standard Push-In Fittings are available in a wide range of models to suit diverse pneumatic piping needs. Water use is permitted under specified conditions (excluding space-saving type).

Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of PISCO Standard Push-In Pneumatic Fittings in India.

General Specifications

General Specifications & Operating Limits

  • Fluid Media: Compressed Air and Industrial Water (subject to conditional parameters).
  • Maximum Operating Pressure: 1.0 MPa (145 psi / 10 bar).
  • Maximum Operating Vacuum: -100 kPa (-29.5 in. Hg / -1 bar).
  • Operating Temperature Range: 0 to 60°C (32 to 140°F) strictly with no freezing conditions.
  • Water Application Requirements: Tap water is permitted provided surge pressures remain strictly below 1.0 MPa. A dedicated Pisco Insert Ring must be placed into the tube edge to ensure connection integrity.

Sizing Matrix and Thread Configurations

Tubing Outer Diameter (O.D.) Compatibility:

  • Metric Series (mm): ø4, ø6, ø8, ø10, ø12, ø16
  • Inch Series (inches): 5/32", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8"

Connection Thread Specifications

  • Metric Threads: M5×0.8, M6×1
  • Taper Pipe Threads (BSPT/JIS): R1/8, R1/4, R3/8, R1/2
  • Unified & American National Threads: UNF, NPT (available for North American inch lines)

Approved Tubing Materials

  • Polyurethane Tubing (Pisco U Series)
  • Nylon Tubing (Pisco N Series)
  • Fluororesin/Fluoropolymer Tubing (Pisco SET Series)

Advanced System Features & Packaging Options

  • 360° Rotatable Body: The composite resin body can change orientation and rotate freely even after the threaded stud section is fixed in position.
  • Pre-Coated Thread Sealant: Tapered R threads feature factory-applied Sealock coating, eliminating the application of Teflon tape and reducing setup times.
  • Clean-Room Package Options: Cleaned with filtered air and packed inside an ISO Class 6 cleanroom environment using a specialized fluorine-based grease on internal seals.
  • Clean-Wash Package Options: Uses non-grease/oil-free assembly techniques with alternative packaging structures.

Standard Model Reference Codes

  • Straight Connectors: PC (Male Straight), POC (Inner Hexagonal Straight), PCF (Female Straight).
  • Elbow Configurations: PL (Standard Elbow), PLL (Extended Long Elbow), PLH (45° Elbow).
  • Tee & Branch Configurations: PB (Tee), PD (Branch Tee), PX (Branch Y).

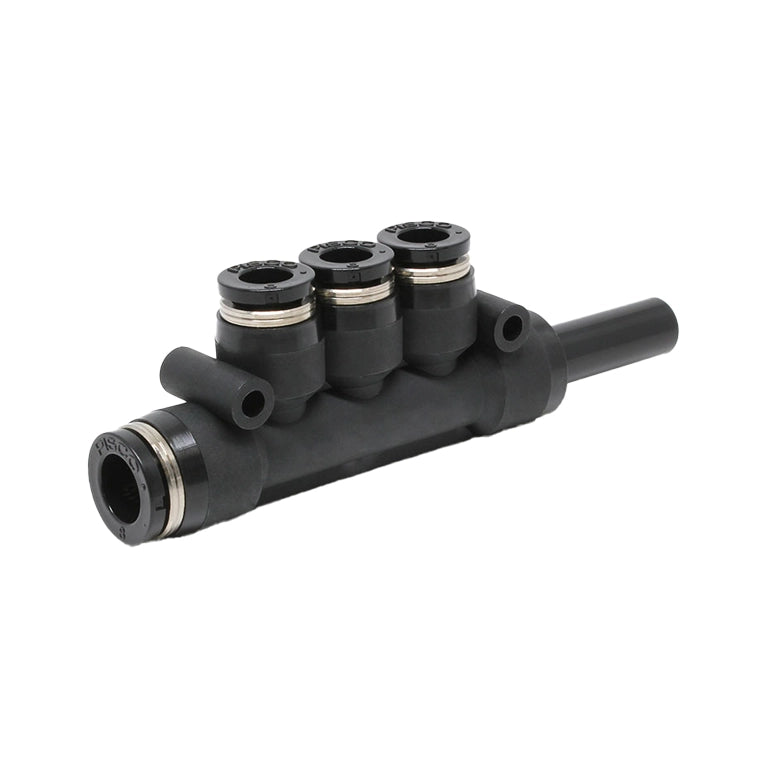

  • Centralized Piping Modules: Triple types (PKD, PKG, PKJ) and twin triple variations (PKVD, PKVG) for high-density manifolds.

Material

Resin Body: Polybutylene terephthalate (PBT), used for the rotatable housing on shaped models like elbows and tees.

Metallic Body & Guide Ring: Nickel-plated brass, used for the structural base/threads on all models, and as the entire rigid body for straight connectors.

Release Ring: Polyacetal (POM), the plastic collar pressed down to unlock the tube.

Lock Claws: Stainless steel, the internal gripping teeth that hold the tubing securely in place.

Elastic Sleeve & O-Ring: Nitrile butadiene rubber (NBR), the primary internal sealing material.

Thread Sealant Coating: Sealock-coating, pre-applied to the tapered pipe threads.

Metric Thread Gasket: Stainless steel (SUS304) + NBR laminate composite

View full details

Product Knowledge

Areas of Application

1. Target Automation Industries

  • Factory Automation (FA): Main supply lines for pneumatic manifolds, control valves, and air blocks.
  • Industrial Robotics: End-of-arm tooling (EOAT), multi-axis grippers, and articulating assembly arms.
  • Semiconductor & Electronics: Pick-and-place lines, wafer-handling machinery, and PCB assembly.
  • Packaging & Food Processing: High-speed sorting, capping, and bagging machines (cleanroom models).
  • Automotive Manufacturing: Assembly line actuators, clamping fixtures, and pneumatic tool lines.

2. Technical System Implementations

  • Actuator & Cylinder Control: Direct port-to-port connections for linear and rotary pneumatic actuators.
  • Vacuum Pick-and-Place: Suction cup arrays and vacuum generator lines rated down to -100 kPa.
  • High-Density Manifolds: Space-saving integration using Pisco Triple (PKD/PKG) and Twin Triple (PKVD) fittings.
  • Industrial Fluid Management: Low-pressure cooling and die temperature control using industrial tap water.

3. Environmental Variations

  • Standard Factory Air: General industrial applications using standard NBR seals and PBT resin.
  • ISO Class 6 Cleanrooms: Semiconductor and optical assembly using Pisco's specialized fluorine-greased and air-washed package.
  • Ozone-Rich Environments: Test chambers utilizing optional FKM or HNBR seals to prevent premature degradation.

Part Numbers

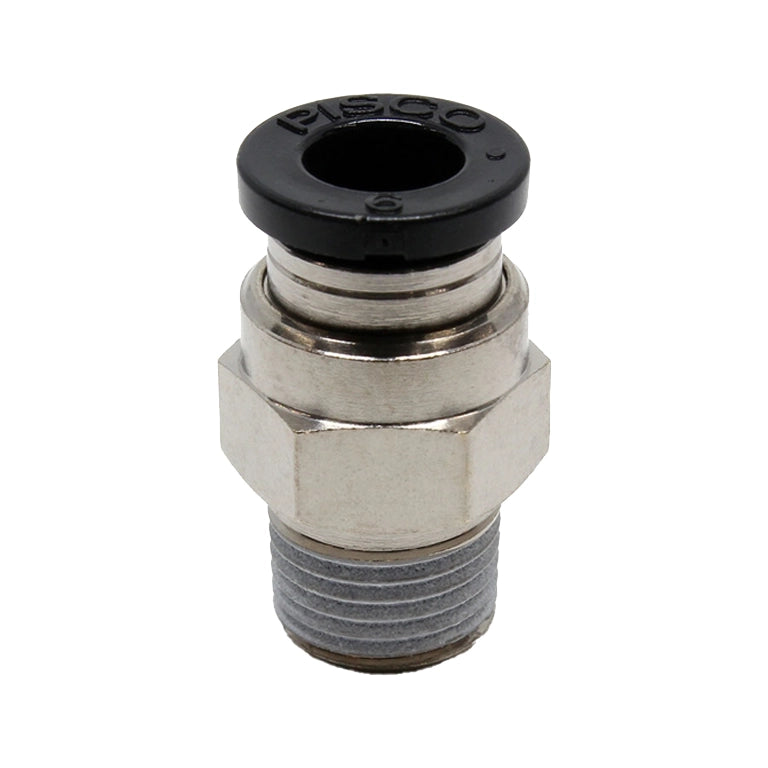

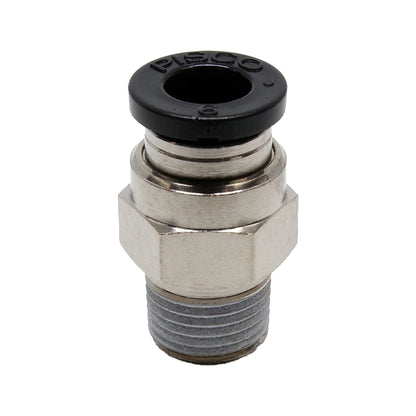

PC - STRAIGHT
PC4-M5 • PC4-M6 • PC4-01 • PC4-02 • PC6-M5 • PC6-M6 • PC6-01 • PC6-02 • PC6-03 • PC8-01 • PC8-02 • PC8-03 • PC10-01 • PC10-02 • PC10-03 • PC10-04 • PC12-02 • PC12-03 • PC12-04 • PC16-03 • PC16-04 • PC5/32-U10U • PC5/32-N1U • PC5/32-N2U • PC3/16-N1U • PC1/4-U10U • PC1/4-N1U • PC1/4-N2U • PC1/4-N3U • PC5/16-N1U • PC5/16-N2U • PC5/16-N3U • PC3/8-N1U • PC3/8-N2U • PC3/8-N3U • PC3/8-N4U • PC1/2-N2U • PC1/2-N3U • PC1/2-N4U • PC4-G1 • PC6-G1 • PC6-G2 • PC8-G1 • PC8-G2 • PC8-G3 • PC10-G2 • PC10-G3 • PC10-G4 • PC12-G2 • PC12-G3 • PC12-G4 • PC16-G3 • PC16-G4 • PC4-N0U • PC4-N1U • PC4-N2U • PC6-N0U • PC6-N1U • PC6-N2U • PC6-N3U • PC8-N1U • PC8-N2U • PC8-N3U • PC10-N1U • PC10-N2U • PC10-N3U • PC10-N4U • PC12-N2U • PC12-N3U • PC12-N4U • PC16-N3U • PC4-M5 • PC4-M6 • PC4-01 • PC4-02 • PC6-M5 • PC6-M6 • PC6-01 • PC6-02 • PC6-03 • PC8-01 • PC8-02 • PC8-03 • PC10-01 • PC10-02 • PC10-03 • PC10-04 • PC12-02 • PC12-03 • PC12-04 • PC16-03 • PC16-04 • PC5/32-U10U • PC5/32-N1U • PC5/32-N2U • PC3/16-N1U • PC1/4-U10U • PC1/4-N1U • PC1/4-N2U • PC1/4-N3U • PC5/16-N1U • PC5/16-N2U • PC5/16-N3U • PC3/8-N1U • PC3/8-N2U • PC3/8-N3U • PC3/8-N4U • PC1/2-N2U • PC1/2-N3U • PC1/2-N4U • PC4-G1 • PC6-G1 • PC6-G2 • PC8-G1 • PC8-G2 • PC8-G3 • PC10-G2 • PC10-G3 • PC10-G4 • PC12-G2 • PC12-G3 • PC12-G4 • PC16-G3 • PC16-G4 • PC4-N0U • PC4-N1U • PC4-N2U • PC6-N0U • PC6-N1U • PC6-N2U • PC6-N3U • PC8-N1U • PC8-N2U • PC8-N3U • PC10-N1U • PC10-N2U • PC10-N3U • PC10-N4U • PC12-N2U • PC12-N3U • PC12-N4U • PC16-N3U • PC16-N4U

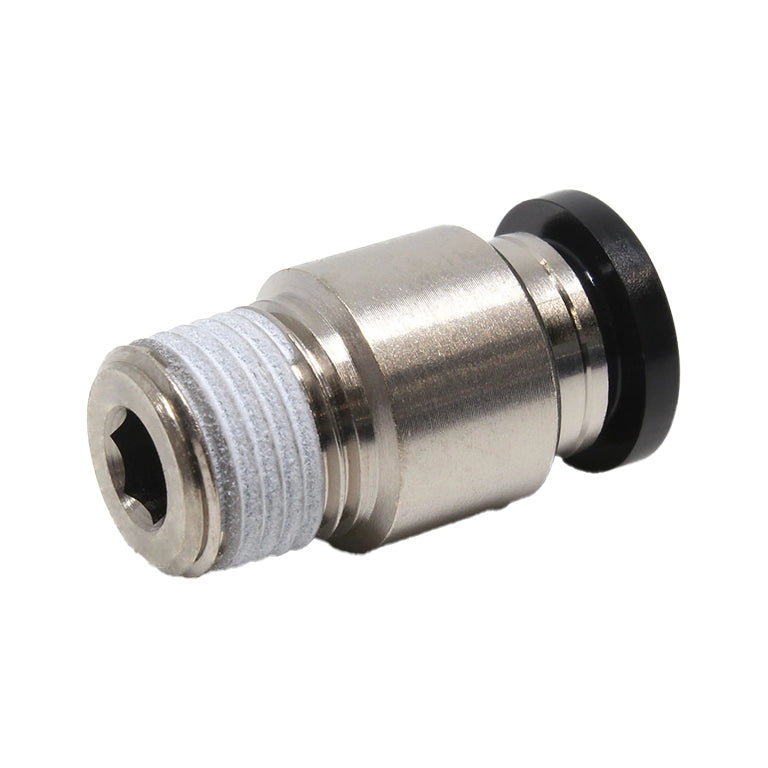

POC - INNER HEX. STRAIGHT
POC4-M5 • POC4-M6 • POC4-01 • POC6-M5 • POC6-M6 • POC6-01 • POC6-02 • POC8-01 • POC8-02 • POC8-03 • POC10-01 • POC10-02 • POC10-03 • POC10-04 • POC12-02 • POC12-03 • POC12-04 • POC16-03 • POC16-04 • POC5/32-U10U • POC1/4-U10U • POC3/8-N2U • POC4-G1 • POC6-G1 • POC6-G2 • POC8-G1 • POC8-G2 • POC8-G3 • POC10-G1 • POC10-G2 • POC10-G3 • POC12-G3 • POC12-G4

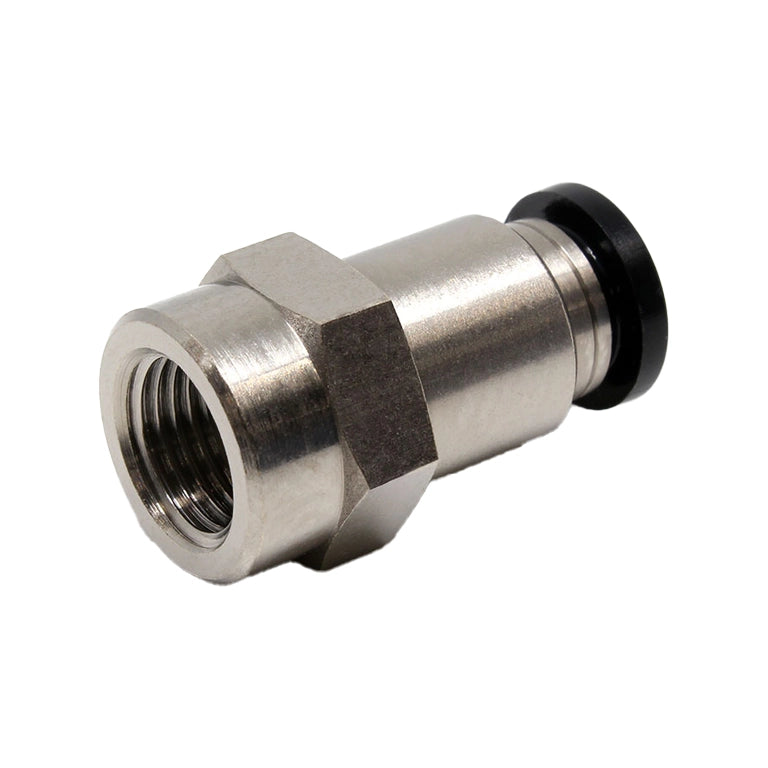

PCF - FEMALE STRAIGHT
PCF4-M5 • PCF4-01 • PCF4-02 • PCF6-01 • PCF6-02 • PCF8-01 • PCF8-02 • PCF8-03 • PCF10-02 • PCF10-03 • PCF12-02 • PCF12-03 • PCF12-04 • PCF16-03 • PCF16-04 • PCF5/32-N1U • PCF5/32-N2U • PCF1/4-N1U • PCF1/4-N2U • PCF3/8-N2U • PCF4-G1 • PCF4-G2 • PCF6-G1 • PCF6-G2 • PCF6-G3 • PCF8-G1 • PCF8-G2 • PCF8-G3 • PCF10-G2 • PCF10-G3 • PCF12-G2 • PCF12-G3 • PCF12-G4 • PCF16-G4

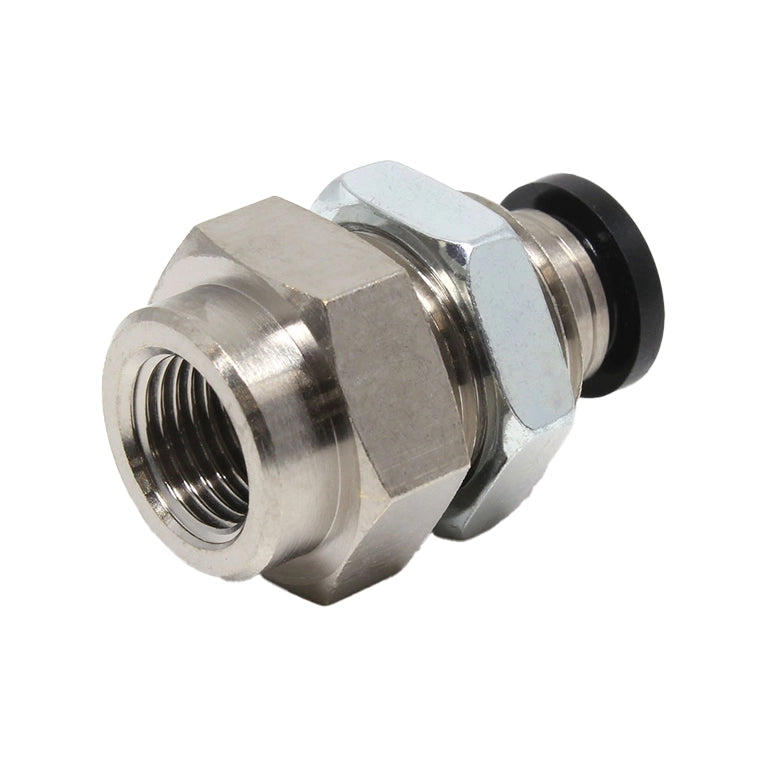

PMF - BULKHEAD FEMALE STRAIGHT
PMF4-01 • PMF4-02 • PMF6-01 • PMF6-02 • PMF6-03 • PMF8-01 • PMF8-02 • PMF8-03 • PMF10-02 • PMF10-03 • PMF12-02 • PMF12-03 • PMF12-04 • PMF16-03 • PMF16-04 • PMF5/32-N1U • PMF1/4-N1U • PMF1/4-N2U • PMF5/16-N2U • PMF3/8-N2U • PMF3/8-N3U • PMF1/2-N3U • PMF1/2-N4U • PMF4-G1 • PMF4-G2 • PMF6-G1 • PMF6-G2 • PMF6-G3 • PMF8-G1 • PMF8-G2 • PMF8-G3 • PMF10-G2 • PMF10-G3 • PMF12-G3 • PMF12-G4 • PMF16-G4

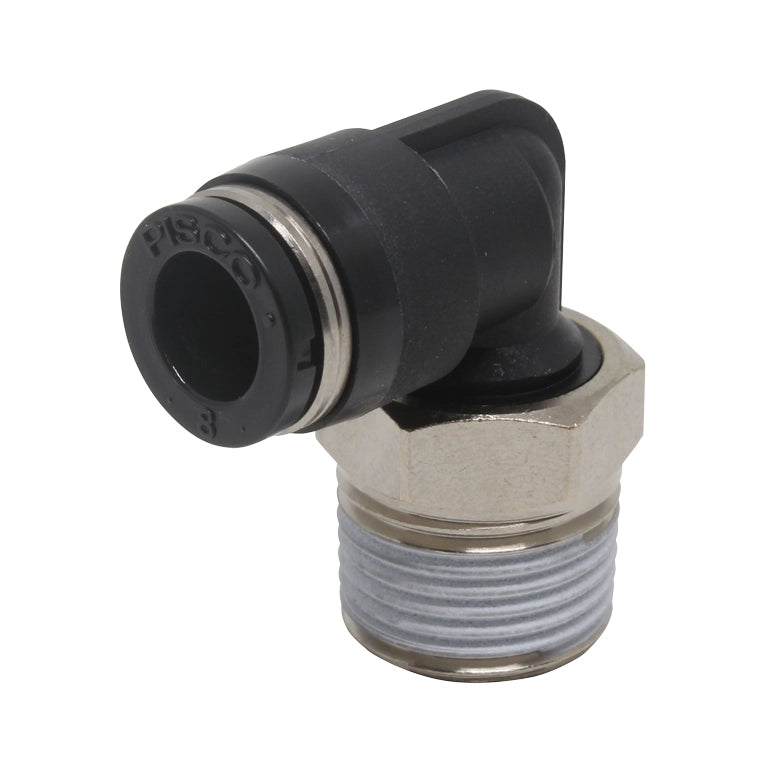

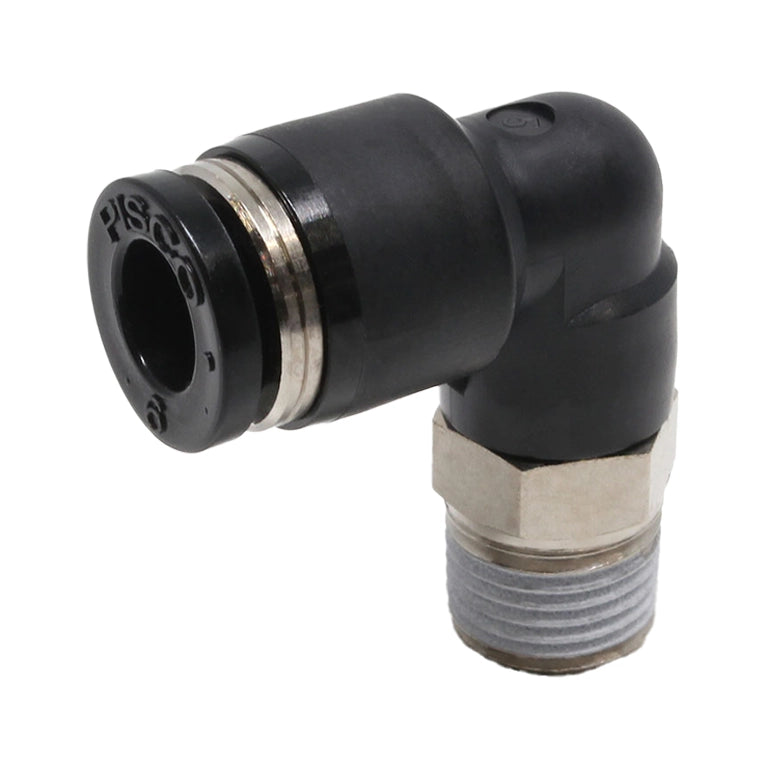

PL - ELBOW
PL4-M5 • PL4-M6 • PL4-01 • PL4-02 • PL6-M5 • PL6-M6 • PL6-01 • PL6-02 • PL6-03 • PL8-01 • PL8-02 • PL8-03 • PL10-01 • PL10-02 • PL10-03 • PL10-04 • PL12-02 • PL12-03 • PL12-04 • PL16-03 • PL16-04 • PL5/32-U10U • PL5/32-N1U • PL5/32-N2U • PL1/4-U10U • PL1/4-N1U • PL1/4-N2U • PL1/4-N3U • PL5/16-N1U • PL5/16-N2U • PL5/16-N3U • PL3/8-N1U • PL3/8-N2U • PL3/8-N3U • PL3/8-N4U • PL1/2-N2U • PL1/2-N3U • PL1/2-N4U • PL10-N3U • PL4-G1 • PL6-G1 • PL6-G2 • PL8-G1 • PL8-G2 • PL8-G3 • PL10-G2 • PL10-G3 • PL10-G4 • PL12-G2 • PL12-G3 • PL12-G4 • PL16-G3 • PL16-G4 • PL8-G1-XW

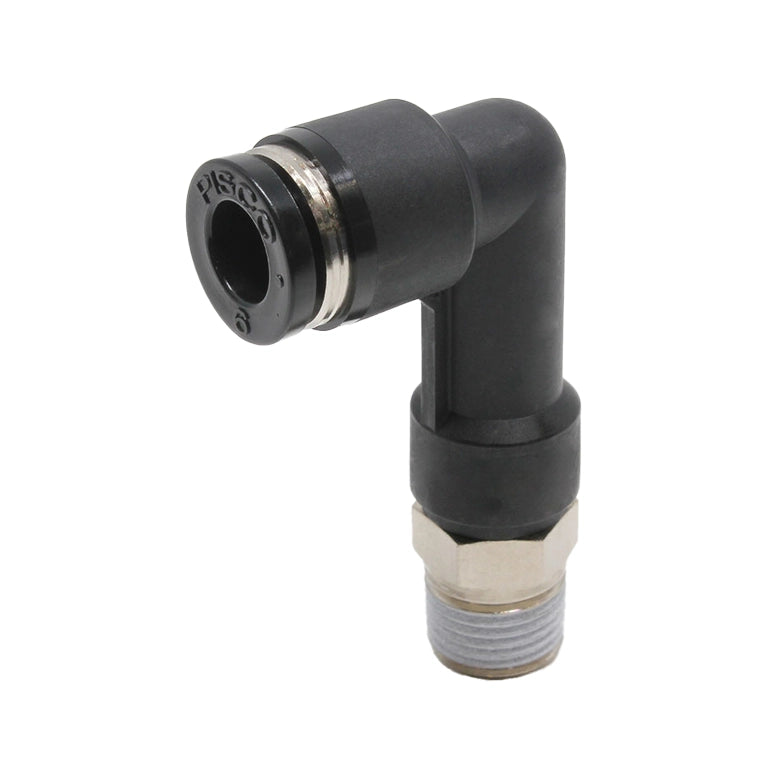

PLL - LONG ELBOW
PLL4-M5 • PLL4-01 • PLL4-02 • PLL6-M5 • PLL6-01 • PLL6-02 • PLL6-03 • PLL8-01 • PLL8-02 • PLL8-03 • PLL10-01 • PLL10-02 • PLL10-03 • PLL10-04 • PLL12-02 • PLL12-03 • PLL12-04 • PLL16-03 • PLL16-04 • PLL5/32-U10U • PLL5/32-N1U • PLL1/4-N1U • PLL1/4-N2U • PLL5/16-N1U • PLL5/16-N2U • PLL5/16-N3U • PLL3/8-N2U • PLL3/8-N3U • PLL1/2-N3U • PLL1/2-N4U • PLL4-G1 • PLL6-G1 • PLL6-G2 • PLL8-G1 • PLL8-G2 • PLL8-G3 • PLL10-G2 • PLL10-G3 • PLL12-G3 • PLL12-G4 • PLL16-G4

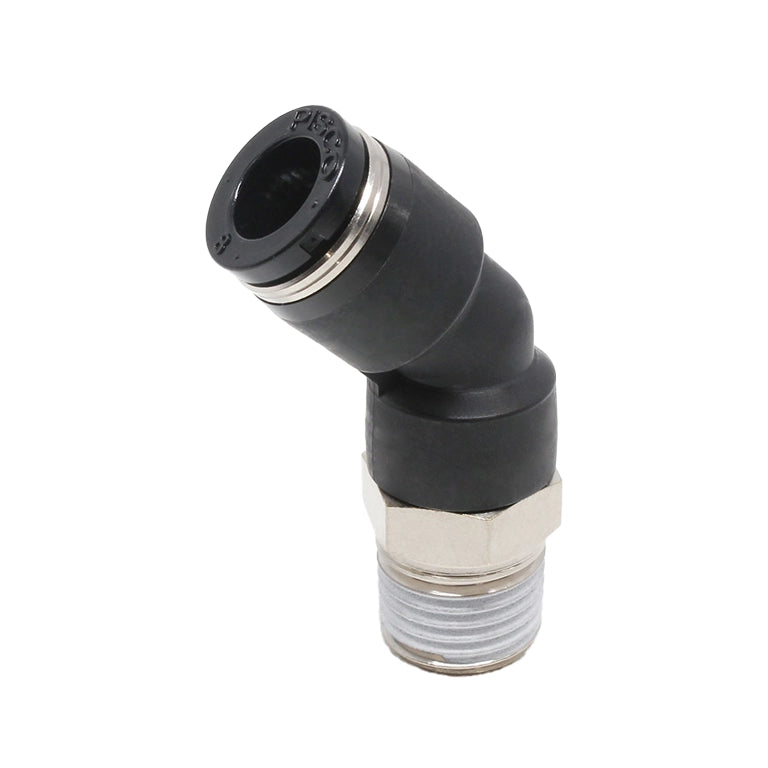

PLH - 45 DEGREE ELBOW
PLH8-01 • PLH8-02 • PLH8-03 • PLH10-01 • PLH10-02 • PLH10-03 • PLH10-04 • PLH12-02 • PLH12-03 • PLH12-04 • PLH16-03 • PLH16-04

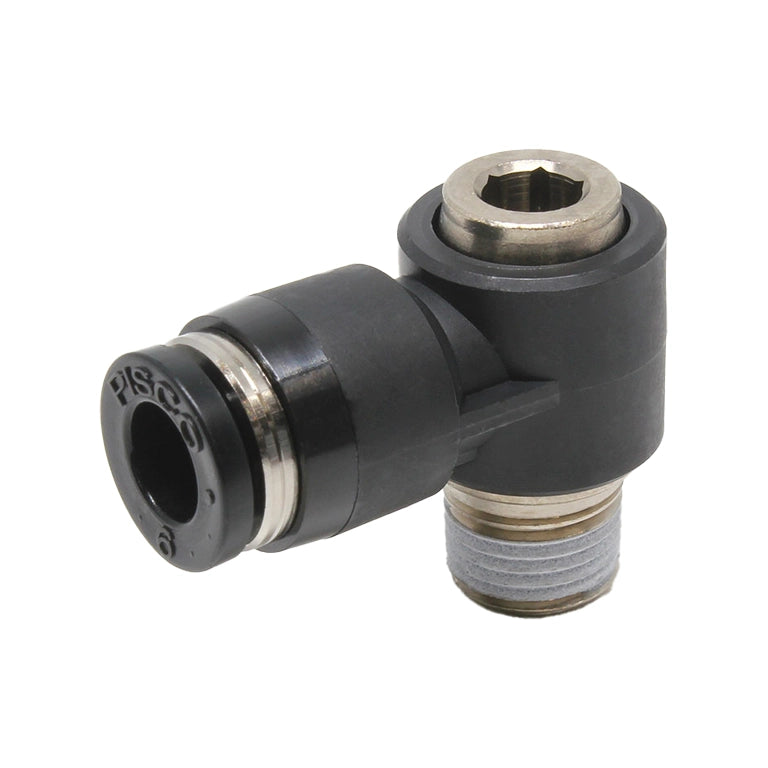

POL - HEX. HOLED BANJO
POL4-M5 • POL6-01 • POL6-02 • POL8-01 • POL8-02 • POL8-03 • POL10-02 • POL10-03 • POL12-03 • POL12-04 • POL6-G1 • POL6-G2 • POL8-G1 • POL8-G2 • POL8-G3 • POL10-G2 • POL10-G3 • POL12-G3 • POL12-G4

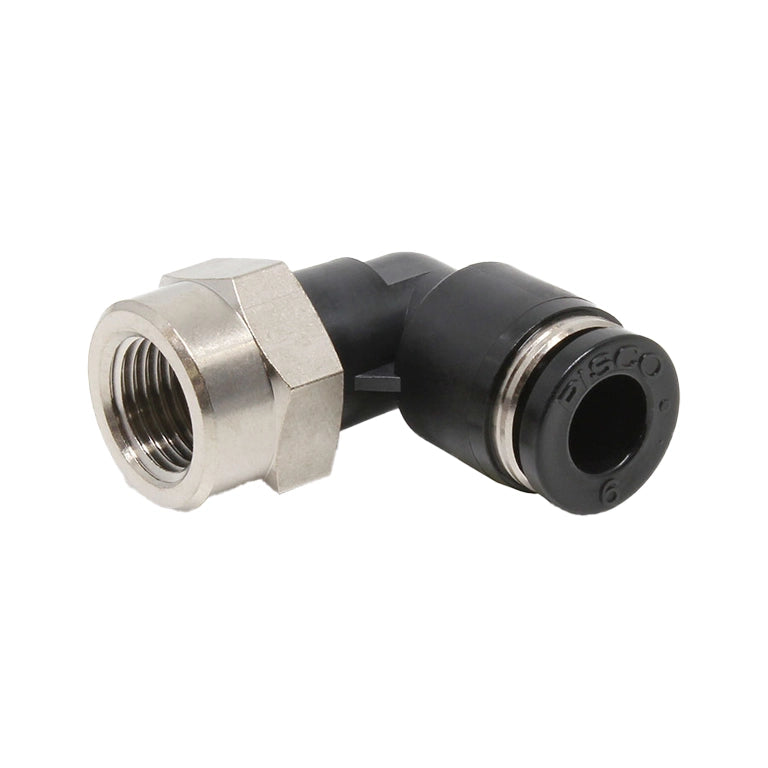

PLF - FEMALE ELBOW
PLF4-M5 • PLF4-M6 • PLF4-01 • PLF4-02 • PLF6-M5 • PLF6-M6 • PLF6-01 • PLF6-02 • PLF6-03 • PLF8-01 • PLF8-02 • PLF8-03 • PLF10-02 • PLF10-03 • PLF10-04 • PLF4-G1 • PLF6-G1 • PLF6-G2 • PLF8-G1 • PLF8-G2 • PLF8-G3 • PLF10-G2 • PLF10-G3

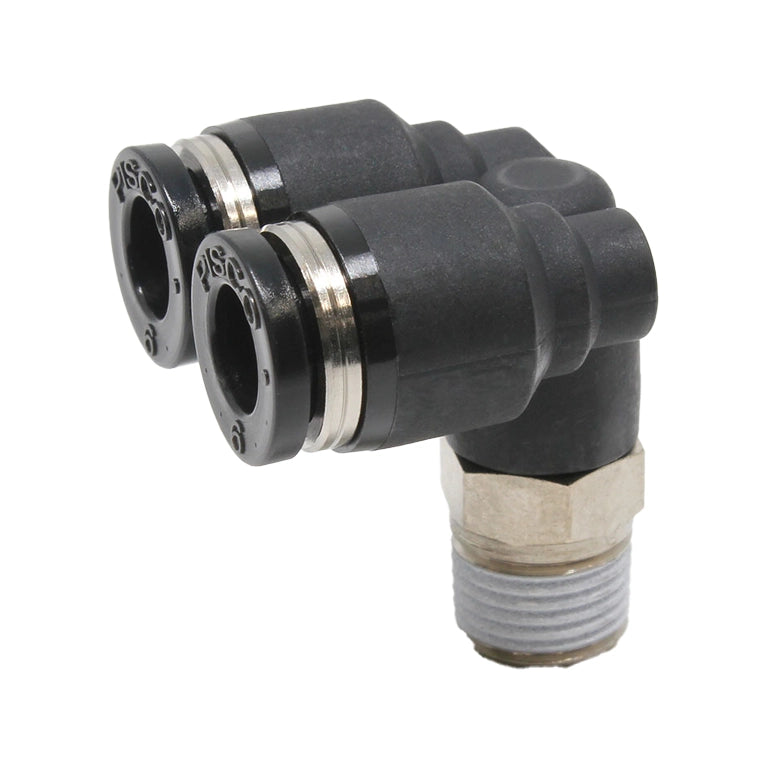

PAX - BRANCH ELBOW
PAX4-M5 • PAX4-M6 • PAX4-01 • PAX4-02 • PAX6-M5 • PAX6-M6 • PAX6-01 • PAX6-02 • PAX6-03 • PAX8-01 • PAX8-02 • PAX8-03 • PAX10-01 • PAX10-02 • PAX10-03 • PAX10-04 • PAX12-02 • PAX12-03 • PAX12-04 • PAX4-G1 • PAX6-G1 • PAX6-G2 • PAX8-G1 • PAX8-G2 • PAX8-G3 • PAX10-G2 • PAX10-G3 • PAX12-G3 • PAX12-G4

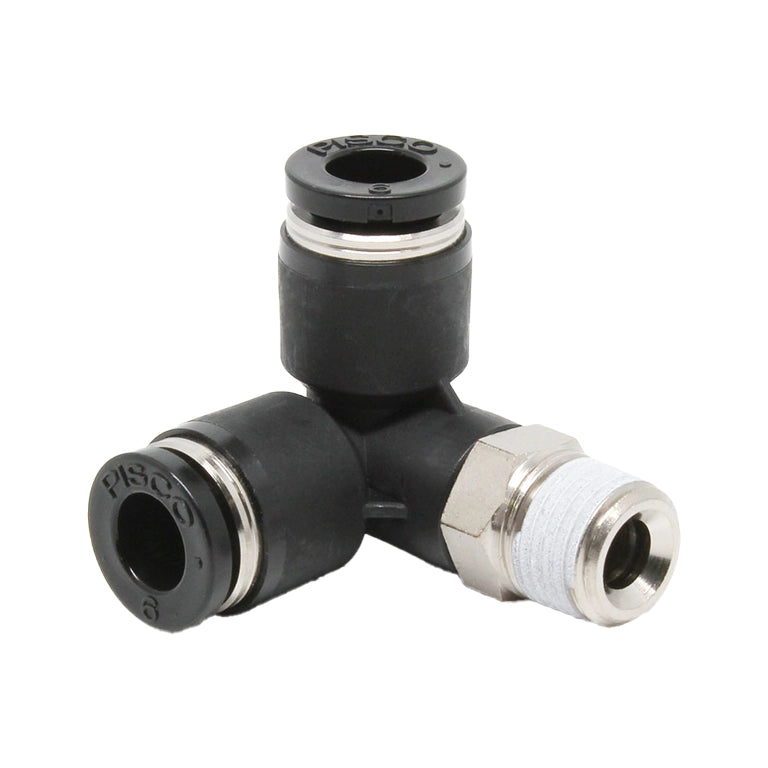

PVX - TRIPOD ELBOW
PVX4-M5 • PVX4-M6 • PVX4-01 • PVX4-02 • PVX6-M5 • PVX6-M6 • PVX6-01 • PVX6-02 • PVX6-03 • PVX8-01 • PVX8-02 • PVX8-03 • PVX10-01 • PVX10-02 • PVX10-03 • PVX10-04 • PVX12-02 • PVX12-03 • PVX12-04

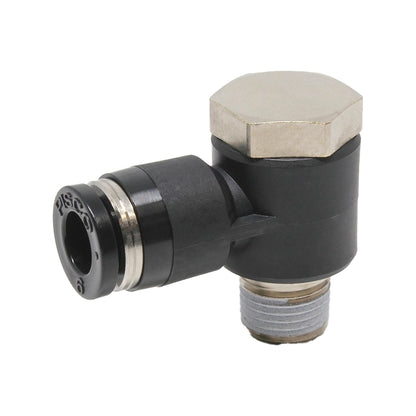

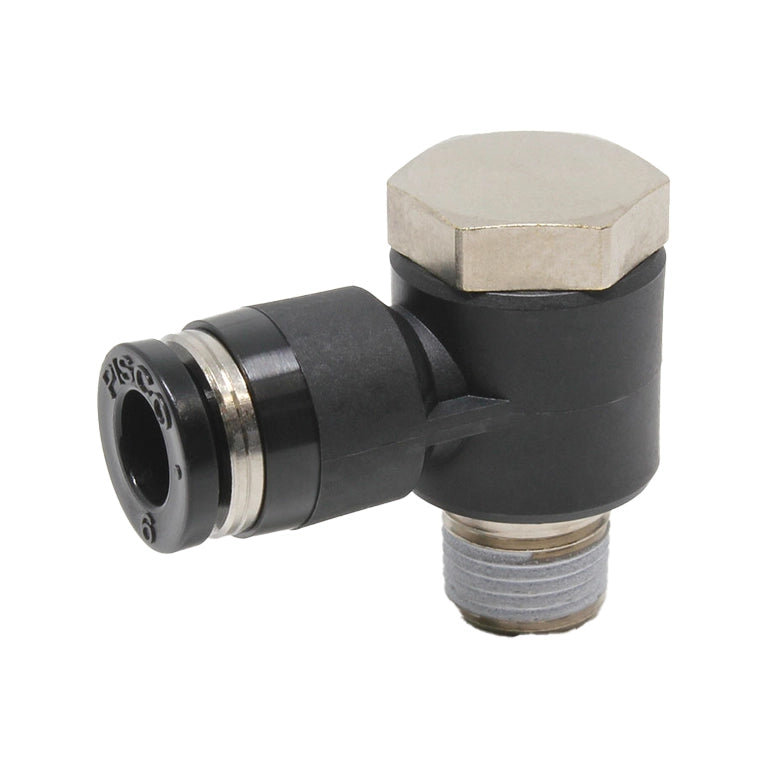

PH - SINGLE BANJO
PH4-M5 • PH4-M6 • PH4-01 • PH6-M5 • PH6-M6 • PH6-01 • PH6-02 • PH8-01 • PH8-02 • PH8-03 • PH10-02 • PH10-03 • PH12-03 • PH12-04 • PH16-03 • PH16-04 • PH5/32-U10U • PH5/32-N1U • PH1/4-N1U • PH1/4-N2U • PH5/16-N1U • PH5/16-N2U • PH5/16-N3U • PH3/8-N2U • PH3/8-N3U • PH1/2-N3U • PH1/2-N4U • PH4-G1 • PH6-G1 • PH6-G2 • PH8-G1 • PH8-G2 • PH8-G3 • PH10-G2 • PH10-G3 • PH12-G3 • PH12-G4 • PH16-G4

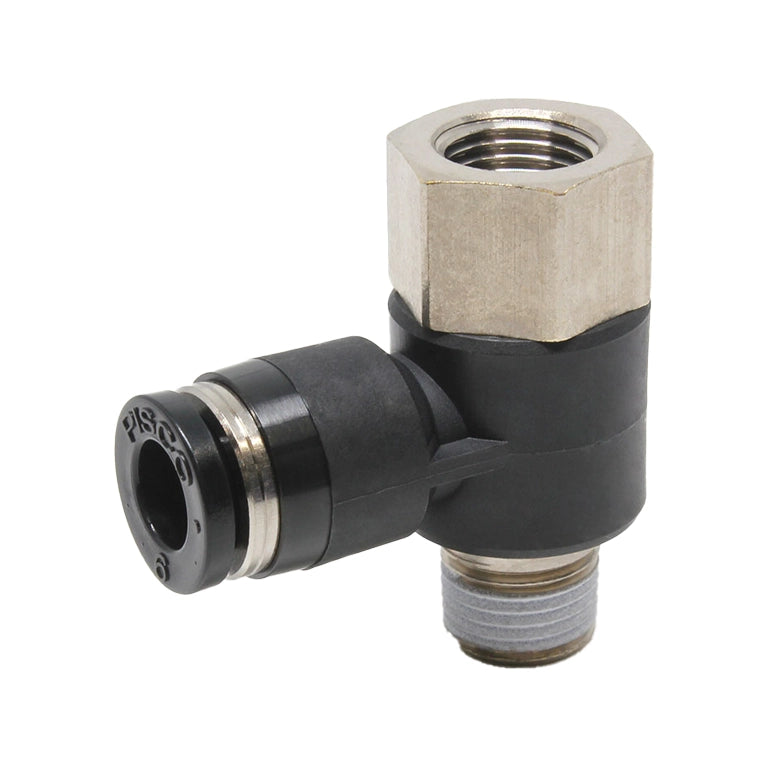

PHF - LINK-UP BANJO
PHF4-M5 • PHF4-01 • PHF6-M5 • PHF6-01 • PHF6-02 • PHF8-01 • PHF8-02 • PHF8-03 • PHF10-02 • PHF10-03 • PHF12-03 • PHF12-04 • PHF4-G1 • PHF6-G1 • PHF6-G2 • PHF8-G1 • PHF8-G2 • PHF8-G3 • PHF10-G2 • PHF10-G3 • PHF12-G3 • PHF12-G4

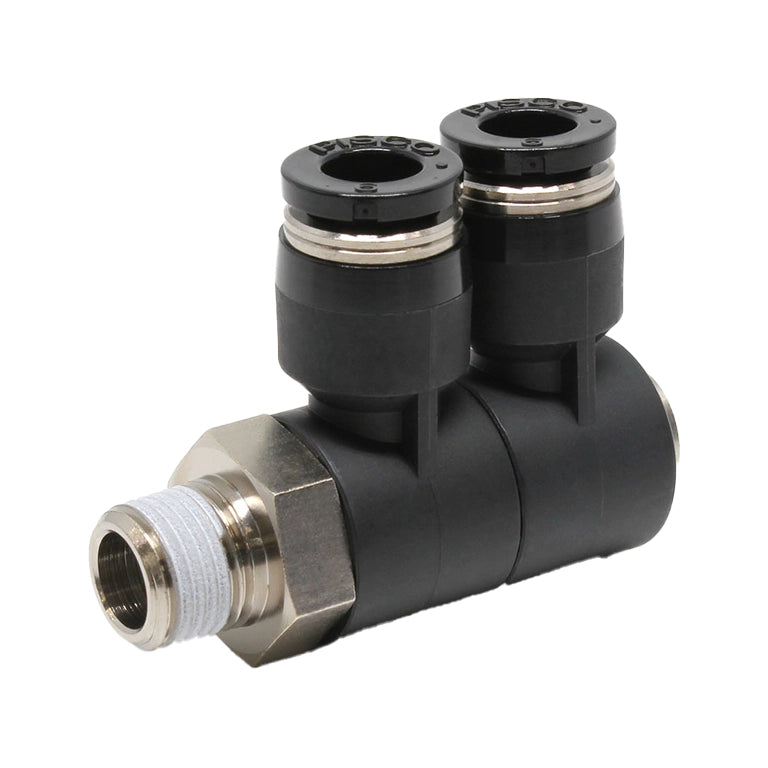

PHW - DOUBLE BANJO
PHW4-01 • PHW4-02 • PHW4-03 • PHW6-01 • PHW6-02 • PHW6-03 • PHW8-01 • PHW8-02 • PHW8-03 • PHW8-04 • PHW10-02 • PHW10-03 • PHW10-04 • PHW12-02 • PHW12-03 • PHW12-04 • PHW4-G1 • PHW6-G1 • PHW6-G2 • PHW8-G1 • PHW8-G2 • PHW8-G3 • PHW10-G2 • PHW10-G3 • PHW12-G3 • PHW12-G4

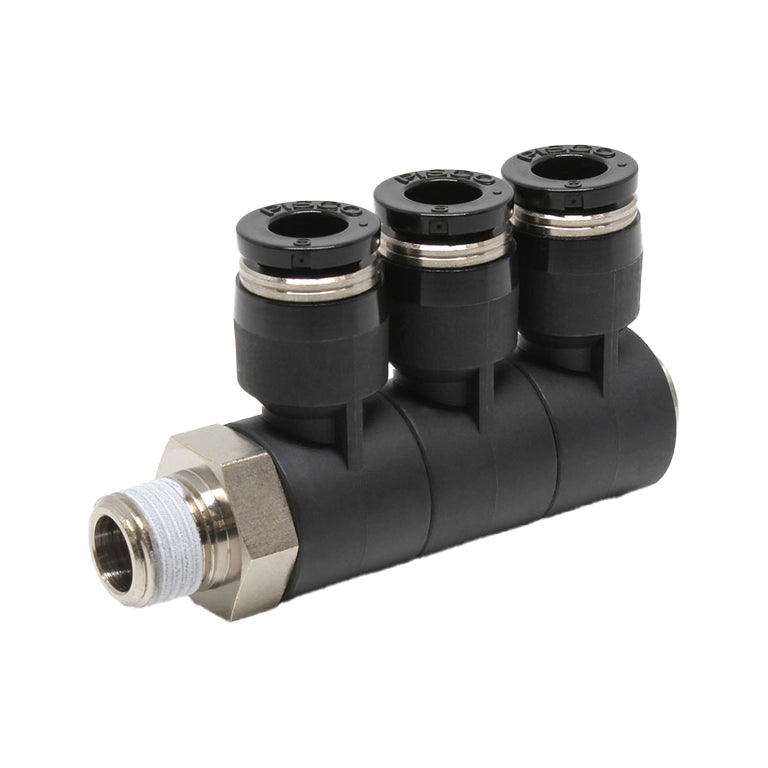

PHT - TRIPLE BANJO
PHT4-01 • PHT4-02 • PHT4-03 • PHT6-01 • PHT6-02 • PHT6-03 • PHT8-01 • PHT8-02 • PHT8-03 • PHT8-04 • PHT10-02 • PHT10-03 • PHT10-04 • PHT12-02 • PHT12-03 • PHT12-04

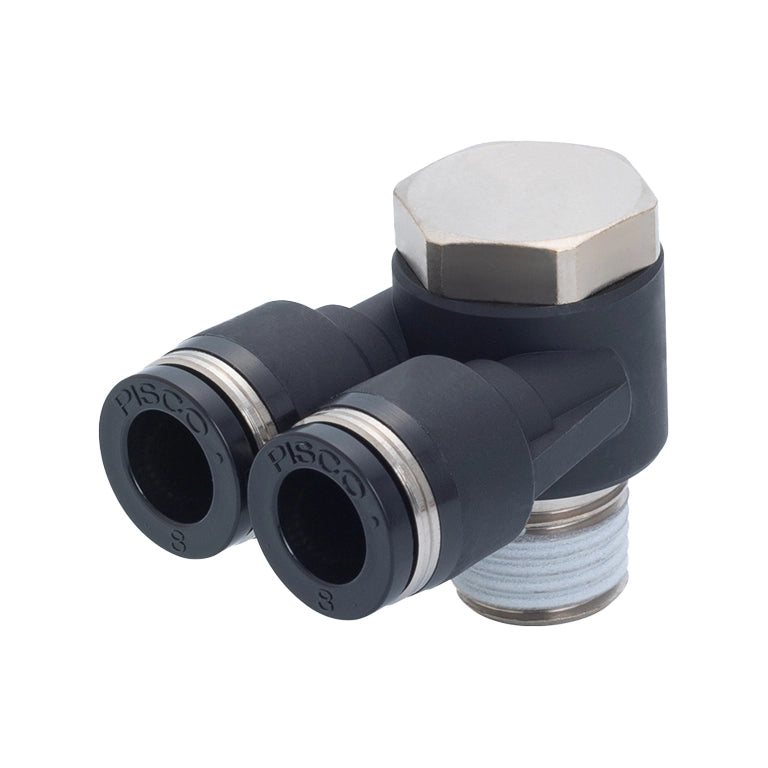

PA - TWIN BANJO
PA4-M5 • PA6-01 • PA8-02 • PA10-03 • PA12-04

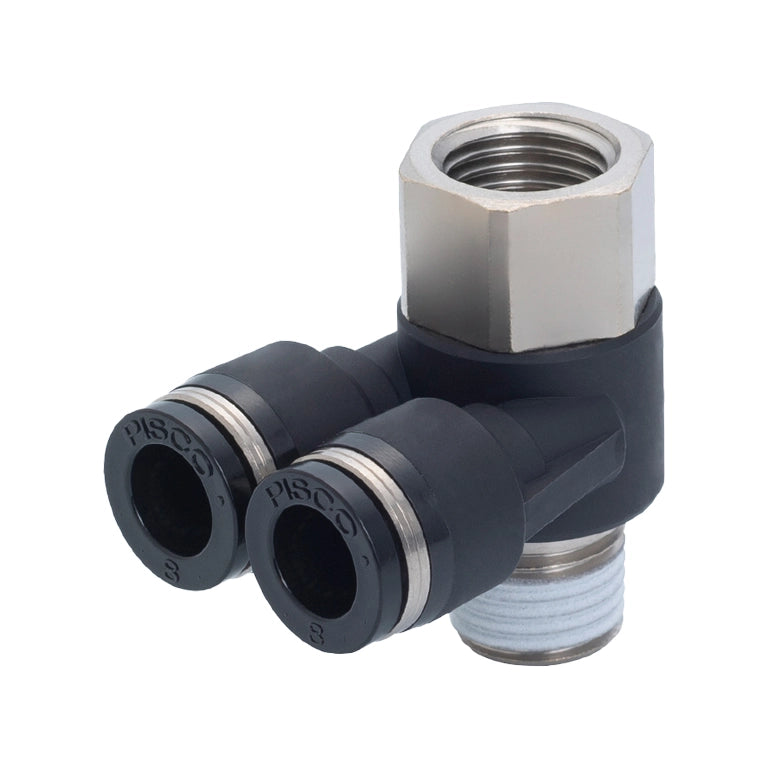

PAF - LINK-UP TWIN BANJO
PAF4-M5 • PAF6-01 • PAF8-02 • PAF10-03 • PAF12-03 • PAF12-04

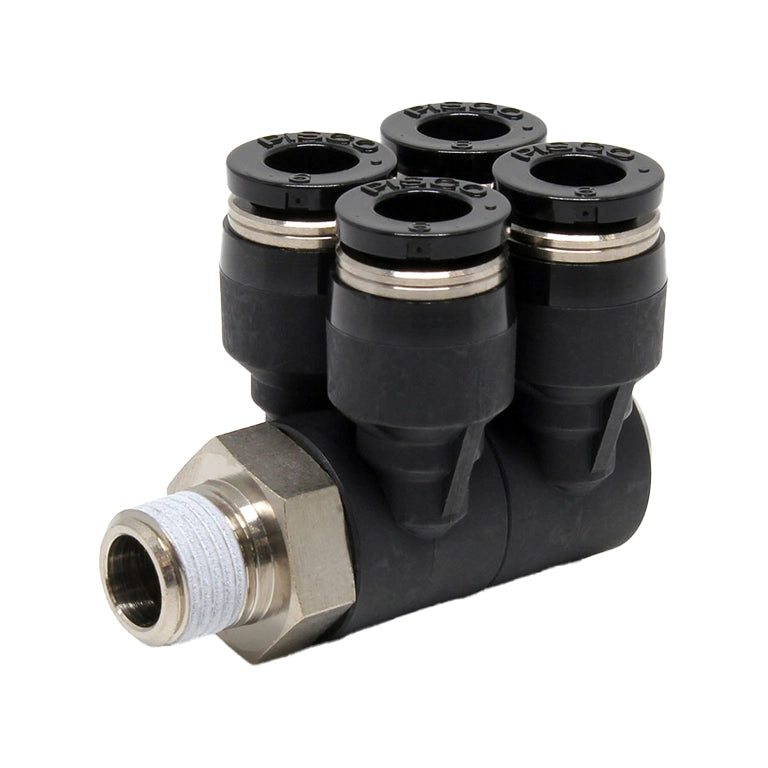

PAW - DOUBLE TWIN BANJO
PAW4-01 • PAW4-02 • PAW4-03 • PAW6-01 • PAW6-02 • PAW6-03 • PAW8-01 • PAW8-02 • PAW8-03 • PAW8-04 • PAW10-02 • PAW10-03 • PAW10-04 • PAW12-02 • PAW12-03 • PAW12-04

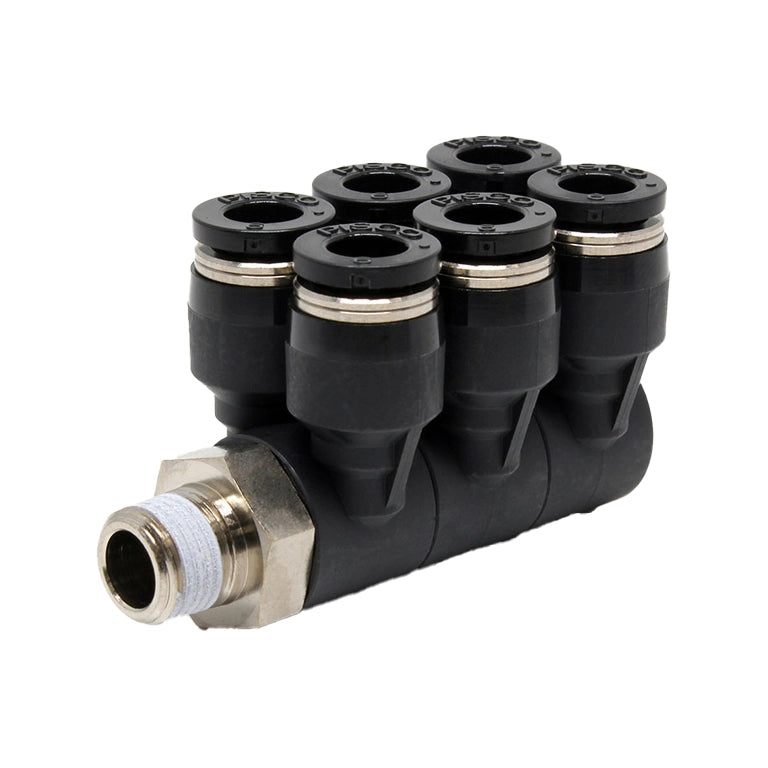

PAT - TRIPLE TWIN BANJO
PAT4-01 • PAT4-02 • PAT4-03 • PAT6-01 • PAT6-02 • PAT6-03 • PAT8-01 • PAT8-02 • PAT8-03 • PAT8-04 • PAT10-02 • PAT10-03 • PAT10-04 • PAT12-02 • PAT12-03 • PAT12-04

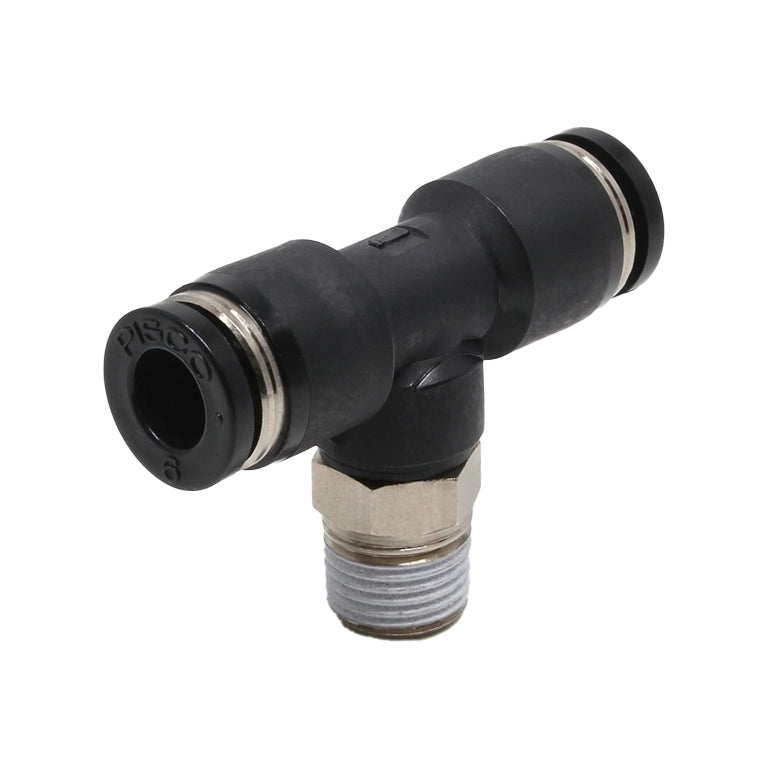

PB - BRANCH TEE
PB4-M5 • PB4-M6 • PB4-01 • PB4-02 • PB6-M5 • PB6-M6 • PB6-01 • PB6-02 • PB6-03 • PB8-01 • PB8-02 • PB8-03 • PB10-01 • PB10-02 • PB10-03 • PB10-04 • PB12-02 • PB12-03 • PB12-04 • PB16-03 • PB16-04 • PB5/32-U10U • PB5/32-N1U • PB1/4-U10U • PB1/4-N1U • PB1/4-N2U • PB5/16-N1U • PB5/16-N2U • PB5/16-N3U • PB3/8-N2U • PB3/8-N3U • PB1/2-N3U • PB1/2-N4U

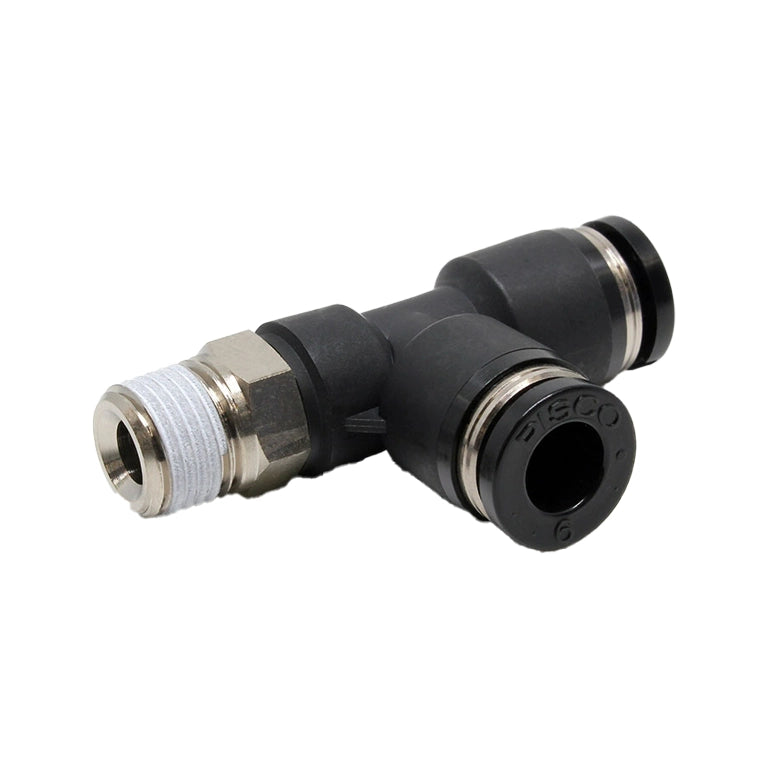

PD - RUN TEE
PD4-M5 • PD4-M6 • PD4-01 • PD4-02 • PD6-M5 • PD6-M6 • PD6-01 • PD6-02 • PD6-03 • PD8-01 • PD8-02 • PD8-03 • PD10-01 • PD10-02 • PD10-03 • PD10-04 • PD12-02 • PD12-03 • PD12-04 • PD16-03 • PD16-04 • PD5/32-U10U • PD5/32-N1U • PD1/4-U10U • PD1/4-N1U • PD1/4-N2U • PD5/16-N1U • PD5/16-N2U • PD5/16-N3U • PD3/8-N2U • PD3/8-N3U • PD1/2-N2U • PD1/2-N3U • PD1/2-N4U

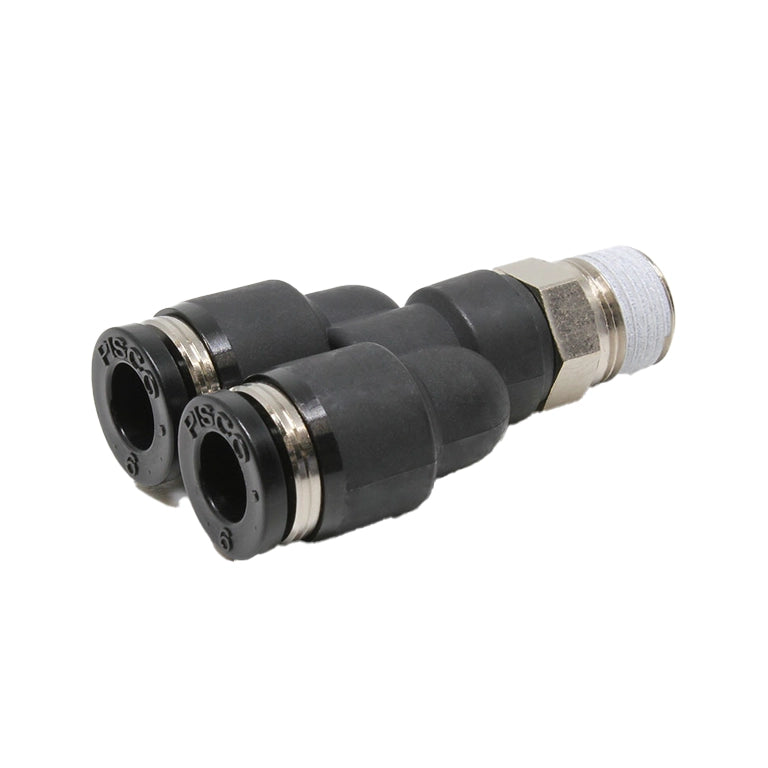

PX - BRANCH Y
PX4-M5 • PX4-M6 • PX4-01 • PX4-02 • PX6-M5 • PX6-M6 • PX6-01 • PX6-02 • PX6-03 • PX8-01 • PX8-02 • PX8-03 • PX10-01 • PX10-02 • PX10-03 • PX10-04 • PX12-02 • PX12-03 • PX12-04 • PX16-03 • PX16-04 • PX5/32-U10U • PX5/32-N1U • PX1/4-N1U • PX1/4-N2U • PX5/16-N1U • PX5/16-N2U • PX5/16-N3U • PX3/8-N2U • PX3/8-N3U • PX1/2-N3U • PX1/2-N4U

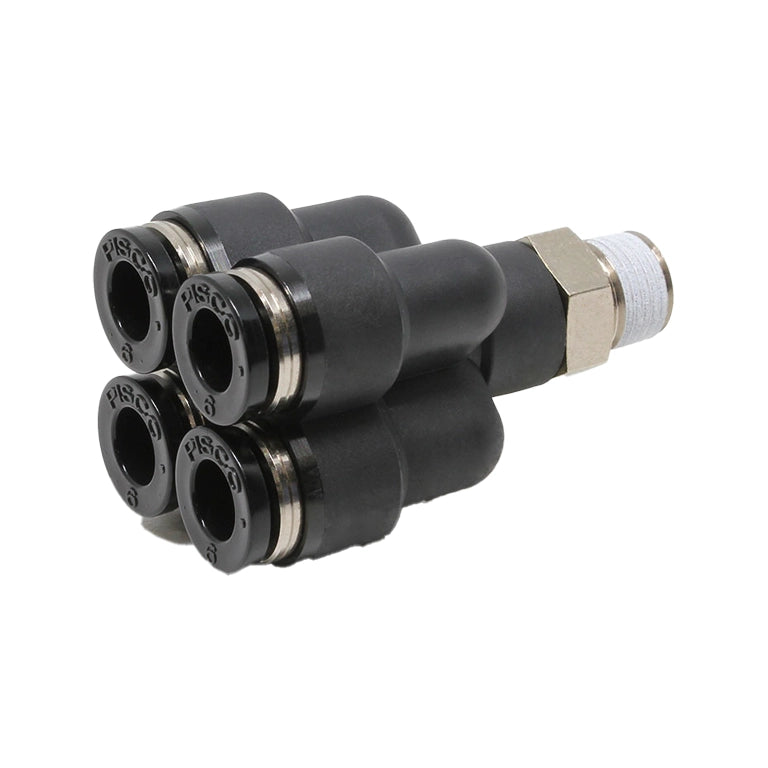

PRX - DOUBLE BRANCH Y
PRX4-01 • PRX4-02 • PRX6-01

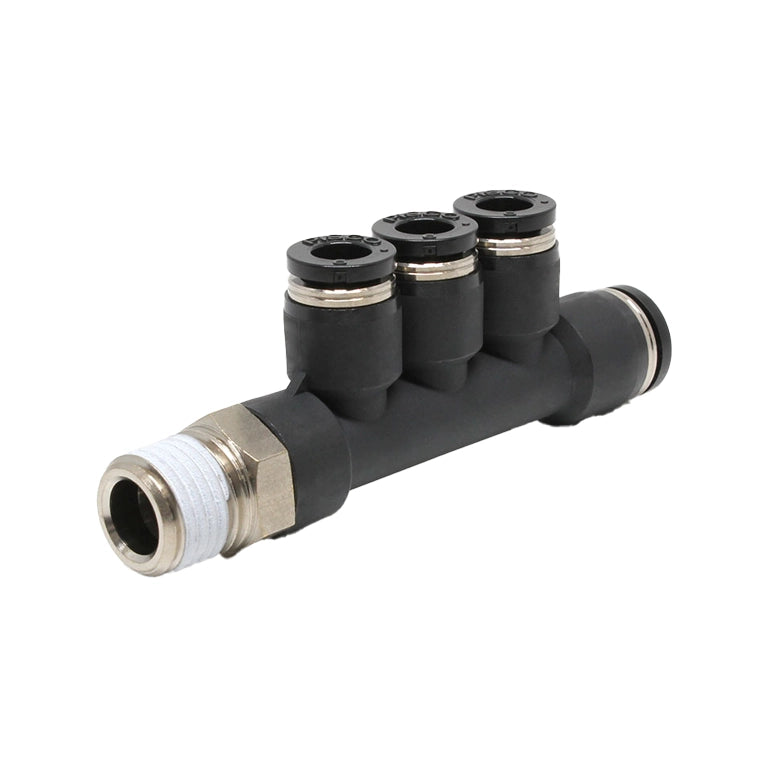

PKD - TRIPLE RUN TEE
PKD6-4-01 • PKD6-4-02 • PKD8-6-02 • PKD8-6-03

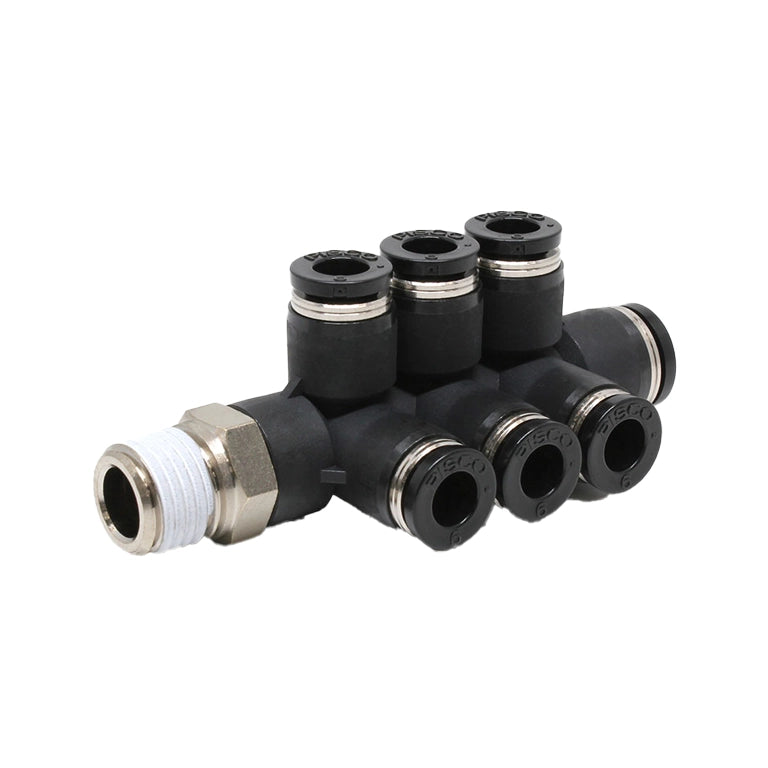

PKVD - TWIN TRIPLE RUN TEE
PKVD8-4-02 • PKVD8-4-03 • PKVD8-6-02 • PKVD8-6-03 • PKVD10-6-03 • PKVD10-6-03 • PKVD10-8-03 • PKVD10-8-04

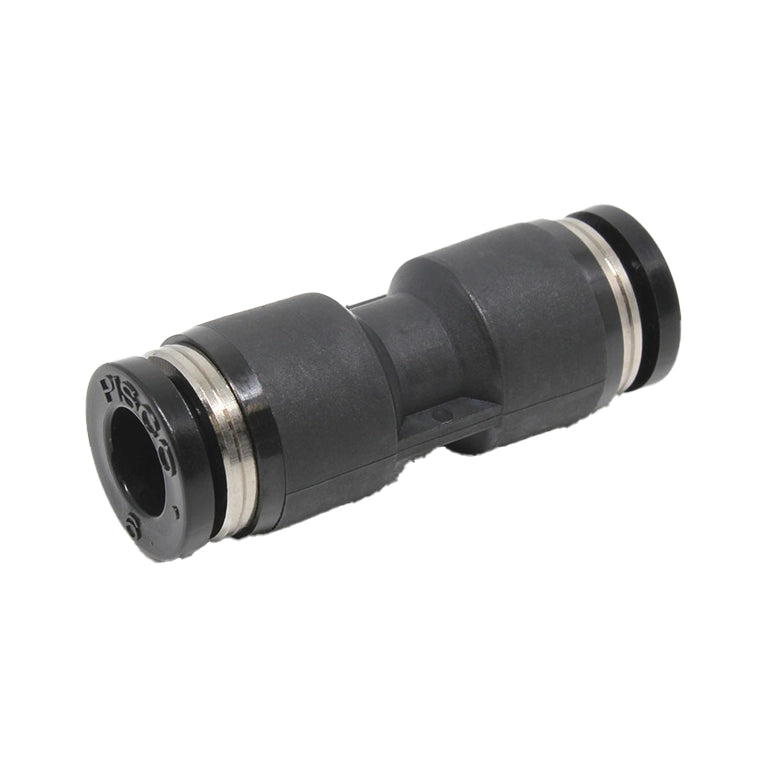

PU - UNION STRAIGHT
PU4 • PU6 • PU8 • PU10 • PU12 • PU16 • PU5/32 • PU1/4 • PU5/16 • PU3/8 • PU1/2

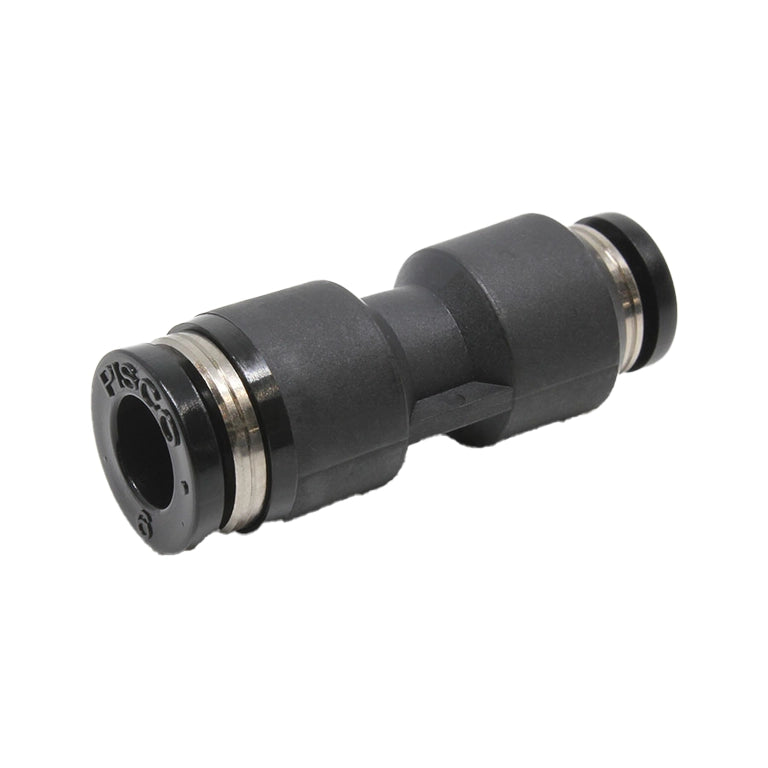

PG - UNEQUAL UNION STRAIGHT
PG6-4 • PG8-4 • PG8-6 • PG10-6 • PG10-8 • PG12-8 • PG12-10 • PG16-10 • PG16-12 • PG1/4-5/32 • PG5/16-1/4 • PG3/8-5/16 • PG1/2-3/8

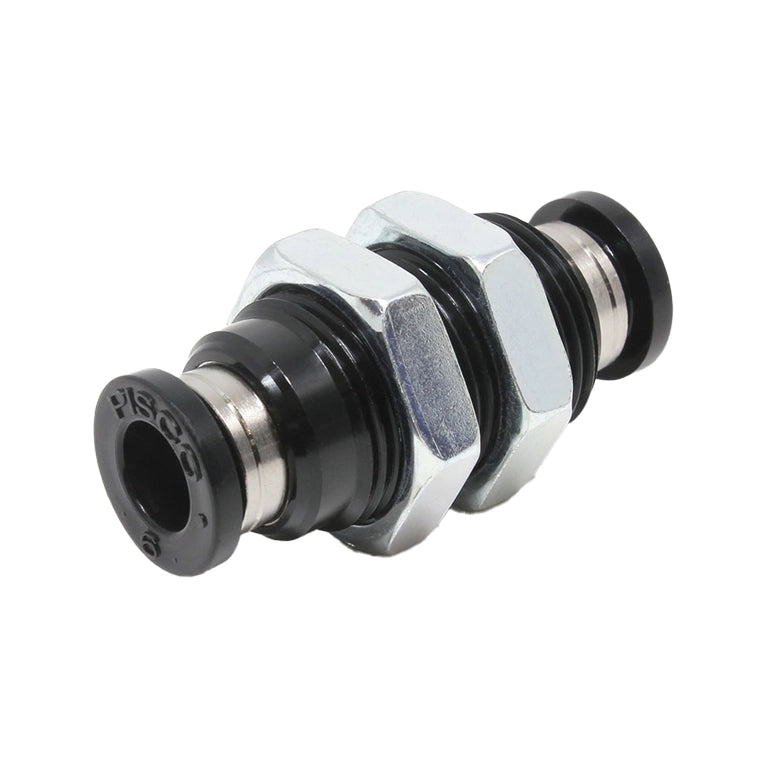

PM - BULKHEAD UNION
PM4 • PM6 • PM8 • PM10 • PM12 • PM16 • PM5/32 • PM1/4 • PM3/8 • PM1/2 • PM5/32U • PM1/4U • PM3/8U • PM1/2U

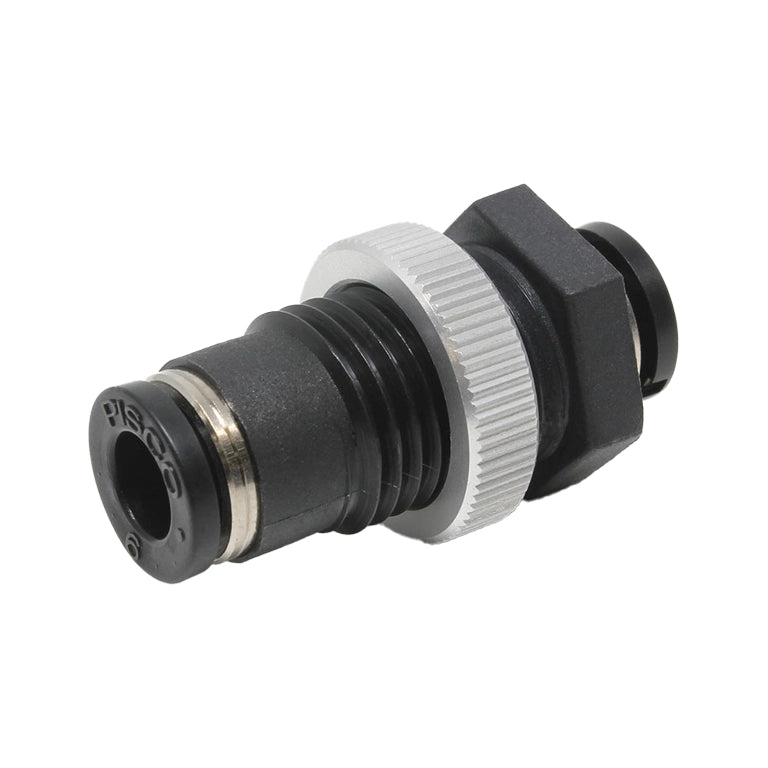

PMP - BULKHEAD UNION P
PMP4 • PMP6 • PMP8 • PMP10 • PMP12 • PMP6-E

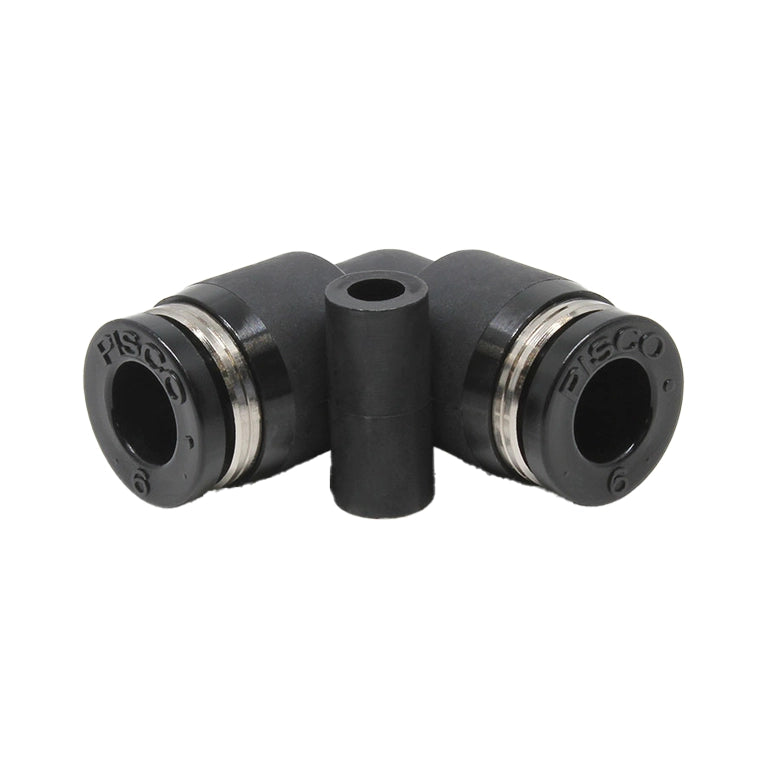

PV - UNION ELBOW
PV4 • PV6 • PV8 • PV10 • PV12 • PV16 • PV5/32 • PV1/4 • PV5/16 • PV3/8 • PV1/2

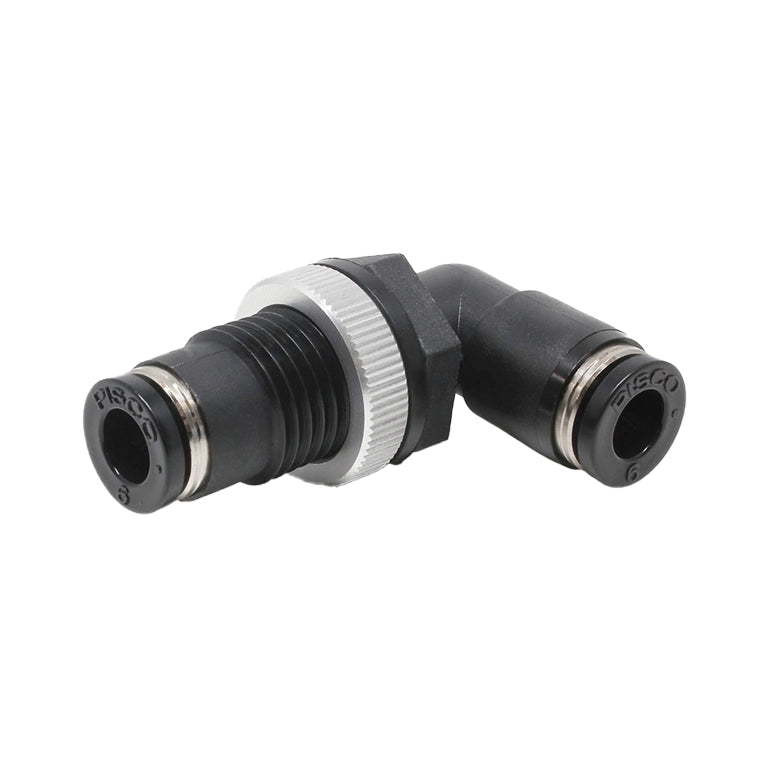

PML - BULKHEAD UNION ELBOW
PML4 • PML6 • PML8 • PML10 • PML12 • PML6-E-PRWN

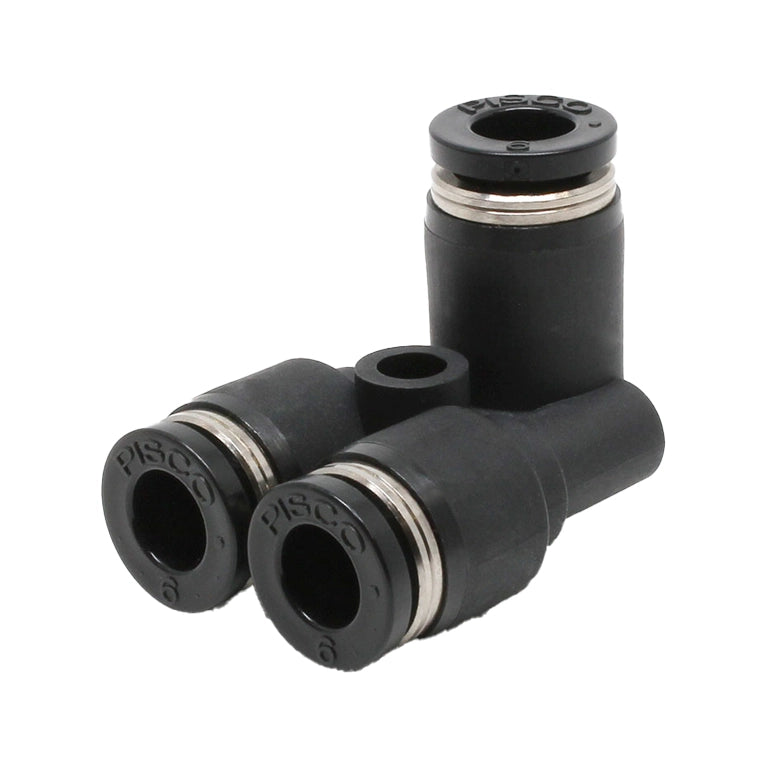

PAU - BRANCH UNION ELBOW
PAU4 • PAU6 • PAU8 • PAU10 • PAU12

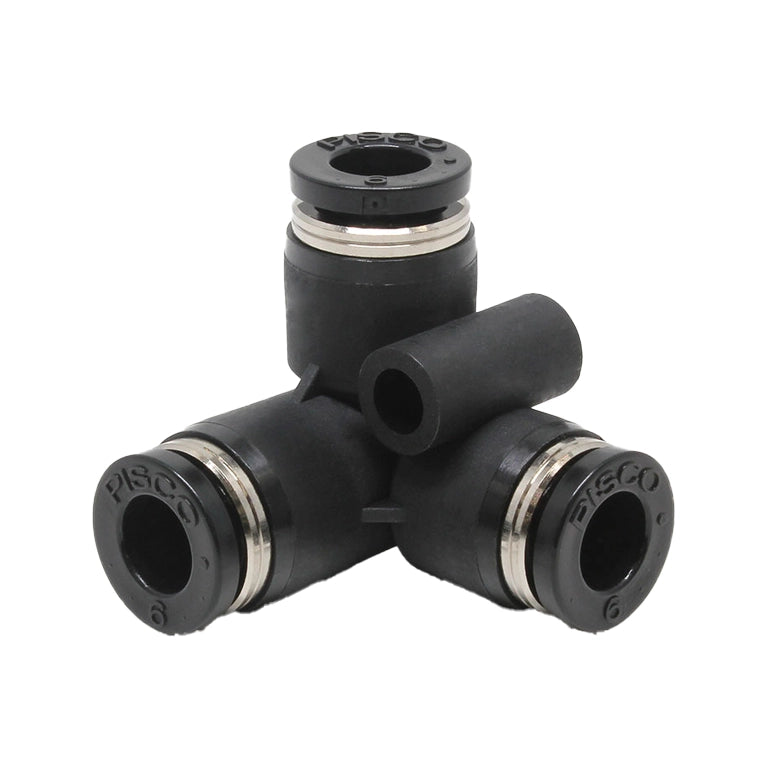

PVU - TRIPOD UNION
PVU4 • PVU6 • PVU8 • PVU10 • PVU12

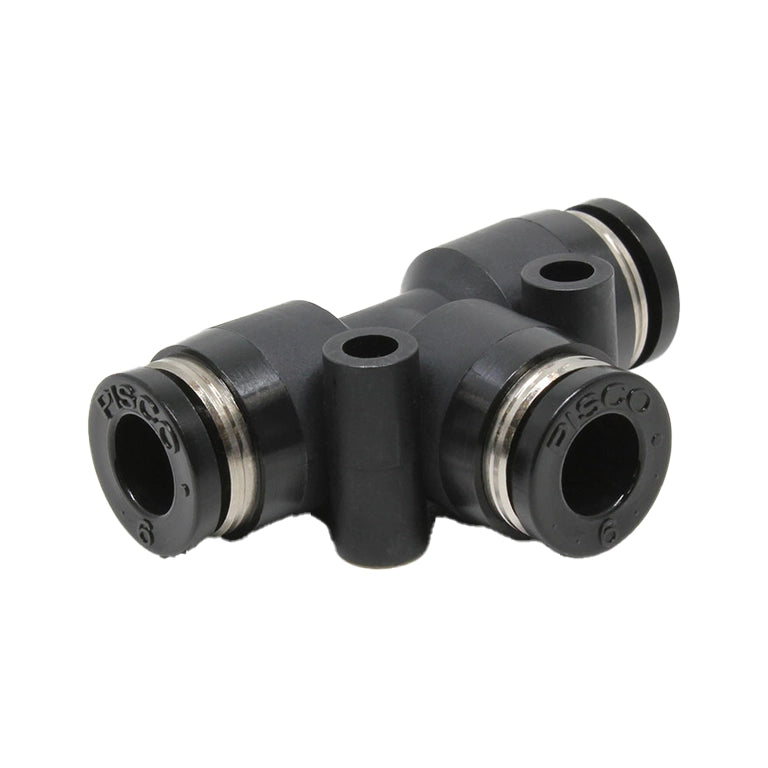

PE - UNION TEE
PE4 • PE6 • PE8 • PE10 • PE12 • PE16 • PE5/32 • PE1/4 • PE5/16 • PE3/8 • PE1/2

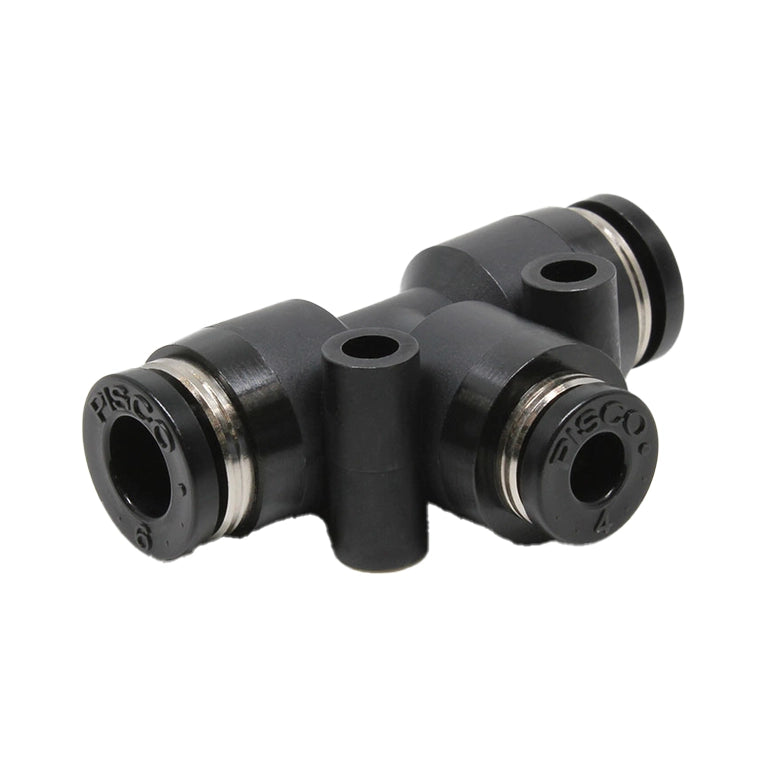

PEG - UNEQUAL UNION TEE
PEG4-6 • PEG6-4 • PEG6-8 • PEG8-4 • PEG8-6 • PEG8-10 • PEG10-6 • PEG10-8 • PEG10-12 • PEG12-8 • PEG12-10 • PEG12-16 • PEG16-10 • PEG16-12 • PEG8-12

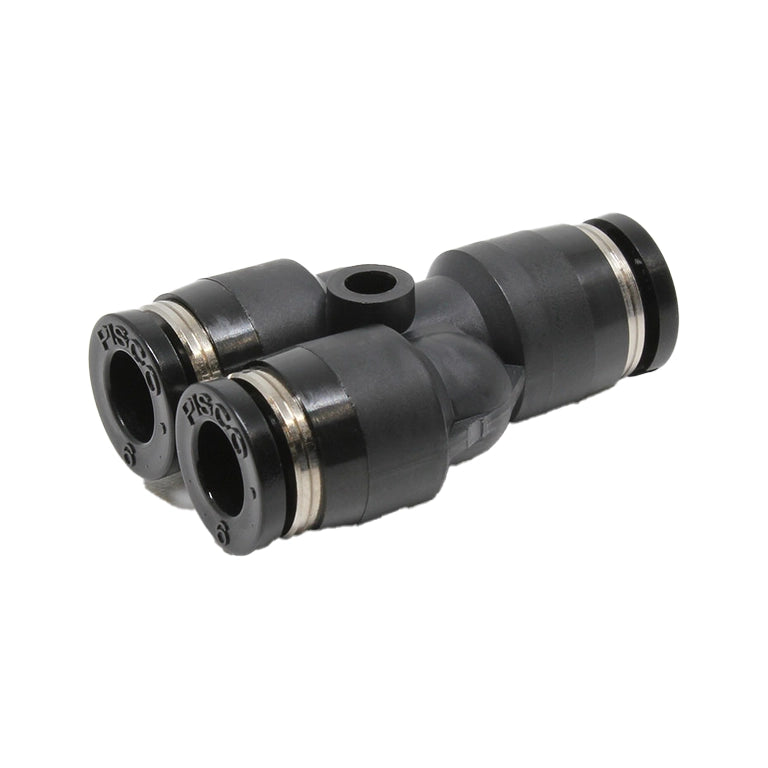

PY - UNION Y
PY4 • PY6 • PY8 • PY10 • PY12 • PY16 • PY5/32 • PY1/4 • PY5/16 • PY3/8 • PY1/2

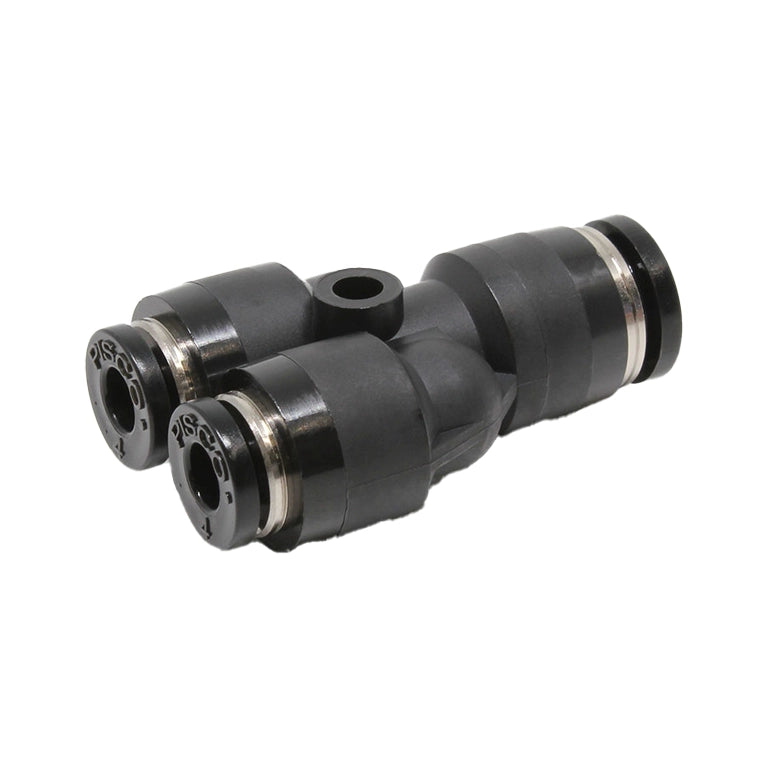

PW - UNEQUAL UNION Y
PW6-4 • PW8-4 • PW8-6 • PW10-6 • PW10-8 • PW12-8 • PW12-10 • PW16-12 • PW1/4-5/32 • PW5/16-1/4 • PW3/8-5/16 • PW1/2-3/8

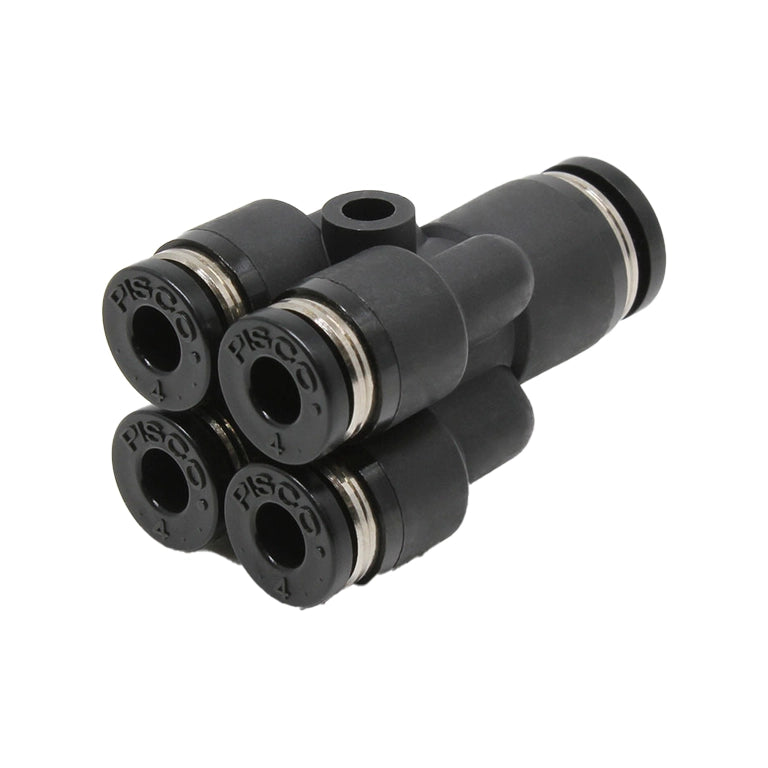

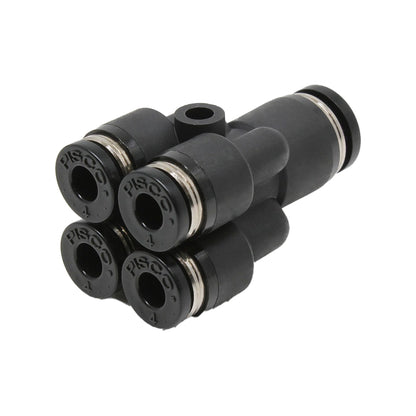

PRG - UNEQUAL DOUBLE Y
PRG6-4 • PRG8-6

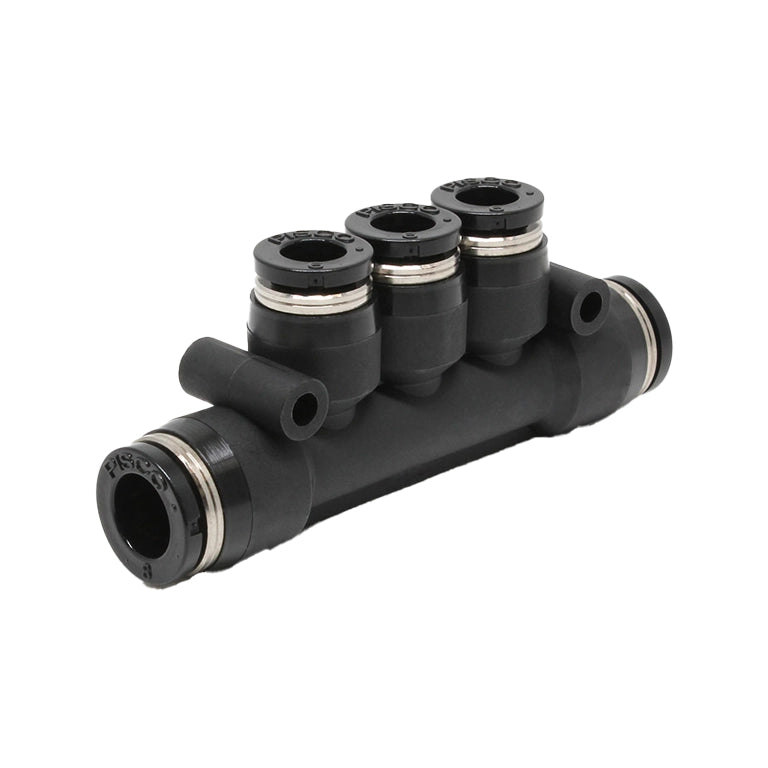

PKG - UNEQUAL TRIPLE TEE
PKG6-4 • PKG8-4 • PKG8-6 • PKG10-6 • PKG10-8

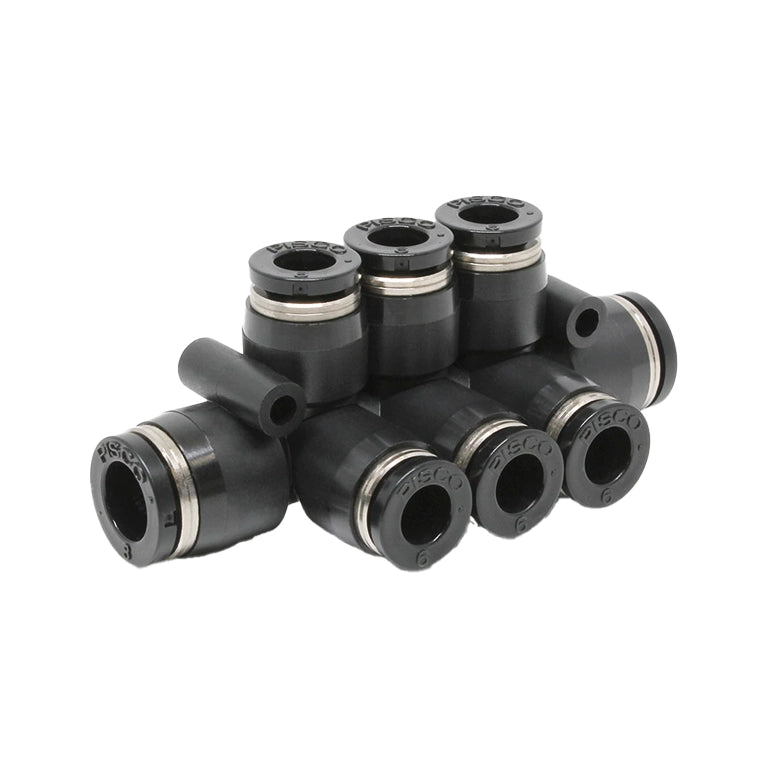

PKVG - UNEQUAL TWIN TRIPLE TEE
PKVG8-4 • PKVG8-6 • PKVG10-6 • PKVG10-8

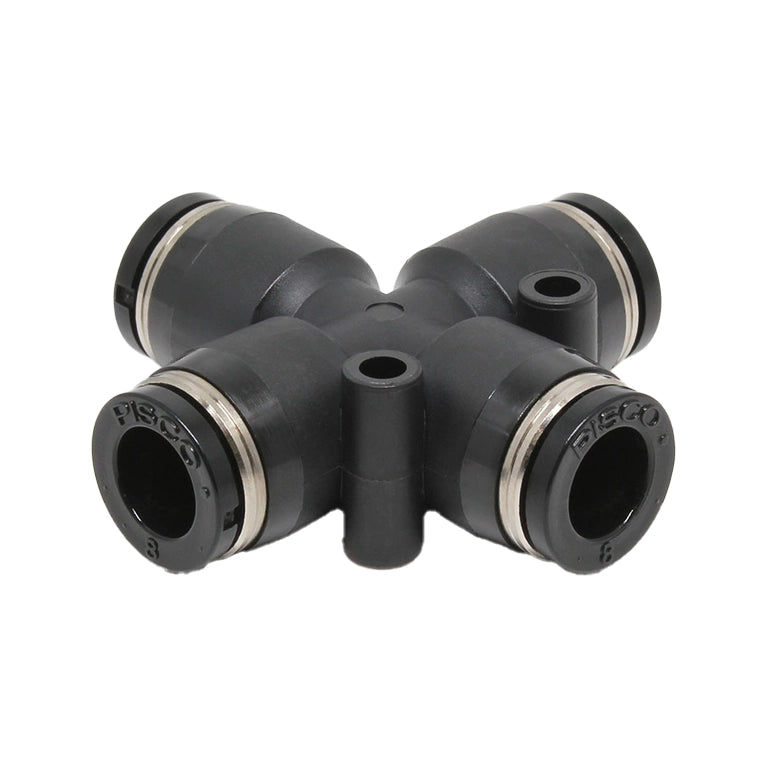

PZA - UNION CROSS
PZA8 • PZA10 • PZA12

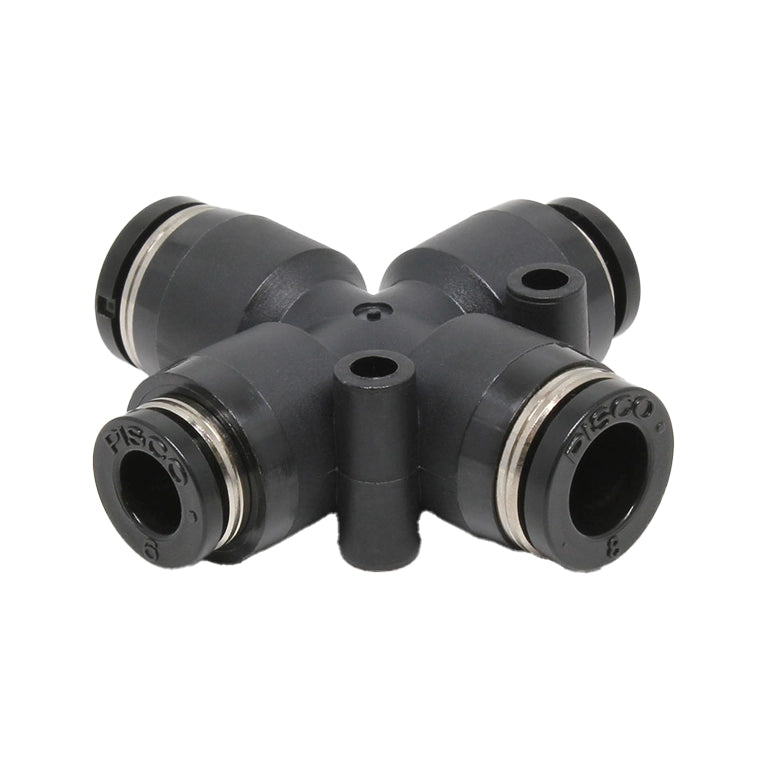

PZB - UNEQUAL CROSS
PZB8-6 • PZB10-8 • PZB12-10

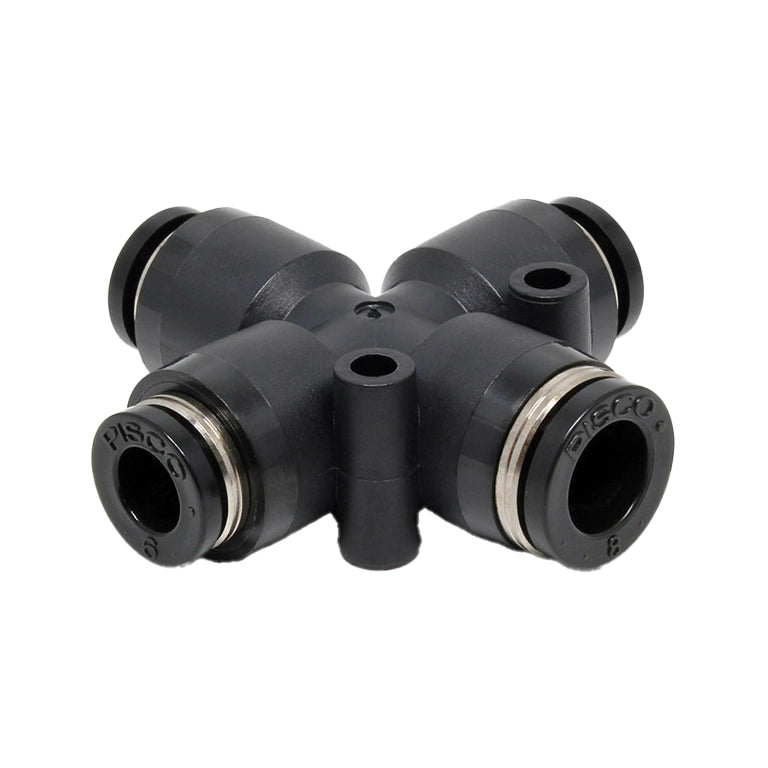

PZC - REDUCING CROSS
PZC8-6 • PZC10-8 • PZC12-10
