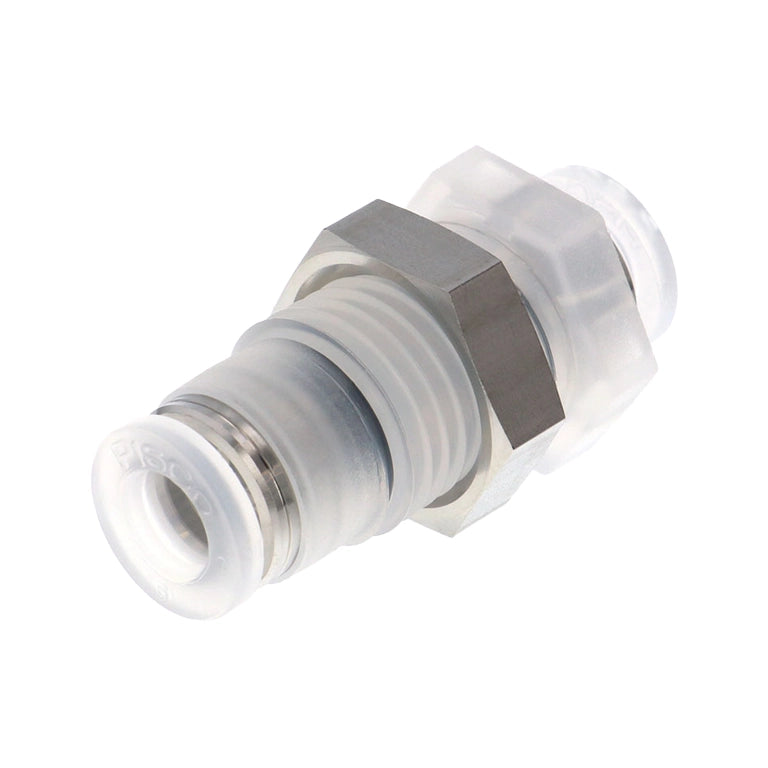

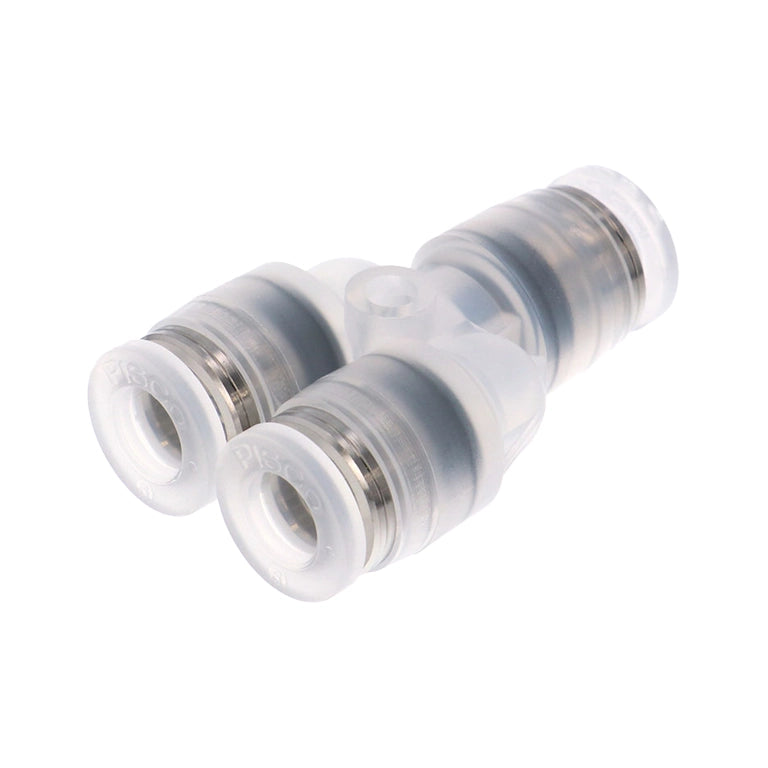

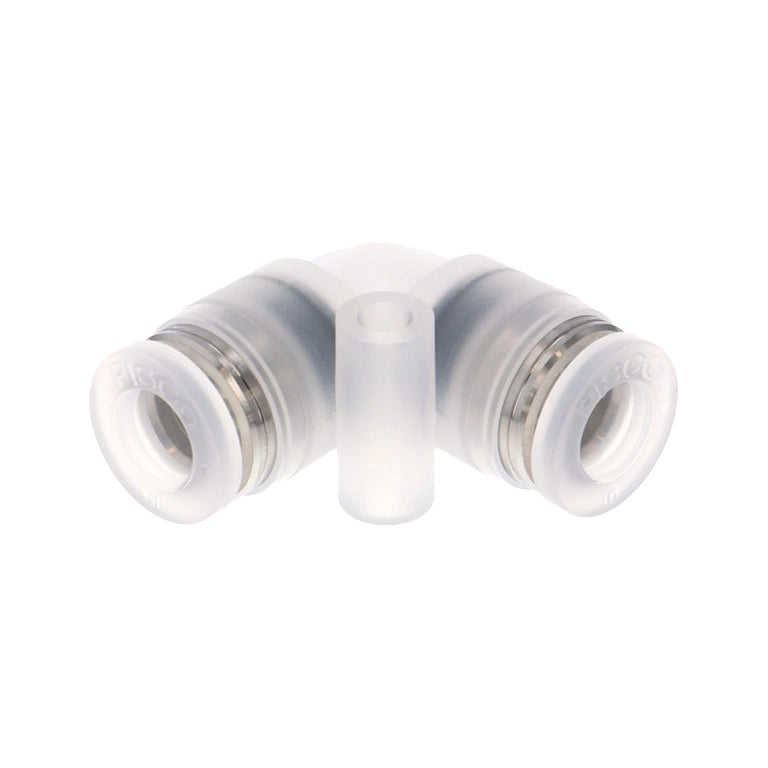

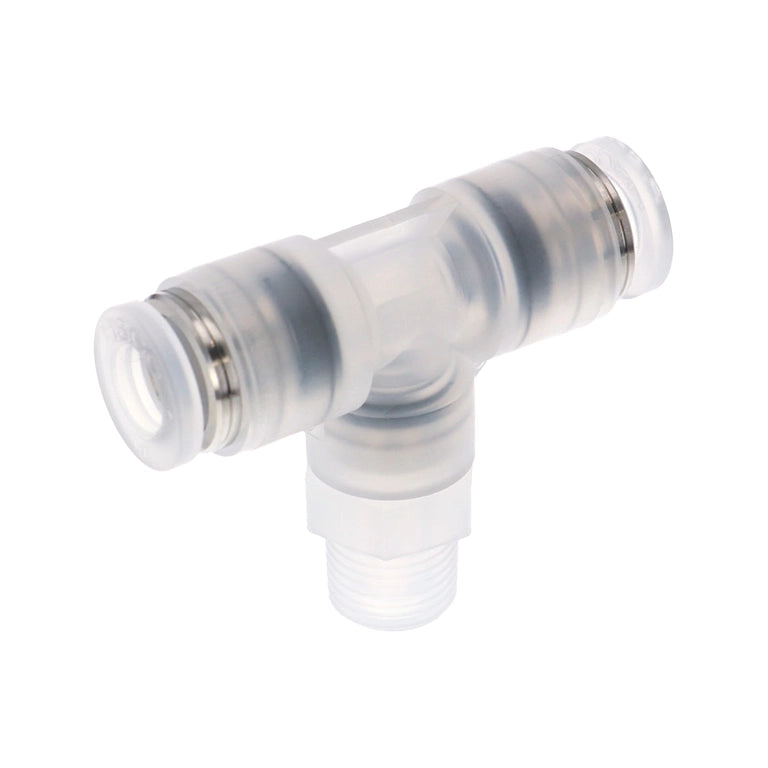

Tube Fitting PP SUS304
Tube Fitting PP SUS304

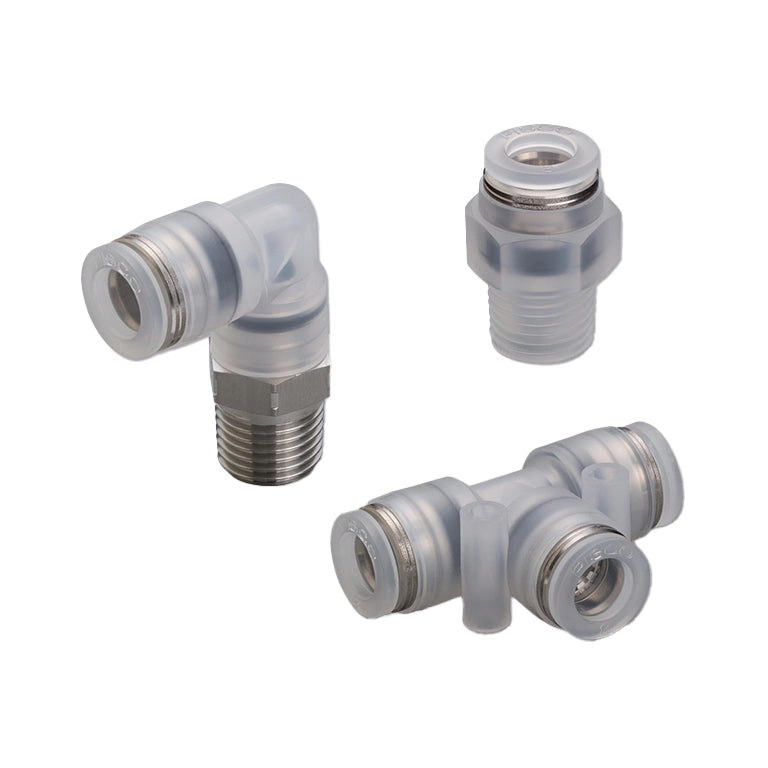

Maintain pristine production standards with PISCO PP and SUS304 Tube Fittings, developed by Nihon Pisco. These high-purity push-in fittings combine transparent Polypropylene (PP) resin bodies with robust SUS304 stainless steel metal elements. They completely eliminate copper-based metals from the flow path, preventing heavy metal contamination and rust. Built with an oil-free configuration, these fittings let you easily check sanitary conditions visually. This makes them ideal for demanding, ultra-clean industrial systems that require absolute fluid integrity.
Choose from two thread material options, with body construction available in PP resin or SUS304 based on the intended application.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of PISCO PP SUS304 Fittings in India.
General Specifications
General Specifications
Operating Pressure: Reaches a maximum rating of 1.0 MPa at 0–20°C.
Vacuum Limits: Certified for negative pressures down to -100 kPa.
Thermal Capabilities: Operates smoothly from 0°C up to 80°C without freezing.
Media Compatibility: Optimized for Compressed Air, Water, and select chemicals.
Wetted Components: Resin thread options feature no exposed metal parts.
Weight Efficiency: Resin thread models weigh less than half of standard variants.
Clean Room Packaging: Optional ISO Class 6 vacuum-sealed ultrasonic wash packaging.
Sizing Variations: Available in diverse metric/inch diameters and NPT thread profiles.
Material
Material
Main Resin Body: Transparent, high-clarity Polypropylene (PP) engineering resin.
Structural Metal: High-grade, corrosion-resistant SUS304 Stainless Steel alloys.
Standard Sealing: Premium EPDM rubber seals for cold/ozone endurance.
Compliance Profiles: Optional FDA-compliant resin, rubber compounds, and NSF-H1 grease.
Copper-Free Design: Guaranteed zero copper metals inside fluid contact channels.
Share
Product Knowledge
Areas of Application
Semiconductor Processing & Clean Rooms: Keeps systems particle-free via clean-room packaged, ultrasonic-cleaned fittings that prevent oil contamination.
Food, Beverage, & Sanitary Filling Lines: Allows quick visual cleanliness inspections using FDA-compliant materials and NSF-H1 food-grade lubrication.
Chemical Handling & Laboratory Fluid Transfer: Safely channels sensitive chemical compounds without body degradation or fluid contamination.
Low-Concentration Ozone Environments: Protects automated machinery lines against early degradation using ozone-resistant EPDM seal technology.
