Pisco

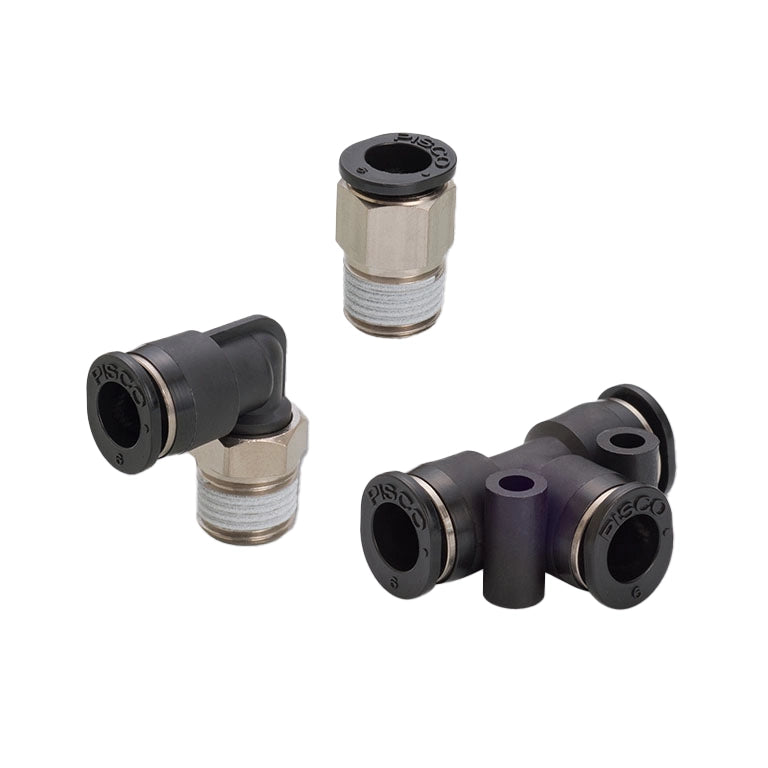

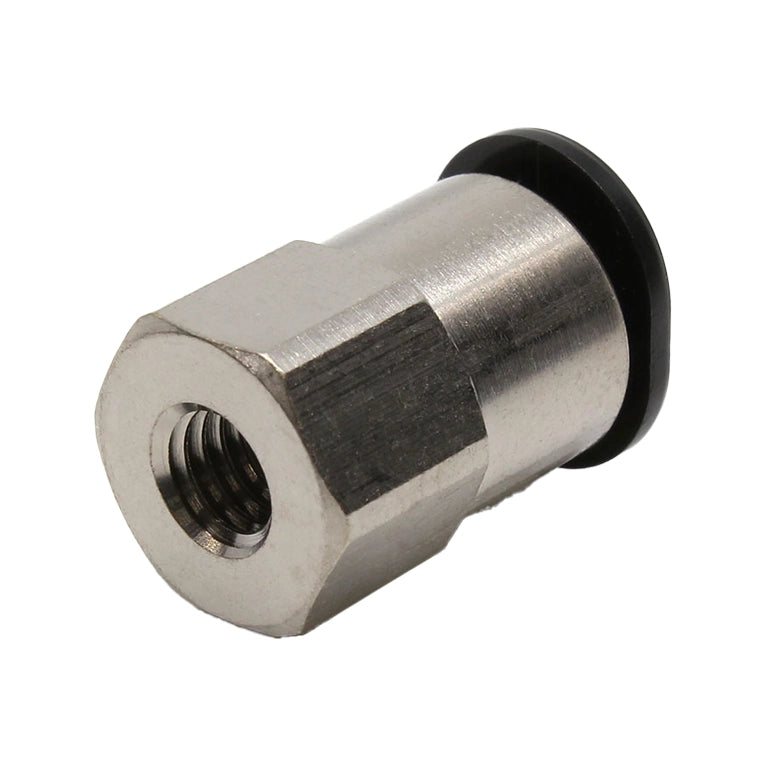

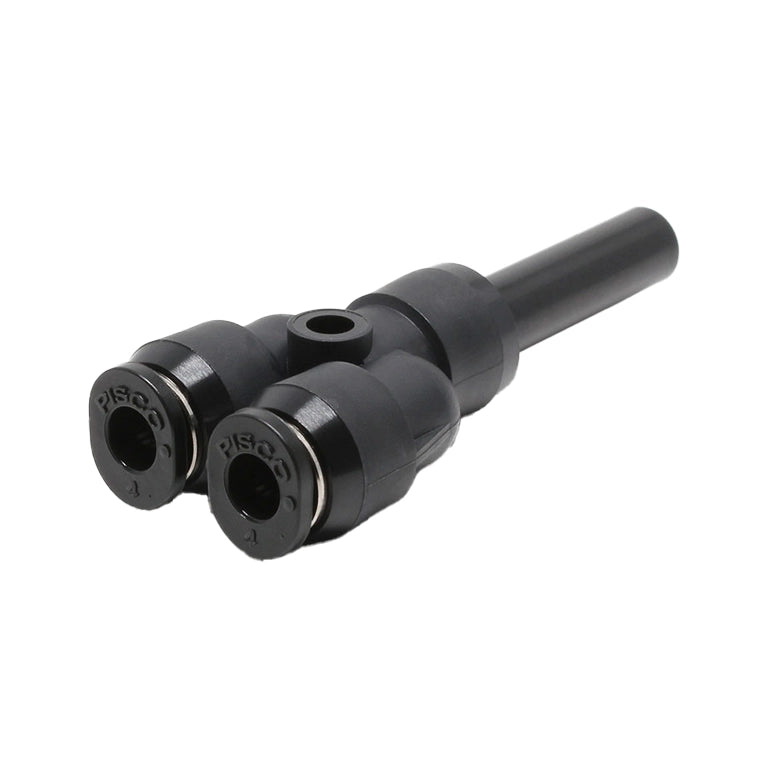

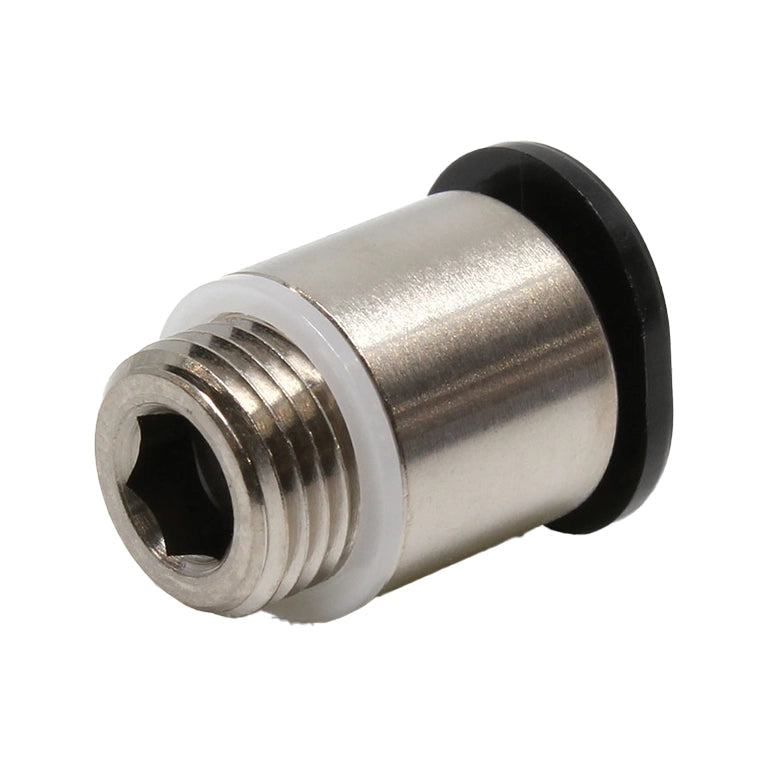

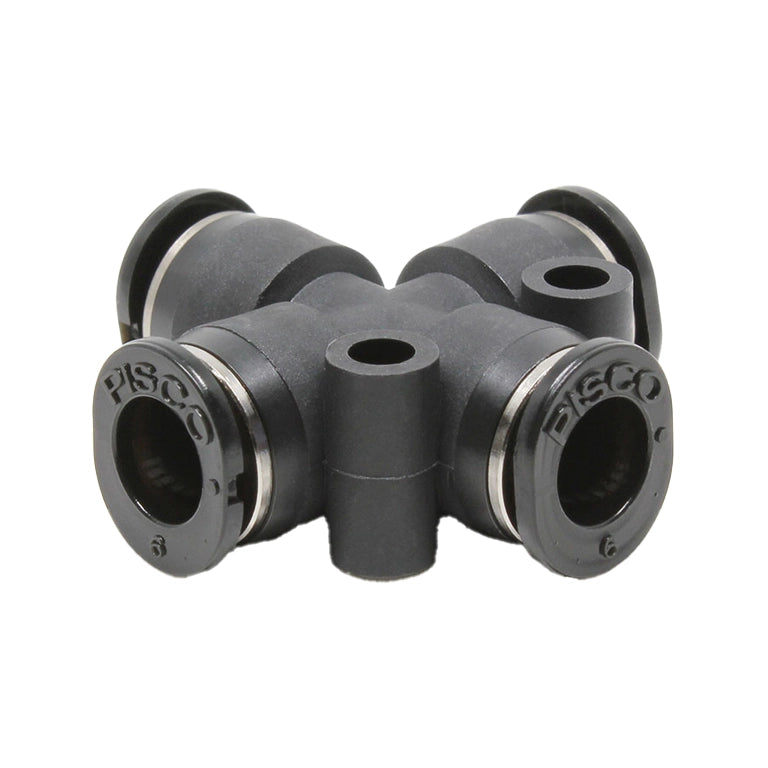

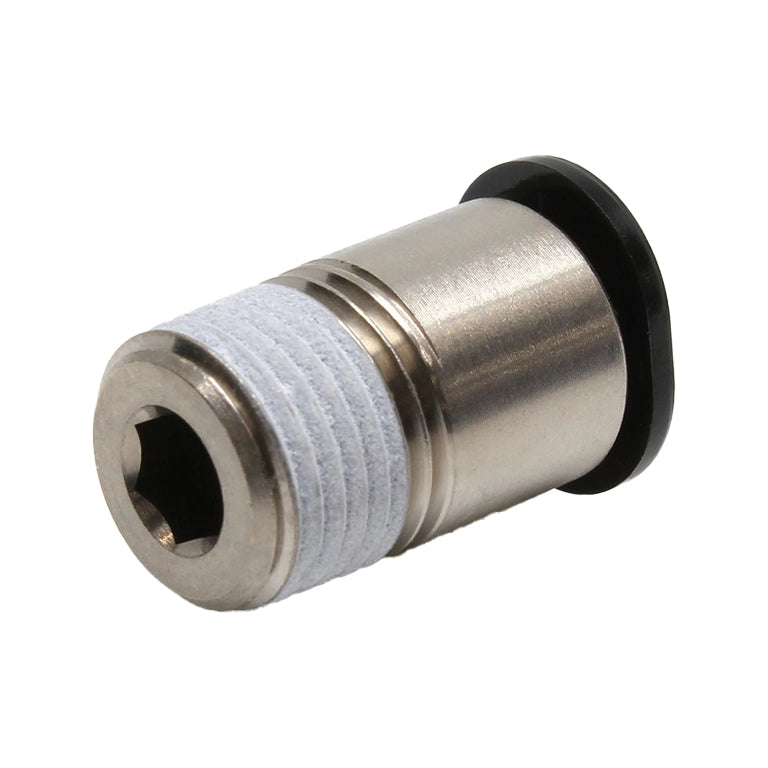

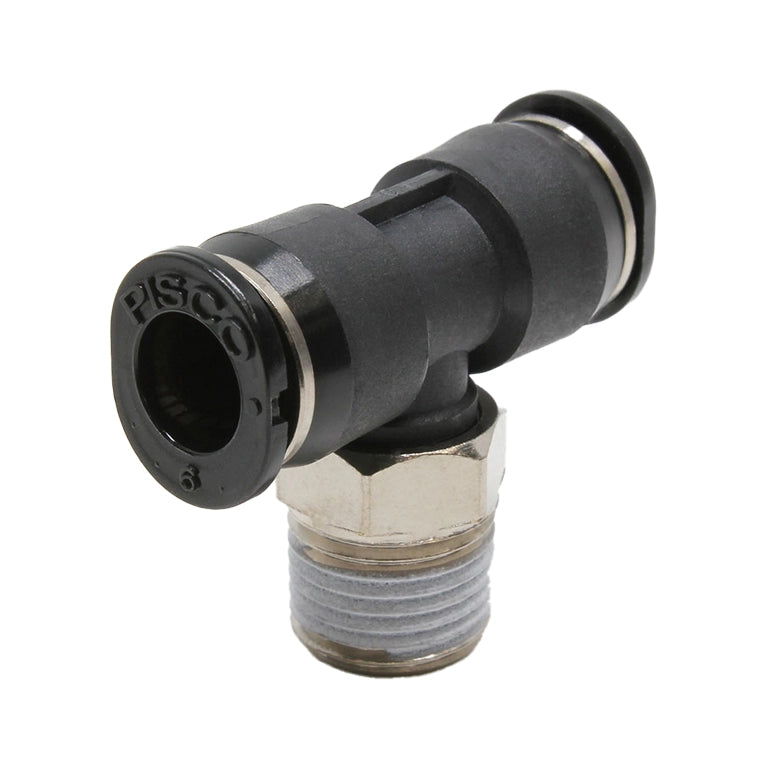

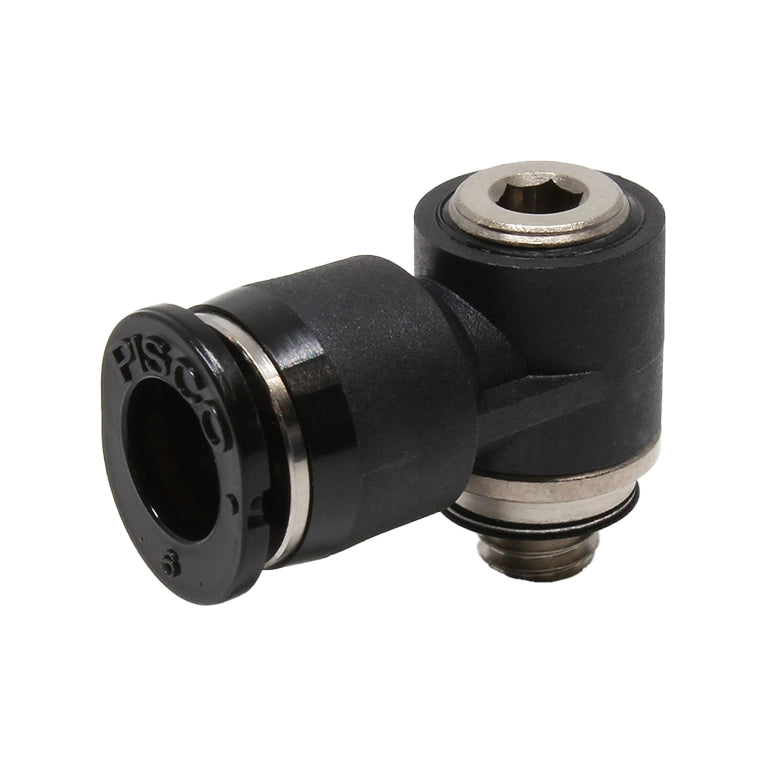

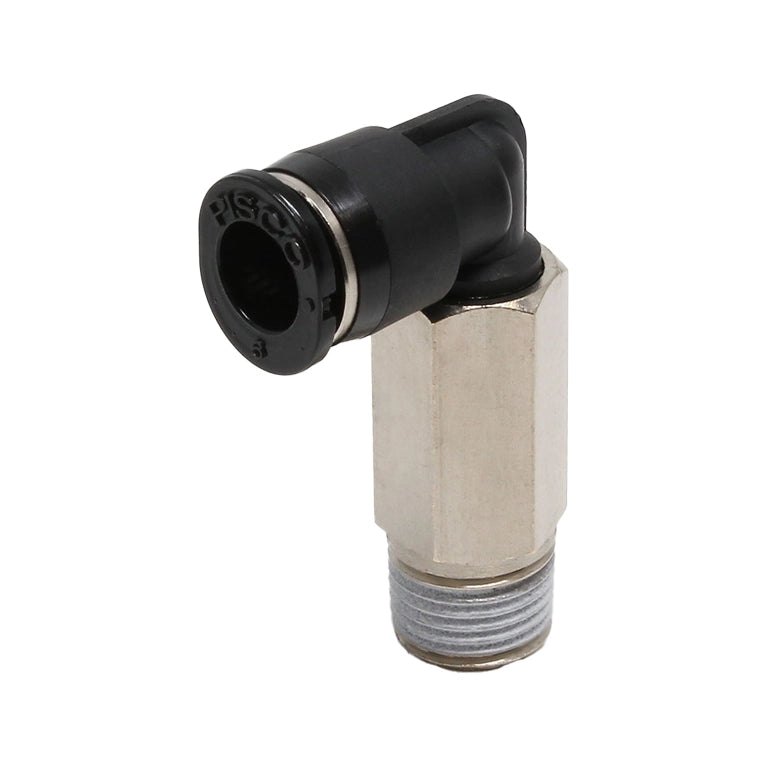

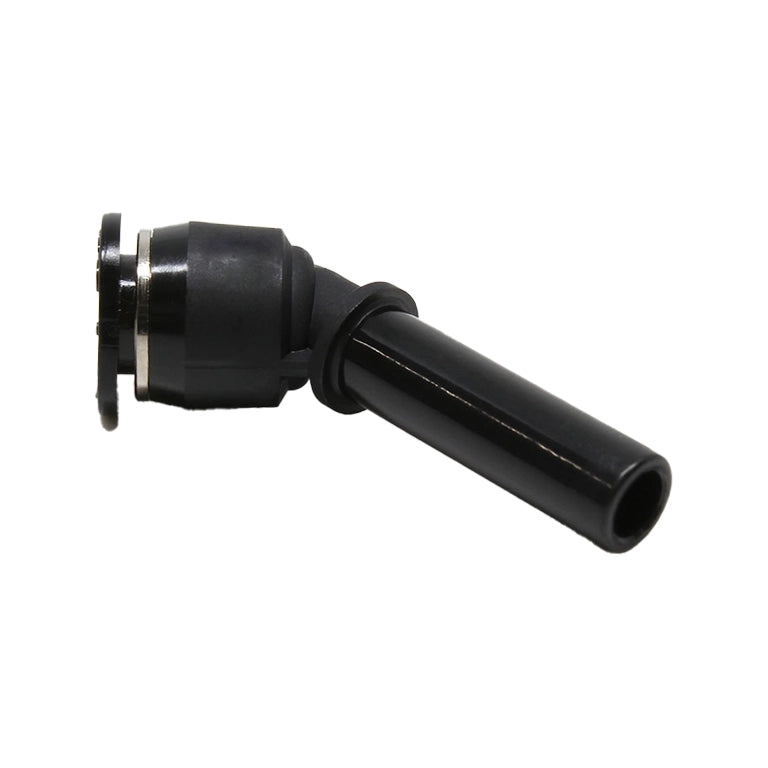

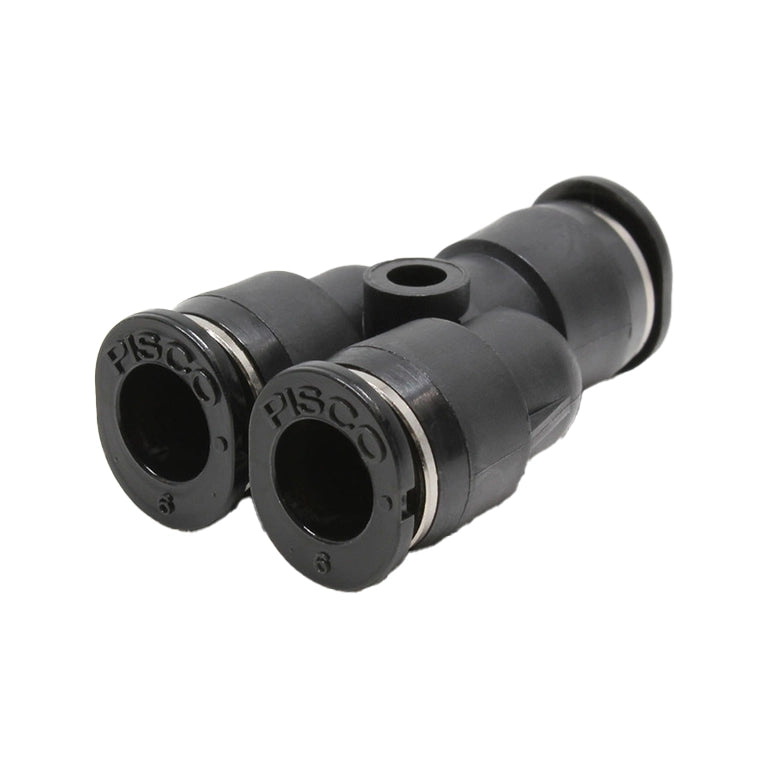

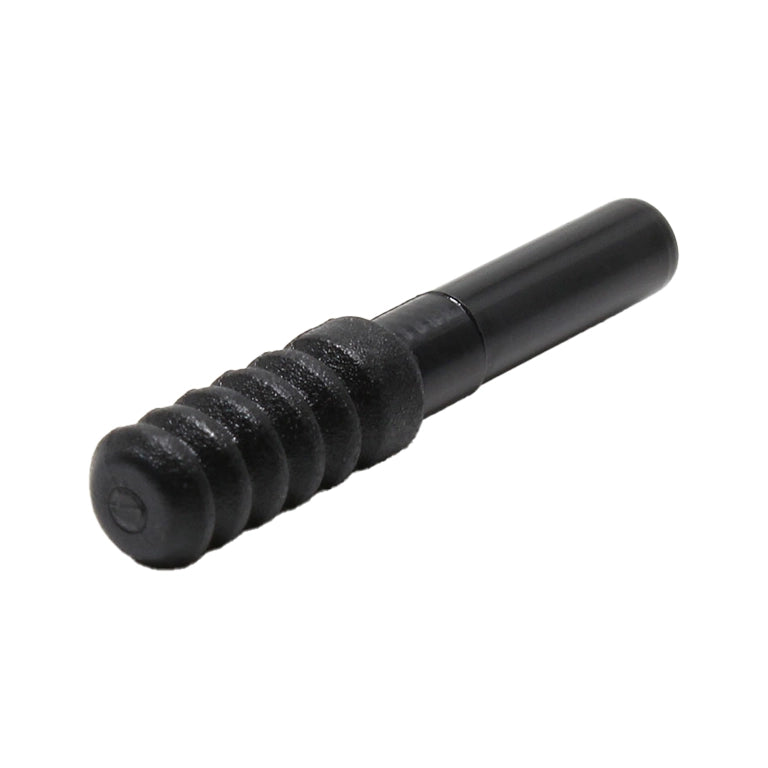

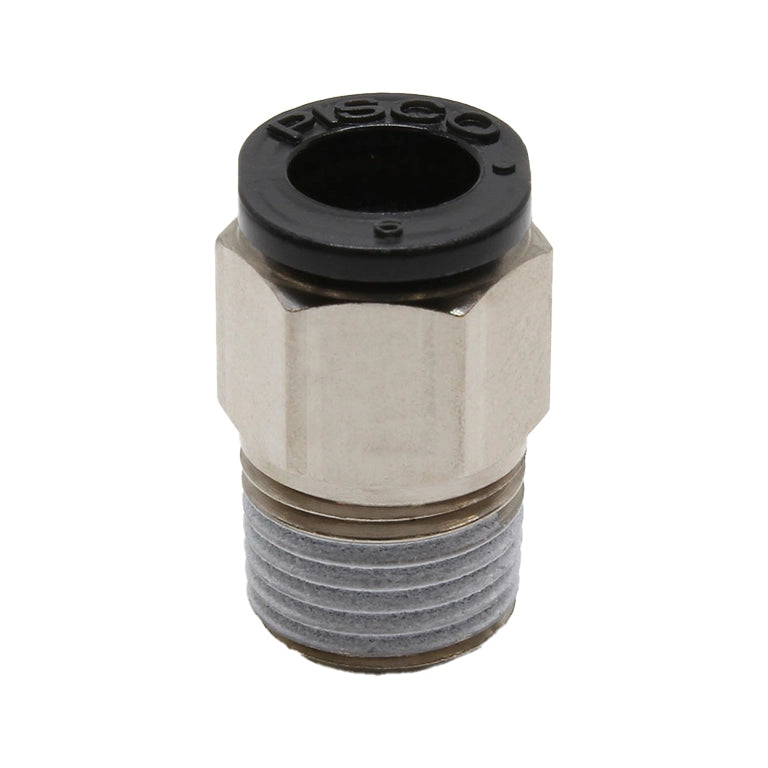

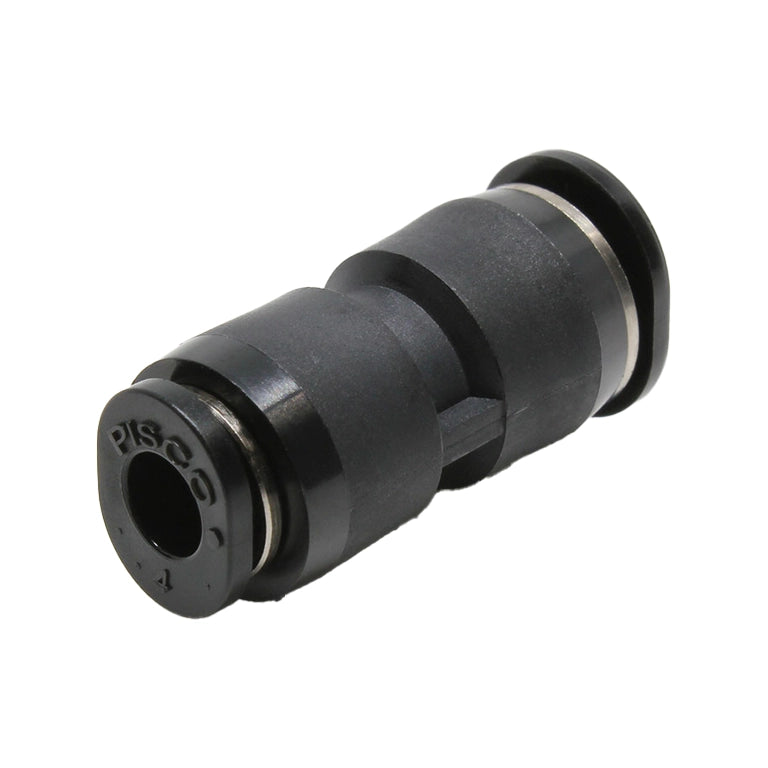

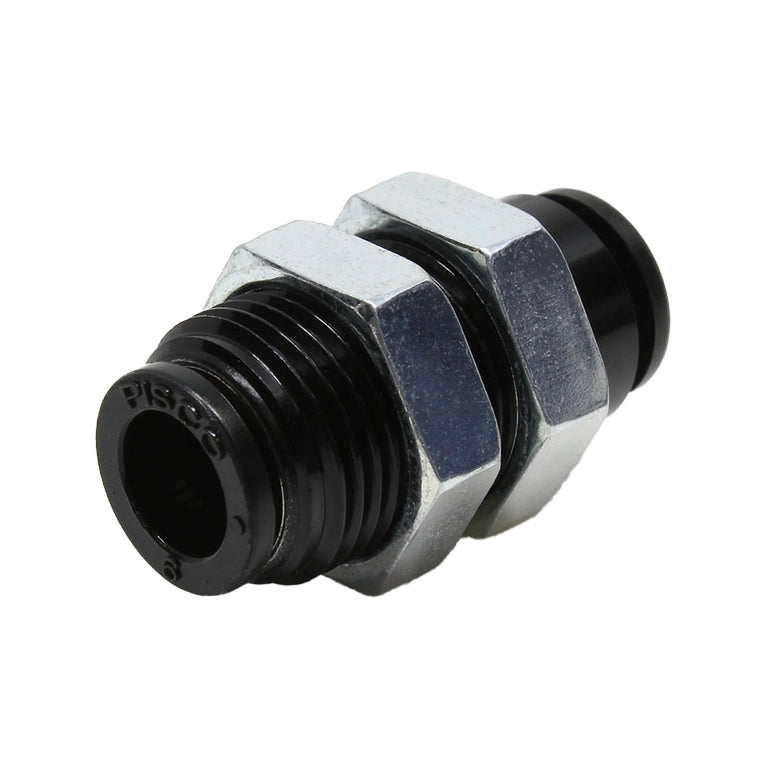

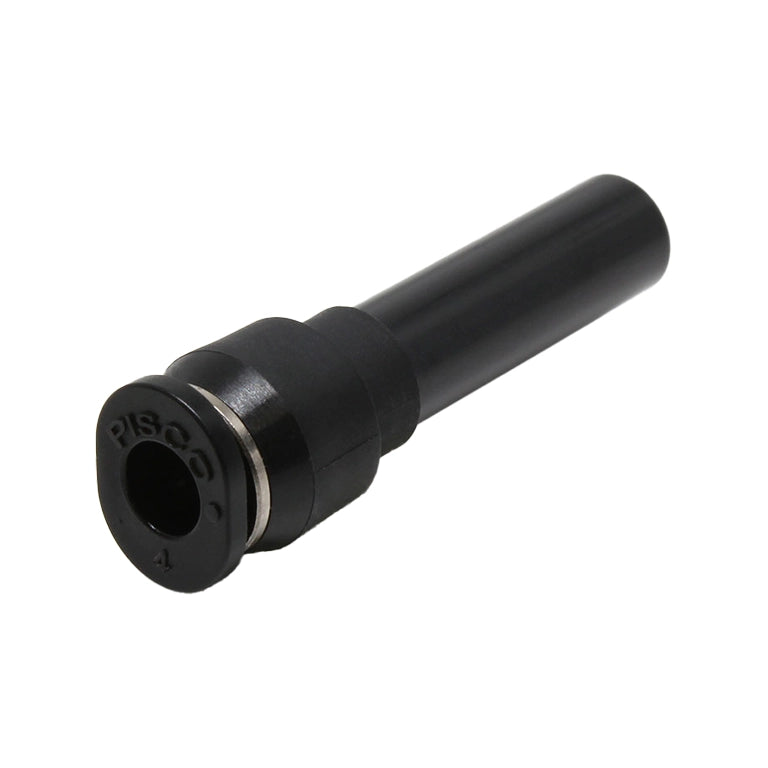

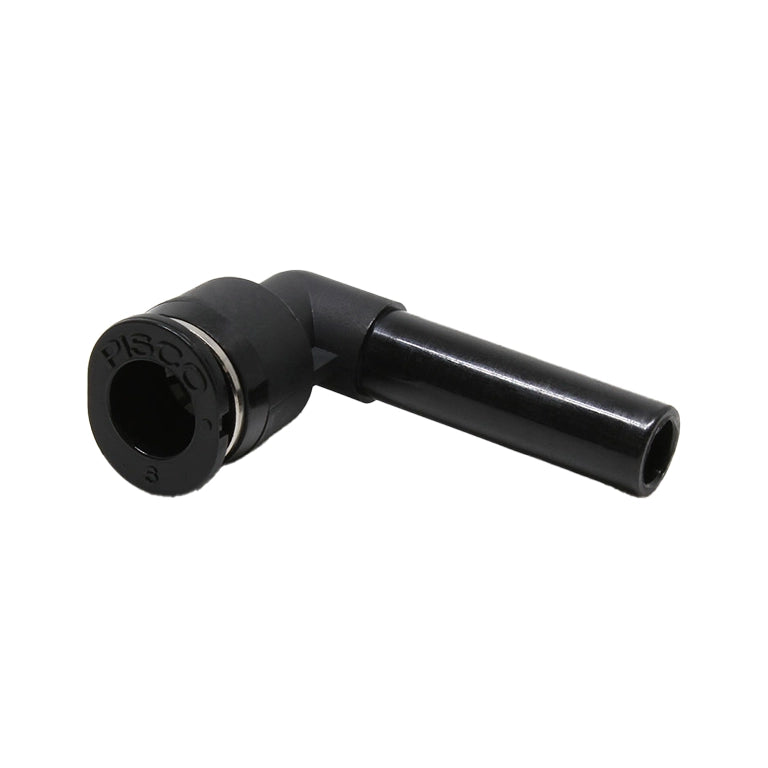

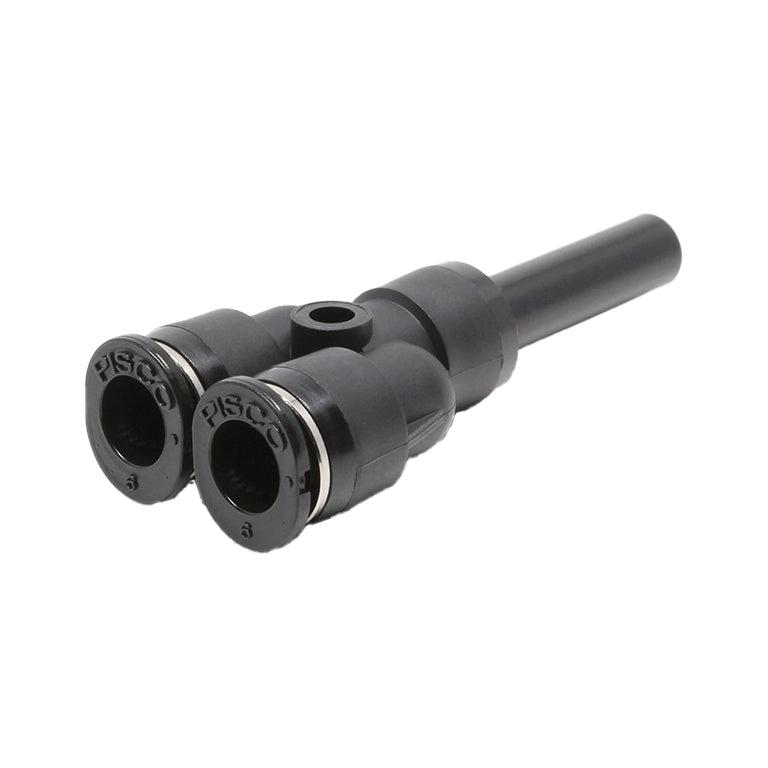

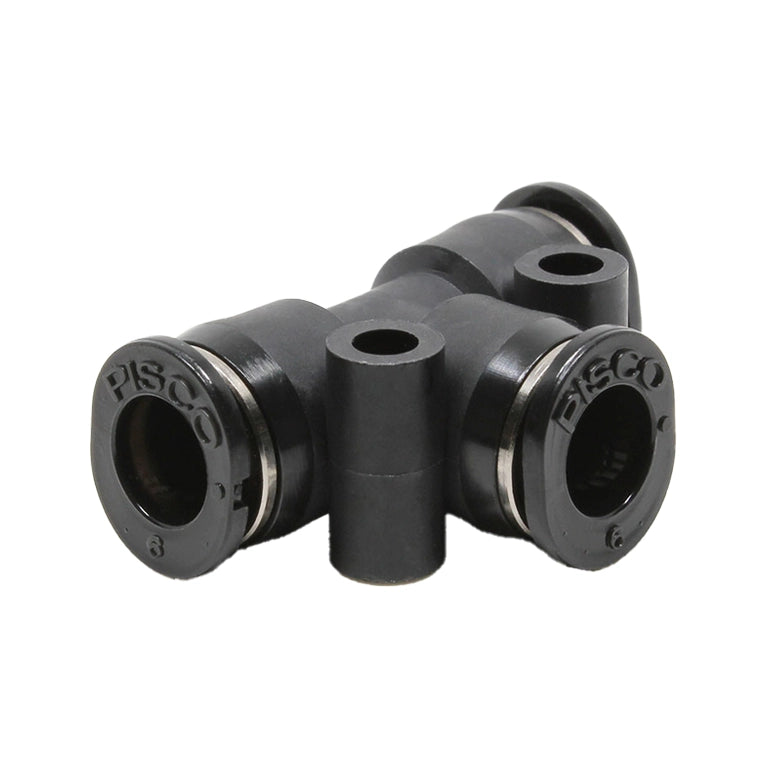

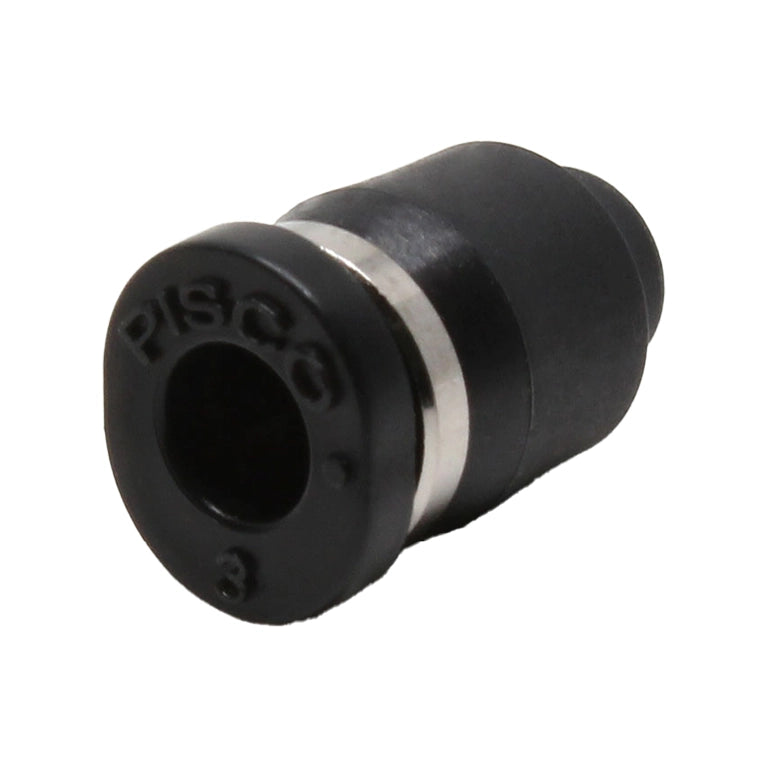

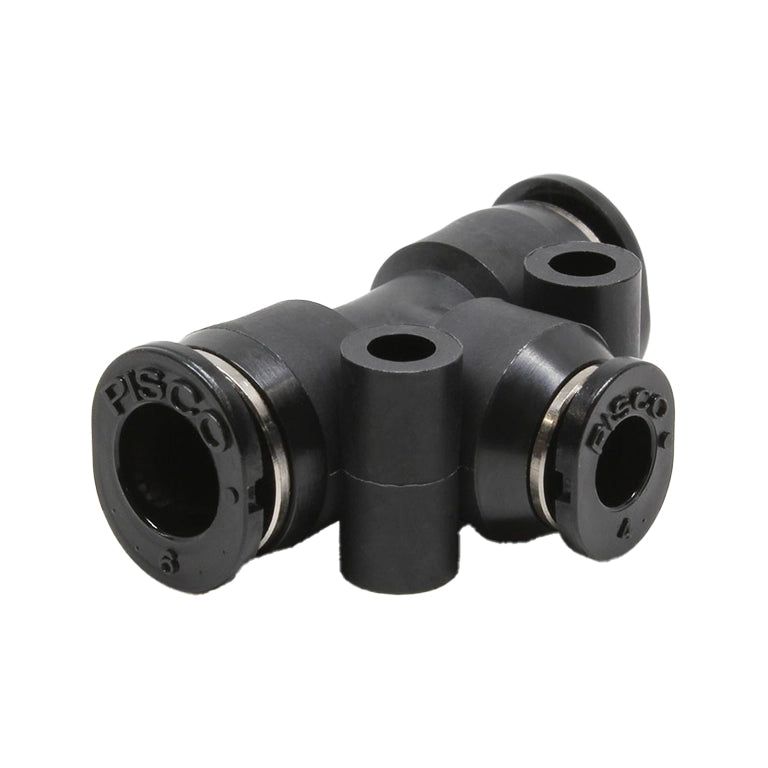

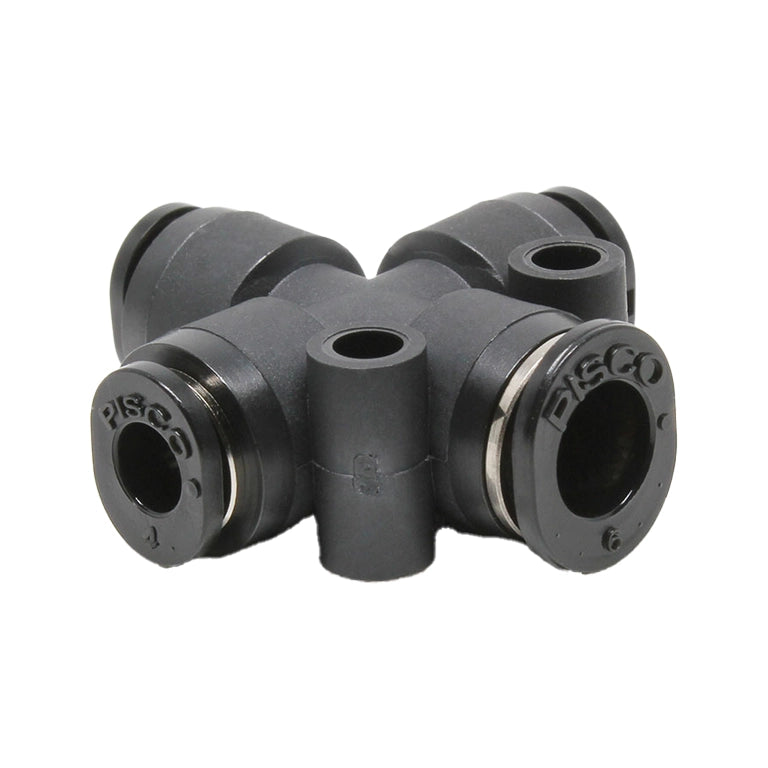

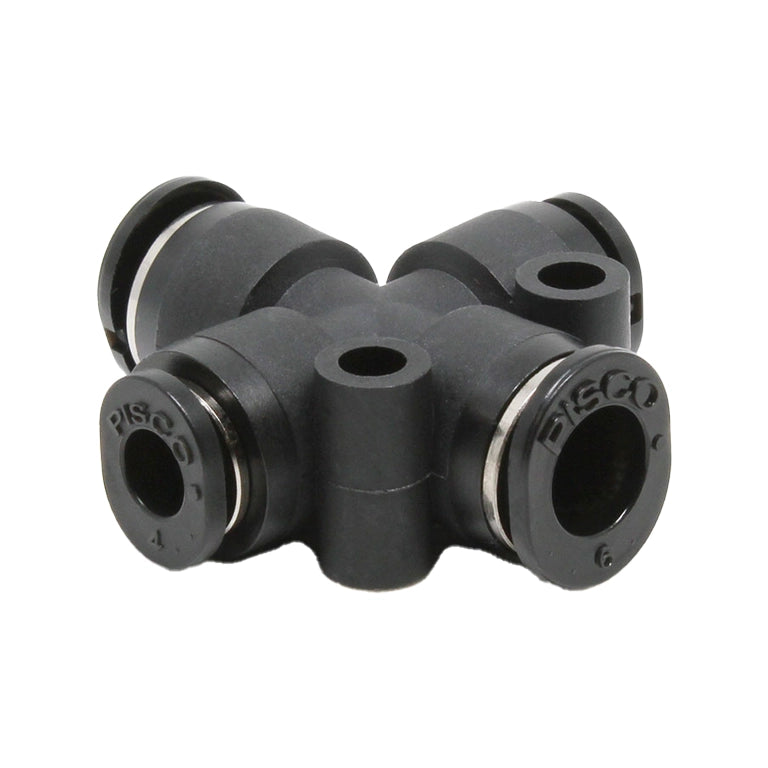

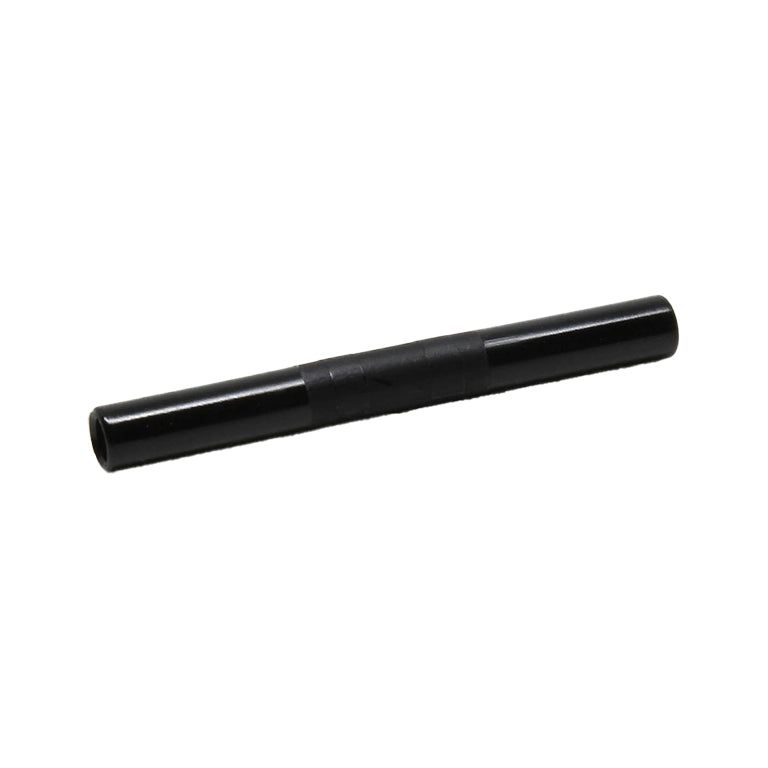

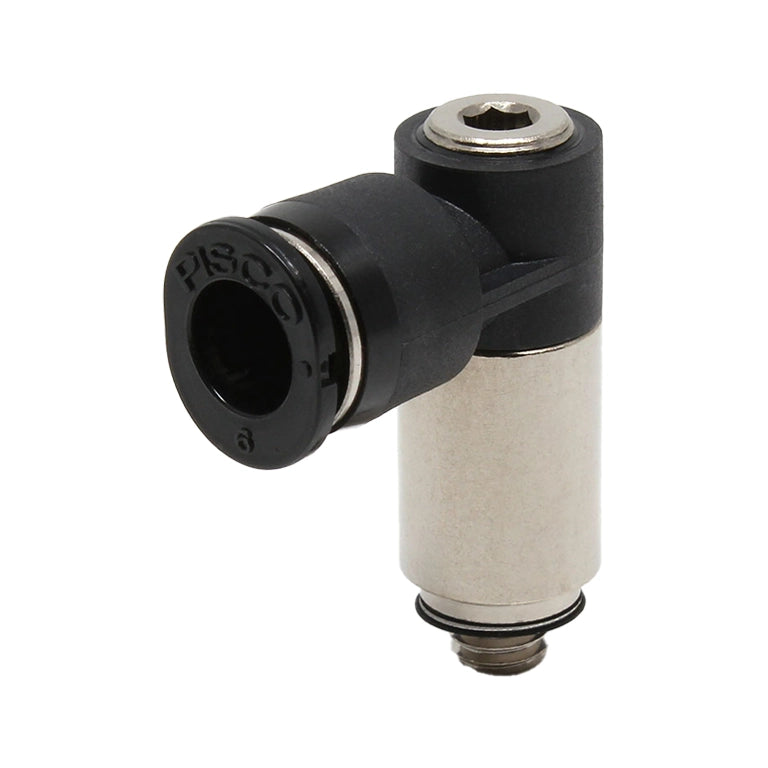

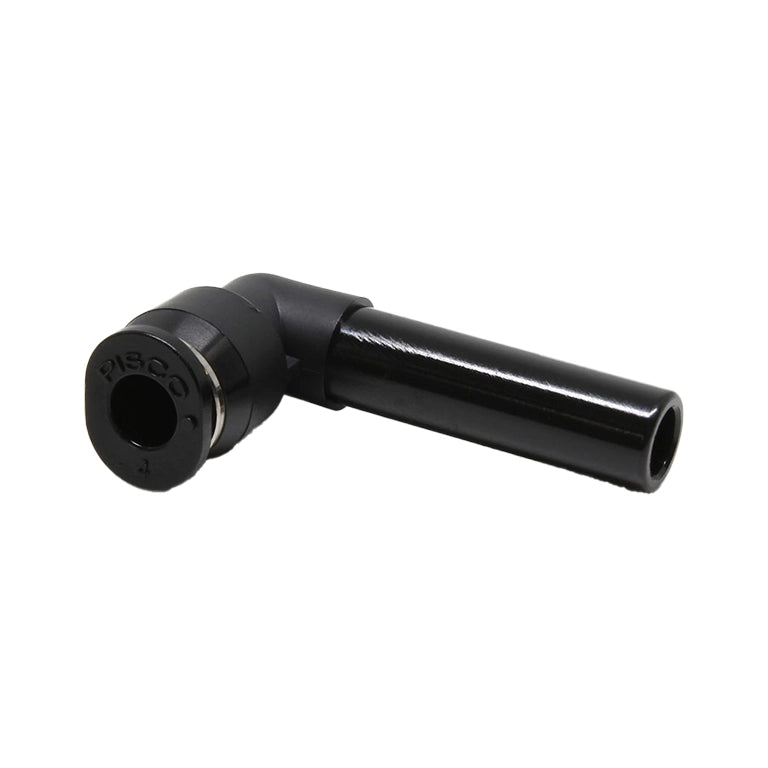

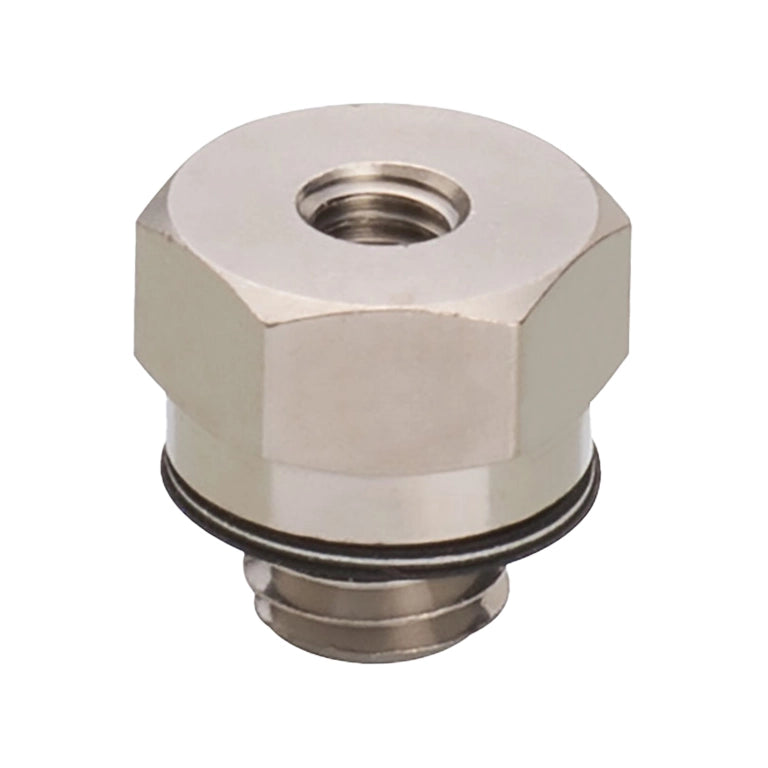

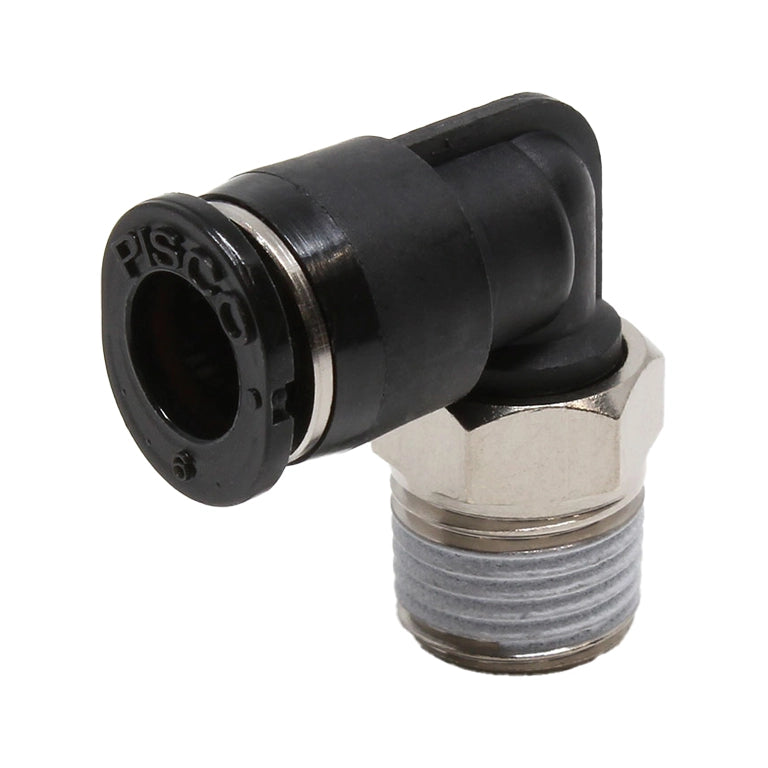

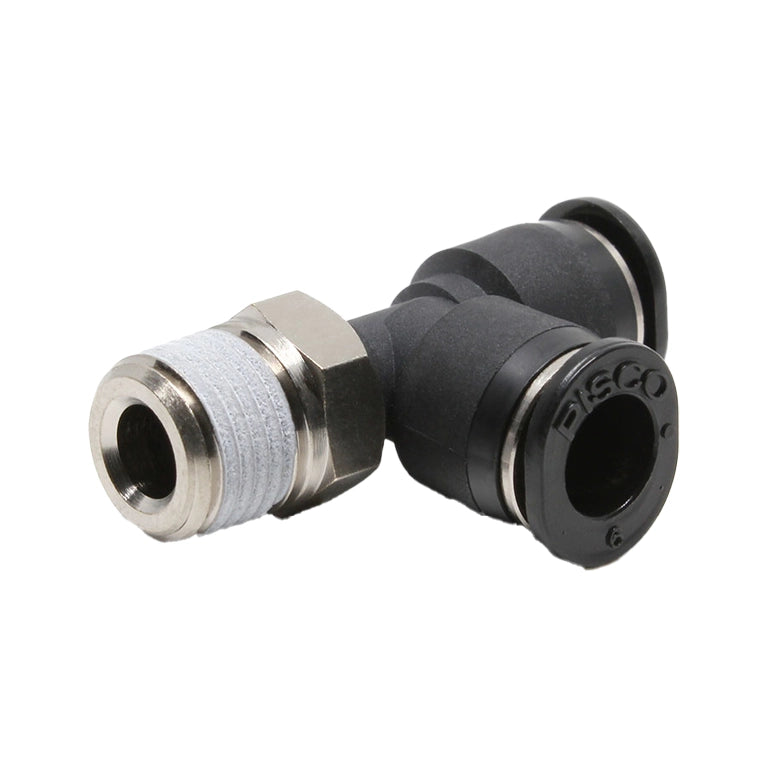

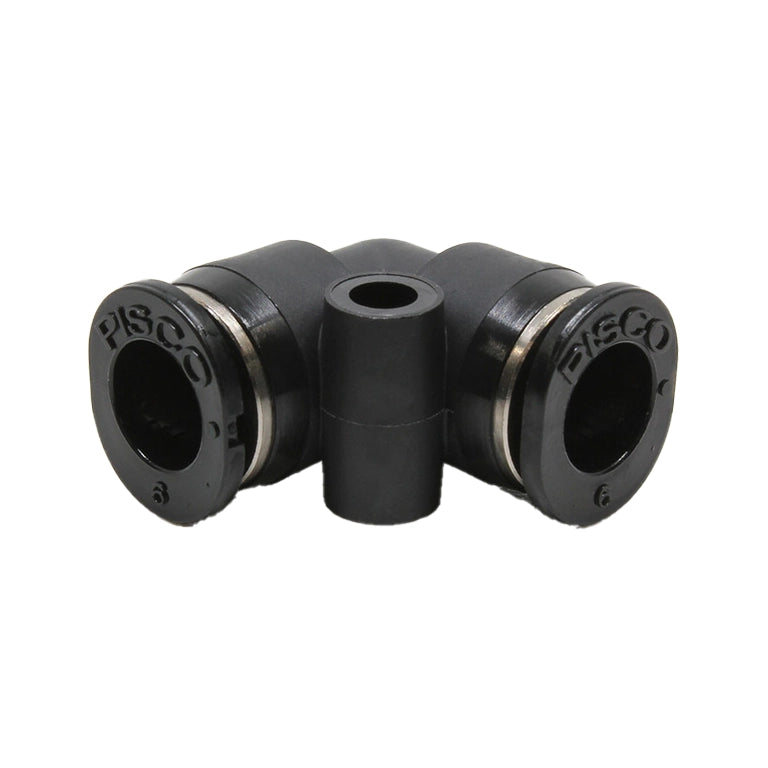

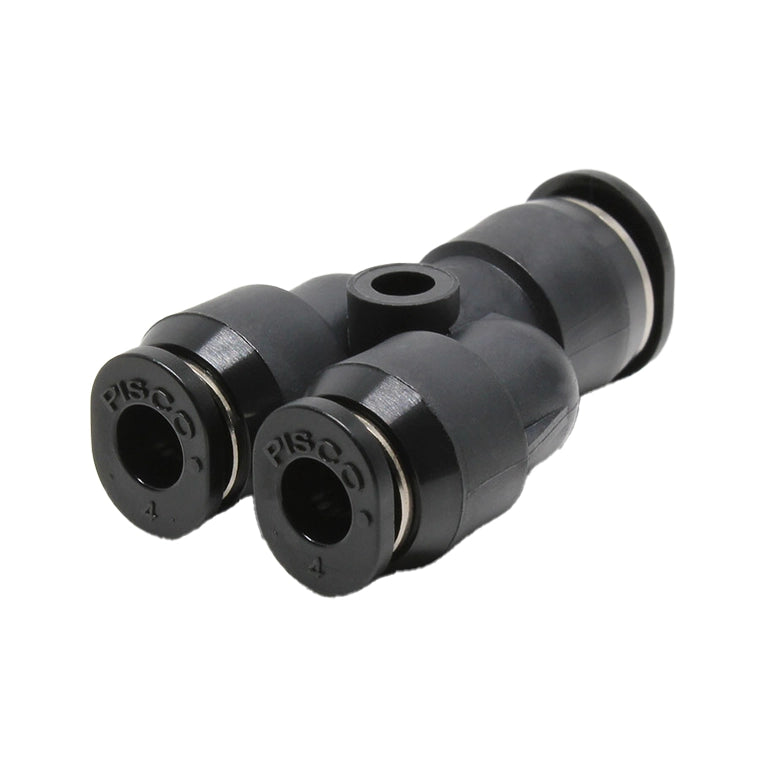

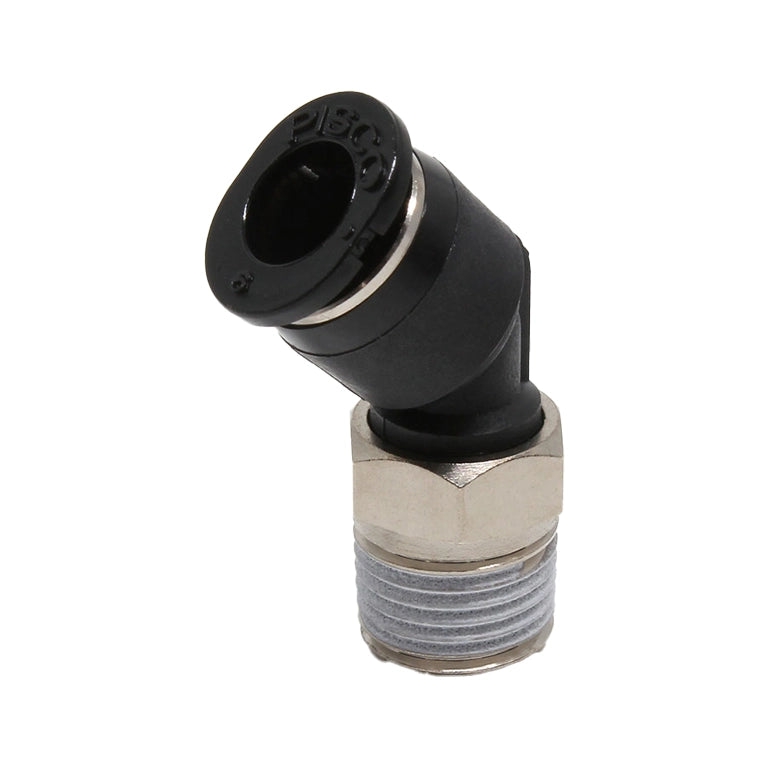

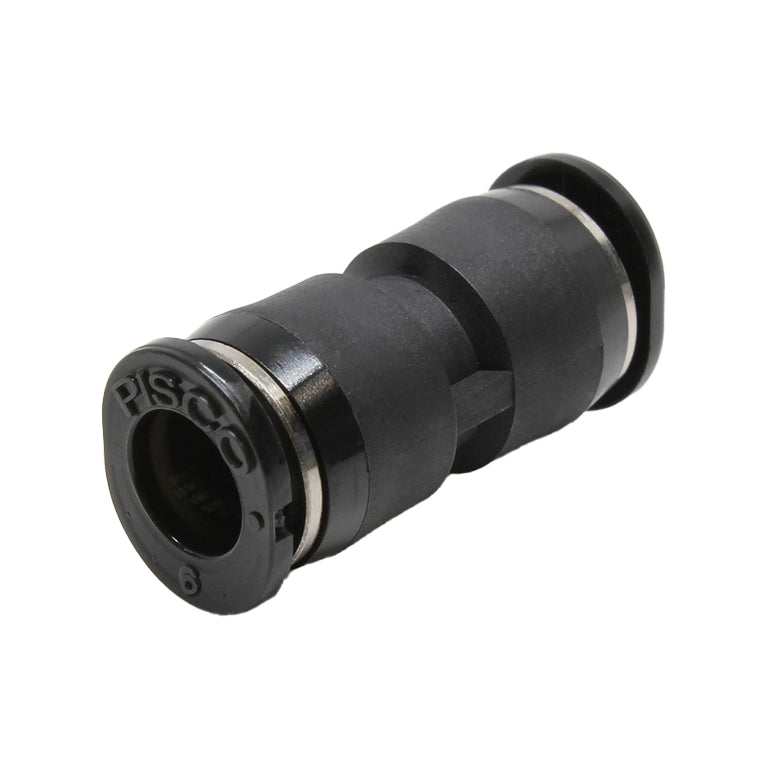

Tube Fittings Mini

Tube Fittings Mini

PISCO's Mini Push-In fittings deliver efficient tubing integration for pneumatic applications where space is at a premium. Engineered 40% smaller than conventional fittings, they provide rapid, secure connections without compromising reliability. The push-in design eliminates complex assembly procedures, making them ideal for technicians working in confined environments. Perfect for systems demanding both performance and dimensional efficiency.

Stainless Steel SUS303 and Cleanroom options available for specific functions.

Ardee Hi-Tech is the official and authorised distributor of PISCO Mini Push-In Pneumatic Tube Fittings in India.

General Specifications

Core Performance Specifications

  • Fluid Medium: Air.
  • Maximum Operating Pressure: 1.0 MPa (10 bar / 145 psi).
  • Maximum Operating Vacuum: -100 kPa (-29.5 in.Hg).
  • Operating Temperature Range: 0 to 60°C (No freezing).
  • Volume Reduction: Achieves a 40% reduction in volume compared to standard type fittings while maintaining the same flow rate.

Dimensional & Sizing Matrix

  • Millimeter Tube Sizes (O.D.): φ1.8 mm, φ2 mm, φ3 mm, φ4 mm, φ6 mm. Note: φ1.8 mm and φ2 mm models are specifically designed for use only with PISCO polyurethane tubing.
  • Inch Tube Sizes (O.D.): φ1/8", φ5/32", φ3/16", φ1/4".
  • Thread Sizes: Metric Thread: M3×0.5, M5×0.8, M6×1.Taper Pipe Thread: R1/8, R1/4, R3/8.Unified / National Thread: 10-32UNF, NPT1/16, NPT1/8, NPT1/4, NPT3/8.

Materials of Construction

  • Main Resin Parts: Polybutylene Terephthalate (PBT) ideal for general environments.
  • Main Metal Parts: Brass with electroless nickel plating.
  • Release Ring: Polyacetal (POM) designed in an oval shape for easy operation and smooth tube disconnects.
  • Locking Claws: Stainless steel.
  • Sealing Elements: Nitrile rubber (NBR) elastic sleeves and O-rings.
  • Special Base Components: M3 threads use nickel-plated free-cutting steel; φ1.8 mm fittings use a special stainless steel equivalent to SUS303.

Cleanroom Packaging Options

  • Cleanroom Specification: Ideal for piping in clean environments. The fittings are washed with clean air, treated with fluorine grease, and packed in an ISO Class 6 cleanroom.

Material

Standard Mini Series Construction

  • Fitting Body: Polybutylene Terephthalate (PBT) or Polyacetal (POM) resin. Black resin is standard for imperial/inch sizes.
  • Thread Body & Guide Ring: Brass with electroless nickel plating. (Note: M3 threads utilize nickel-plated free-cutting steel, and ultra-small ø1.8 mm fitting threads use a special stainless steel equivalent to SUS303).
  • Release Ring: Polyacetal (POM) resin.
  • Lock Claws / Collet: Stainless steel.
  • Elastic Sleeve & O-Ring (Seals): Nitrile butadiene rubber (NBR) is the standard sealing material.
  • Thread Gasket: SUS304 stainless steel + NBR.
View full details

Product Knowledge

Areas of Application

  • Pneumatic Actuators: Space-saving connections for miniature pneumatic cylinders (up to φ10 mm) and lightweight robotic end-of-arm tooling.
  • Micro Valve Manifolds: Compact profile fits 10mm and 15mm micro-solenoid valves without blocking dense, adjacent manifold ports.
  • Semiconductor Assembly: Ultra-small pneumatic joints for high-speed pick-and-place machines and precision PCB handling tracks.
  • Medical & Lab Devices: Low-profile fluid and gas routing paths inside portable analytical instruments and clinical diagnostic panels.
  • Cleanroom Operations: Light-gray variants are cleaned and packed in an ISO Class 6 cleanroom for contamination-free chip and pharmaceutical lines.
  • Battery Manufacturing: Specialized, low-volume tubing connections for automated EV battery cell assembly lines.
  • Packaging Systems: High-density air line clustering for fast-cycling industrial sorting gates and marking equipment.
