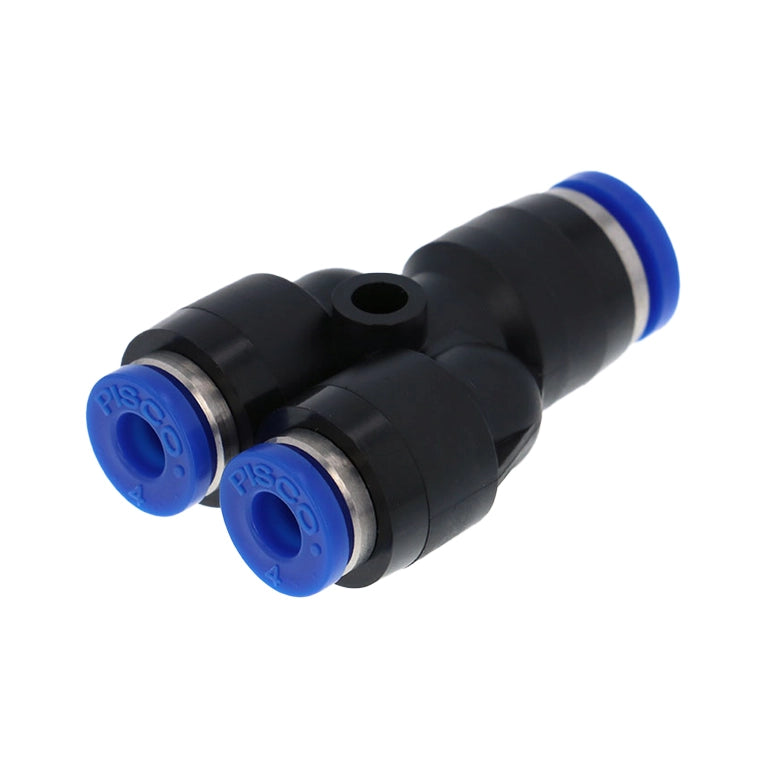

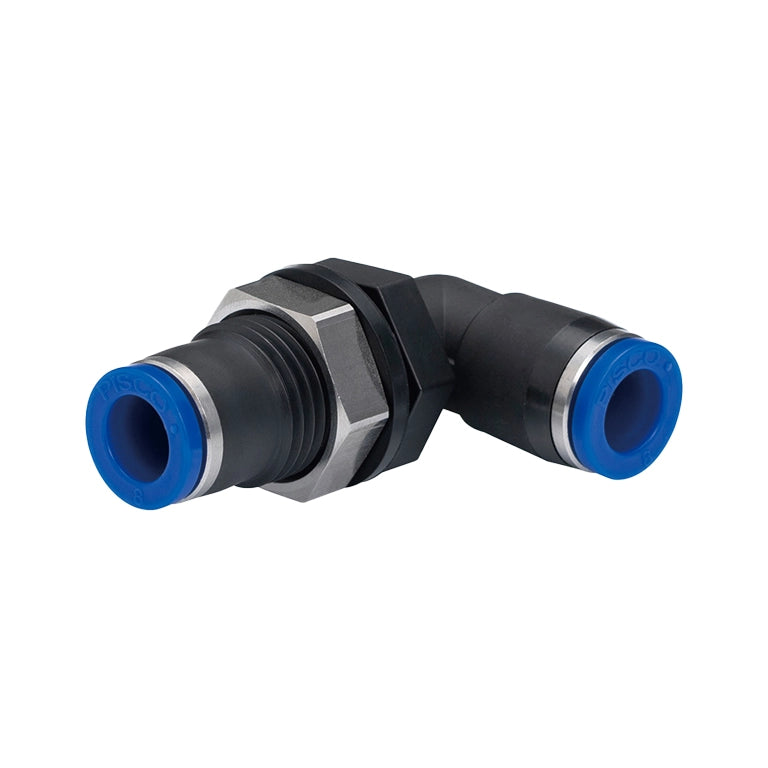

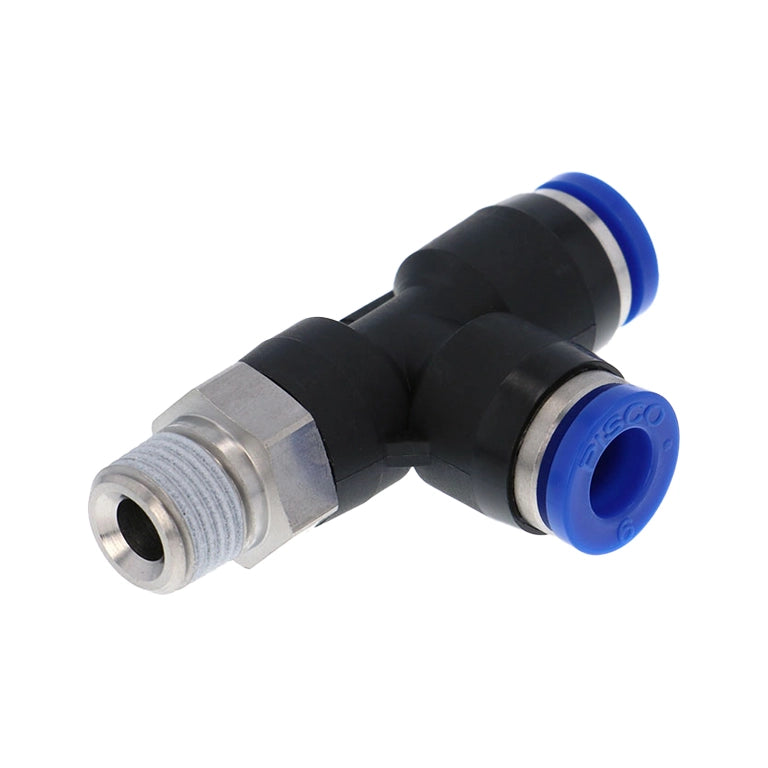

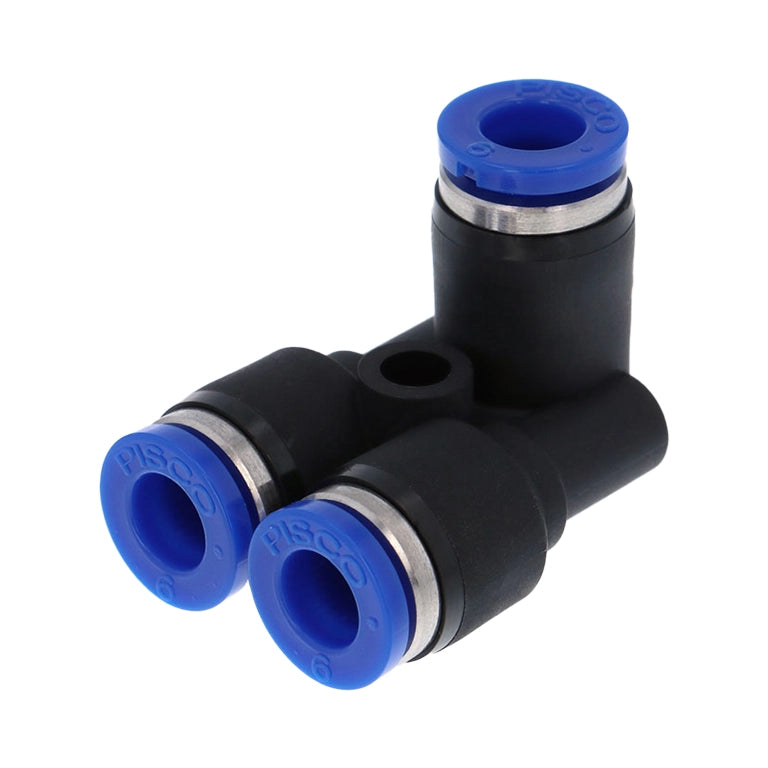

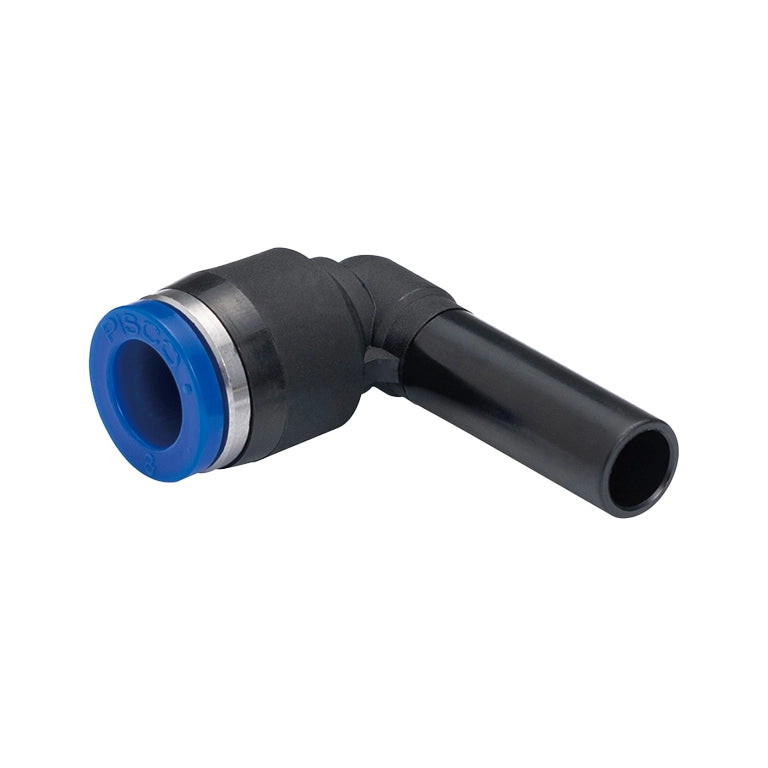

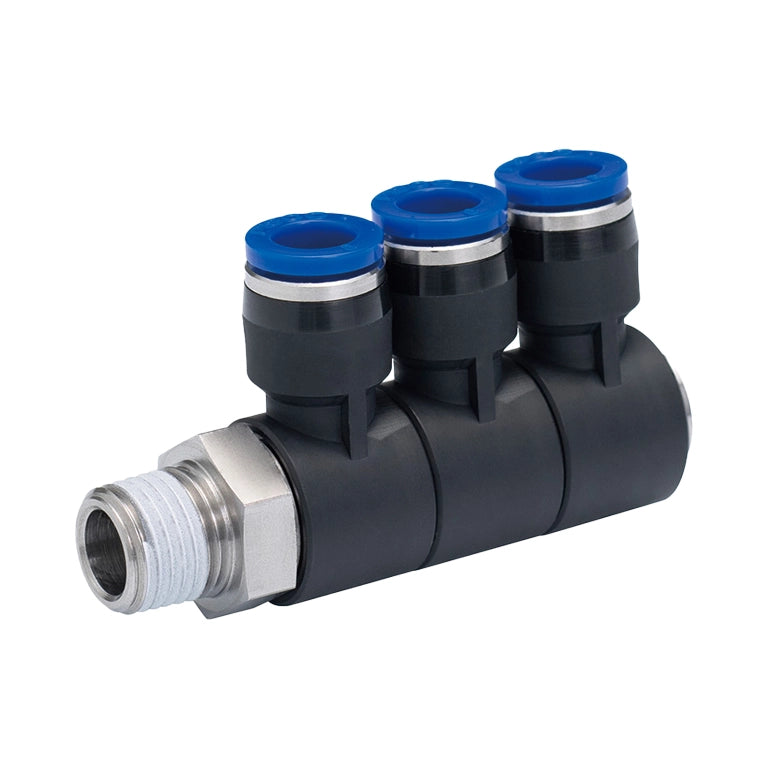

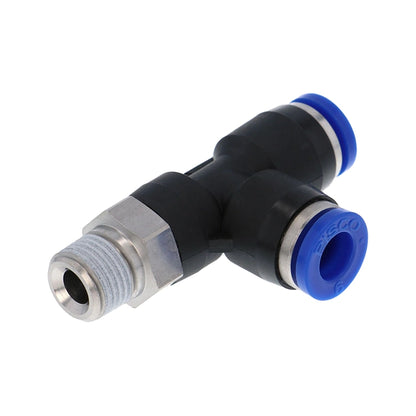

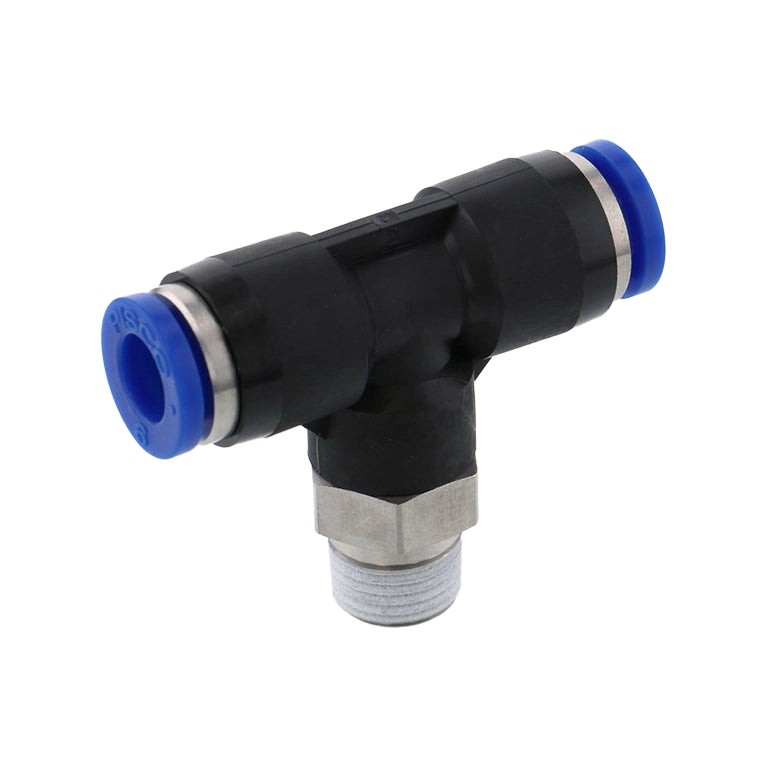

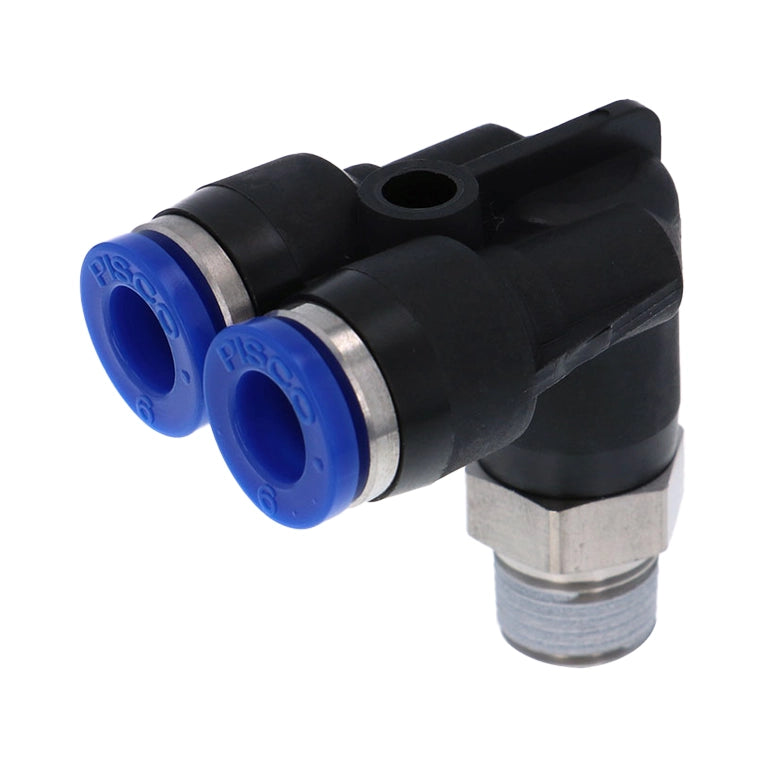

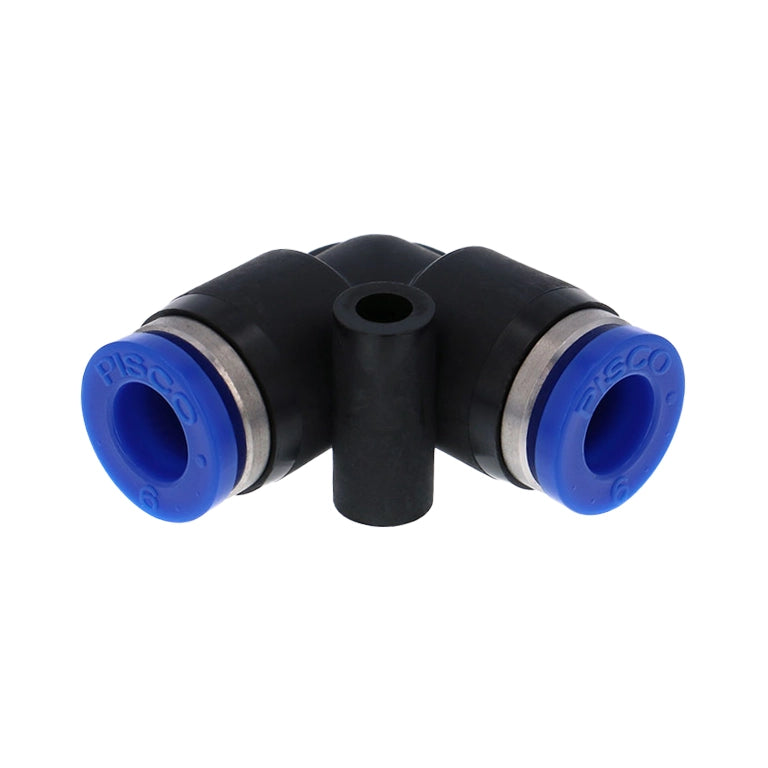

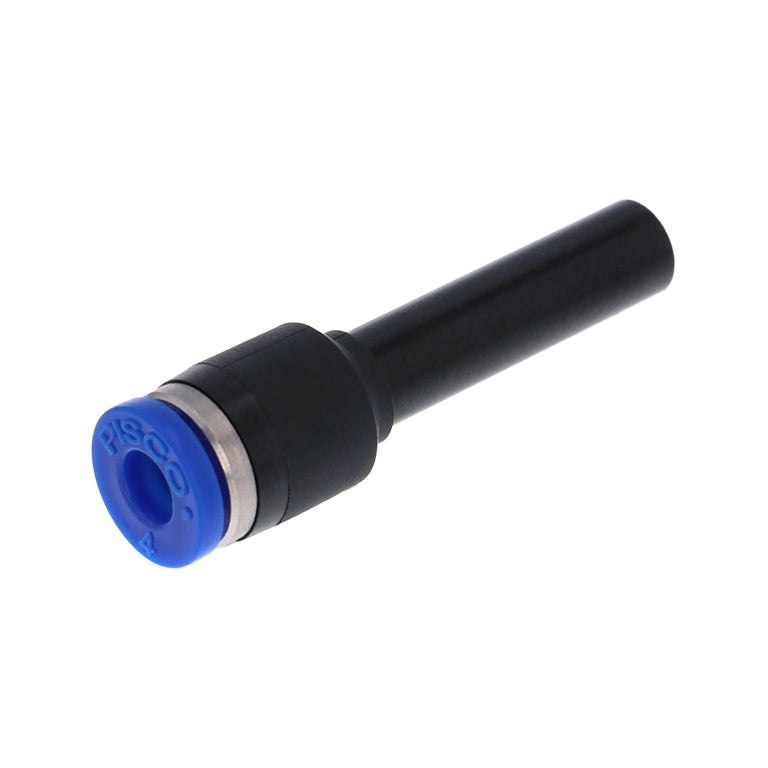

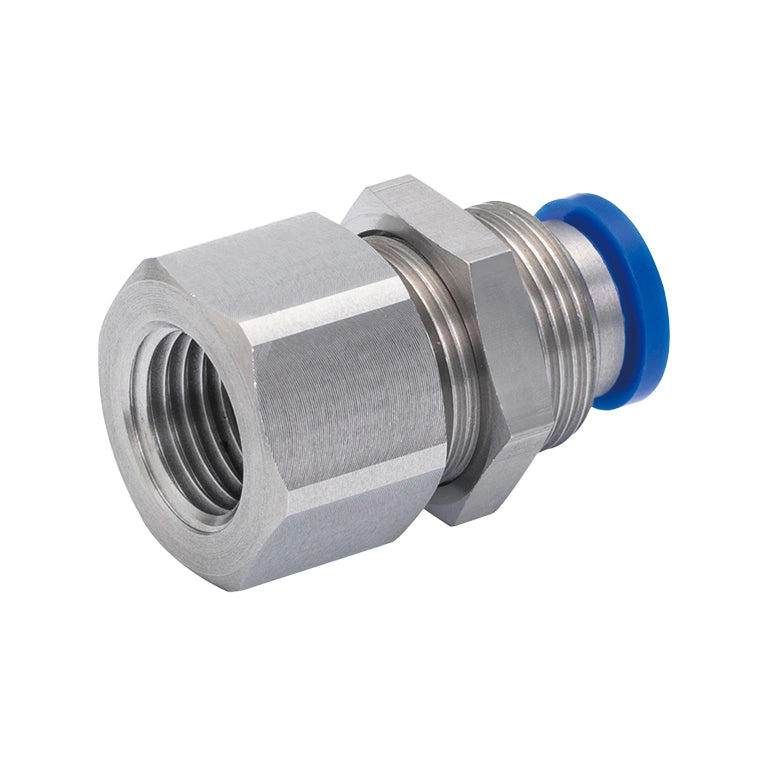

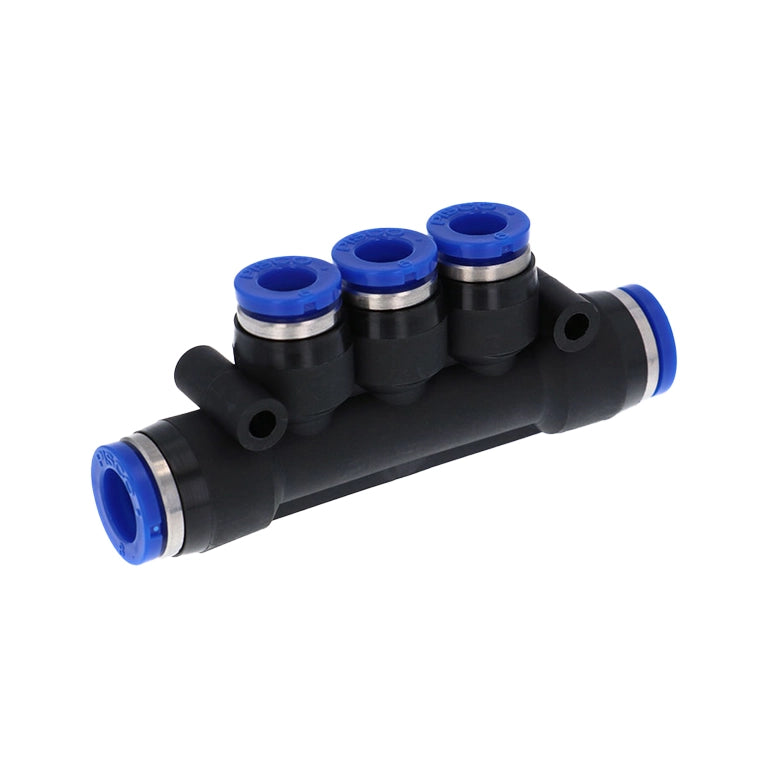

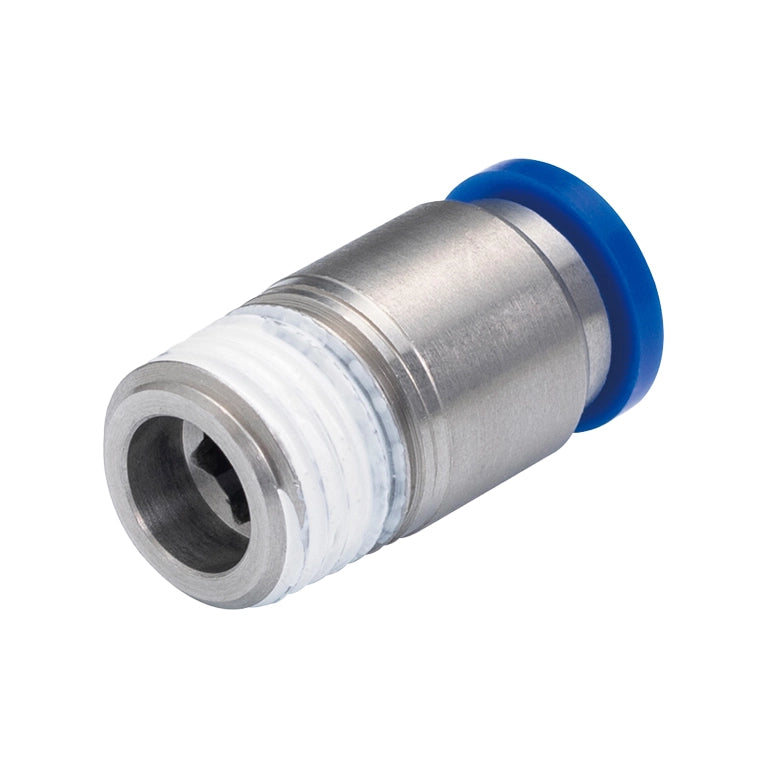

Tube Fittings SUS303
Tube Fittings SUS303

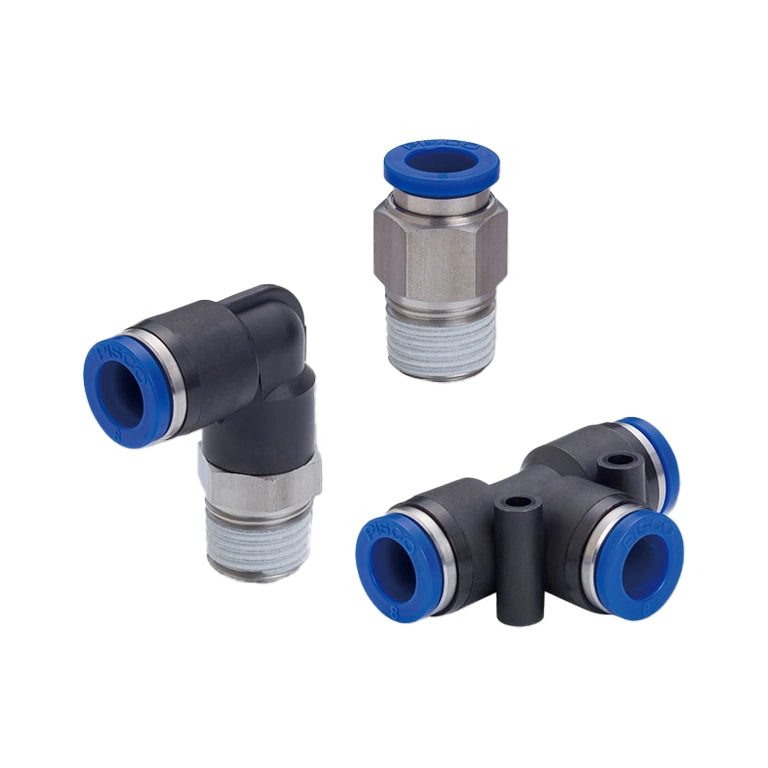

PISCO Tube Fitting Stainless SUS303 Equivalent Corrosivity Series is a copper-free, high-strength pneumatic push-in connector built for corrosive environments. Its specialized stainless steel composition (20% Chromium, 2% Molybdenum) delivers advanced rust and chemical resistance. Featuring an intuitive one-touch mechanism and heavy-duty locking claws, it ensures fast, tool-free installation and secure tubing retention. Complete with low-ozone-resistant HNBR seals and optional clean-wash packaging, this series is engineered to eliminate contamination in sensitive, high-vibration manufacturing systems.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of PISCO SUS303 Tube Fittings in India.
General Specifications
General Specifications
Fluid Media: Compressed air and industrial water (requires an insert ring and surge control).
Max Pressure: 1.0 MPa (145 PSI / 10 bar).
Vacuum Rating: -100 kPa (-29.5 in.Hg).
Temperature Range: 0°C to 60°C (32°F to 140°F) with no freezing.
Tube Sizes: Outer diameter (OD) sizes of ø4mm, ø6mm, ø8mm, ø10mm, ø12mm, and ø16mm.
Thread Sizes: Metric M5x0.8, M6x1, and taper pipe R1/8, R1/4, R3/8, R1/2.
Thread Seal: Factory-applied Sealock coating on taper threads; gasket seal on metric threads.
Cleanroom Option: Optional clean-wash and vacuum-sealed packaging (-UC specification).
Material
Material
Thread & Guide Ring: Special Stainless Steel (Cr 19–21%, Mo 1.5–2.5%) providing corrosion resistance equivalent to SUS303
Resin Body: Premium Polybutylene Terephthalate (PBT)
Release Ring: High-durability Polyacetal (POM)
Locking Claws: Industrial-grade Stainless Steel
Elastic Sleeve & O-Ring: Hydrogenated Nitrile Butadiene Rubber (HNBR) for advanced low-ozone protection (Optional FKM / EPDM variants)
Share
Product Knowledge
Areas of Application
Semiconductor & Electronics Assembly: Ideal for cleanroom environments, vacuum lines, and automated silicon processing equipment where copper components are prohibited.
Chemical Processing & Lab Automation: Built for applications exposed to atmospheric chemical vapors, mild acids, and aggressive cleaning agents.
Industrial Robotics & Factory Automation (FA): Optimized for heavy-duty robotic arms, pick-and-place lines, and pneumatic circuits subjected to high stress and constant motion.
Food, Medicine, & Packaging Machinery: Used in secondary food packaging systems, medical device testing lines, and environments utilizing ultrasonic cleaning washes.
