Die Temperature Control Fitting
Die Temperature Control Fitting

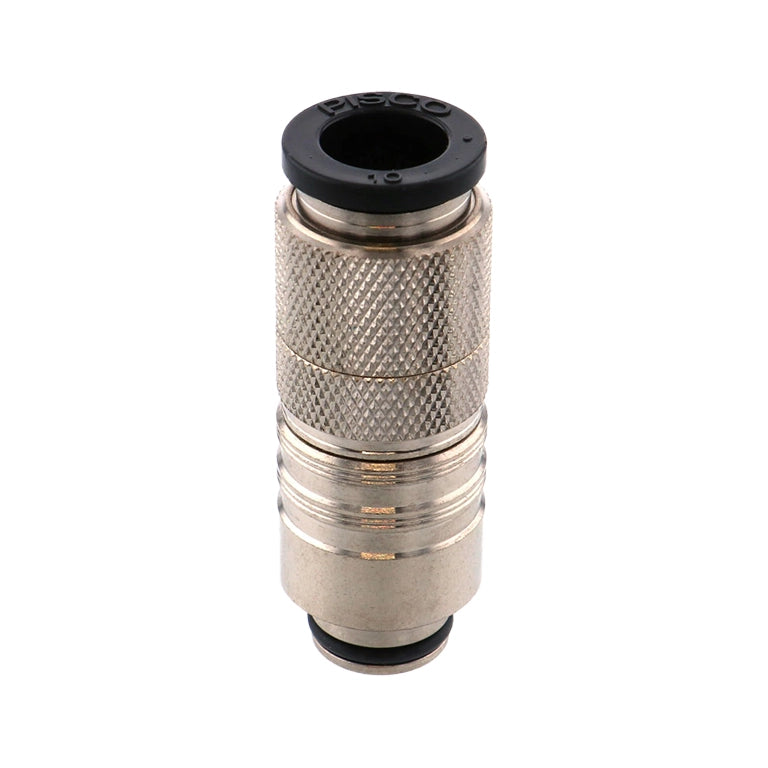

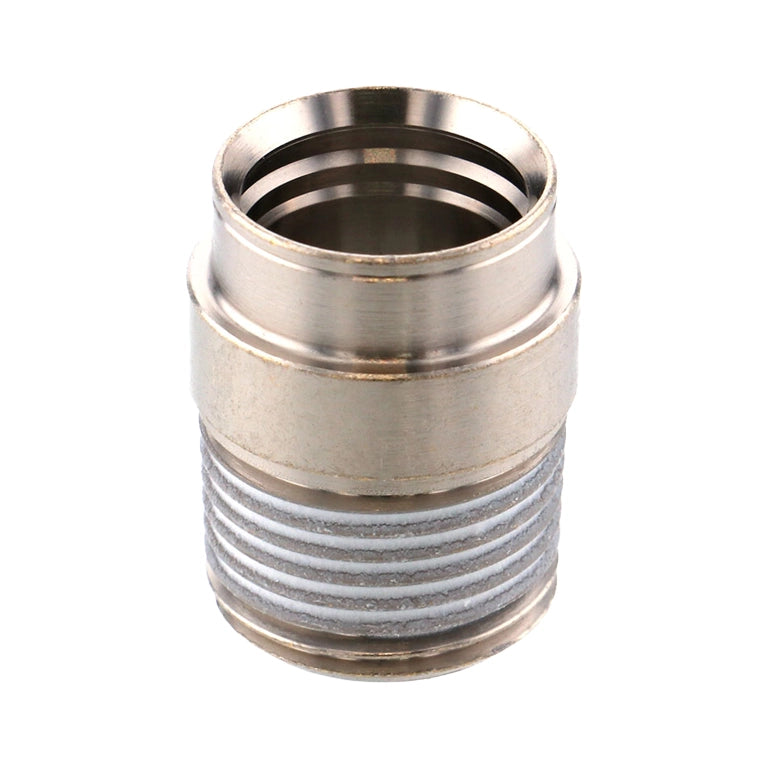

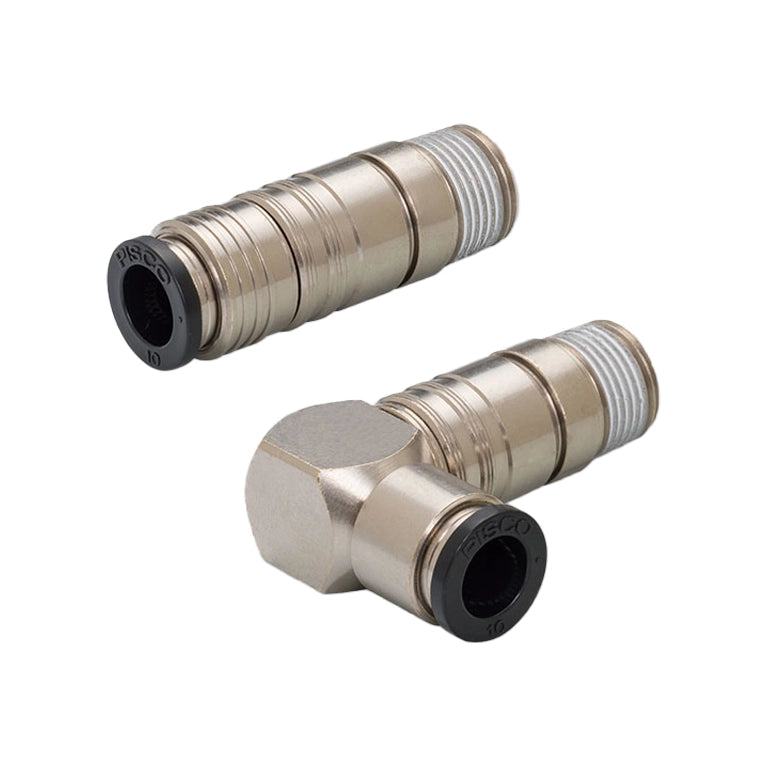

Optimise your injection moulding and die casting processes with PISCO Die Temperature Control Fittings. These heavy-duty, separable push-in couplings are engineered to manage thermal distribution by channelling high-temperature cooling or heating media. Featuring a unique two-piece design, the socket portion embeds directly inside the die using a hex key, leaving no exterior projections to damage during transit or changeovers. Equipped with optional stop valves, they ensure clean, tool-free quick-disconnections that protect machine operators from hazardous hot fluid spills.

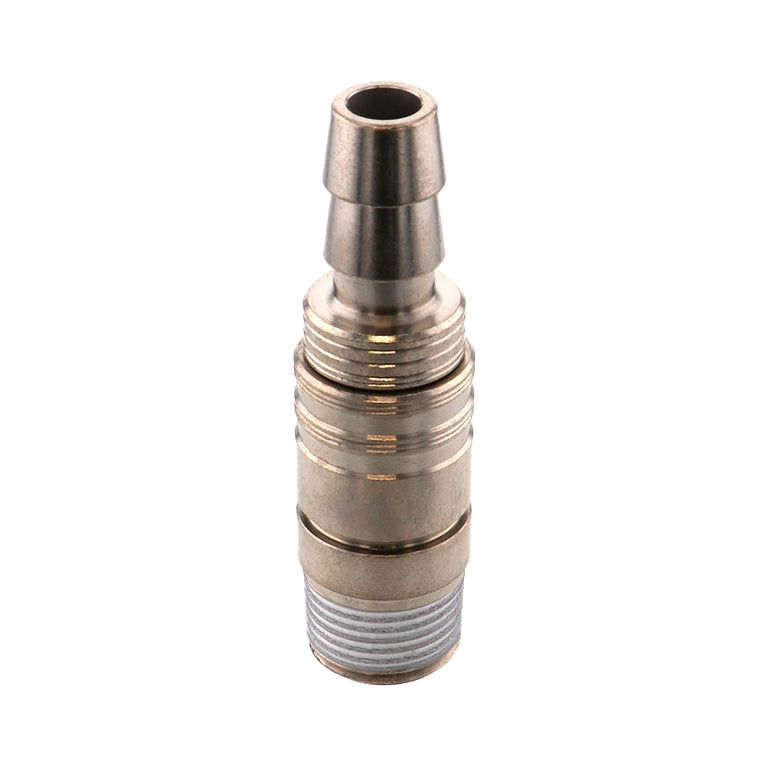

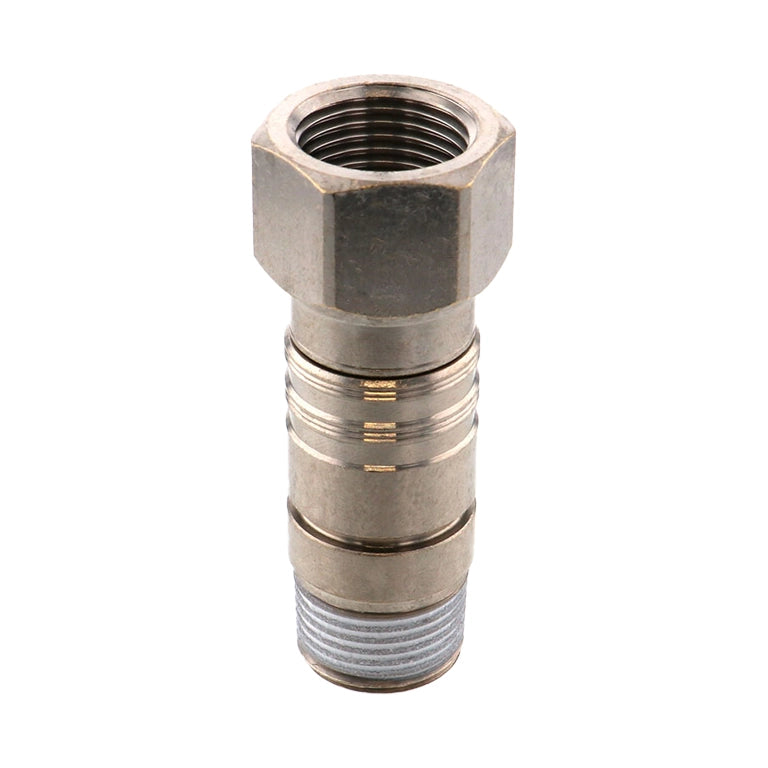

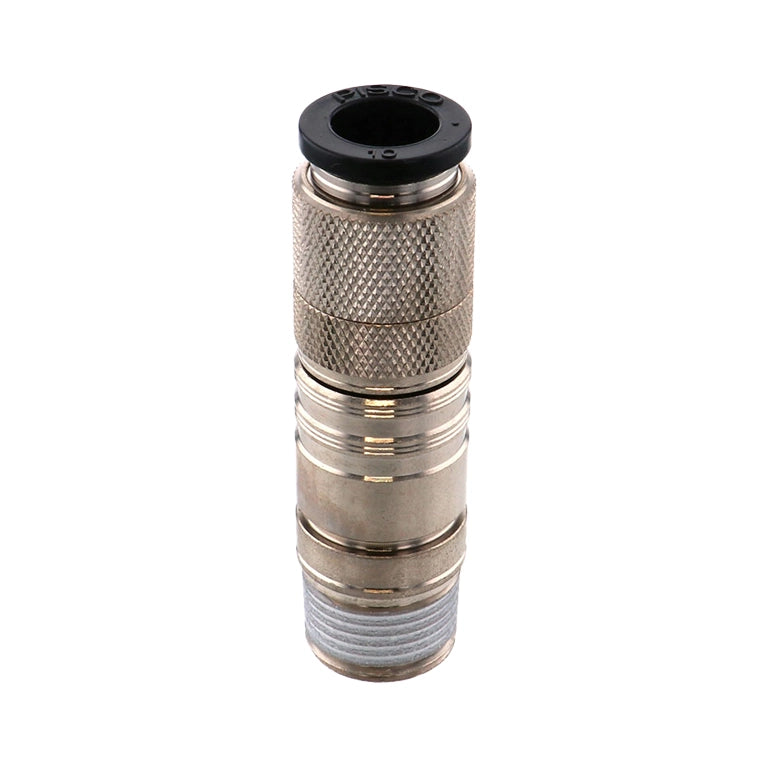

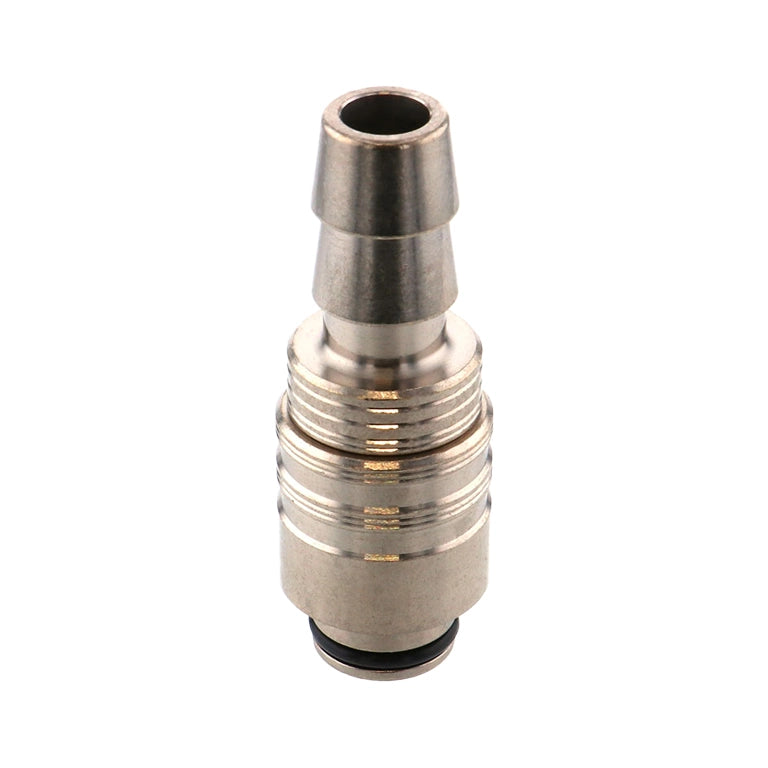

*Available individually or as a set of plug & socket, plug & socket with shut-off valve and plug with shut-off valve or socket with shut-off valve.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of PISCO Die Temperature Control Fittings in India.
General Specifications
General Specifications
Operating Pressure: Performs at a maximum pressure rating of 0.9 MPa to 1.0 MPa.
Vacuum Level: Rated for negative suction systems down to -100 kPa.
Thermal Scope (Oil): Safely handles heat-transfer media from 0°C up to 120°C.
Thermal Scope (Water): Operates reliably with clean water from 0°C up to 99°C.
Thermal Scope (Air): Functions smoothly across ambient air ranges from 0°C up to 60°C.
Coupling Structure: Separable plug-and-socket design allows quick release-sleeve extraction.

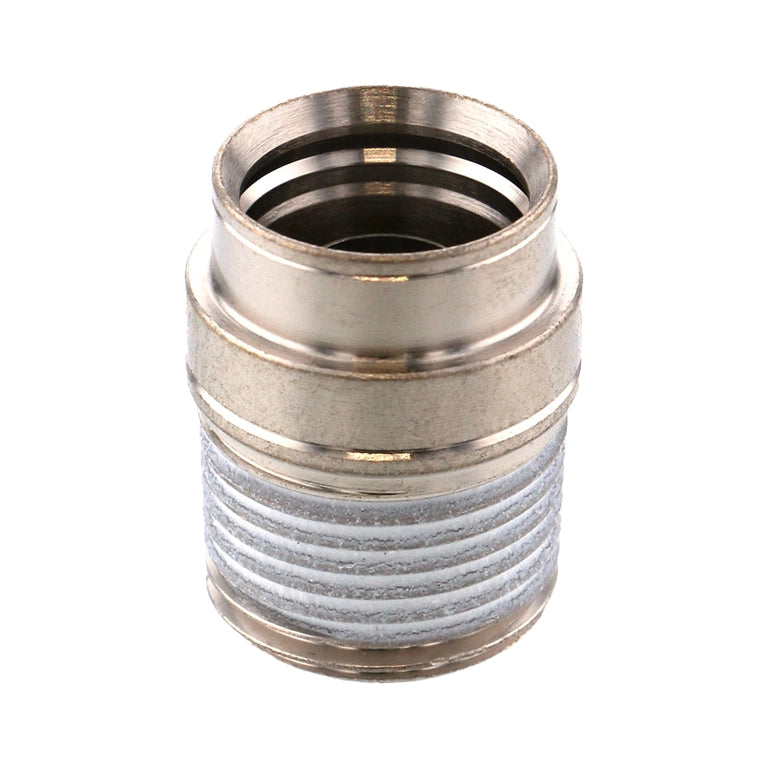

Safety Isolation: Integrated built-in stop valves shut off fluid during uncoupling.
Recessed Installation: Sockets mount down to 3mm maximum depth from the die face.
Material
Material
Metal Foundations: Built with robust, heat-stabilised heavy-duty industrial Brass alloy.
Internal Seal System: Configured with high-tier HNBR (Hydrogenated Nitrile) rubber compound.
Tubing Reinforcement: Requires dedicated PISCO Insert Rings (WR) for liquid media.
Corrosion Defense: Superior resistance to scale build-up and thermal degradation.
Share
Product Knowledge
Areas of Application
Plastic Injection Moulding Lines: Eliminates downtime during mould changeovers via recessed flush-mount sockets that cannot get sheared off.
Heavy Die Casting Operations: Manages uniform heat distribution or cooling stages across thermal-cycling casting frameworks.
High-Temperature Tooling Assemblies: Channels high-temperature heat carrier oils inside compact automated manufacturing machines.
Rapid-Response Fluid Manifolds: Allows operators to hot-swap coolant lines safely without shutting down central fluid pumps.
