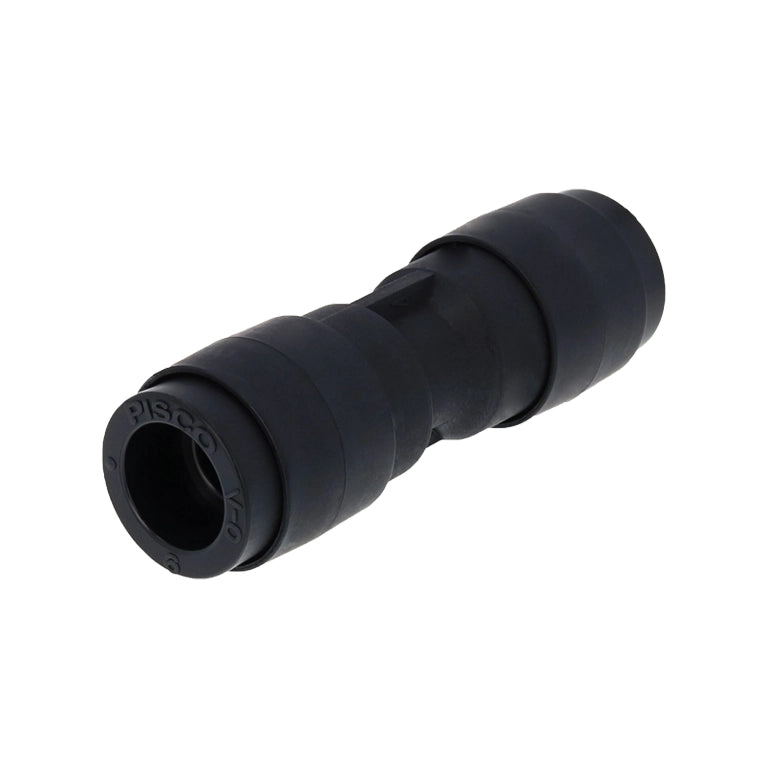

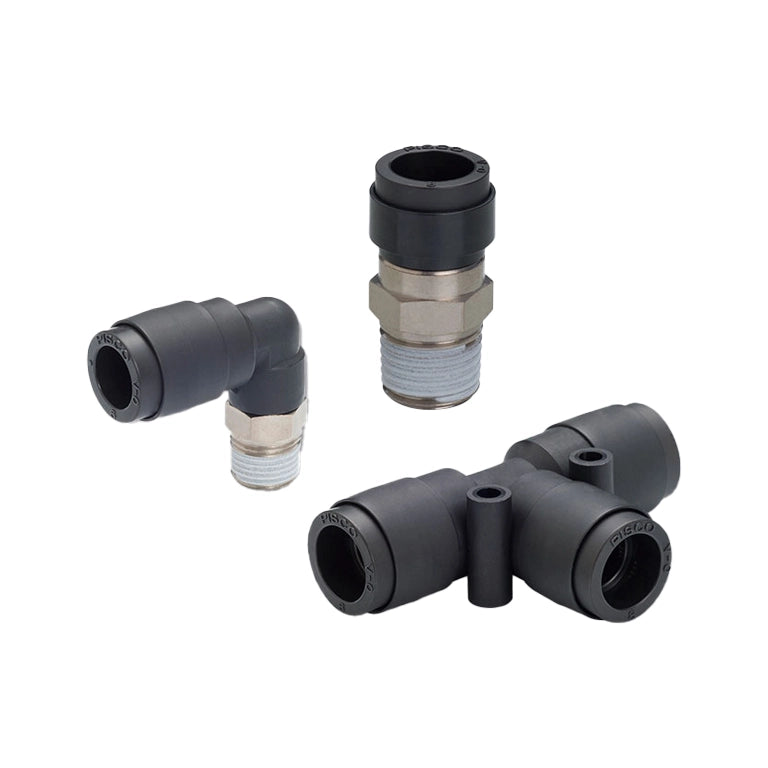

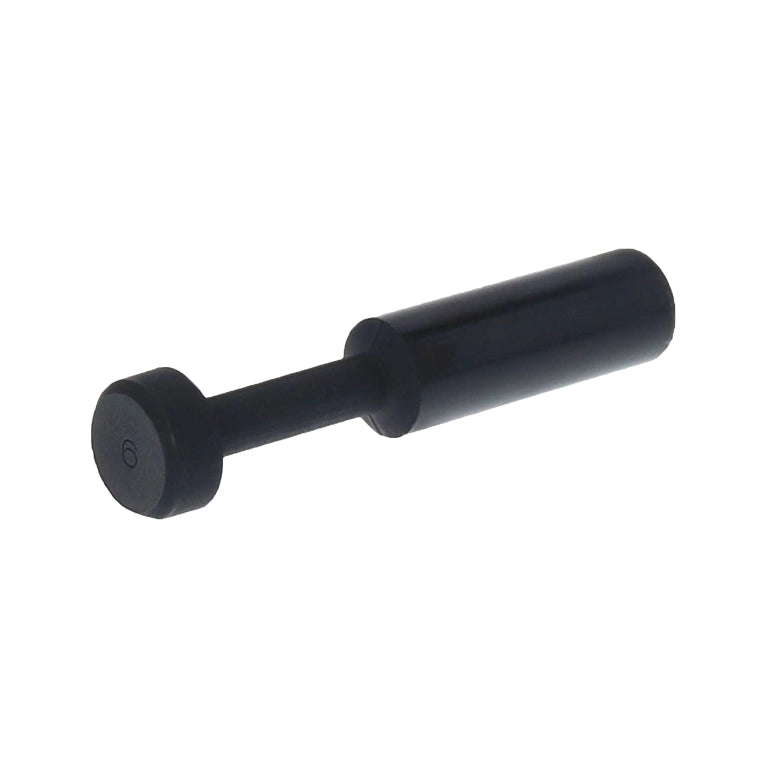

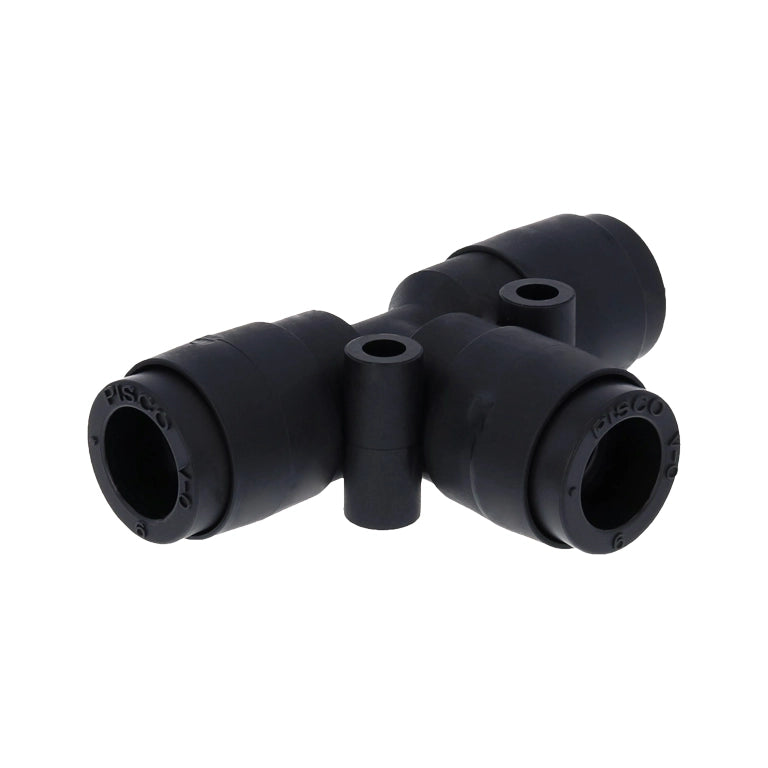

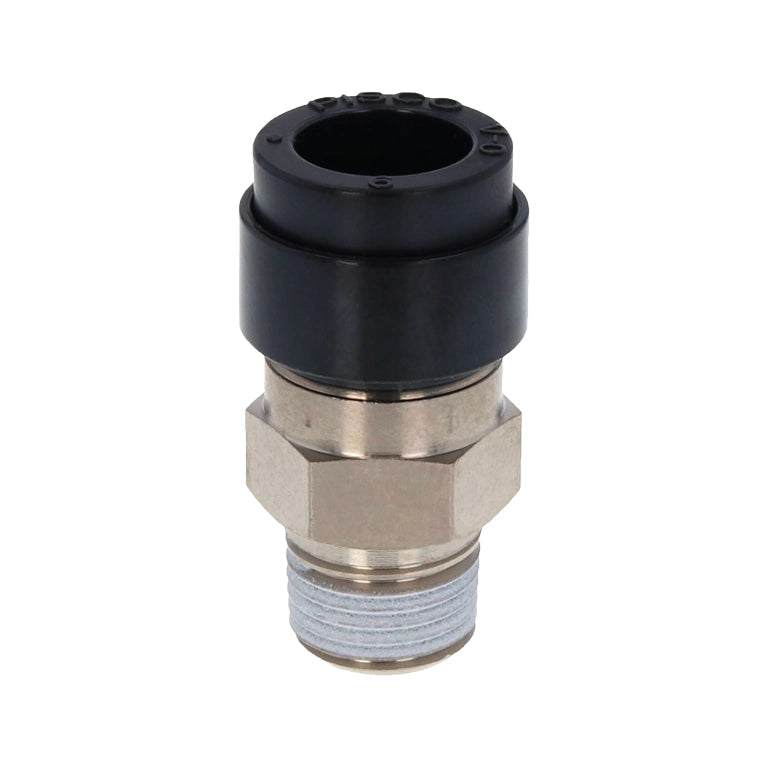

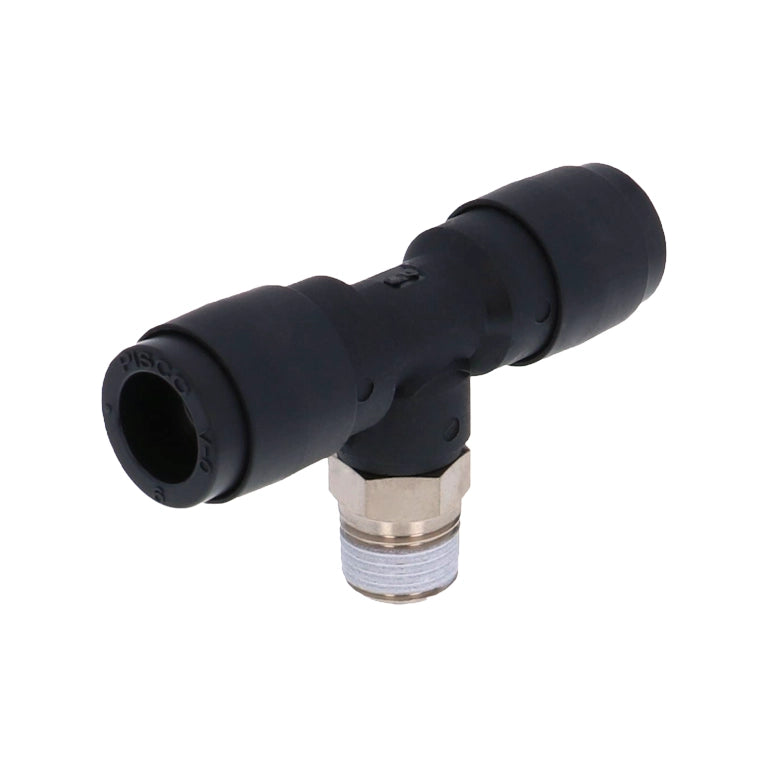

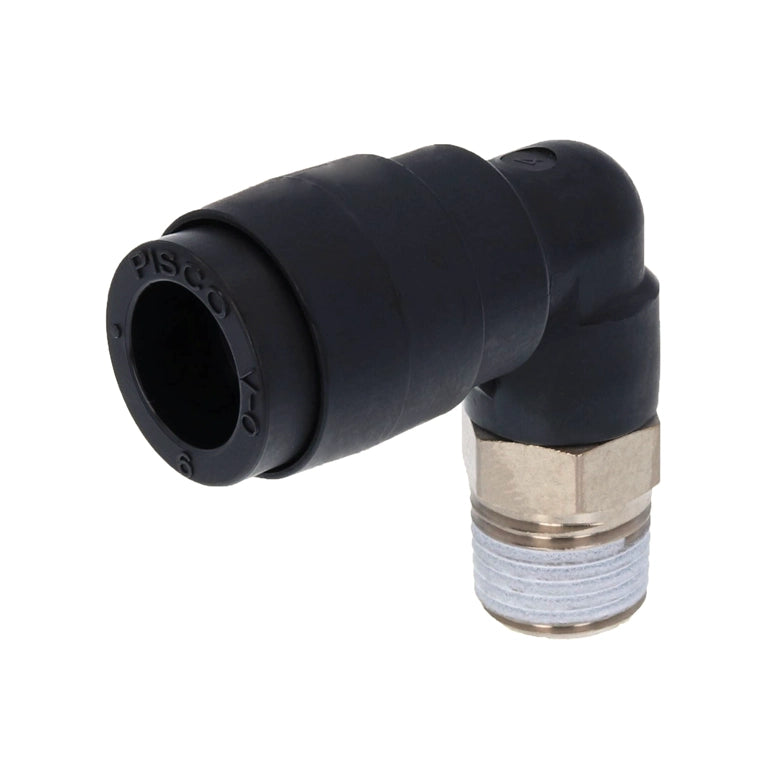

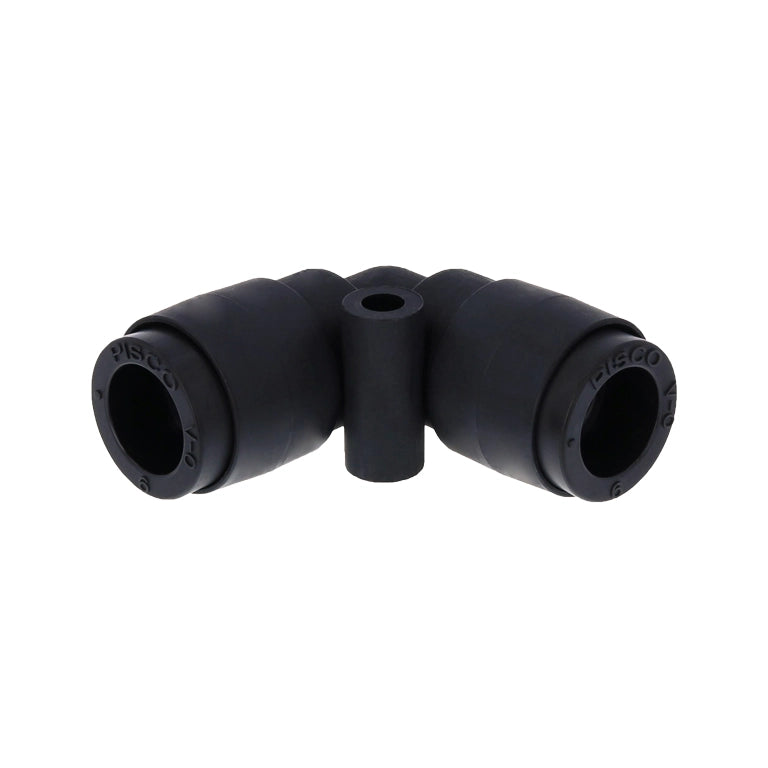

Anti-Spatter Resin Fittings
Anti-Spatter Resin Fittings
PISCO Anti-Spatter Resin Fittings are specialized, UL94 V-0 compliant pneumatic push-in connectors engineered with flame-retardant resin to protect against sparks, weld slag and molten metal. These fittings, featuring one-touch installation and release-ring covers, are optimized for high-temperature robotic welding and automotive fabrication environments.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of PISCO Anti-Spatter Fittings in India.
General Specifications
General Specifications
Fluid Media: Compressed air and industrial water (requires an insert ring and surge control)
Max Pressure: 1.0 MPa (145 PSI / 10 bar)
Vacuum Rating: -100 kPa (-29.5 in.Hg)
Temperature Range: 0°C to 60°C (32°F to 140°F) with no freezing
Tube Sizes: Outer diameter (OD) sizes of ø4mm, ø6mm, ø8mm, ø10mm, ø12mm, and ø16mm
Thread Sizes: Metric M5x0.8, M6x1, and taper pipe R1/8, R1/4, R3/8, R1/2
Thread Seal: Factory-applied Sealock coating on taper threads; gasket seal on metric threads
Flame Rating: Certified UL94 V-0 compliance for superior fire safety and self-extinguishing properties
Material
Material
Resin Body: Premium Flame-Retardant Polybutylene Terephthalate (PBT), meeting UL94 V-0 standards.
Release Ring Cover: High-strength, spatter-resistant brass or specialized flame-retardant resin.
Thread Section: High-durability structural brass, providing excellent mechanical strength.
Locking Claws: Industrial-grade Stainless Steel for a secure, bite-type tubing grip.
Elastic Sleeve & O-Ring: Industrial Nitrile Butadiene Rubber (NBR) optimized for pneumatic sealing integrity.
Share
Product Knowledge
Areas of Application
Automotive Industry / Body Shops: Ideal for automated welding cells, framing stations, and spot-welding gun lines where flying sparks are continuous.
Robotic Welding & Assembly: Built for robotic arm dress packs and pneumatic control valves positioned close to open arcs and torches.
Metal Fabrication & Cutting: Optimized for heavy-duty metal grinding, plasma cutting, and laser profiling environments subject to hot metallic particles.
High-Temperature Automation: Used in foundry material handling, casting machinery, and any factory automation (FA) circuit exposed to open flame hazards.
Part Numbers
