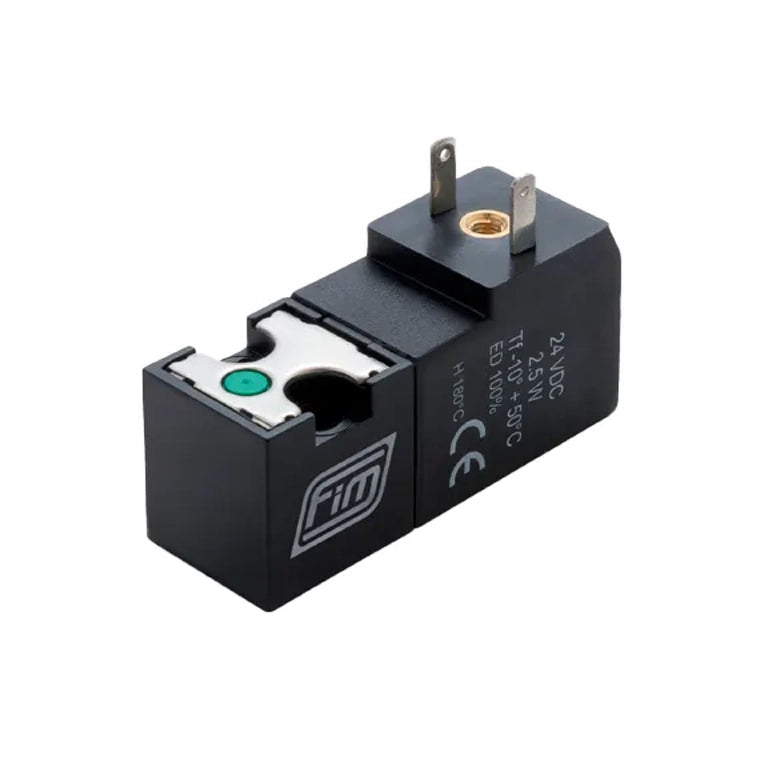

15 mm - Model 3/2 STD
15 mm - Model 3/2 STD
FIM Valvole offers a comprehensive lineup of 15 mm miniature solenoid valves designed for applications where space is limited but high flow rates and reliability are required.
The 3/2 STD (Standard) is a highly compact, ISO 15218-compliant valve. They are highly adaptable and can be configured as 2-way, 3-way, normally closed (NC), normally open (NO), universal, or selector valves. They offer a wide range of working pressure and adaptability.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of FIM 15 mm miniature solenoid valves – Model 3/2 STD in India.

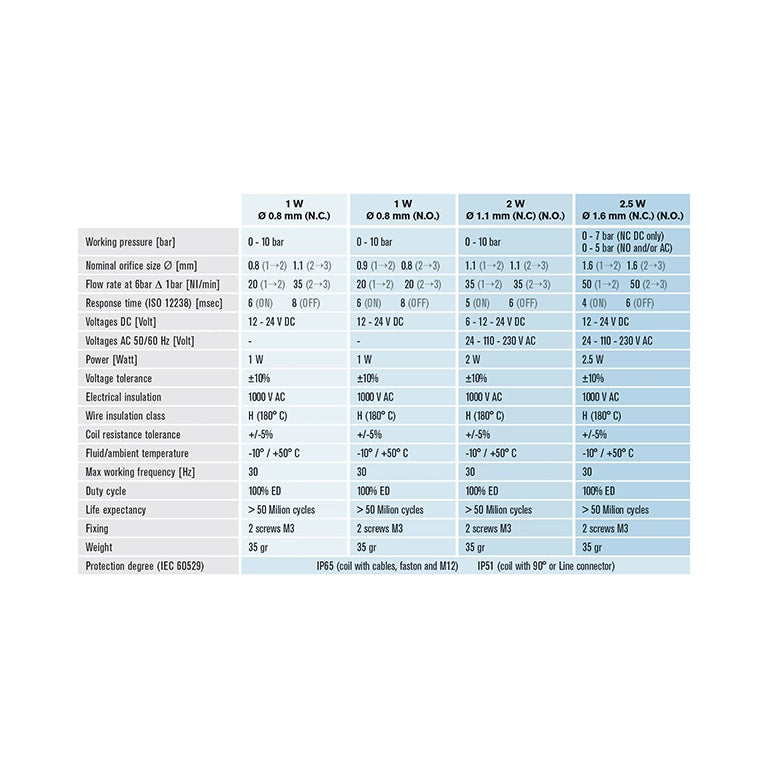

General Specifications
General Specifications
Pneumatic & Operational Profile
- Valve Function: 3-Way / 2-Position (3/2) or 2-Way / 2-Position (2/2) direct-acting mechanism.
- Control Configuration: Monostable (spring-return) actuation.

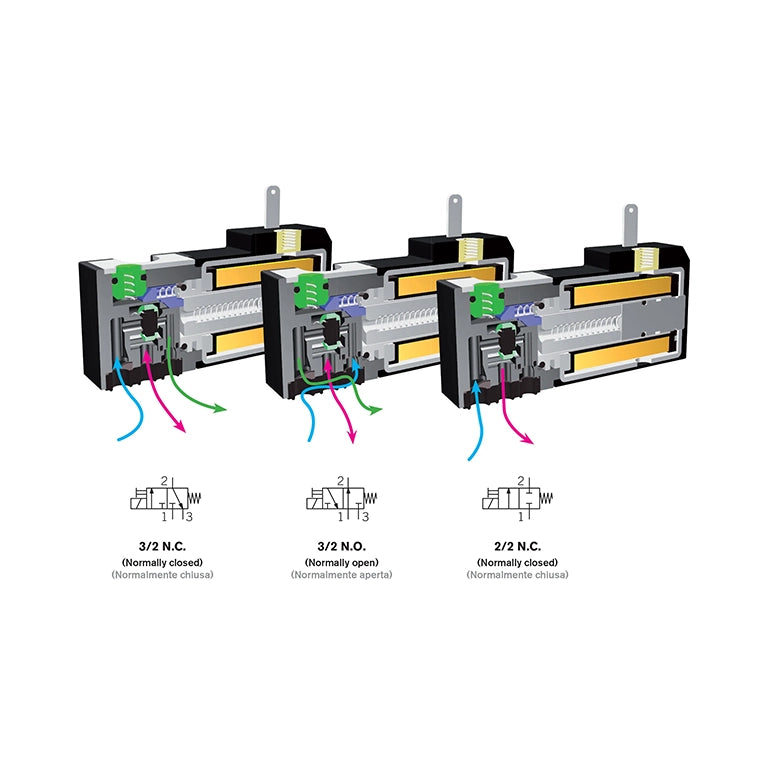

- Functional Adaptability: Highly versatile internal layout capable of serving as a Normally Closed (NC), Normally Open (NO), Selector, or Universal valve.
- Standardization Compliance: Built fully compliant with the ISO 15218 dimensional and industrial standard.
- Industrial Swapping: Features a specialized pneumatic interface designed to match standard industrial sub-bases, enabling it to replace most alternative 15 mm valves on the market.
- Flow Efficiency: Provides an exceptionally high flow rate relative to its micro nozzle diameter, delivering a market-leading high flow rate/nozzle diameter ratio.
Mechanical Design & FIM Patented Technology
- Body Separation Framework: Employs FIM's signature patented "click-separable" independent body design.
- Functional Benefit: The electrical coil block safely detaches from the pneumatic fluid mechanics via a physical click mechanism, isolating the fluid path from electrical risk factors and facilitating quick configuration rotation.
Coil & Material Specifications
- Coil Composition: Wound using heavy-duty insulated copper wire.
- Insulation Class: Rated for Class F (up to 155°C) thermal resilience.
- Encapsulation: Injection-molded and sealed inside a glass-fiber-reinforced polyamide polymer structure for robust environmental protection.
Material
Material
Coil Encapsulation: Premium injection-molded glass-fiber reinforced polyamide polymer technopolymer.
Winding Wire: Enamelled copper wire with Class H insulation rated for extreme thermal duty up to 180°C.
Valve Body: High-performance, impact-resistant independent industrial technopolymers.
Internal Mechanics: Corrosion-resistant stainless steel and ferromagnetic alloys for rapid core plunger actuation.

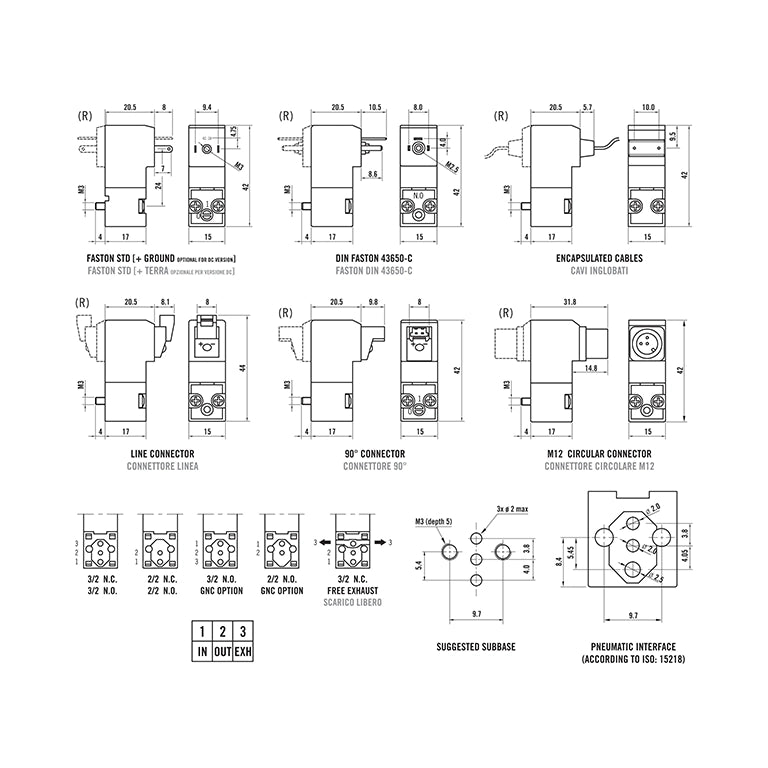

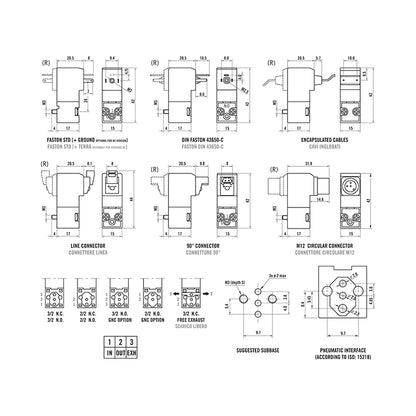

Pneumatic Interface: ISO 15218 compliant dimensional mounting base crafted from heavy-duty PA66 (Polyamide 66) thermoplastics.
Sealing Elements: High-grade elastomeric compounds designed to manage wide pneumatic pressure ranges.
Share
Product Knowledge
Areas of Application
- Pneumatic Servo-Piloting: High-speed electro-pilot for macro spool valves and FIM SP5 series high-flow valves.
- Industrial Automation: Direct actuator for compact air cylinders, rapid air-blowing lines, and precision vacuum systems.
- Railways & Transit: Pneumatic control for train pantographs, automated passenger doors, braking loops, and air suspension.
- Medical Devices: Compact fluid routing for ventilators, anesthesia machines, and oxygen concentrators.
- Dental Equipment: Flow management for clinical dental chairs, vacuum generators, and water/air drill lines.
- Packaging & Marking: High-frequency switching for fast-cycling industrial sorting gates and labeling lines.
- Automotive Systems: Pneumatic controls for commercial cabin seating, braking systems, and work vehicle automation.
- Smart Agriculture: Precision fluid control for automated irrigation and chemical sprayers.
