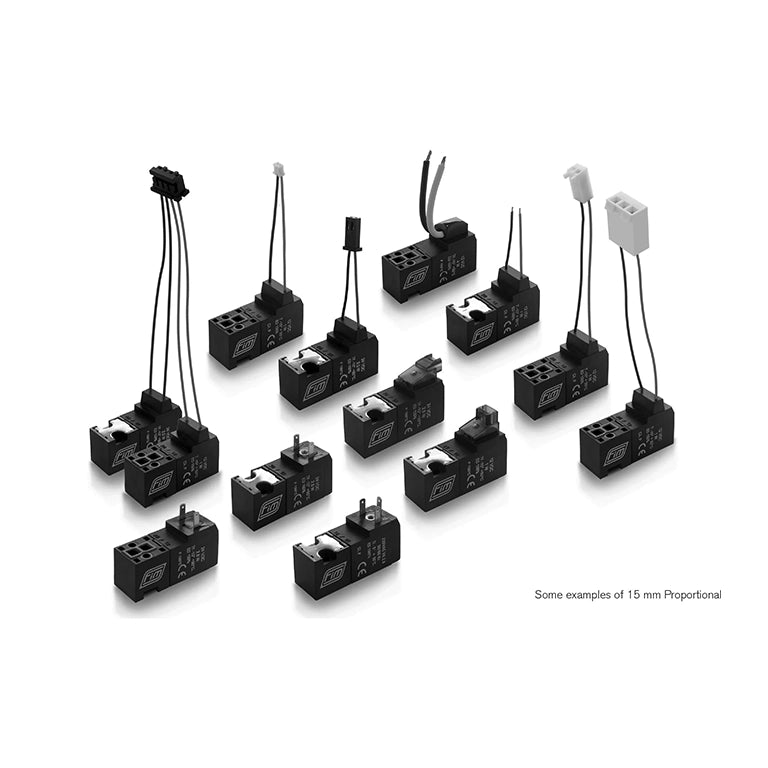

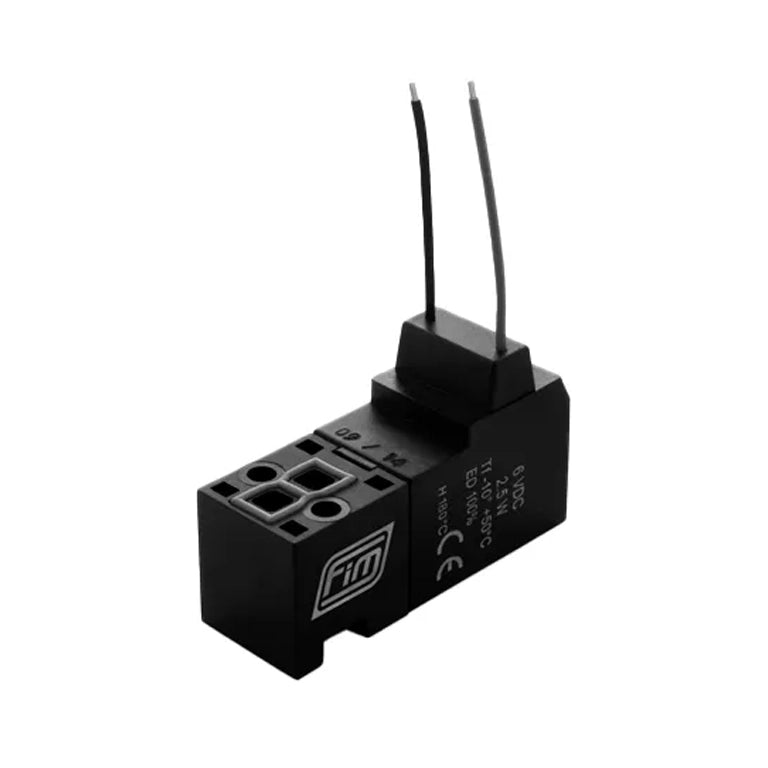

15 mm - Model 2/2 PRP
15 mm - Model 2/2 PRP
FIM Valvole offers a comprehensive lineup of 15 mm miniature solenoid valves designed for applications where space is limited but high flow rates and reliability are required.
Model 2/2 PRP (Proportional) is optimized for closed-loop control circuits, continuously controlling the flow rate of gases or liquids depending on the electrical signal and plunger stroke.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of FIM 15 mm miniature solenoid valves – Model 2/2 PRP in India.

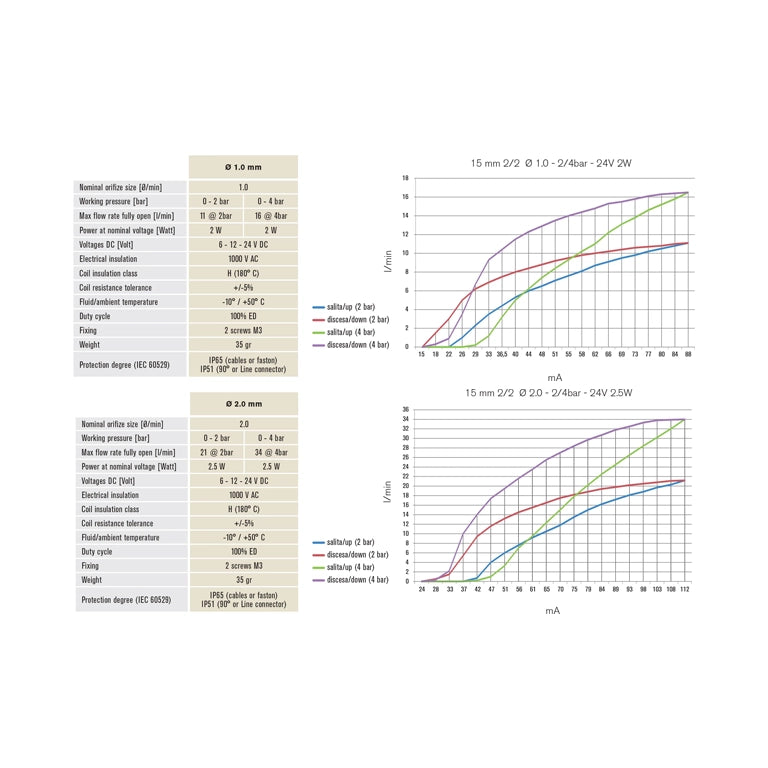

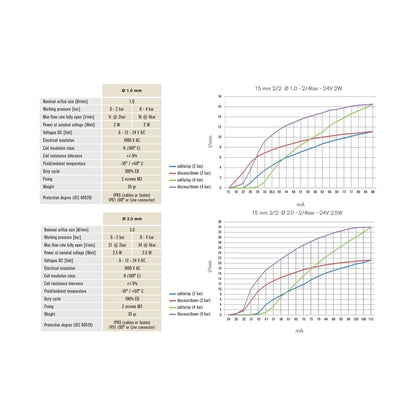

General Specifications
General Specifications
Mechanical & Physical Specs
- Valve Function: 2/2-way, Normally Closed (NC), proportional control.

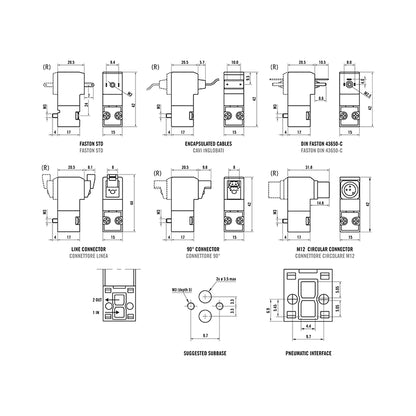

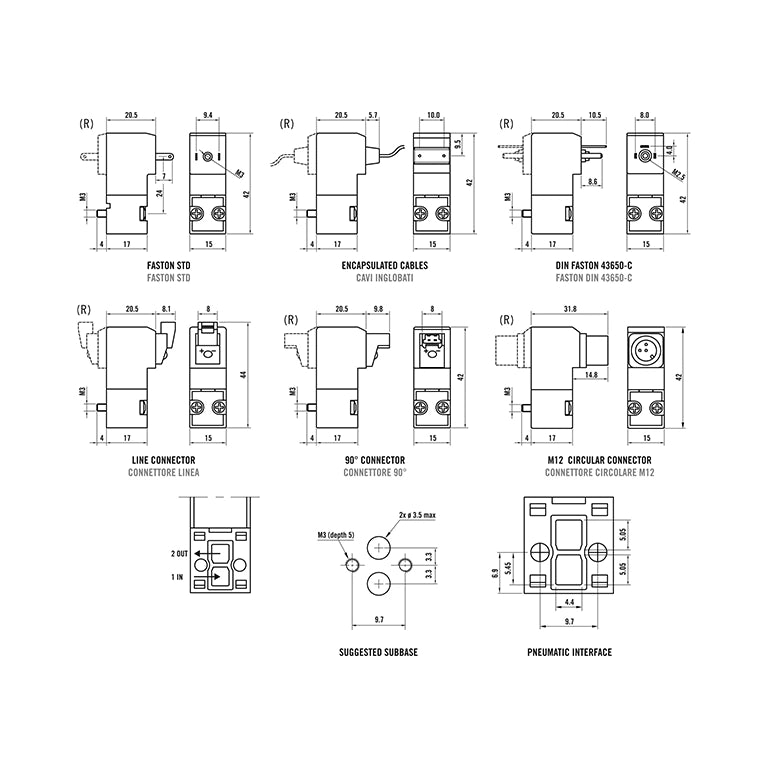

- Width Size: Exactly 15 mm nominal footprint for dense manifold mounting.
- Body Material: High-performance technopolymer (glass fiber reinforced polyamide).
- Internal Seals: Typically available in FKM (Viton) or NBR depending on chemical compatibility.

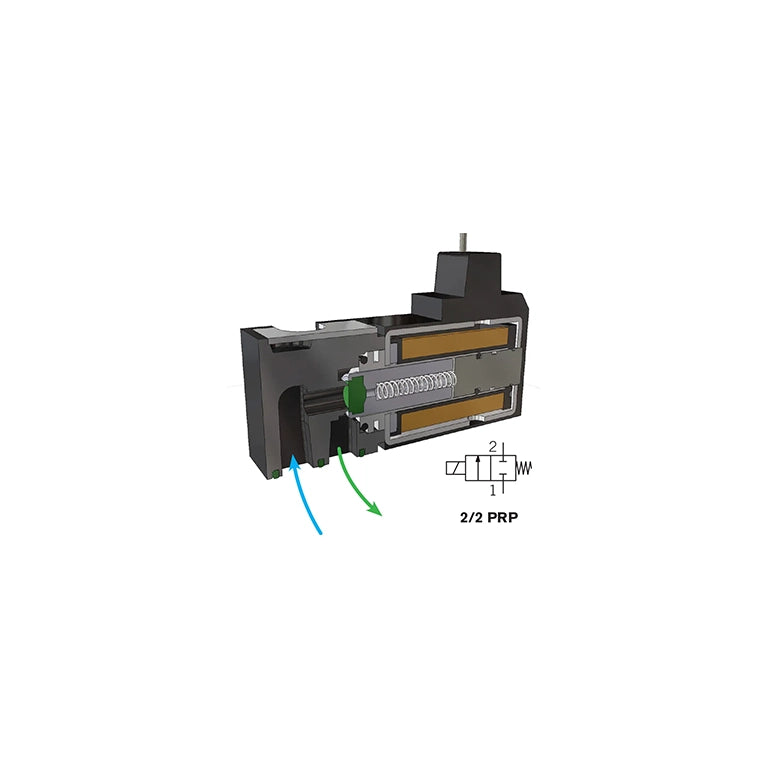

- Core Mechanics: Calibrated internal spring paired with a low-friction plunger designed to minimize hysteresis during continuous stroke adjustments.
Electrical & Control Specs
- Control Method: Pulse Width Modulation (PWM) or varying continuous DC current.
- Operating Voltages: Customizable options including 12V DC and 24V DC.
- Coil Insulation: Class H (up to 180°C) or Class F (up to 155°C) encapsulated copper wire windings.
- Electrical Connection: Standard industry configurations including Molex, Tyco, JST, or Hirose
pins/connectors.
Operational Parameters
- Fluid Media: Air, oxygen, inert gases, or clean neutral liquids.
- Flow Control Range: Proportional stroke modulation matches the input current ratio against the spring tension.
- Environmental Protection: Configurable up to IP67 protection rating via custom resin coating.
Material
Material
Coil Encapsulation: Injection-moulded glass-fiber reinforced polyamide polymer technopolymer, safeguarding the core electronic components against impact.
Winding Wire: High-purity insulated copper wire, Class F rated (155°C) to handle constant current modulations required during proportional variable gating.
Pneumatic Body & Interface: High-rigidity independent engineering technopolymer utilizing the patented "click-separable" modular design to isolate the fluid line from the electronic coil housing.
Proportional Plunger & Core Guide: High-permeability, friction-optimized stainless steel and ferromagnetic alloys calibrated for smooth variable stroke positioning.
Internal Control Springs: Heavy-duty, calibrated stainless steel alloys designed to maintain precise opposing spring tension against the coil's magnetic attraction force.
Sealing Elements: Custom elastomeric compounds engineered to deliver low friction coefficient tracking and reliable airtight sealing during closed-loop micro-adjustments.
Share
Product Knowledge
Areas of Application
- Medical & Healthcare: Used in devices that require accurate and quiet management of pressurized gases or fluids, such as respiratory equipment, portable ventilators, and anesthesia machines.
- Industrial & Analytical Instrumentation: Ideal for automated laboratory machinery and gas analyzers requiring dynamic and continuous flow adjustment
- Industrial Marking: Regulates exact fluid drops in high-speed, continuous inkjet printing systems.
- Electronics & Semiconductors: Provides the fine-tuned gas control necessary for micro-manufacturing and precise cooling circuits.
