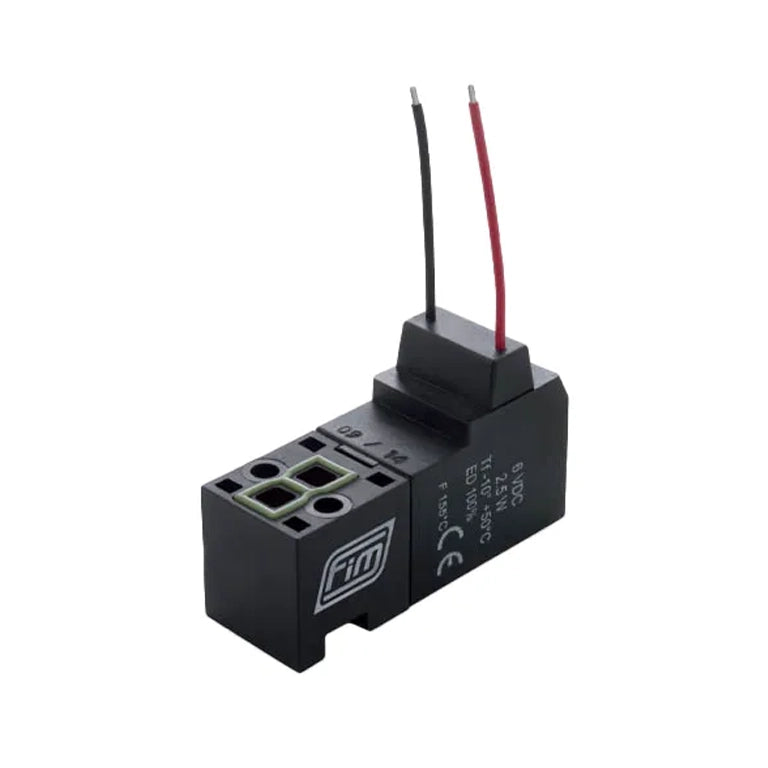

15 mm - Model 2/2 HF
15 mm - Model 2/2 HF
FIM Valvole offers a comprehensive lineup of 15 mm miniature solenoid valves designed for applications where space is limited but high flow rates and reliability are required.
The High Flow (HF) valve comes in a 2-port, 2-position (2/2) configuration designed to deliver a large flow rate-to-nozzle ratio, making them perfect for operations demanding rapid response times and greater fluid volume.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of FIM 15 mm miniature solenoid valves – Model 2/2 HF in India.

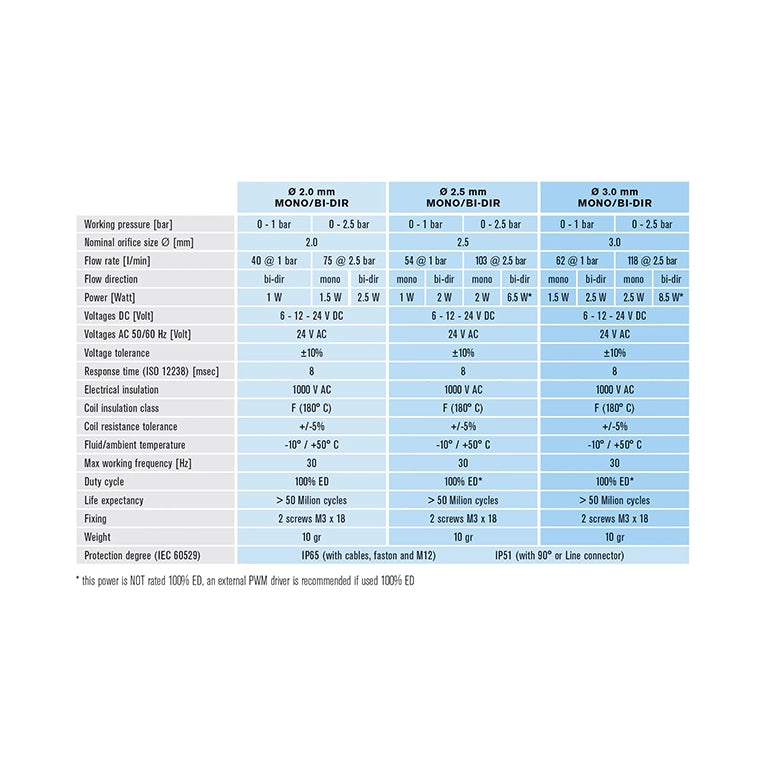

General Specifications
General Specifications
Core Mechanical & Flow Performance

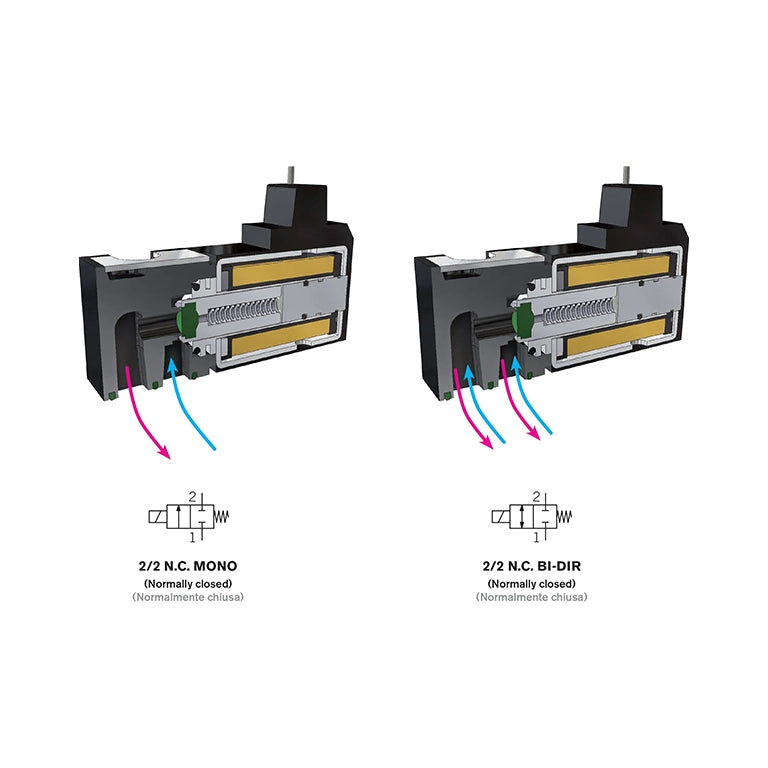

- Valve Function: 2/2 Way (2 ports, 2 positions), Monostable (spring-return), Normally Closed (NC).

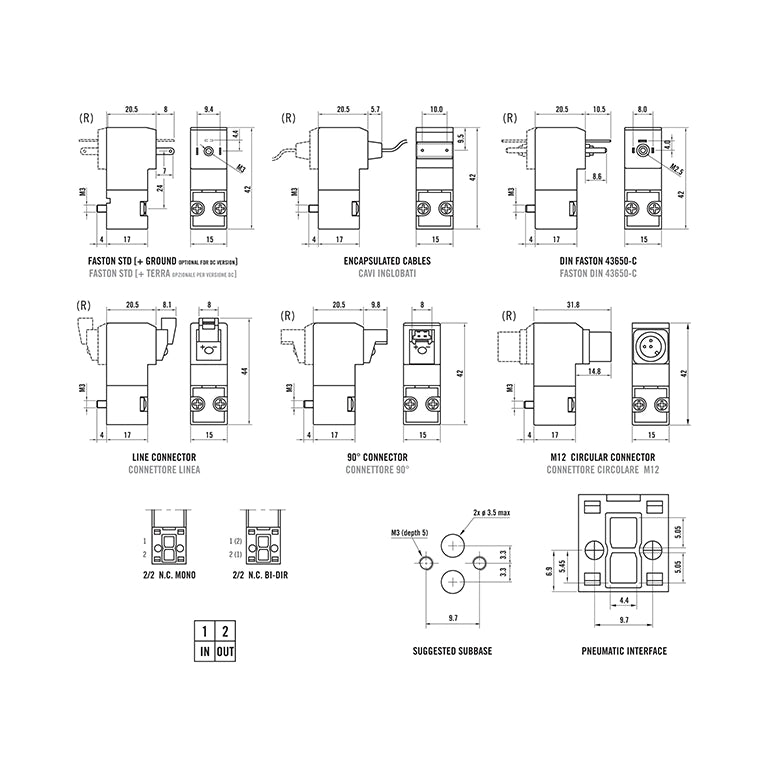

- Valve Width: 15 mm sub-miniature profile.
- Orifice Options: Equipped with very large internal nozzles/orifices relative to its frame size to achieve maximum flow performance.
- Operating Pressure: Engineered primarily for low-pressure applications. Max pressure limits scale dynamically depending on the selected orifice size and applied coil power.
Electrical Characteristics
- Coil Insulation Class: Class F (rated up to 155°C) premium insulated copper wire.
- Encapsulation: Injection-molded with glass fiber reinforced polyamide polymer for superior environmental resilience and moisture protection.
- Duty Cycle: Designed for 100% continuous duty cycle operation.
- Custom Voltage Options: Universally adaptable to varying system currents (typically 12Vdc, 24Vdc, 24Vac, etc.) based on deployment needs.

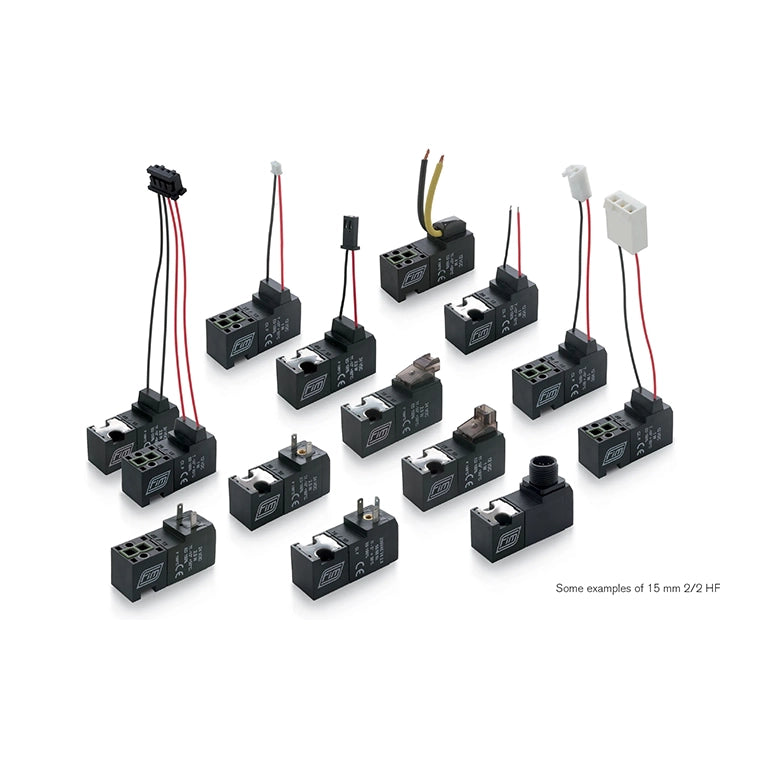

- Electrical Connection Interface: Supports multiple integrated connector architectures including Molex, Tyco, Hirose, and JST.
Material & Construction Specs
- Body Separation Technology: Features a patented "click-separable" design. The electrical components easily disconnect from the wet mechanical components, facilitating instant maintenance or swapping without disrupting line plumbing.
- Fluid Compatibility: Built to manipulate filtered air, non-corrosive inert gases, and select low-viscosity fluids.
- Environmental/Safety Compliance: Manufactured Lead-Free; fully compliant with RoHS, REACH, and WEEE (RAEE) standards.
Modifications & Scalability Options
The architecture allows deep field customization. Engineers can request custom configurations for:
- Upgraded IP67 protection via selective resin coating.
- Tailored power ratings (Watts) to optimize system thermal signatures.
Material
Material
Coil Encapsulation: Precision injection-molded glass-fiber reinforced polyamide polymer technopolymer.
Winding Wire: High-purity enamelled copper wire with Class F insulation rated for thermal stability up to 155°C (with custom Class H options up to 180°C available for intense continuous duty).
Valve Body Housing: Impact-resistant, dimensionally stable engineering technopolymers featuring the signature independent "click-separable" architecture.
High-Flow Sub-Base Interface: Heavy-duty PA66 (Polyamide 66) specialized individual base plates designed to handle broad orifice flow paths.
Internal Core & Plungers: Passivated, corrosion-resistant stainless steel and high-permeability ferromagnetic alloys.
Sealing Gaskets: Premium-grade elastomeric compounds tailored for airtight low-pressure pneumatic sealing and gaseous media transmission.
Share
Product Knowledge
Areas of Application
- Medical & Dental Equipment: Used in medical devices, dental chairs, vacuum generators, and dispensing systems where space and hygiene are critical.
- Industrial Automation: Deployed in automated machinery, packaging, and marking lines where compact, high-frequency fluid control is necessary.
- Analytical & Diagnostics: Ideal for chemical and laboratory analyzers, chromatography machines, and fluid samplers.
- Electronics & Semiconductors: Used for production and testing equipment requiring precise, reliable gas and fluid manipulation.
- Transportation: Integrated into buses and railways for controlling pneumatic auxiliary devices, doors, and suspension systems.
