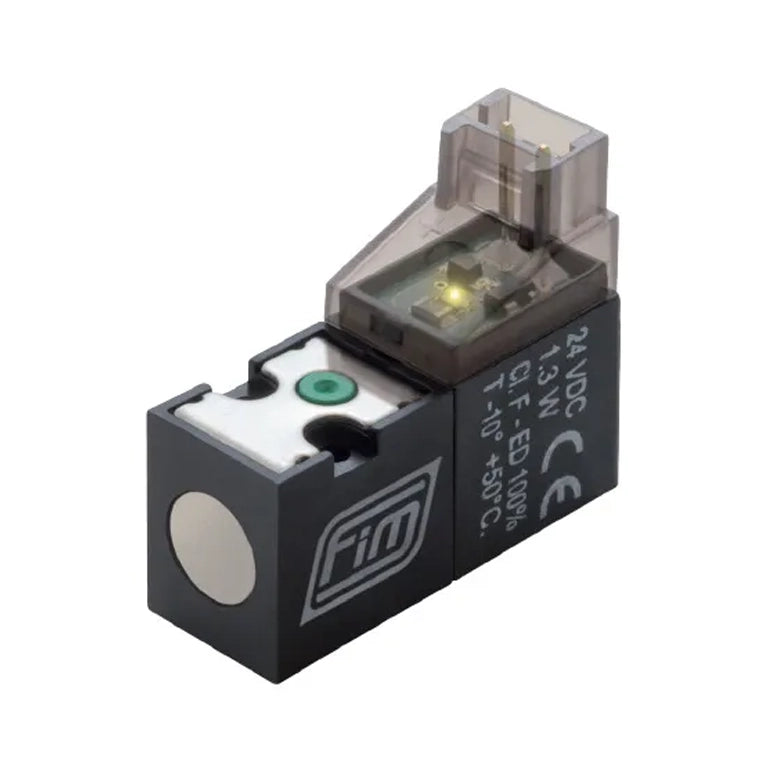

10 mm - Model 3/2 STD
10 mm - Model 3/2 STD
FIM Valvole manufactures high-performance 10 mm miniature solenoid valves designed for ultra-compact pneumatic systems and automation tasks.

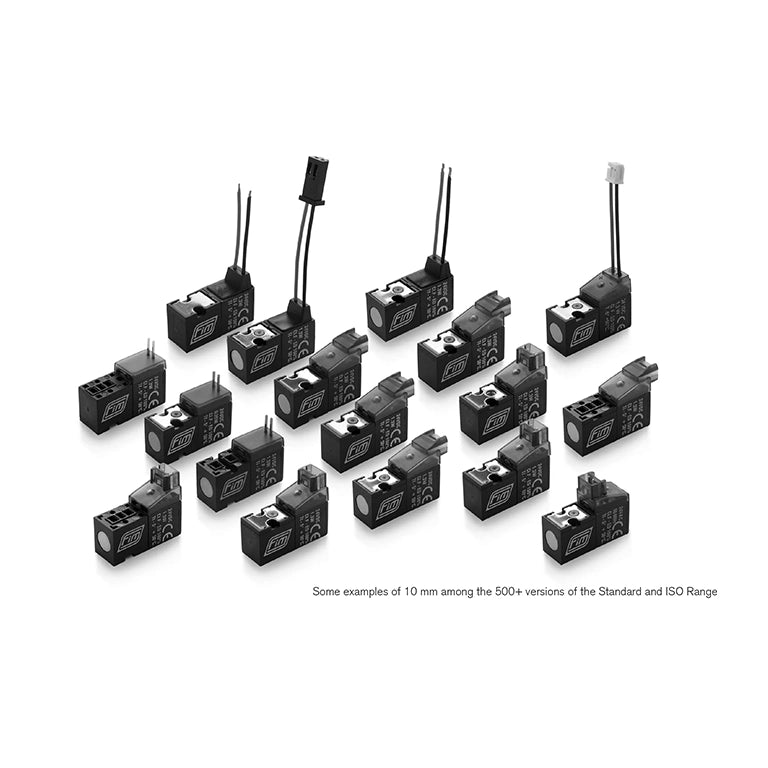

The 3/2 STD (Standard) is known for having an incredibly small footprint relative to its high flow-to-orifice diameter ratio. It can be custom configured by voltage, power wattage, and electrical connection interfaces.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of FIM 10 mm miniature solenoid valves – Model 3/2 STD in India.

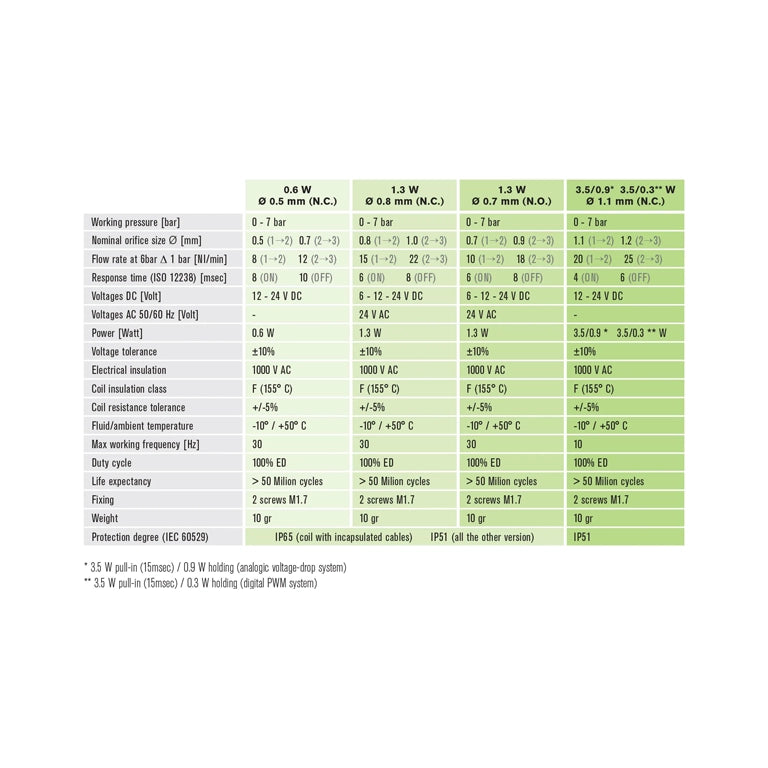

General Specifications
General Specifications
Pneumatic & Flow Performance
- Valve Function: 3-Way / 2-Position (3/2) or 2-Way / 2-Position (2/2) direct-acting mechanism.
- Actuation Type: Monostable (spring-return).

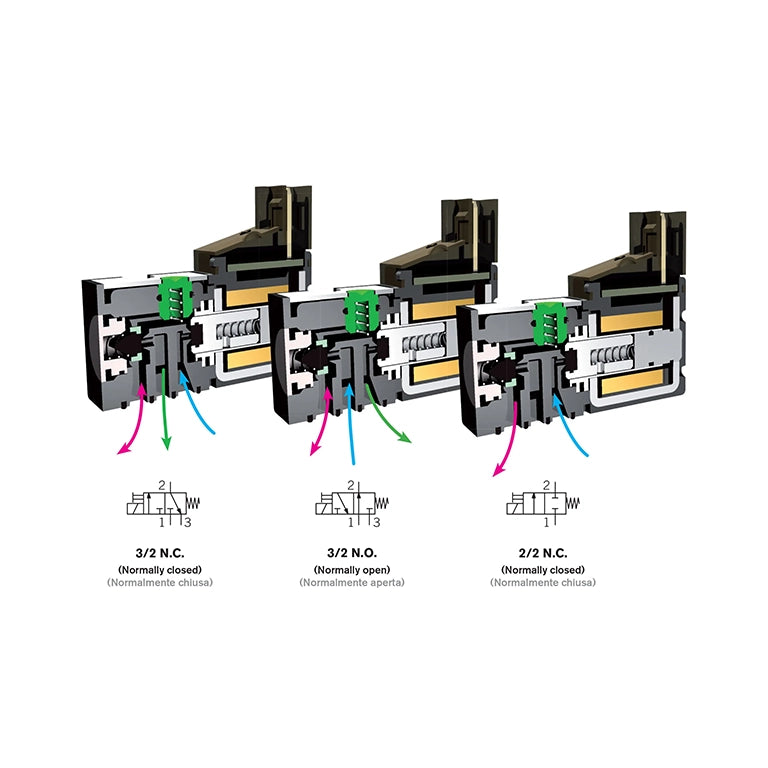

- Functional Adaptability: Universal configuration capable of functioning as Normally Closed (NC), Normally Open (NO), Selector, or Universal.
- Flow Optimization: Delivers a market-leading high flow rate to nozzle diameter ratio, maximizing fluid throughput relative to its sub-miniature 10 mm profile.
Electrical & Material Profile
- Coil Composition: Wound with premium-grade insulated copper wire.
- Thermal Resilience: Certified Class F insulation rated for continuous thermal stability up to 155°C.
- Encapsulation: Injection-molded and sealed with a rugged, glass-fiber-reinforced polyamide polymer for superior environmental protection.
- Duty Cycle: Rated for 100% ED continuous operation.
Patented Click-Separable Technology
- Body Architecture: Built with FIM Valvole’s signature patented "click-separable" independent body system.
- Technical Advantage: Completely separates the wet mechanical fluid path from the electrical coil assembly with a physical click mechanism. This unique isolation maximizes mechanical ruggedness, prevents electrical shorting from fluid leaks, and allows engineers to change or rotate coil orientation instantly without breaking plumbing lines.
Material
Material
Coil Encapsulation: Injection-moulded glass-fibre reinforced polyamide technopolymer (engineered for high mechanical strength and thermal protection).
Winding Wire: Enamelled copper wire, Class F insulated (rated to withstand temperatures up to 155°C).
Valve Body: High-performance thermoplastic materials and technopolymers designed to isolate the electrical section from the pneumatic functions.
Internal Mechanics: Premium stainless steel and brass alloys used for the core plunger and spring mechanisms to ensure corrosion resistance.
Seals & Diaphragms: High-grade elastomeric compounds (typically NBR or FKM depending on final sub-variant configuration) for airtight pneumatic sealing.
Share
Product Knowledge
Areas of Application
- Industrial Automation: Direct actuation for small-bore air cylinders, miniature pneumatic grippers, and vacuum pick-and-place systems.
- Medical Devices: Precision air and gas routing loops inside portable breathing ventilators, anesthesia machines, and oxygen concentrators.
- Laboratory Diagnostics: Fluid path management for chemical reagents, buffers, and waste lines in high-throughput analysis equipment.
- Dental Units: Compact control of compressed air lines, vacuum suction paths, and rinsing water systems within modern dental chairs.
- Industrial Inkjet Printing: High-frequency ink delivery control, line purging, and solvent flushing in high-speed packaging equipment.
- Commercial Transit: Pneumatic regulation for auxiliary vehicle systems, air horn lines, and commercial cabin seat adjustments.

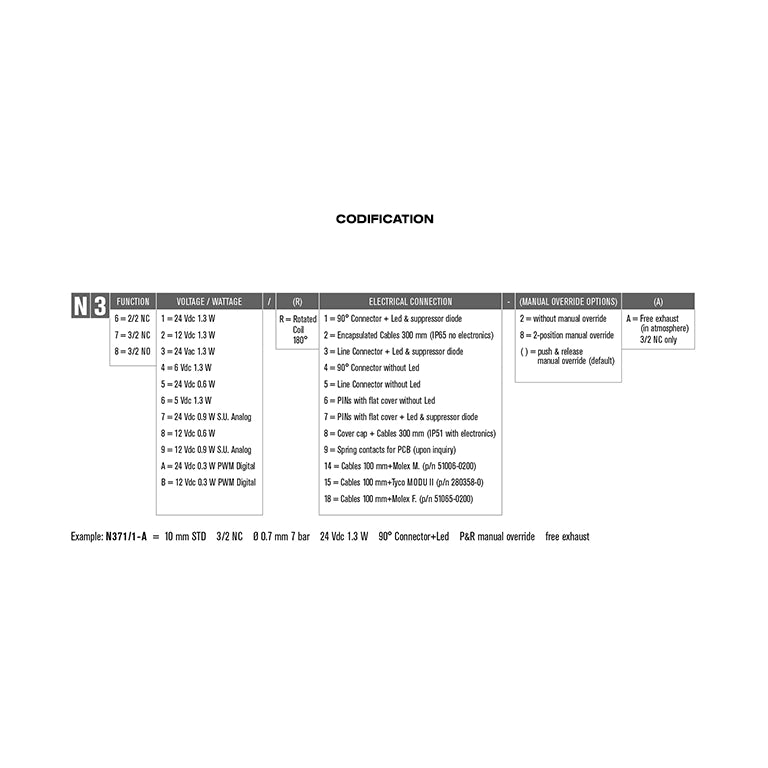

Part Numbers
