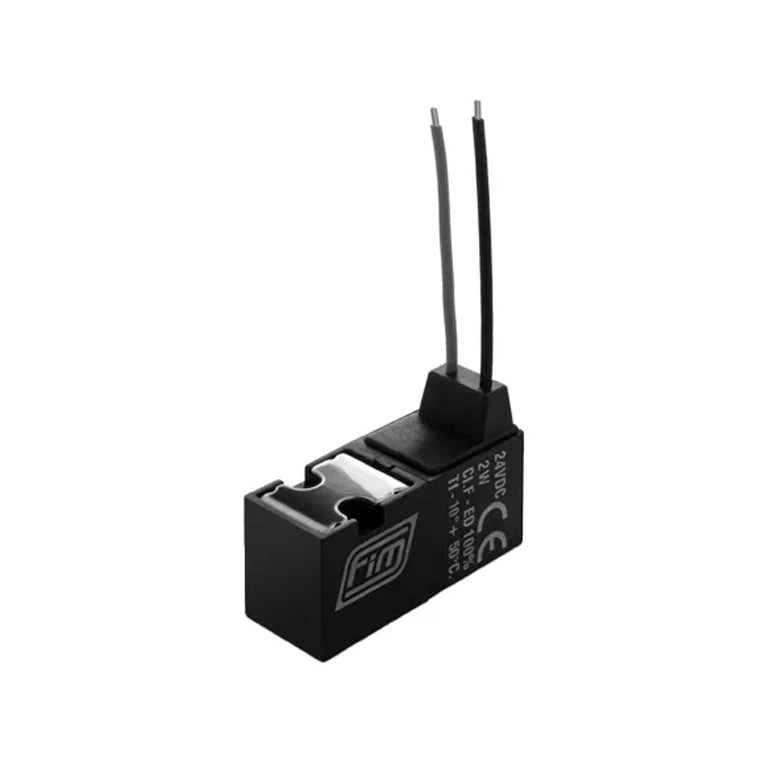

10 mm - Model LTC
10 mm - Model LTC
FIM Valvole manufactures high-performance 10 mm miniature solenoid valves designed for ultra-compact pneumatic systems and automation tasks.

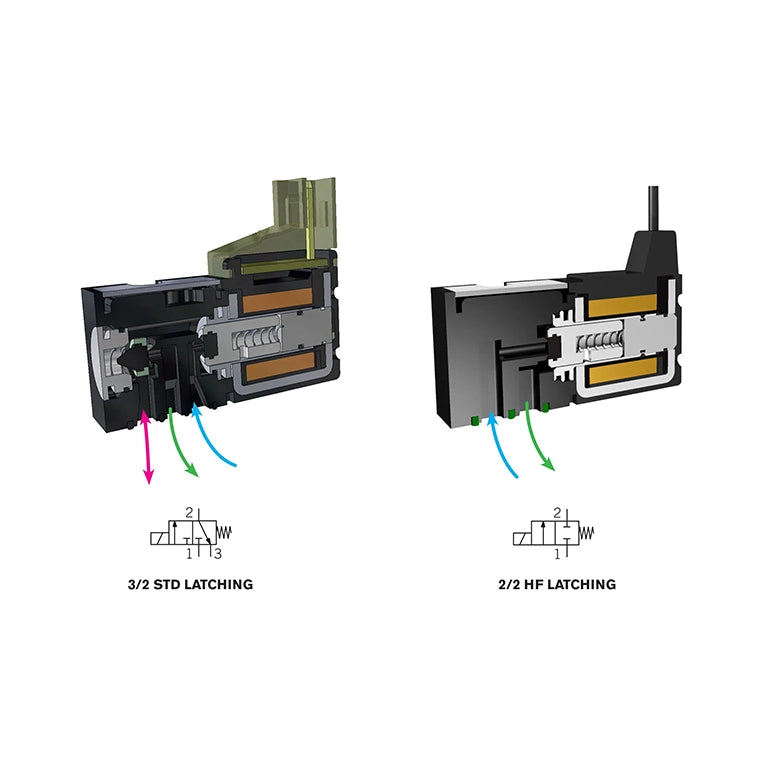

The LTC (Latching) valve is a bistable, permanent-magnet variant in the 10 mm lineup. The valve switches positions via a brief electrical pulse and holds that exact state mechanically until it receives a reverse-polarity pulse. This model is ideal for battery-powered systems or applications where minimizing continuous power draw is vital.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of FIM 10 mm miniature solenoid valves – Model LTC in India.

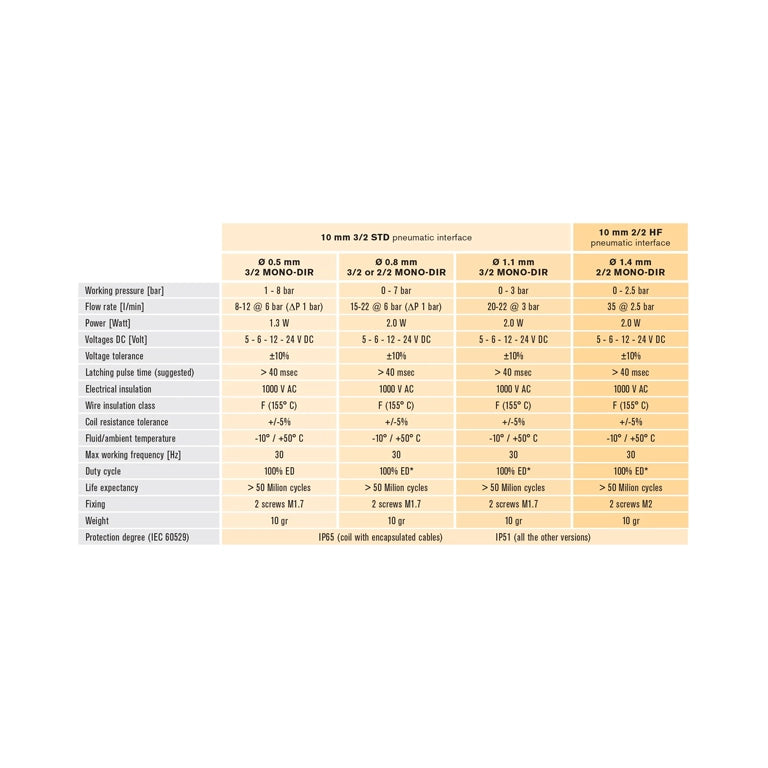

General Specifications
General Specifications
Operational & Bistable Profile
- Valve Mechanism: Bistable permanent-magnet microvalve.
- Power Efficiency: Operates using a brief electric pulse to switch the internal plunger position. Integrated permanent magnets hold the state without continuous power draw.
- State Reversal: Requires a short pulse with reversed polarity to switch back to the original position.
- Thermal Control: Zero continuous current means the valve does not overheat, keeping fluid temperatures completely stable.
Electrical & Material Specifications
- Standard DC Voltages: Configurable for 5V, 6V, 12V, or 24V DC systems.
- Voltage Tolerance Limits: ±10% operational window.
- Coil Composition: Wound with premium enameled copper wire rated for Class F (up to 155°C) thermal insulation.
- Encapsulation: Injection-molded using a rugged glass-fiber-filled polyamide technopolymer structure.
- Patented Independent Design: Utilizes FIM’s signature "click-separable" independent body framework to isolate mechanical fluid zones from electrical contacts.
Max Pressure Specification
- 0.5 mm Orifice (3/2 Way): Maximum operating pressure is 8.0 bar (Minimum 1.0 bar required).
- 0.8 mm Orifice (3/2 or 2/2 Way): Maximum operating pressure is 7.0 bar (Minimum 0 bar).
- 1.1 mm Orifice (3/2 Way): Maximum operating pressure is 3.0 bar (Minimum 0 bar).
- 1.4 mm Orifice (2/2 Way): Maximum operating pressure is 2.5 bar (Minimum 0 bar).
Material
Material
Coil Encapsulation: Injection-moulded glass-fiber reinforced polyamide polymer technopolymer.
Winding Wire: Enamelled copper wire with Class F insulation rated up to 155°C.
Internal Magnetics: High-coercivity permanent magnet paired with ferromagnetic stainless steel alloys to handle bistable pulse switching.
Valve Body: High-rigidity, impact-resistant industrial technopolymers engineered to isolate fluid pathways.
Core & Spring Elements: Premium stainless steel components providing high mechanical wear resistance.
Sealing Compounds: Industrial-grade elastomeric compounds designed for tight pneumatic insulation
Share
Product Knowledge
Areas of Application
Pneumatic Pilot Manifolds: Acts as a low-power, high-density electro-pilot for multi-station pneumatic valve islands and directional control banks.
ATEX / Hazardous Zone Equipment: Low thermal footprint and zero holding current make it suitable for intrinsically safe gas detection and industrial monitoring systems.
Factory Process Automation: Drives micro pneumatic cylinders, linear actuators, and sorting gates in electronics assembly and cleanroom manufacturing lines.
Industrial Gas Sampling: Manages fluid routing in automated chemical analyzers, factory stack emission monitors, and chromatography lines without altering gas temperatures.
Remote Off-Grid Automation: Governs pneumatic networks in solar-powered processing stations, oil/gas wellheads, and pipeline monitoring installations where power availability is restricted.
Part Numbers
