10 mm - Model 3/2 ISO
10 mm - Model 3/2 ISO

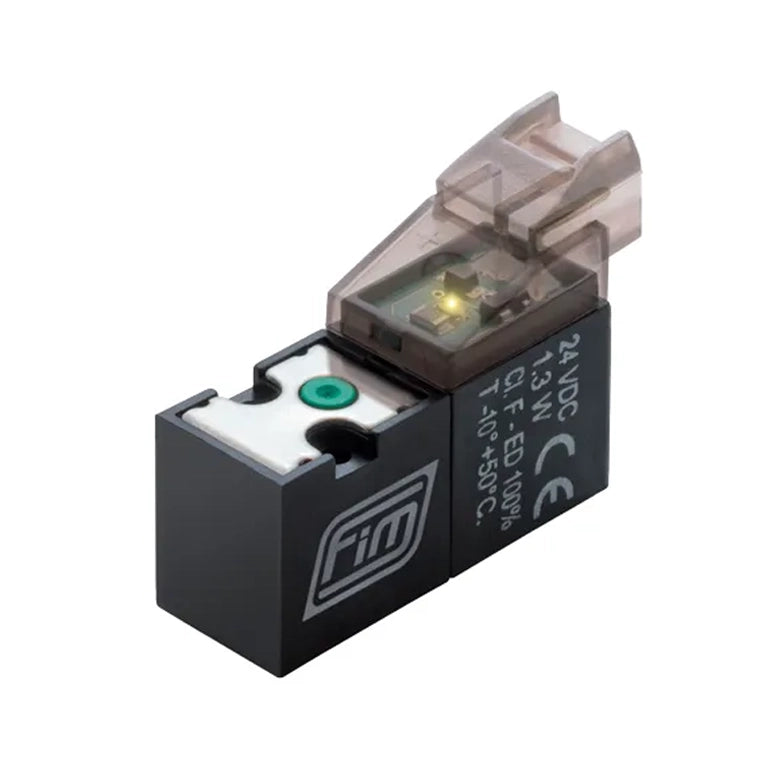

FIM Valvole manufactures high-performance 10 mm solenoid valves model 3/2 ISO compliant designed for ultra-compact pneumatic systems and automation tasks.
Built strictly to meet ISO 15218 interface standards. These are highly versatile and adapt across a massive span of operating pressures and basic configurations (including normally open, normally closed, universal, or selector).
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of FIM 10 mm miniature solenoid valves – Model 3/2 ISO in India.

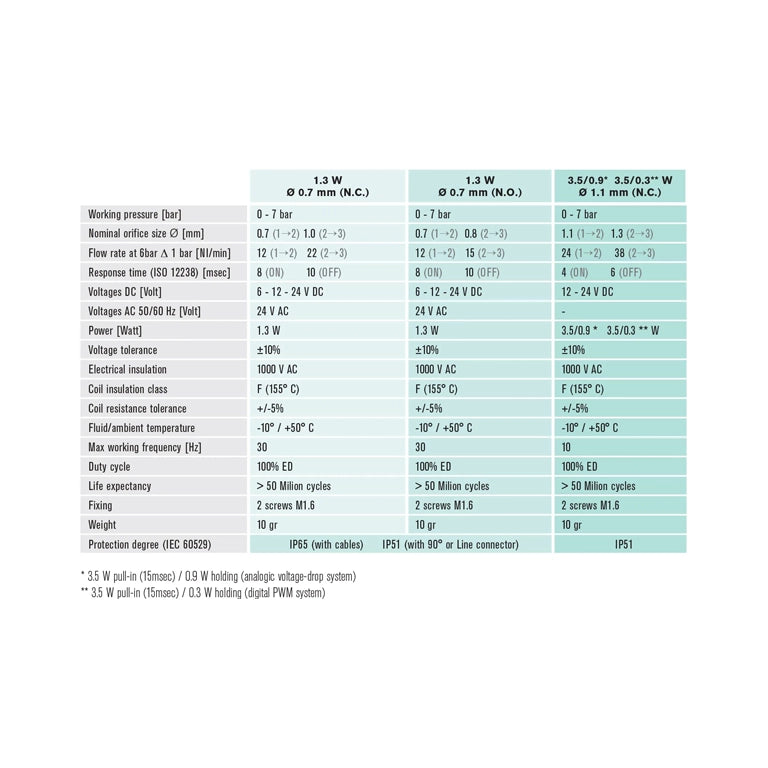

General Specifications
General Specifications
Pneumatic & Performance Capabilities
- Valve Function: 3-Way / 2-Position (3/2) layout.

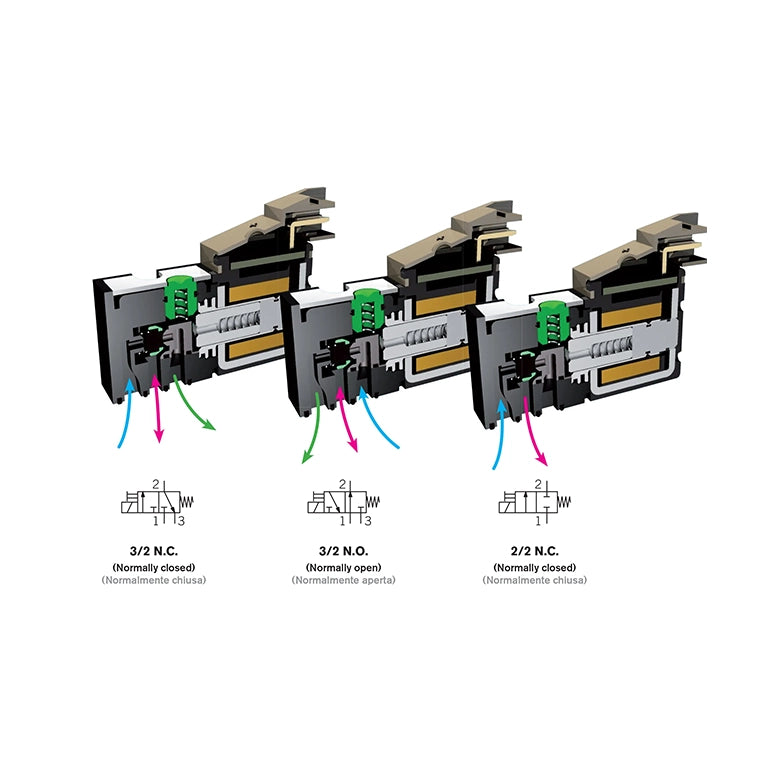

- Functional Adaptability: Universal internal configuration configurable as Normally Closed (NC), Normally Open (NO), Selector, or Universal.

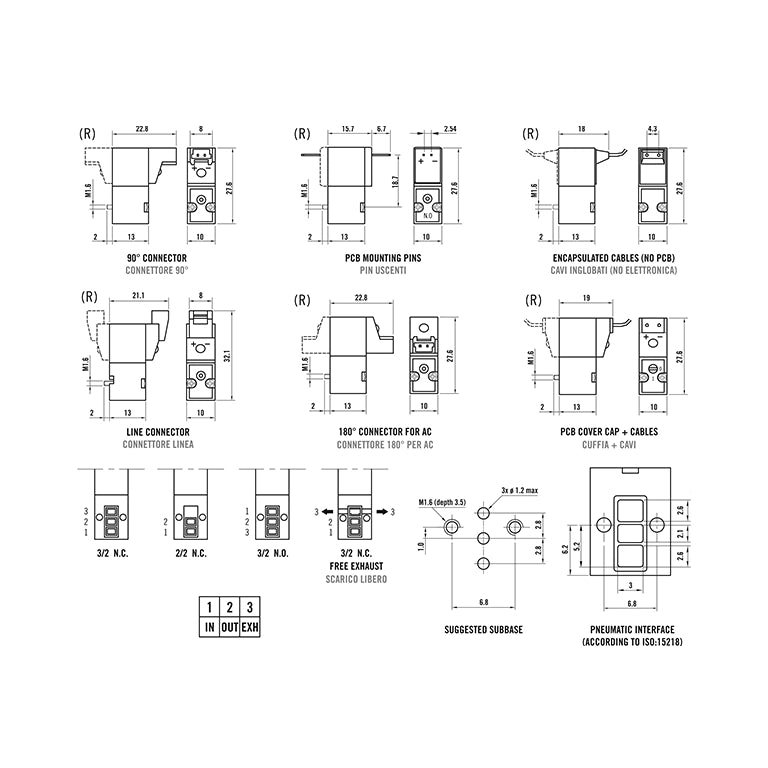

- Standard Compliance: Fully ISO 15218 compliant, utilizing standard sub-base dimensional interfaces for widespread industrial interchangeability.

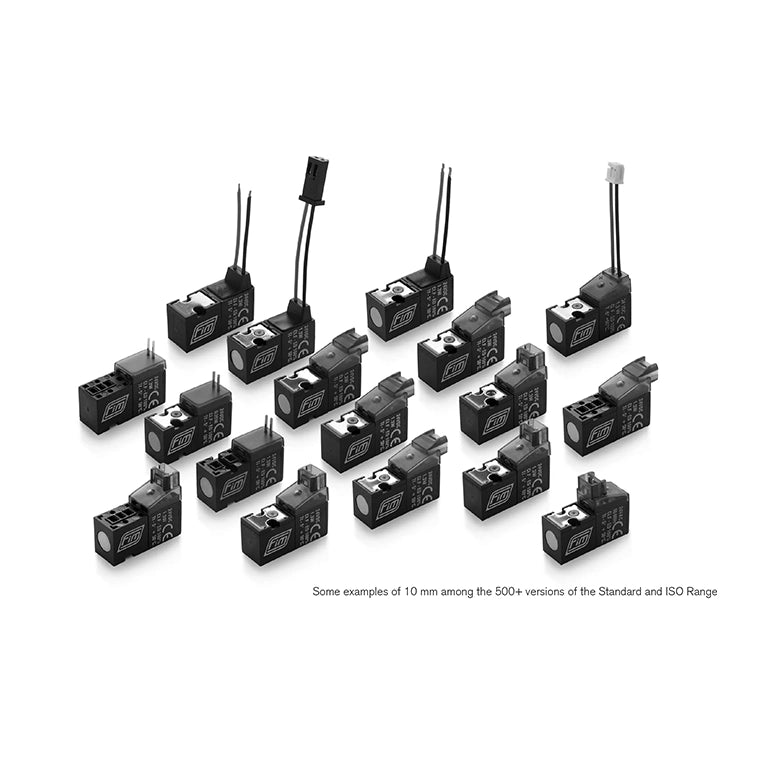

- Versatility: Engineered with an expansive working pressure spectrum and available in over 500 catalog versions to suit custom pneumatic system demands.
- Control State: Monostable (spring-return) electrical actuation.
Electrical & Material Profile
- Coil Composition: Wound with premium-grade insulated copper wire.
- Thermal Resilience: Class F insulation certified for safe thermal stability up to 155°C.
- Encapsulation: Injection-molded and completely sealed with a highly rugged, glass-fiber-reinforced polyamide polymer.
- Environmental Reliability: Ideal for rigorous cyclic operation in tight automation networks, electronic controls, and transit infrastructure.
Patented Click-Separable Architecture
- Body Design: Features FIM Valvole’s signature patented "click-separable" independent body system.
- Key Advantage: Mechanically splits the pneumatic fluid channel framework from the electrical block with a single click. This complete physical isolation guarantees enhanced mechanical ruggedness, continuous performance consistency, electrical safety, and modular orientation adjustment.
Material
Material
The FIM 10 mm Model 3/2 ISO miniature solenoid valve complies with international ISO 15218 standards and utilizes a click-separable architecture:
Coil Encapsulation: Glass-fiber reinforced polyamide technopolymer (PA66-GF).
Valve Body: Dimensionally stable engineering technopolymer.
Internal Mechanics: Stainless steel plunger, guiding tube, and springs.
Electrical Elements: Enameled copper wire with Class F (155°C) thermal insulation.
Sealing: High-grade NBR (Nitrile) or FKM (Viton) elastomers.
Share
Product Knowledge
Areas of Application
The FIM Valvole 10 mm 3/2 ISO Compliant micro-solenoid valve is engineered as a standard industrial interface component, making it a highly interchangeable ISO 15218 solution for compact, high-density pneumatic systems:
- Pneumatic Pilot Valve Blocks: Acts as the standard primary electro-pilot for multi-station pneumatic valve islands, directional spool blocks, and FIM SP5 series valves.
- Industrial Automation: Governs small-bore pneumatic actuators, gripper systems, sorting gates, and micro air cylinders in electronics assembly lines.
- Medical Equipment: Controls low-pressure air, oxygen, and fluid paths inside breathing ventilators, blood pressure monitors, and clinical diagnostic setups.
- Dental Units: Manages water spray, suction lines, and pressurized air routing inside dental chairs and surgical handpieces.
- Packaging Machinery: Drives high-speed switching loops for industrial labeling lines, product sorting gates, and micro-clamping systems.
- Automotive & Transit Controls: Controls pneumatic cabin seating adjustments, suspension leveling blocks, and auxiliary controls in commercial vehicles.

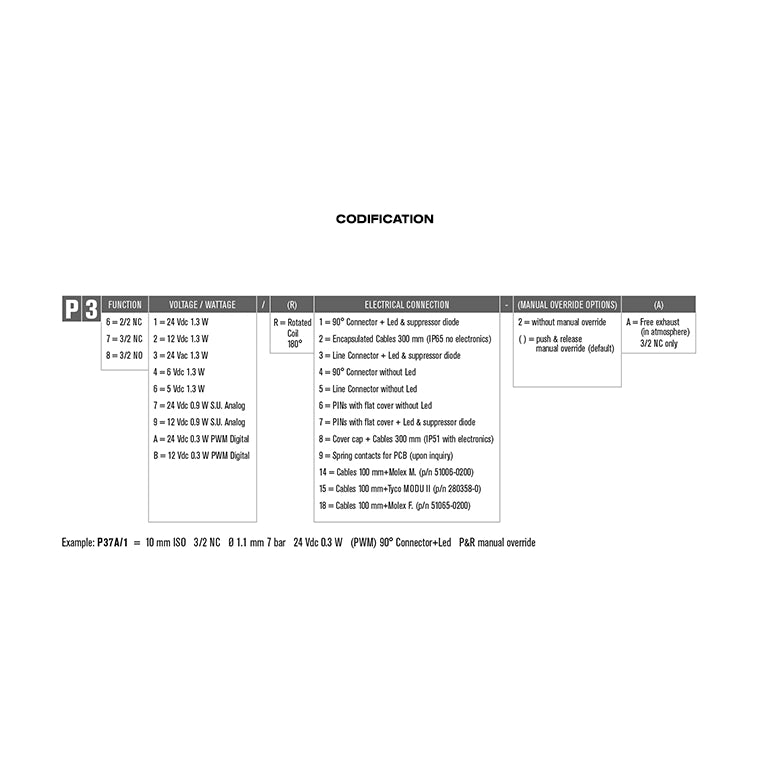

Part Numbers
