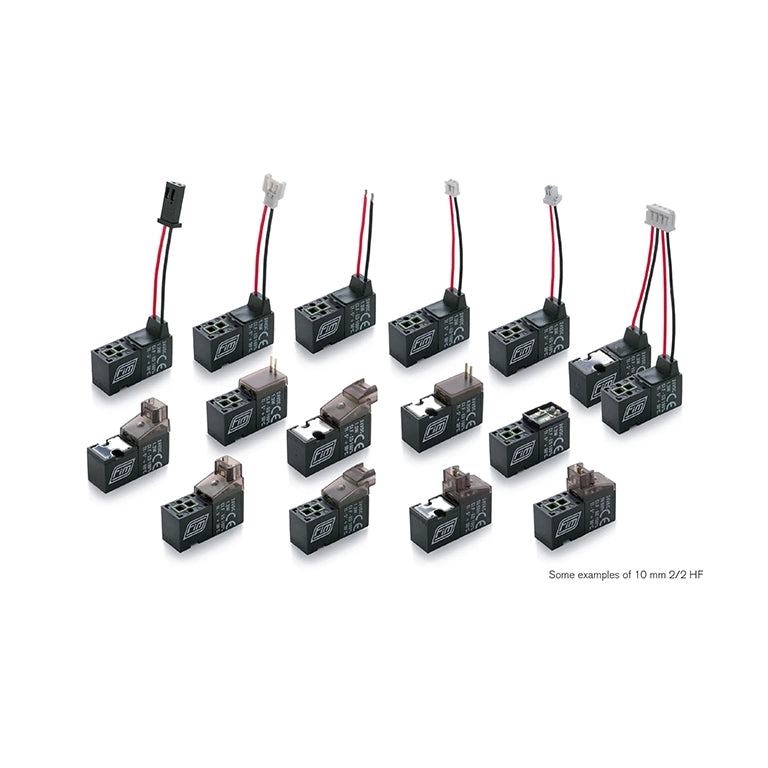

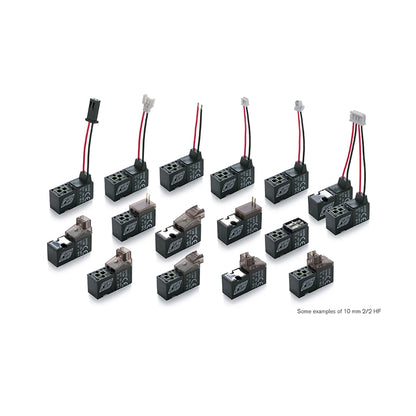

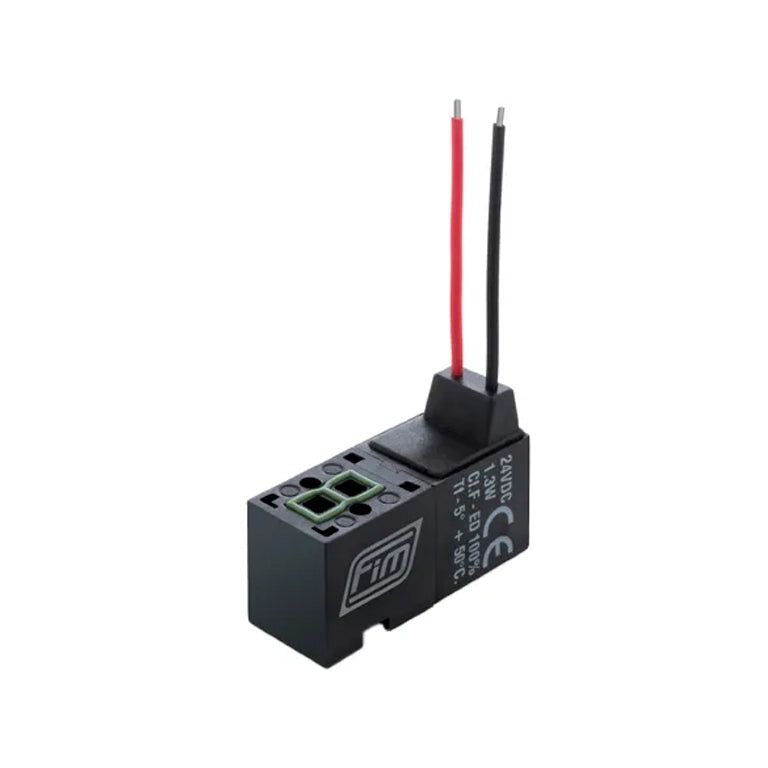

FIM Valvole manufactures high-performance 10 mm solenoid valves model 2/2 HF designed for ultra-compact pneumatic systems and automation tasks.
The HF (High Flow) variant in the FIM Valvole 10 mm lineup is exclusively a 2/2-way (2-port, 2-position) valve configuration, rather than a 3/2-way layout. It is specifically engineered to maximize fluid or gas flow capacity through an expanded internal orifice within the same ultra-compact 10 mm wide sub-miniature body framework.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of FIM 10 mm miniature solenoid valves – Model 2/2 HF in India.

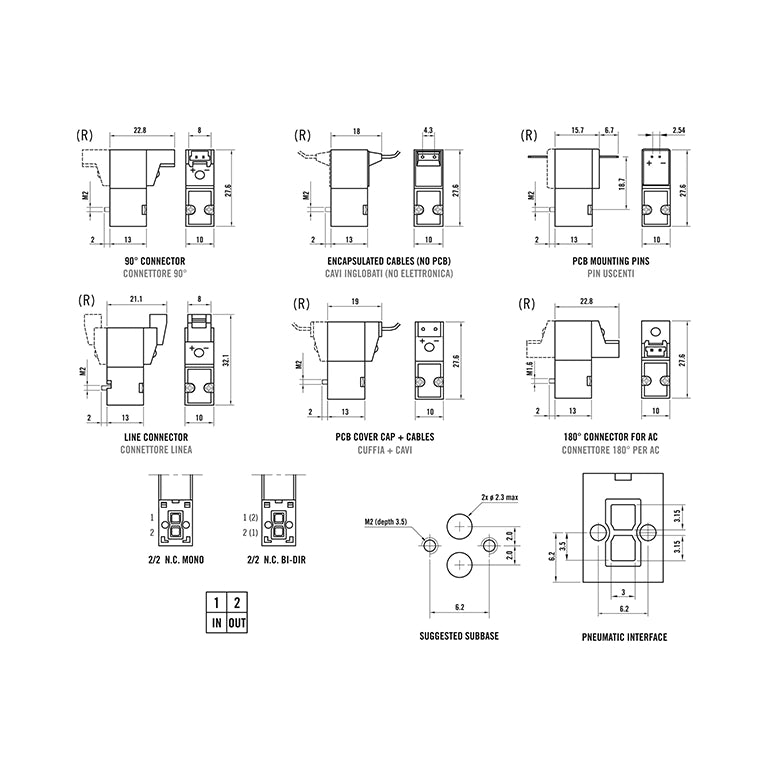

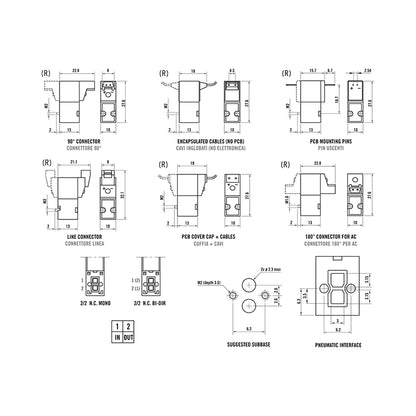

General Specifications
General Specifications

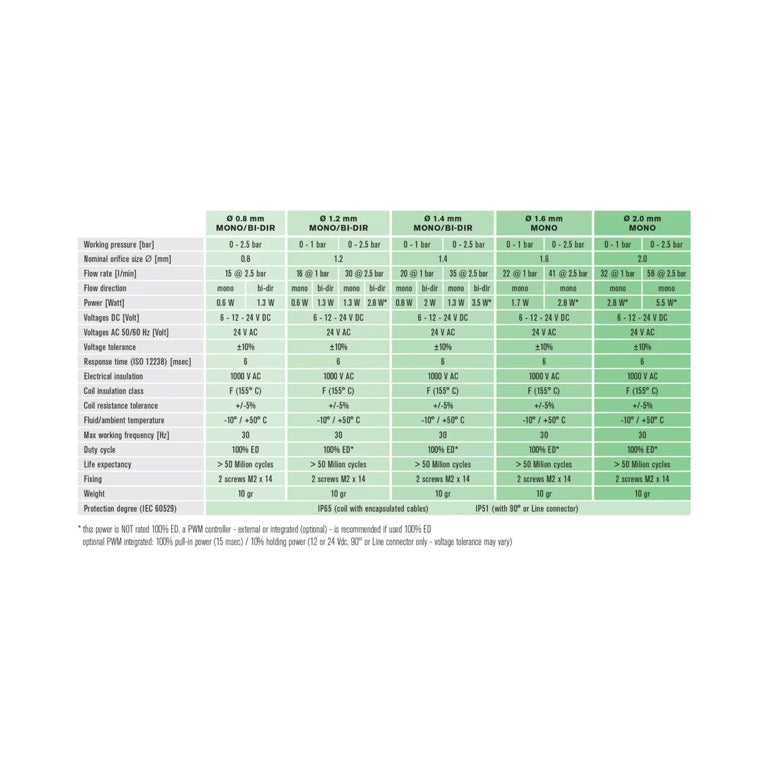

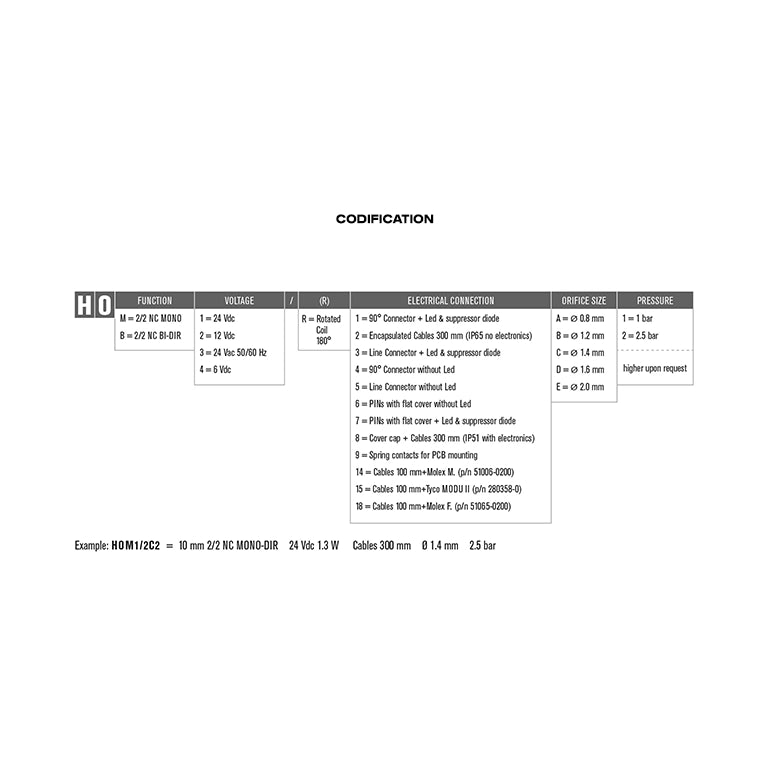

Pneumatic & Flow Performance Matrix
The valve features large internal nozzles to deliver exceptionally high flow rates relative to its ultra-compact 10 mm profile:
- Valve Function: 2-Way / 2-Position (2/2) Monostable configuration.
- Operating Pressure Range: 0 to 2.5 bar max working pressure (scales depending on orifice choice).
- Switching Speed: Rapid response time of under 6 milliseconds (conforming to ISO 12238).
- Service Life: Highly durable architecture rated for > 50 Million cycles.
Electrical & Material Features
- Standard DC Voltages: Factory configured for 6V, 12V, or 24V DC systems (with a ±10% voltage tolerance).
- Standard AC Voltages: Supports 24V AC configurations (50/60 Hz).
- Insulation Class: Built with Class F (up to 155°C) insulated copper wire.
- Coil Encapsulation: Injection-molded using a rugged glass-fiber-reinforced polyamide technopolymer.
- Operating Environment: Built for fluid and ambient temperature conditions between -10°C to +50°C.
- Duty Cycle: Rated for continuous 100% ED operation.

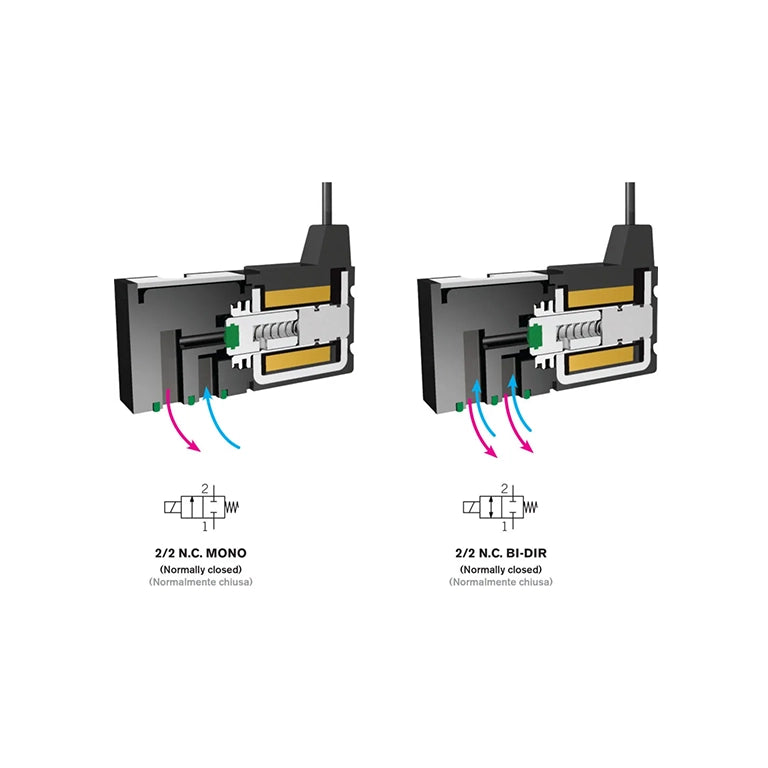

Patented Separation Design
- Click-Separable Architecture: Features FIM Valvole's signature "click-separable" independent body.
- Technical Advantage: Isolates the mechanical fluid mechanics completely from the electrical coil. This layout provides greater valve ruggedness, consistent performance, and simplified maintenance without breaking into plumbing lines.
Material
Material
Coil Encapsulation: Injection-molded, glass-fiber reinforced polyamide polymer technopolymer.
Winding Wire: Enamelled copper wire engineered with Class F thermal insulation rated up to 155°C.
Valve Body: High-rigidity independent polymer body using a patented "click-separable" design.
Sub-Base Interface: Specialized PA66 (Polyamide 66) individual base plates.
Internal Core & Springs: Corrosion-resistant stainless steel and ferromagnetic alloys.
Sealing Elements: Industrial-grade elastomeric compounds tailored for low-pressure gas and fluid control.
