End Flow Muffler
End Flow Muffler

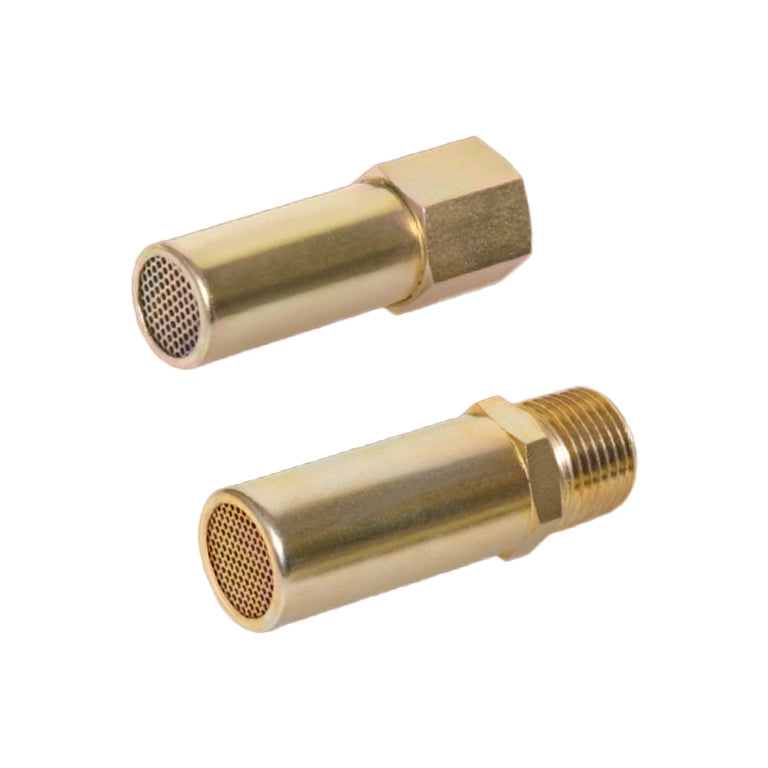

The ALWITCO End Flow Muffler, from the Bantam Series®, is a specialized, compact noise control component designed specifically for industrial applications where exhaust air must be directed in a single, precise path. Unlike multidirectional silencers that scatter air radially, this device discharges exhaust air axially through a unique, engineered honey-combed end cap. This design splits, redirects, and softens explosive compressed air blasts before releasing them softly into the atmosphere. By managing directional blast routing, it safely suppresses harmful acoustic shockwaves while maintaining efficient pneumatic velocity.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Operating Pressure: Rated for heavy-duty industrial compressed air setups up to 125 PSI (8.6 Bar).
Noise Mitigation Profile: Effectively reduces Exponentially Perceived Noise (EPNdB) by up to 85%.
Exhaust Flow Path: Strict axial, single-direction discharge to protect adjacent workspace areas.
Working Temperature: Configured for regular pneumatic ranges from +10°C to +48°C.
Connection Profile: Built with standard male and female NPT, BSPT, and NPS pipe threads for direct machine attachment.
Sizing Variety: Available in ultra-compact fractional port sizes from 1/8" (Model B18) up to 1/2" (Model B48) and larger.
Material
Material
Zinc-Plated Steel Casing: The standard model features a lightweight, space-saving zinc-plated steel body that resists mechanical wear and thread strip-out.
All-Stainless Steel Variant: An upgraded, all-stainless steel construction is available for highly sensitive or corrosive applications.
Honey-Combed End Cap: Features a structural metallic end cap designed to endure high-velocity mechanical air impacts without fragmenting.
Media Resilience: The robust metal assembly is chemically stable against continuous compressor oil vapor carryover and internal moisture line condensation.
Share
Product Knowledge
Areas of Application
Confined Spatial Assemblies: The low-profile, small-footprint design allows for easy integration within cramped automated control cabinets.
Operator Interface Zones: Redirects harsh pneumatic bursts away from operator work panels, assembly lines, and control stations.
Directional Blast Routing: Protects delicate nearby instruments, electrical wiring, or optical sensors from direct exhaust contamination and air pressure blasts.
High-Frequency Solenoid Manifolds: Easily mounts directly to individual directional valve exhaust ports to streamline manifold flow layout.
General Manufacturing: Extensively used across automotive assembly, packaging systems, and robotic automation lines.

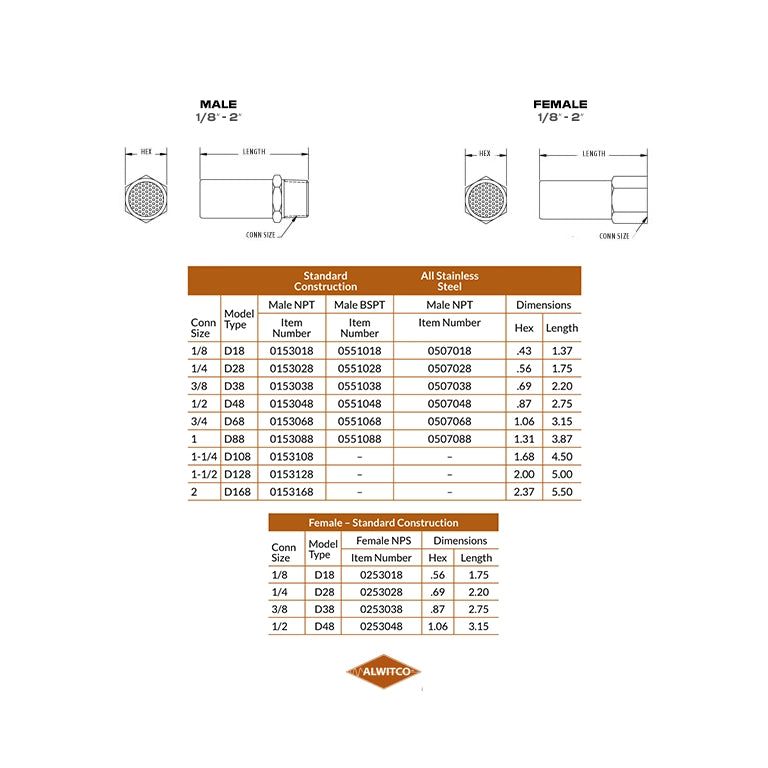

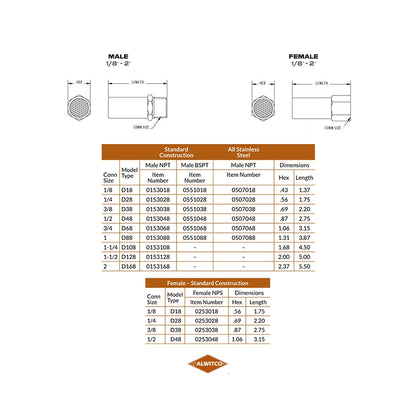

Part Numbers
D18 0153018 • D18 0551018 • D18 0507018 • D18 0253018 • D28 0153028 • D28 0551028 • D28 0507028 • D28 0253028 • D38 0153038 • D38 0551038 • D38 0507038 • D38 0253038 • D48 0153048 • D48 0551048 • D48 0507048 • D48 0253048 • D68 0153068 • D68 0551068 • D68 0507068 • D88 0153088 • D88 0551088 • D88 0507088 • D108 0153108 • D128 0153128 • D168 0153168
