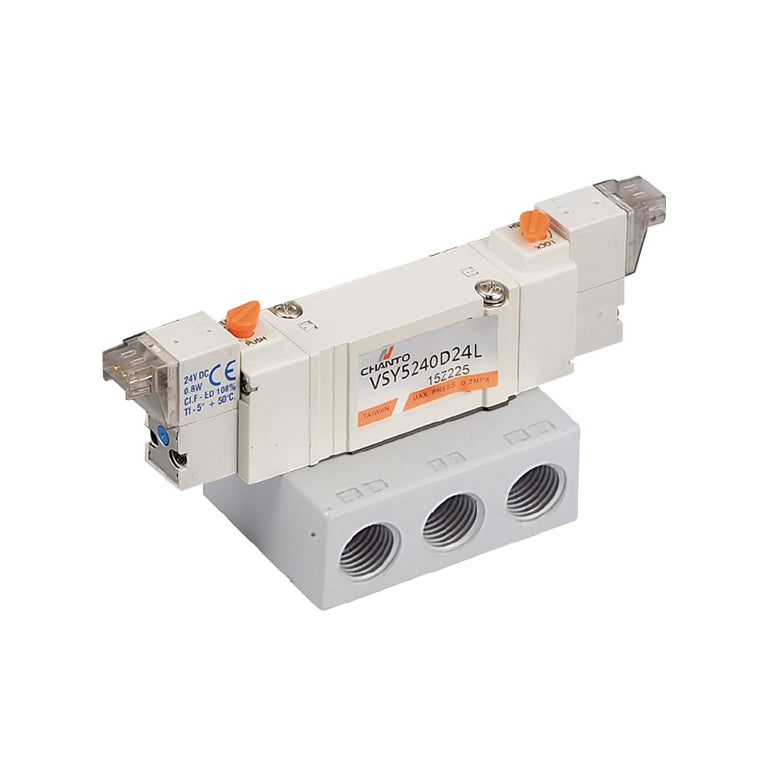

The Chanto VSY740 Series is an intermediate-scale, base-mounted pneumatic solenoid valve family engineered for robust multi-station manifold layouts requiring expanded flow capacities. Designed specifically to bolt securely down onto high-density single sub-bases or multi-station gang manifolds, this configuration completely isolates all rigid tube connections and push-to-connect fittings to the base block. This layout allows maintenance teams to execute rapid, tool-less valve replacements without disrupting any active air lines, significantly slashing factory floor downtime.
Built with heavy-duty low-wattage pilot coils and a precision-ground sliding spool, these high-flow valves ensure exceptionally fast and consistent cycle routing across complex automation circuits. Ardee Hi-Tech Pvt. Ltd. is the official and authorized dealer of Chanto products in India.
General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)
Operating Pressure Range: 1.5 to 7.0 bar (0.15 to 0.7 MPa)
Ambient & Fluid Temperature: -5°C to 50°C (Prevent freezing conditions)
Standard Interface Sizes: Matches Chanto VSY700 series sub-base patterns (Commonly G 1/8" or G 1/4" manifold ports)
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz configurations)
Electrical Entry Formats: Integrated plug-in connector block options with surge-suppression indicator LEDs
Maximum Operating Frequency: Up to 4 cycles per second
Material
Material
Main Valve Body: Premium heavy-duty anodized Aluminum Alloy for exceptional wear resistance
Internal Spool: Precision ground and polished Aluminum Alloy treated with a low-friction coating
Seals & O-Rings: High-resiliency Nitrile Butadiene Rubber (NBR) and specialized HNBR interface seals
Pilot Guide Components: Corrosion-resistant Stainless Steel guide tubes and low-fatigue internal springs
Solenoid Coil Housing: Glass-reinforced Thermoplastic resin encapsulation with high-grade copper windings
Share
Product Knowledge
Areas of Application
Centralized Automation Manifolds: Grouping high-throughput valve stations inside heavy-duty pneumatic control cabinets.
Automotive Welding Stations: Centralized control banks for operating medium-bore linear clamping cylinders and grippers.
Food Processing Diverters: High-density fluid routing blocks for rapid-response conveyor sortation and gating.
Textile Loom Control Blocks: Centralized multi-channel pneumatic logic arrays used for high-frequency yarn management.
Material Handling Systems: Manifold-mounted control setups handling multiple heavy-duty pneumatic lifting and positioning axes.
Part Numbers
CHANTO VSY740 Base-Mounted

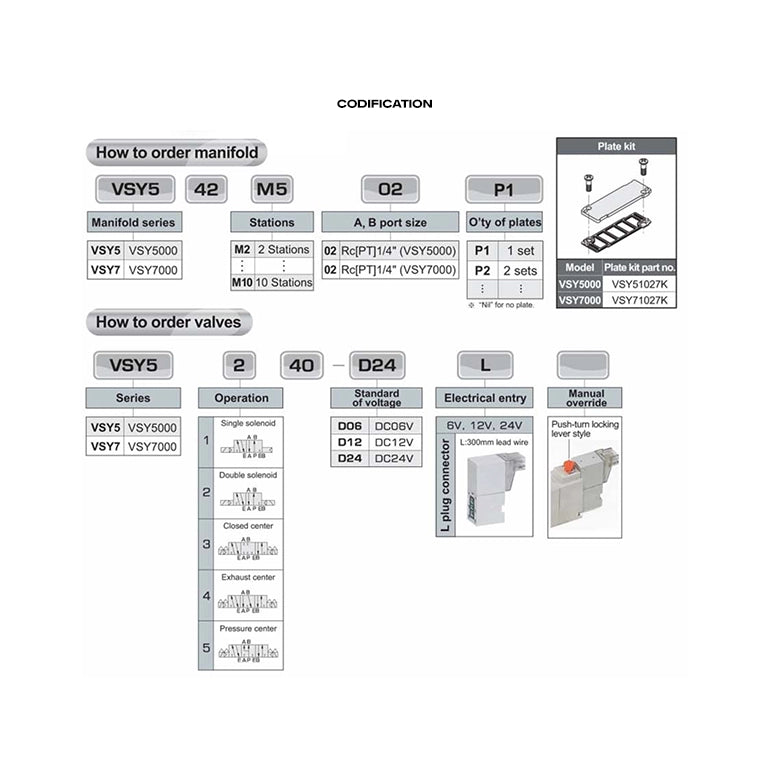

1. VSY740-1 Series (5/2 Way, Single Solenoid)
VSY740-1-A1-G-02 • VSY740-1-A2-G-02 • VSY740-1-D1-G-02 • VSY740-1-D2-G-02 • VSY740-1-A1-D-02 • VSY740-1-A2-D-02 • VSY740-1-D1-D-02 • VSY740-1-D2-D-02 • VSY740-1-A1-L-02 • VSY740-1-A2-L-02 • VSY740-1-D1-L-02 • VSY740-1-D2-L-02 • VSY740-1-A1-M-02 • VSY740-1-A2-M-02 • VSY740-1-D1-M-02 • VSY740-1-D2-M-02 • VSY740-1-A1-G-03 • VSY740-1-A2-G-03 • VSY740-1-D1-G-03 • VSY740-1-D2-G-03 • VSY740-1-A1-D-03 • VSY740-1-A2-D-03 • VSY740-1-D1-D-03 • VSY740-1-D2-D-03 • VSY740-1-A1-L-03 • VSY740-1-A2-L-03 • VSY740-1-D1-L-03 • VSY740-1-D2-L-03 • VSY740-1-A1-M-03 • VSY740-1-A2-M-03 • VSY740-1-D1-M-03 • VSY740-1-D2-M-03
2. VSY740-2 Series (5/2 Way, Double Solenoid)
VSY740-2-A1-G-02 • VSY740-2-A2-G-02 • VSY740-2-D1-G-02 • VSY740-2-D2-G-02 • VSY740-2-A1-D-02 • VSY740-2-A2-D-02 • VSY740-2-D1-D-02 • VSY740-2-D2-D-02 • VSY740-2-A1-L-02 • VSY740-2-A2-L-02 • VSY740-2-D1-L-02 • VSY740-2-D2-L-02 • VSY740-2-A1-M-02 • VSY740-2-A2-M-02 • VSY740-2-D1-M-02 • VSY740-2-D2-M-02 • VSY740-2-A1-G-03 • VSY740-2-A2-G-03 • VSY740-2-D1-G-03 • VSY740-2-D2-G-03 • VSY740-2-A1-D-03 • VSY740-2-A2-D-03 • VSY740-2-D1-D-03 • VSY740-2-D2-D-03 • VSY740-2-A1-L-03 • VSY740-2-A2-L-03 • VSY740-2-D1-L-03 • VSY740-2-D2-L-03 • VSY740-2-A1-M-03 • VSY740-2-A2-M-03 • VSY740-2-D1-M-03 • VSY740-2-D2-M-03
3. VSY740-3 Series (5/3 Way, Closed Center)
VSY740-3-A1-G-02 • VSY740-3-A2-G-02 • VSY740-3-D1-G-02 • VSY740-3-D2-G-02 • VSY740-3-A1-D-02 • VSY740-3-A2-D-02 • VSY740-3-D1-D-02 • VSY740-3-D2-D-02 • VSY740-3-A1-L-02 • VSY740-3-A2-L-02 • VSY740-3-D1-L-02 • VSY740-3-D2-L-02 • VSY740-3-A1-M-02 • VSY740-3-A2-M-02 • VSY740-3-D1-M-02 • VSY740-3-D2-M-02 • VSY740-3-A1-G-03 • VSY740-3-A2-G-03 • VSY740-3-D1-G-03 • VSY740-3-D2-G-03 • VSY740-3-A1-D-03 • VSY740-3-A2-D-03 • VSY740-3-D1-D-03 • VSY740-3-D2-D-03 • VSY740-3-A1-L-03 • VSY740-3-A2-L-03 • VSY740-3-D1-L-03 • VSY740-3-D2-L-03 • VSY740-3-A1-M-03 • VSY740-3-A2-M-03 • VSY740-3-D1-M-03 • VSY740-3-D2-M-03
4. VSY740-4 Series (5/3 Way, Exhaust Center)
VSY740-4-A1-G-02 • VSY740-4-A2-G-02 • VSY740-4-D1-G-02 • VSY740-4-D2-G-02 • VSY740-4-A1-D-02 • VSY740-4-A2-D-02 • VSY740-4-D1-D-02 • VSY740-4-D2-D-02 • VSY740-4-A1-L-02 • VSY740-4-A2-L-02 • VSY740-4-D1-L-02 • VSY740-4-D2-L-02 • VSY740-4-A1-M-02 • VSY740-4-A2-M-02 • VSY740-4-D1-M-02 • VSY740-4-D2-M-02 • VSY740-4-A1-G-03 • VSY740-4-A2-G-03 • VSY740-4-D1-G-03 • VSY740-4-D2-G-03 • VSY740-4-A1-D-03 • VSY740-4-A2-D-03 • VSY740-4-D1-D-03 • VSY740-4-D2-D-03 • VSY740-4-A1-L-03 • VSY740-4-A2-L-03 • VSY740-4-D1-L-03 • VSY740-4-D2-L-03 • VSY740-4-A1-M-03 • VSY740-4-A2-M-03 • VSY740-4-D1-M-03 • VSY740-4-D2-M-03
5. VSY740-5 Series (5/3 Way, Pressure Center)
VSY740-5-A1-G-02 • VSY740-5-A2-G-02 • VSY740-5-D1-G-02 • VSY740-5-D2-G-02 • VSY740-5-A1-D-02 • VSY740-5-A2-D-02 • VSY740-5-D1-D-02 • VSY740-5-D2-D-02 • VSY740-5-A1-L-02 • VSY740-5-A2-L-02 • VSY740-5-D1-L-02 • VSY740-5-D2-L-02 • VSY740-5-A1-M-02 • VSY740-5-A2-M-02 • VSY740-5-D1-M-02 • VSY740-5-D2-M-02 • VSY740-5-A1-G-03 • VSY740-5-A2-G-03 • VSY740-5-D1-G-03 • VSY740-5-D2-G-03 • VSY740-5-A1-D-03 • VSY740-5-A2-D-03 • VSY740-5-D1-D-03 • VSY740-5-D2-D-03 • VSY740-5-A1-L-03 • VSY740-5-A2-L-03 • VSY740-5-D1-L-03 • VSY740-5-D2-L-03 • VSY740-5-A1-M-03 • VSY740-5-A2-M-03 • VSY740-5-D1-M-03 • VSY740-5-D2-M-03
