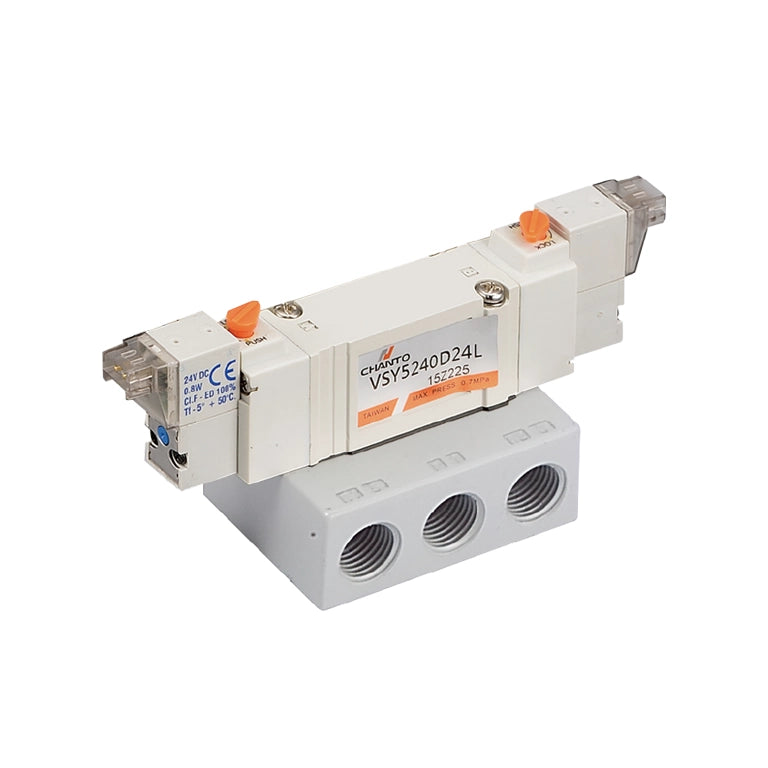

The Chanto VSY540 Series is a micro-scale, base-mounted pneumatic solenoid valve family engineered for highly organized and compact multi-station manifold architectures. Unlike body-ported designs, this series features an isolated flat-bottom mating interface that bolts directly down onto modular aluminium single sub-bases or multi-station gang manifolds, isolating all rigid tube plumbing to the base plate itself. This layout allows operators to swap or service individual valves rapidly without disconnecting any active air supply lines or physical tube fittings.
Built with low-wattage plug-in pilot coils and a high-precision sliding spool, these miniature valves deliver exceptional response consistency within an incredibly dense physical profile.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized dealer of Chanto products in India.

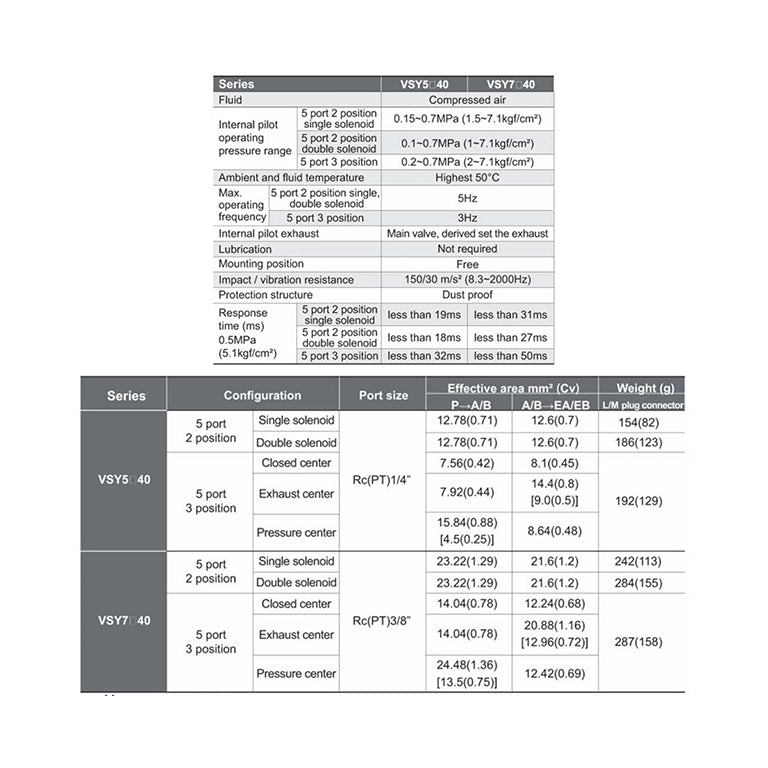

General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)
Operating Pressure Range: 1.5 to 7.0 bar (0.15 to 0.7 MPa)
Ambient & Fluid Temperature: -5°C to 50°C (Prevent freezing conditions)
Standard Interface Sizes: Matches Chanto VSY500 series sub-base patterns (Commonly M5 or G 1/8" manifold ports)
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz configurations)
Electrical Entry Formats: Integrated plug-in connector block options with surge-suppression indicator LEDs
Maximum Operating Frequency: Up to 5 cycles per second
Material
Material
Main Valve Body: High-tensile precision extruded Aluminum Alloy (Anodized surface coating)
Internal Spool: Lightweight ground Aluminum Alloy treated with a low-friction wear compound
Seals & O-Rings: High-resiliency Nitrile Butadiene Rubber (NBR) and specialized HNBR interface seals
Pilot Guide Components: Corrosion-resistant Stainless Steel guide tubes and low-fatigue internal springs
Solenoid Coil Housing: Glass-reinforced Thermoplastic resin encapsulation with high-purity copper windings
Share
Product Knowledge
Areas of Application
Multi-Valve Control Panels: Grouping dense multi-station valve manifolds inside enclosed automation cabinets.
Electronics Assembly Jigs: Centralized control banks for operating small micro-clamping and positioning cylinders.
Pharmaceutical Blister Packaging: High-density fluid routing blocks for clean-room sorting machinery.
Automated Testing Benches: Multi-channel pneumatic logic arrays used for high-frequency product inspection loops.
Lightweight Pick-and-Place Gantries: Manifold-mounted control setups handling multiple vacuum or gripper operations simultaneously.

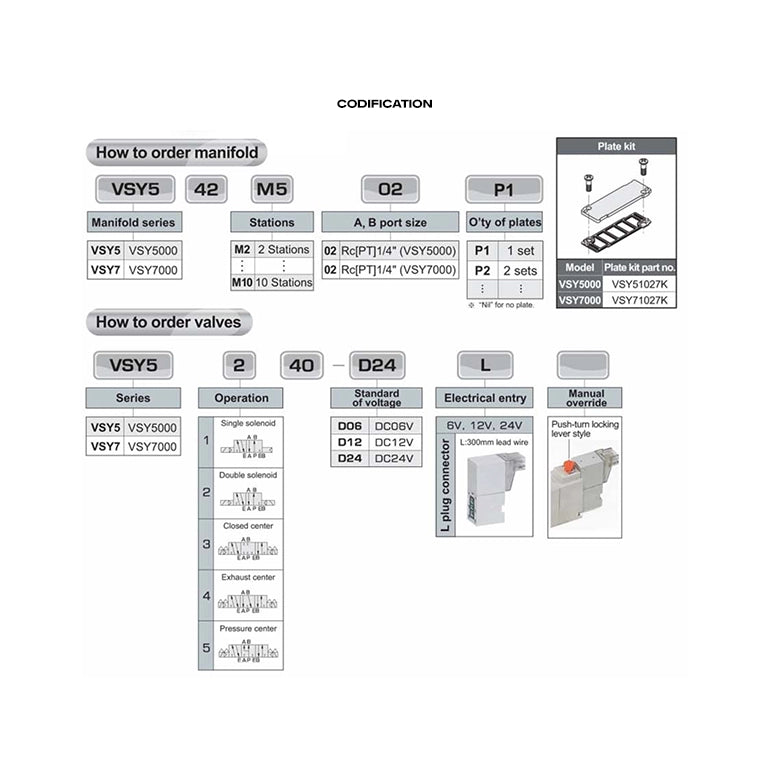

Part Numbers
CHANTO VSY540 Base-Mounted
1. VSY540-1 Series (5/2 Way, Single Solenoid Base-Mounted)
VSY540-1-A1-G-M5 • VSY540-1-A2-G-M5 • VSY540-1-D1-G-M5 • VSY540-1-D2-G-M5 • VSY540-1-A1-D-M5 • VSY540-1-A2-D-M5 • VSY540-1-D1-D-M5 • VSY540-1-D2-D-M5 • VSY540-1-A1-L-M5 • VSY540-1-A2-L-M5 • VSY540-1-D1-L-M5 • VSY540-1-D2-L-M5 • VSY540-1-A1-M-M5 • VSY540-1-A2-M-M5 • VSY540-1-D1-M-M5 • VSY540-1-D2-M-M5 • VSY540-1-A1-G-01 • VSY540-1-A2-G-01 • VSY540-1-D1-G-01 • VSY540-1-D2-G-01 • VSY540-1-A1-D-01 • VSY540-1-A2-D-01 • VSY540-1-D1-D-01 • VSY540-1-D2-D-01 • VSY540-1-A1-L-01 • VSY540-1-A2-L-01 • VSY540-1-D1-L-01 • VSY540-1-D2-L-01 • VSY540-1-A1-M-01 • VSY540-1-A2-M-01 • VSY540-1-D1-M-01 • VSY540-1-D2-M-01
2. VSY540-2 Series (5/2 Way, Double Solenoid Base-Mounted)
VSY540-2-A1-G-M5 • VSY540-2-A2-G-M5 • VSY540-2-D1-G-M5 • VSY540-2-D2-G-M5 • VSY540-2-A1-D-M5 • VSY540-2-A2-D-M5 • VSY540-2-D1-D-M5 • VSY540-2-D2-D-M5 • VSY540-2-A1-L-M5 • VSY540-2-A2-L-M5 • VSY540-2-D1-L-M5 • VSY540-2-D2-L-M5 • VSY540-2-A1-M-M5 • VSY540-2-A2-M-M5 • VSY540-2-D1-M-M5 • VSY540-2-D2-M-M5 • VSY540-2-A1-G-01 • VSY540-2-A2-G-01 • VSY540-2-D1-G-01 • VSY540-2-D2-G-01 • VSY540-2-A1-D-01 • VSY540-2-A2-D-01 • VSY540-2-D1-D-01 • VSY540-2-D2-D-01 • VSY540-2-A1-L-01 • VSY540-2-A2-L-01 • VSY540-2-D1-L-01 • VSY540-2-D2-L-01 • VSY540-2-A1-M-01 • VSY540-2-A2-M-01 • VSY540-2-D1-M-01 • VSY540-2-D2-M-01
3. VSY540-3 Series (5/3 Way, Closed Center Base-Mounted)
VSY540-3-A1-G-M5 • VSY540-3-A2-G-M5 • VSY540-3-D1-G-M5 • VSY540-3-D2-G-M5 • VSY540-3-A1-D-M5 • VSY540-3-A2-D-M5 • VSY540-3-D1-D-M5 • VSY540-3-D2-D-M5 • VSY540-3-A1-L-M5 • VSY540-3-A2-L-M5 • VSY540-3-D1-L-M5 • VSY540-3-D2-L-M5 • VSY540-3-A1-M-M5 • VSY540-3-A2-M-M5 • VSY540-3-D1-M-M5 • VSY540-3-D2-M-M5 • VSY540-3-A1-G-01 • VSY540-3-A2-G-01 • VSY540-3-D1-G-01 • VSY540-3-D2-G-01 • VSY540-3-A1-D-01 • VSY540-3-A2-D-01 • VSY540-3-D1-D-01 • VSY540-3-D2-D-01 • VSY540-3-A1-L-01 • VSY540-3-A2-L-01 • VSY540-3-D1-L-01 • VSY540-3-D2-L-01 • VSY540-3-A1-M-01 • VSY540-3-A2-M-01 • VSY540-3-D1-M-01 • VSY540-3-D2-M-01
4. VSY540-4 Series (5/3 Way, Exhaust Center Base-Mounted)
VSY540-4-A1-G-M5 • VSY540-4-A2-G-M5 • VSY540-4-D1-G-M5 • VSY540-4-D2-G-M5 • VSY540-4-A1-D-M5 • VSY540-4-A2-D-M5 • VSY540-4-D1-D-M5 • VSY540-4-D2-D-M5 • VSY540-4-A1-L-M5 • VSY540-4-A2-L-M5 • VSY540-4-D1-L-M5 • VSY540-4-D2-L-M5 • VSY540-4-A1-M-M5 • VSY540-4-A2-M-M5 • VSY540-4-D1-M-M5 • VSY540-4-D2-M-M5 • VSY540-4-A1-G-01 • VSY540-4-A2-G-01 • VSY540-4-D1-G-01 • VSY540-4-D2-G-01 • VSY540-4-A1-D-01 • VSY540-4-A2-D-01 • VSY540-4-D1-D-01 • VSY540-4-D2-D-01 • VSY540-4-A1-L-01 • VSY540-4-A2-L-01 • VSY540-4-D1-L-01 • VSY540-4-D2-L-01 • VSY540-4-A1-M-01 • VSY540-4-A2-M-01 • VSY540-4-D1-M-01 • VSY540-4-D2-M-01
5. VSY540-5 Series (5/3 Way, Pressure Center Base-Mounted)
VSY540-5-A1-G-M5 • VSY540-5-A2-G-M5 • VSY540-5-D1-G-M5 • VSY540-5-D2-G-M5 • VSY540-5-A1-D-M5 • VSY540-5-A2-D-M5 • VSY540-5-D1-D-M5 • VSY540-5-D2-D-M5 • VSY540-5-A1-L-M5 • VSY540-5-A2-L-M5 • VSY540-5-D1-L-M5 • VSY540-5-D2-L-M5 • VSY540-5-A1-M-M5 • VSY540-5-A2-M-M5 • VSY540-5-D1-M-M5 • VSY540-5-D2-M-M5 • VSY540-5-A1-G-01 • VSY540-5-A2-G-01 • VSY540-5-D1-G-01 • VSY540-5-D2-G-01 • VSY540-5-A1-D-01 • VSY540-5-A2-D-01 • VSY540-5-D1-D-01 • VSY540-5-D2-D-01 • VSY540-5-A1-L-01 • VSY540-5-A2-L-01 • VSY540-5-D1-L-01 • VSY540-5-D2-L-01 • VSY540-5-A1-M-01 • VSY540-5-A2-M-01 • VSY540-5-D1-M-01 • VSY540-5-D2-M-01
