Chanto

VSY520 Body-Ported

VSY520 Body-Ported

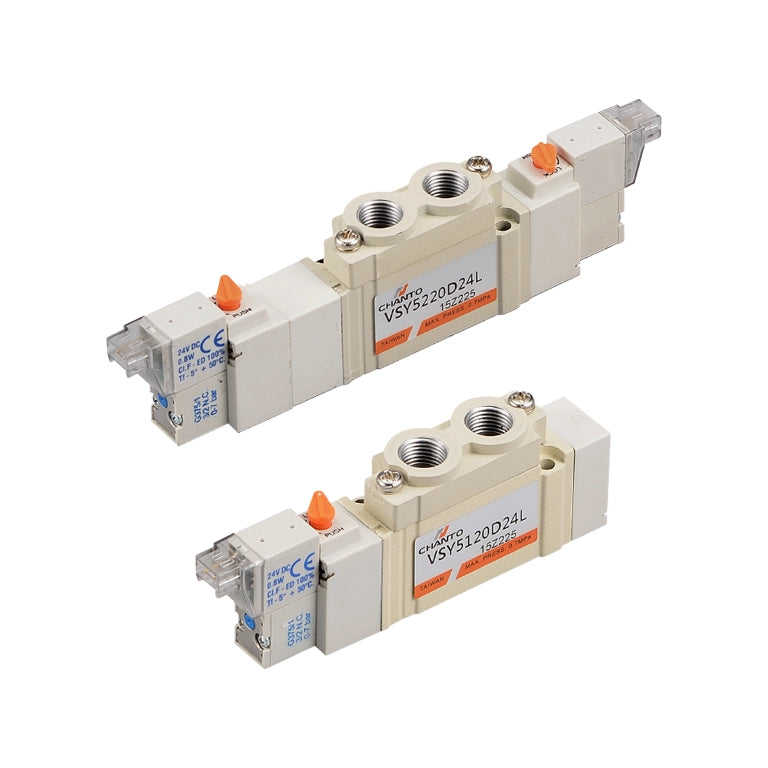

The Chanto VSY520 Series is a micro-scale, body-ported pneumatic solenoid valve lineup engineered for modular and highly flexible standalone fluid routing setups. Distributed across India by Ardee Hi-Tech Pvt. Ltd., the VSY520 series features integrated thread paths directly on the physical valve housing, allowing engineers to connect push-to-connect fittings inline without requiring an expensive manifold sub-base.
Built with a specialized low-friction sliding spool and miniature pilot actuation coils, these modular valves deliver ultra-fast response times while drawing minimal electrical wattage. They are perfectly optimized for applications where individual, decentralized valve placement is required across a machine framework.

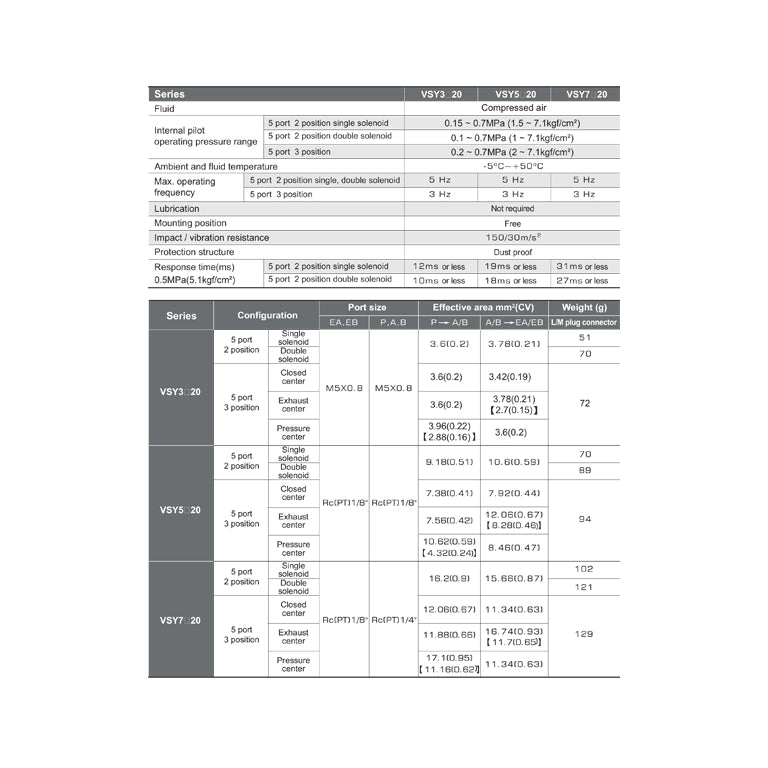

General Specifications

Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)

Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)

Operating Pressure Range: 1.5 to 7.0 bar (0.15 to 0.7 MPa)

Ambient & Fluid Temperature: -5°C to 50°C (Prevent freezing conditions)

Standard Port Sizes: Direct M5 or G 1/8" threaded body ports for direct tube fitting installation

Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz configurations)

Electrical Entry Formats: L-plug or M-plug style connectors with surge-suppression indicator LEDs

Maximum Operating Frequency: Up to 5 cycles per second

Material

Main Valve Body: High-tensile precision extruded Aluminum Alloy (Anodized surface coating)

Internal Spool: Lightweight ground Aluminum Alloy treated with a low-friction wear compound

Seals & O-Rings: High-resiliency Nitrile Butadiene Rubber (NBR) and specialized HNBR composite seals

Pilot Guide Components: Corrosion-resistant Stainless Steel guide tubes and low-fatigue internal springs

Solenoid Coil Housing: Glass-reinforced Thermoplastic resin encapsulation with high-purity copper windings

View full details

Product Knowledge

Areas of Application

Pick-and-Place Robotic Arms: Directly mounting a single lightweight valve onto moving gantry heads for tooling control.

Electronic Assembly Jigs: Independent pneumatic routing for small micro-clamping cylinders and vacuum ejector pilots.

Pharmaceutical Testing Benches: Decentralized fluid control logic loops within low-volume laboratory diagnostic equipment.

Textile Processing Machines: Direct inline air blow-off controls and miniature yarn feeding guide actuation blocks.

Secondary Packaging Machinery: Powering isolated miniature air cylinders for standalone date-stamping or labeling heads.

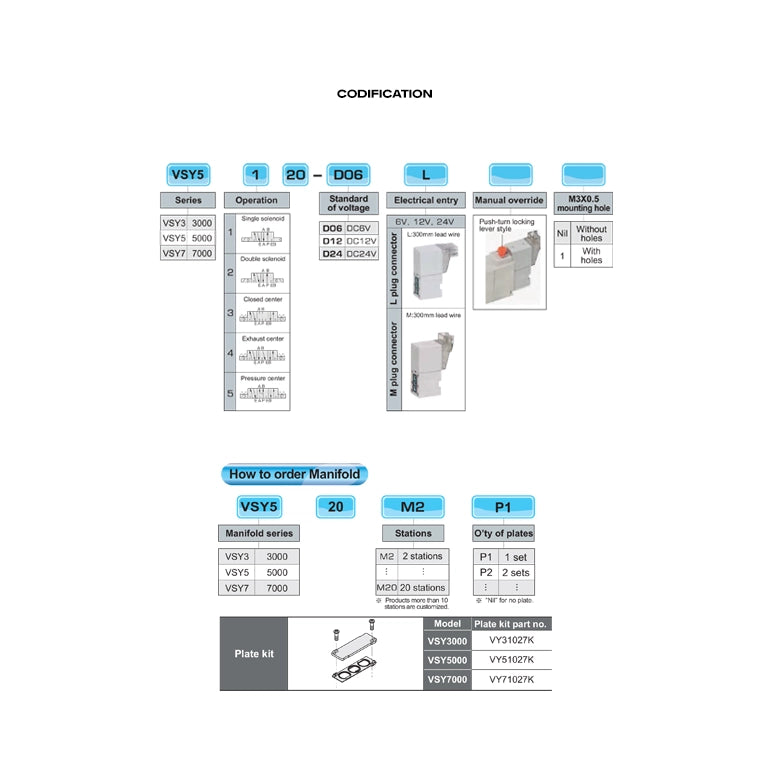

Part Numbers

CHANTO VSY520 Body-Ported

1. VSY520-1 Series (5/2 Way, Single Solenoid Body-Ported)
VSY520-1-A1-G-M5 • VSY520-1-A2-G-M5 • VSY520-1-D1-G-M5 • VSY520-1-D2-G-M5
VSY520-1-A1-D-M5 • VSY520-1-A2-D-M5 • VSY520-1-D1-D-M5 • VSY520-1-D2-D-M5
VSY520-1-A1-L-M5 • VSY520-1-A2-L-M5 • VSY520-1-D1-L-M5 • VSY520-1-D2-L-M5
VSY520-1-A1-M-M5 • VSY520-1-A2-M-M5 • VSY520-1-D1-M-M5 • VSY520-1-D2-M-M5
VSY520-1-A1-G-01 • VSY520-1-A2-G-01 • VSY520-1-D1-G-01 • VSY520-1-D2-G-01
VSY520-1-A1-D-01 • VSY520-1-A2-D-01 • VSY520-1-D1-D-01 • VSY520-1-D2-D-01
VSY520-1-A1-L-01 • VSY520-1-A2-L-01 • VSY520-1-D1-L-01 • VSY520-1-D2-L-01
VSY520-1-A1-M-01 • VSY520-1-A2-M-01 • VSY520-1-D1-M-01 • VSY520-1-D2-M-01

2. VSY520-2 Series (5/2 Way, Double Solenoid Body-Ported)
VSY520-2-A1-G-M5 • VSY520-2-A2-G-M5 • VSY520-2-D1-G-M5 • VSY520-2-D2-G-M5
VSY520-2-A1-D-M5 • VSY520-2-A2-D-M5 • VSY520-2-D1-D-M5 • VSY520-2-D2-D-M5
VSY520-2-A1-L-M5 • VSY520-2-A2-L-M5 • VSY520-2-D1-L-M5 • VSY520-2-D2-L-M5
VSY520-2-A1-M-M5 • VSY520-2-A2-M-M5 • VSY520-2-D1-M-M5 • VSY520-2-D2-M-M5
VSY520-2-A1-G-01 • VSY520-2-A2-G-01 • VSY520-2-D1-G-01 • VSY520-2-D2-G-01
VSY520-2-A1-D-01 • VSY520-2-A2-D-01 • VSY520-2-D1-D-01 • VSY520-2-D2-D-01
VSY520-2-A1-L-01 • VSY520-2-A2-L-01 • VSY520-2-D1-L-01 • VSY520-2-D2-L-01
VSY520-2-A1-M-01 • VSY520-2-A2-M-01 • VSY520-2-D1-M-01 • VSY520-2-D2-M-01

3. VSY520-3 Series (5/3 Way, Closed Center Body-Ported)
VSY520-3-A1-G-M5 • VSY520-3-A2-G-M5 • VSY520-3-D1-G-M5 • VSY520-3-D2-G-M5
VSY520-3-A1-D-M5 • VSY520-3-A2-D-M5 • VSY520-3-D1-D-M5 • VSY520-3-D2-D-M5
VSY520-3-A1-L-M5 • VSY520-3-A2-L-M5 • VSY520-3-D1-L-M5 • VSY520-3-D2-L-M5
VSY520-3-A1-M-M5 • VSY520-3-A2-M-M5 • VSY520-3-D1-M-M5 • VSY520-3-D2-M-M5
VSY520-3-A1-G-01 • VSY520-3-A2-G-01 • VSY520-3-D1-G-01 • VSY520-3-D2-G-01
VSY520-3-A1-D-01 • VSY520-3-A2-D-01 • VSY520-3-D1-D-01 • VSY520-3-D2-D-01
VSY520-3-A1-L-01 • VSY520-3-A2-L-01 • VSY520-3-D1-L-01 • VSY520-3-D2-L-01
VSY520-3-A1-M-01 • VSY520-3-A2-M-01 • VSY520-3-D1-M-01 • VSY520-3-D2-M-01

4. VSY520-4 Series (5/3 Way, Exhaust Center Body-Ported)
VSY520-4-A1-G-M5 • VSY520-4-A2-G-M5 • VSY520-4-D1-G-M5 • VSY520-4-D2-G-M5
VSY520-4-A1-D-M5 • VSY520-4-A2-D-M5 • VSY520-4-D1-D-M5 • VSY520-4-D2-D-M5
VSY520-4-A1-L-M5 • VSY520-4-A2-L-M5 • VSY520-4-D1-L-M5 • VSY520-4-D2-L-M5
VSY520-4-A1-M-M5 • VSY520-4-A2-M-M5 • VSY520-4-D1-M-M5 • VSY520-4-D2-M-M5
VSY520-4-A1-G-01 • VSY520-4-A2-G-01 • VSY520-4-D1-G-01 • VSY520-4-D2-G-01
VSY520-4-A1-D-01 • VSY520-4-A2-D-01 • VSY520-4-D1-D-01 • VSY520-4-D2-D-01
VSY520-4-A1-L-01 • VSY520-4-A2-L-01 • VSY520-4-D1-L-01 • VSY520-4-D2-L-01
VSY520-4-A1-M-01 • VSY520-4-A2-M-01 • VSY520-4-D1-M-01 • VSY520-4-D2-M-01

5. VSY520-5 Series (5/3 Way, Pressure Center Body-Ported)
VSY520-5-A1-G-M5 • VSY520-5-A2-G-M5 • VSY520-5-D1-G-M5 • VSY520-5-D2-G-M5
VSY520-5-A1-D-M5 • VSY520-5-A2-D-M5 • VSY520-5-D1-D-M5 • VSY520-5-D2-D-M5
VSY520-5-A1-L-M5 • VSY520-5-A2-L-M5 • VSY520-5-D1-L-M5 • VSY520-5-D2-L-M5
VSY520-5-A1-M-M5 • VSY520-5-A2-M-M5 • VSY520-5-D1-M-M5 • VSY520-5-D2-M-M5
VSY520-5-A1-G-01 • VSY520-5-A2-G-01 • VSY520-5-D1-G-01 • VSY520-5-D2-G-01
VSY520-5-A1-D-01 • VSY520-5-A2-D-01 • VSY520-5-D1-D-01 • VSY520-5-D2-D-01
VSY520-5-A1-L-01 • VSY520-5-A2-L-01 • VSY520-5-D1-L-01 • VSY520-5-D2-L-01
VSY520-5-A1-M-01 • VSY520-5-A2-M-01 • VSY520-5-D1-M-01 • VSY520-5-D2-M-01
