VSF3000 Series
VSF3000 Series

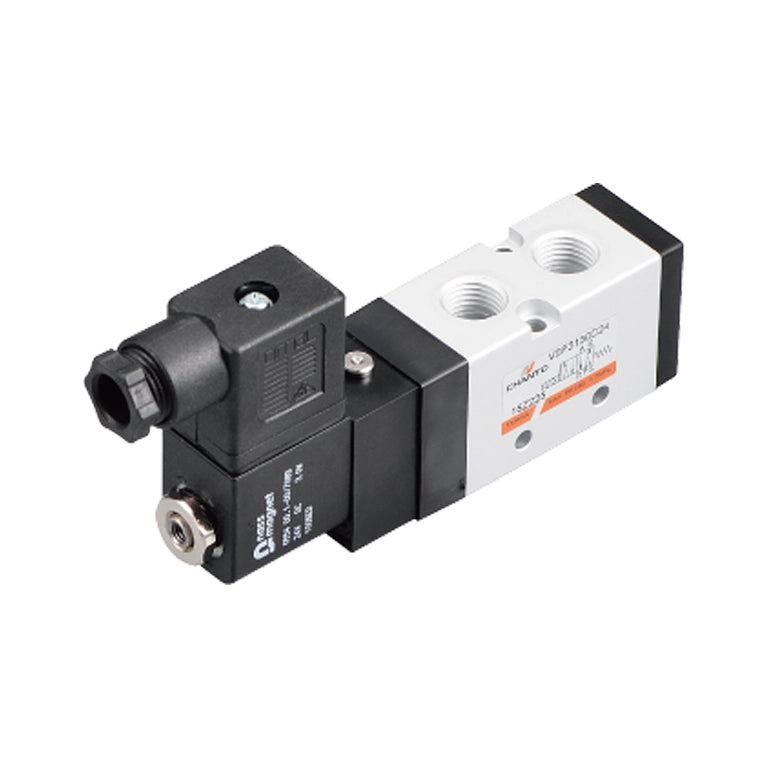

The Chanto VSF3000 Series is a high-capacity, robust pneumatic solenoid valve lineup engineered specifically for fast-cycling industrial environments requiring a balance of narrow installation sizing and massive flow capabilities. Featuring a compact profile with a body width of just 26.4mm, these valves deliver a high flow capacity coefficient of Cv 1.0 through optimized internal pathways.
The VSF3000 family is built with a specially machined, hard-anodized valve housing paired with a low-friction sliding spool seal mechanism. This design guarantees over 20 million life cycles in standard usage while completely preventing internal burnout during prolonged shifts. They are the premier option for fast-shifting automated sorting machinery, packaging setups, and modular manifold groupings. Ardee Hi-Tech Pvt. Ltd. is the official and authorized dealer of Chanto products in India.

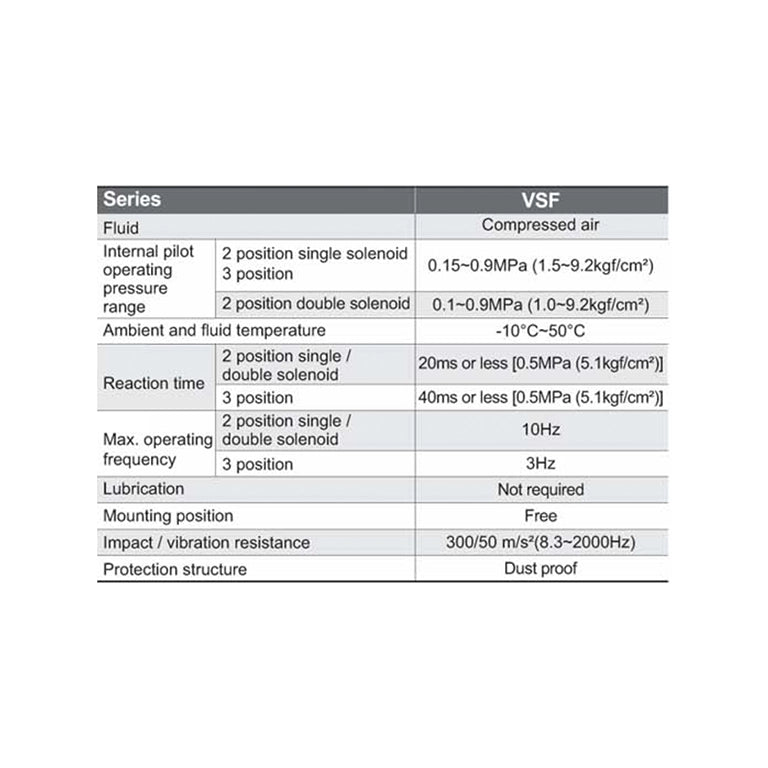

General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air or inert gas (40-micron rating recommended)
Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)
Ambient & Fluid Temperature: -10°C to 60°C (Ensure non-freezing conditions)
Standard Connection Ports: G 1/4" threaded main plumbing ports (Supply/Output)
Available Coil Voltages: DC 24V, AC 110V, AC 220V (50/60Hz configurations)
Power Consumption: Low-wattage 1.8W (DC) / Holding 2.3VA (AC)
Electrical Entry Formats: DIN plug connector block, conduit terminal, or grommet lead wire
Manual Override Type: Non-locking push type (Flush design)
Material
Material
Main Valve Body: Premium high-tensile Aluminum Alloy featuring a hard-anodized surface finish
Internal Sliding Spool: Micro-polished Aluminum Alloy treated with a low-friction wear compound
Seals & O-Rings: High-resiliency, low-resistance Nitrile Butadiene Rubber (NBR) composite elements
Pilot Guide Assembly: Armature tube and return springs constructed from high-durability Stainless Steel
Solenoid Coil Housing: Heat-stabilized Thermoplastic resin encapsulation with high-grade copper windings
Share
Product Knowledge
Areas of Application
High-Speed Sorting Lines: Actuating fast-response material divert gates, package pushers, and reject arms on conveyors.
Continuous Packaging Machinery: Powering continuous packaging line axes, box carton folding assemblies, and heat-sealing clamps.
Automotive Clamping Stations: Independent or manifold-based control of medium-bore pneumatic work-holding fixtures and grippers.
Textile Processing Looms: Managing high-frequency clean air blow-off circuits and precise yarn feeding logic controllers.
Dense Manifold Enclosures: Ganging multi-station valve banks (up to 20 stations) within enclosed factory control panels.

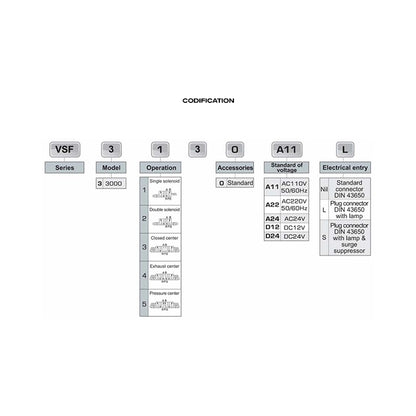

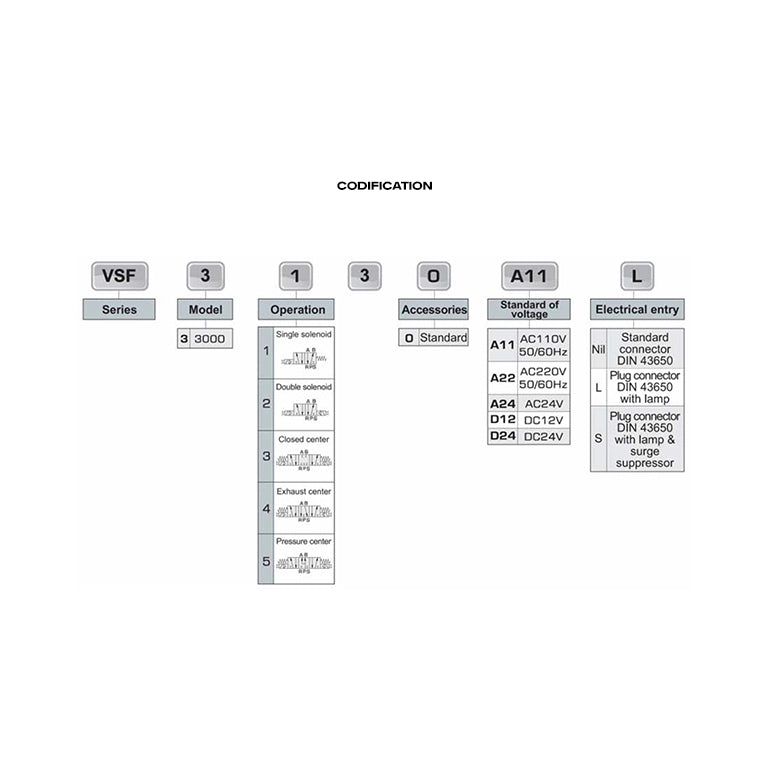

Part Numbers
CHANTO VSF3000 SERIES
- VSF3130: Single Solenoid, 5-Port 2-Position, High-Response Spring/Air Return (5/2-Way)
- VSF3230: Double Solenoid, 5-Port 2-Position, Dual-Coil Detented Memory Spool (5/2-Way)
- VSF3330: Double Solenoid, 5-Port 3-Position, Closed Center Internal Fail-Safe State (5/3-Way)
- VSF3430: Double Solenoid, 5-Port 3-Position, Exhaust Center Internal Fail-Safe State (5/3-Way)
- VSF3530: Double Solenoid, 5-Port 3-Position, Pressure Center Internal Fail-Safe State (5/3-Way)
