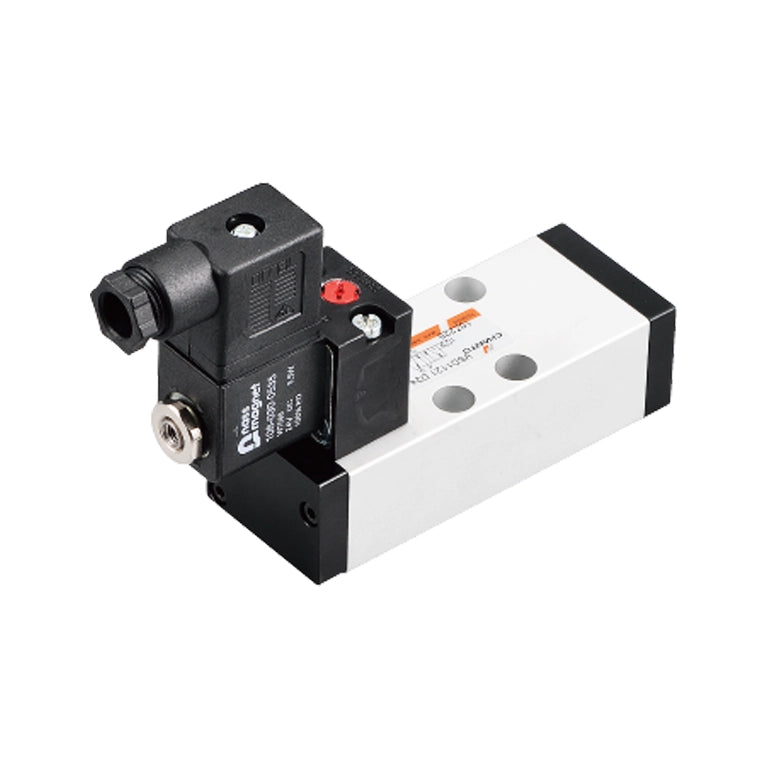

VSD2 ISO Series
VSD2 ISO Series
General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)
Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)
Ambient & Fluid Temperature: -5°C to 60°C (Avoid freezing environments)
Standard Interface Size: Conforms strictly to global ISO Size 2 interface configurations
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz options)
Electrical Entry Formats: Industry-standard DIN plug connector block with integrated surge protection LED
Maximum Operating Frequency: Up to 3 cycles per second
Material
Material
Main Valve Body: Premium heavy-duty die-cast Aluminum Alloy with a protective anodized finish
Internal Spool: Precision-ground Aluminum Alloy treated with a low-friction wear-resistant layer
Seals & O-Rings: High-performance Nitrile Butadiene Rubber (NBR) and resilient Viton elements
Pilot Guide Components: Corrosion-resistant Stainless Steel core armature tube and internal springs
Solenoid Coil Housing: Impact-resistant PBT Thermoplastic encapsulation with high-purity copper windings
Share
Product Knowledge
Areas of Application
Automotive Press & Body Shops: Direct control of large-bore clamping cylinders, heavy grippers, and welding fixtures.
Machine Tool Systems: Powering heavy pneumatic work-holding chucks, automatic enclosure door interlocks, and tool changers.
Material Handling Gantries: Operating synchronized linear pneumatic cylinders on multi-axis sorting and transfer lines.
Food and Beverage Packaging: Driving high-speed conveyor diverter gates, capping stations, and cartooning machinery.
Centralized Control Enclosures: High-density integration onto centralized ISO-compliant manifold sub-bases inside plant control rooms.
Part Numbers
CHANTO VSD2 SERIES
1. VSD2100 Series (ISO Interface, 5/2 Way, Single Solenoid)
• VSD2130A11 • VSD2130A22 • VSD2130A24 • VSD2130D24
• VSD2130A11L • VSD2130A22L • VSD2130A24L • VSD2130D24L
• VSD2130A11S • VSD2130A22S • VSD2130A24S • VSD2130D24S
2. VSD2200 Series (ISO Interface, 5/2 Way, Double Solenoid)
• VSD2230A11 • VSD2230A22 • VSD2230A24 • VSD2230D24
• VSD2230A11L • VSD2230A22L • VSD2230A24L • VSD2230D24L
• VSD2230A11S • VSD2230A22S • VSD2230A24S • VSD2230D24S
3. VSD2300 Series (ISO Interface, 5/3 Way, Closed Center)
• VSD2330A11 • VSD2330A22 • VSD2330A24 • VSD2330D24
• VSD2330A11L • VSD2330A22L • VSD2330A24L • VSD2330D24L
• VSD2330A11S • VSD2330A22S • VSD2330A24S • VSD2330D24S
