VSD1 ISO Series

VSD1 ISO Series

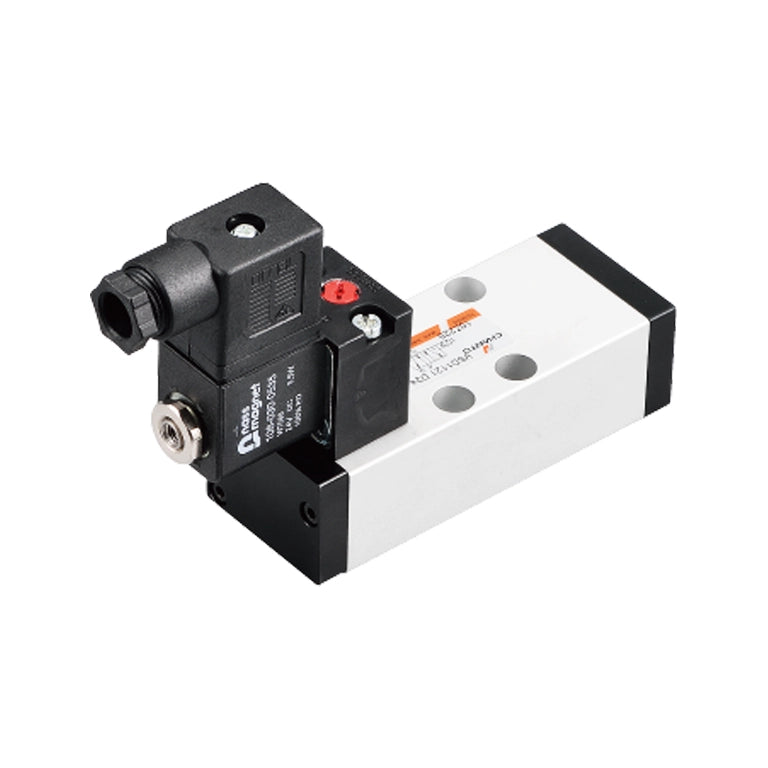

The Chanto VSD1 Series is a premium, base-mounted pneumatic solenoid valve lineup strictly engineered to match international ISO Size 1 dimensional mounting standards. Designed for seamless global interchangeability, this series features a robust standardized footprint that allows it to plug directly into any third-party ISO 1 manifold sub-base. This makes it an invaluable solution for multinational manufacturing facilities looking to streamline their component sourcing.
Equipped with a highly responsive internal spool mechanism and heavy-duty pilot systems, the VSD1 series handles rapid directional shifts with minimal friction and maximum reliability under continuous duty cycles. Ardee Hi-Tech Pvt. Ltd. is the official and authorized dealer of Chanto products in India.

General Specifications

Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)

Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)

Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)

Ambient & Fluid Temperature: -5°C to 60°C (Avoid freezing environments)

Standard Interface Size: Conforms strictly to global ISO Size 1 interface configurations

Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz options)

Electrical Entry Formats: Industry-standard DIN plug connector block with integrated surge protection LED

Maximum Operating Frequency: Up to 4 cycles per second

Material

Main Valve Body: Premium heavy-duty die-cast Aluminum Alloy with a protective anodized finish

Internal Spool: Precision-ground Aluminum Alloy treated with a low-friction wear-resistant layer

Seals & O-Rings: High-performance Nitrile Butadiene Rubber (NBR) and resilient Viton elements

Pilot Guide Components: Corrosion-resistant Stainless Steel core armature tube and internal springs

Solenoid Coil Housing: Impact-resistant PBT Thermoplastic encapsulation with high-purity copper windings

View full details

Product Knowledge

Areas of Application

Automotive Press & Body Shops: Direct control of intermediate-bore clamping cylinders, heavy grippers, and welding fixtures.

Machine Tool Systems: Powering pneumatic work-holding chucks, automatic enclosure door interlocks, and tool changers.

Material Handling Gantries: Operating synchronized linear pneumatic cylinders on multi-axis sorting and transfer lines.

Food and Beverage Packaging: Driving high-speed conveyor diverter gates, capping stations, and cartooning machinery.

Centralized Control Enclosures: High-density integration onto centralized ISO-compliant manifold sub-bases inside plant control rooms.

Part Numbers

CHANTO VSD1 SERIES

1. VSD1-1 Series (ISO Size 1, 5/2 Way, Single Solenoid)
• VSD1-1-A1-D • VSD1-1-A2-D • VSD1-1-D1-D • VSD1-1-D2-D
• VSD1-1-A1-L • VSD1-1-A2-L • VSD1-1-D1-L • VSD1-1-D2-L
• VSD1-1-A1-M • VSD1-1-A2-M • VSD1-1-D1-M • VSD1-1-D2-M

2. VSD1-2 Series (ISO Size 1, 5/2 Way, Double Solenoid)
• VSD1-2-A1-D • VSD1-2-A2-D • VSD1-2-D1-D • VSD1-2-D2-D
• VSD1-2-A1-L • VSD1-2-A2-L • VSD1-2-D1-L • VSD1-2-D2-L
• VSD1-2-A1-M • VSD1-2-A2-M • VSD1-2-D1-M • VSD1-2-D2-M

3. VSD1-3 Series (ISO Size 1, 5/3 Way, Closed Center)
• VSD1-3-A1-D • VSD1-3-A2-D • VSD1-3-D1-D • VSD1-3-D2-D
• VSD1-3-A1-L • VSD1-3-A2-L • VSD1-3-D1-L • VSD1-3-D2-L
• VSD1-3-A1-M • VSD1-3-A2-M • VSD1-3-D1-M • VSD1-3-D2-M

4. VSD1-4 Series (ISO Size 1, 5/3 Way, Exhaust Center)
• VSD1-4-A1-D • VSD1-4-A2-D • VSD1-4-D1-D • VSD1-4-D2-D
• VSD1-4-A1-L • VSD1-4-A2-L • VSD1-4-D1-L • VSD1-4-D2-L
• VSD1-4-A1-M • VSD1-4-A2-M • VSD1-4-D1-M • VSD1-4-D2-M

5. VSD1-5 Series (ISO Size 1, 5/3 Way, Pressure Center)
• VSD1-5-A1-D • VSD1-5-A2-D • VSD1-5-D1-D • VSD1-5-D2-D
• VSD1-5-A1-L • VSD1-5-A2-L • VSD1-5-D1-L • VSD1-5-D2-L
• VSD1-5-A1-M • VSD1-5-A2-M • VSD1-5-D1-M • VSD1-5-D2-M
