Chanto

VEC2000 Series

VEC2000 Series

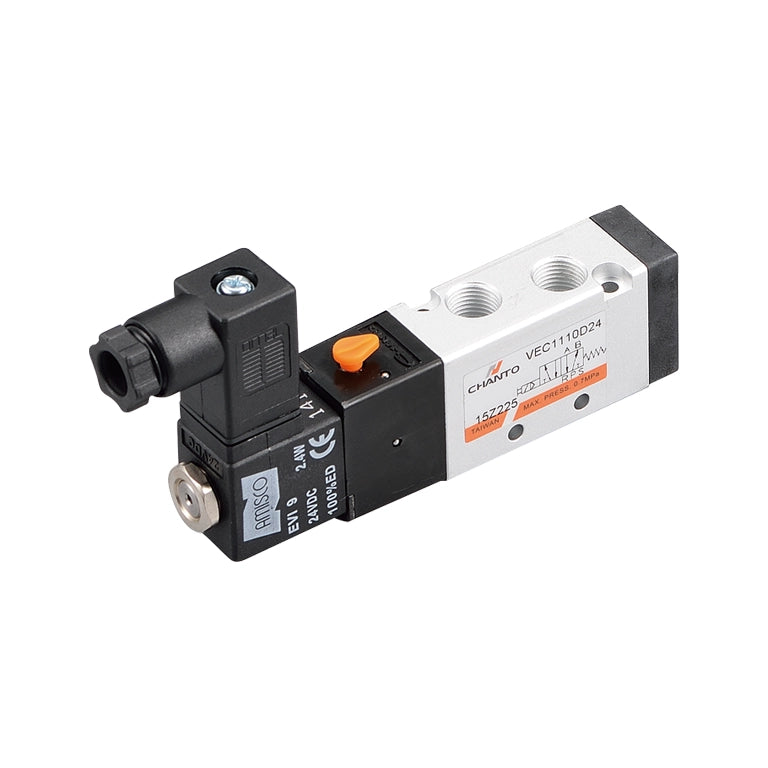

The Chanto VEC2000 Series is an intermediate-scale, slim-line compact pneumatic solenoid valve lineup designed for automation configurations demanding a balance of high-flow performance and small spatial footprints. Distributed across India by Ardee Hi-Tech Pvt. Ltd., the VEC2000 series optimizes valuable internal cabinet space by implementing a narrow body width while maintaining excellent pneumatic throughput to drive medium-sized actuators efficiently.
Engineered with low-wattage miniature solenoid coils and balanced internal spool dynamics, these valves deliver swift response times with minimal thermal output. They are highly optimized for dense multi-station manifold assembly blocks, offering machine builders a highly dependable and modular fluid control solution.

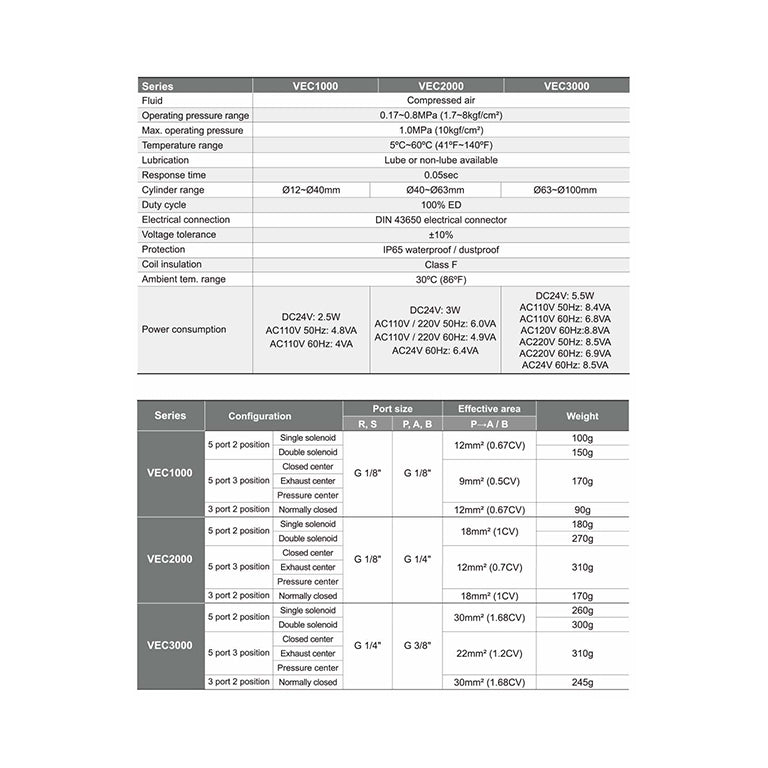

General Specifications

Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)

Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)

Operating Pressure Range: 1.5 to 7.0 bar (0.15 to 0.7 MPa)

Ambient & Fluid Temperature: -5°C to 50°C (Prevent freezing conditions)

Standard Port Sizes: G 1/8" or G 1/4" connection ports depending on manifold sub-base layout

Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz configurations)

Electrical Entry Formats: Plug-in connector block with indicator LED or direct flying lead wires

Maximum Operating Frequency: Up to 5 cycles per second

Material

Main Valve Body: High-tensile precision extruded Aluminum Alloy (Anodized surface coating)

Internal Spool: Lightweight ground Aluminum Alloy treated with a low-friction wear compound

Seals & O-Rings: High-resiliency Nitrile Butadiene Rubber (NBR) and specialized HNBR composite seals

Pilot Guide Components: Corrosion-resistant Stainless Steel guide tubes and low-fatigue internal springs

Solenoid Coil Housing: Glass-reinforced Thermoplastic resin encapsulation with high-purity copper windings

View full details

Product Knowledge

Areas of Application

Semiconductor Assembly: Actuating miniature pick-and-place arms, vacuum component handlers, and sorting gates.

Electronic Component Manufacturing: High-density control within compact testing jigs and printed circuit board (PCB) routing lines.

Medical & Lab Automation: Direct non-fluid contact pneumatic routing for automated sample analysis equipment and testing fluid headers.

Dense Control Cabinets: Building high-station manifold banks within highly enclosed, dust-proof pneumatic control boxes.

Precision Packaging Lines: Powering lightweight miniature cylinders on high-speed small box carton folding and labeling setups.

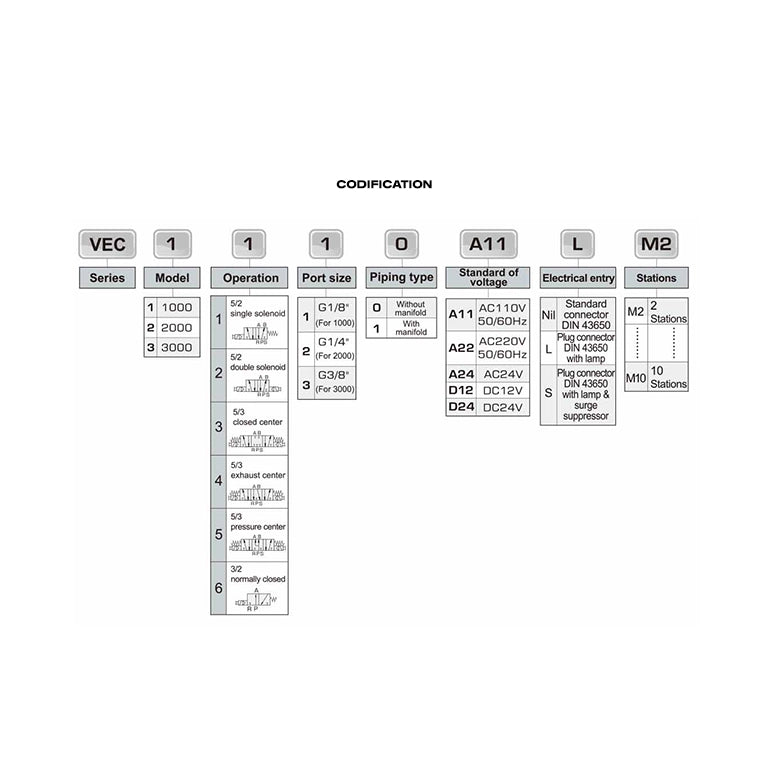

Part Numbers

CHANTO VEC2000 SERIES

1. VEC2100 Series (5/2 Way, Single Solenoid)
VEC2110-G • VEC2120-G • VEC2130-G • VEC2140-G
VEC2110-D • VEC2120-D • VEC2130-D • VEC2140-D
VEC2110-L • VEC2120-L • VEC2130-L • VEC2140-L
VEC2110-M • VEC2120-M • VEC2130-M • VEC2140-M

2. VEC2200 Series (5/2 Way, Double Solenoid)
VEC2210-G • VEC2220-G • VEC2230-G • VEC2240-G
VEC2210-D • VEC2220-D • VEC2230-D • VEC2240-D
VEC2210-L • VEC2220-L • VEC2230-L • VEC2240-L
VEC2210-M • VEC2220-M • VEC2230-M • VEC2240-M

3. VEC2300 Series (5/3 Way, Closed Center)
VEC2310-G • VEC2320-G • VEC2330-G • VEC2340-G
VEC2310-D • VEC2320-D • VEC2330-D • VEC2340-D
VEC2310-L • VEC2320-L • VEC2330-L • VEC2340-L
VEC2310-M • VEC2320-M • VEC2330-M • VEC2340-M

4. VEC2400 Series (5/3 Way, Exhaust Center)
VEC2410-G • VEC2420-G • VEC2430-G • VEC2440-G
VEC2410-D • VEC2420-D • VEC2430-D • VEC2440-D
VEC2410-L • VEC2420-L • VEC2430-L • VEC2440-L
VEC2410-M • VEC2420-M • VEC2430-M • VEC2440-M

5. VEC2500 Series (5/3 Way, Pressure Center)
VEC2510-G • VEC2520-G • VEC2530-G • VEC2540-G
VEC2510-D • VEC2520-D • VEC2530-D • VEC2540-D
VEC2510-L • VEC2520-L • VEC2530-L • VEC2540-L
VEC2510-M • VEC2520-M • VEC2530-M • VEC2540-M

6. VEC2600 Series (3/2 Way, Single Solenoid)
VEC2610-G • VEC2620-G • VEC2630-G • VEC2640-G
VEC2610-D • VEC2620-D • VEC2630-D • VEC2640-D
VEC2610-L • VEC2620-L • VEC2630-L • VEC2640-L
VEC2610-M • VEC2620-M • VEC2630-M • VEC2640-M
