Chanto

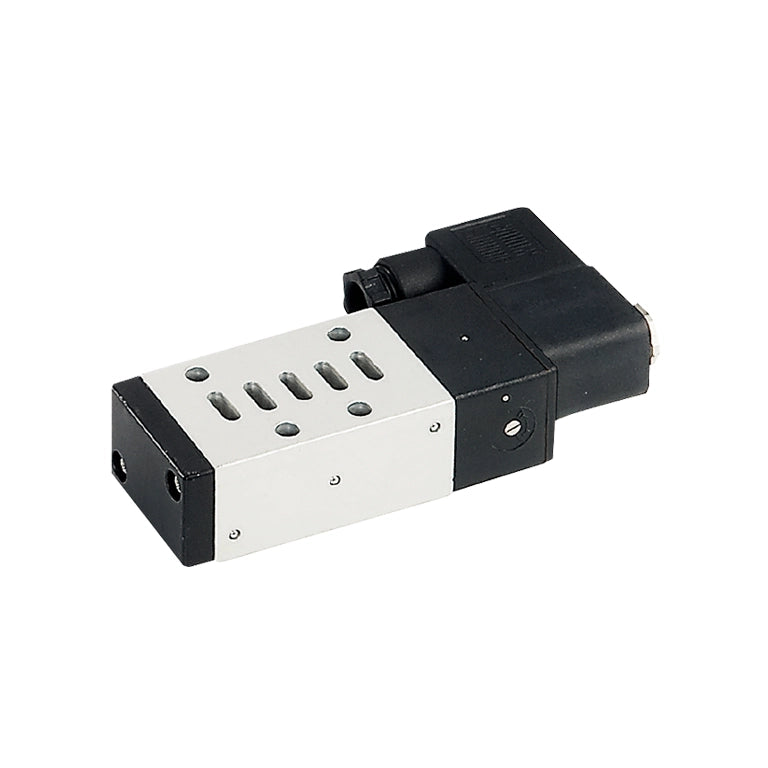

VEA1000 ISO Series

VEA1000 ISO Series

The Chanto VEA1000 Series is a high-flow, pilot-assisted pneumatic solenoid valve family specifically engineered to conform with global ISO standardized interface configurations. Designed to handle large air distribution networks effortlessly, this series utilizes an internal pilot configuration to actuate heavy internal spools with minimal electrical consumption.

By routing air through sub-pilot channels, it delivers massive downstream volume without causing dangerous system pressure drops. This drop-in design enables fast installation on any global ISO-compliant sub-base or manufacturing manifold block, allowing multi-national production plants to streamline their replacement parts inventory. Chanto products are officially sold in India by Ardee Hi-Tech Pvt. Ltd.

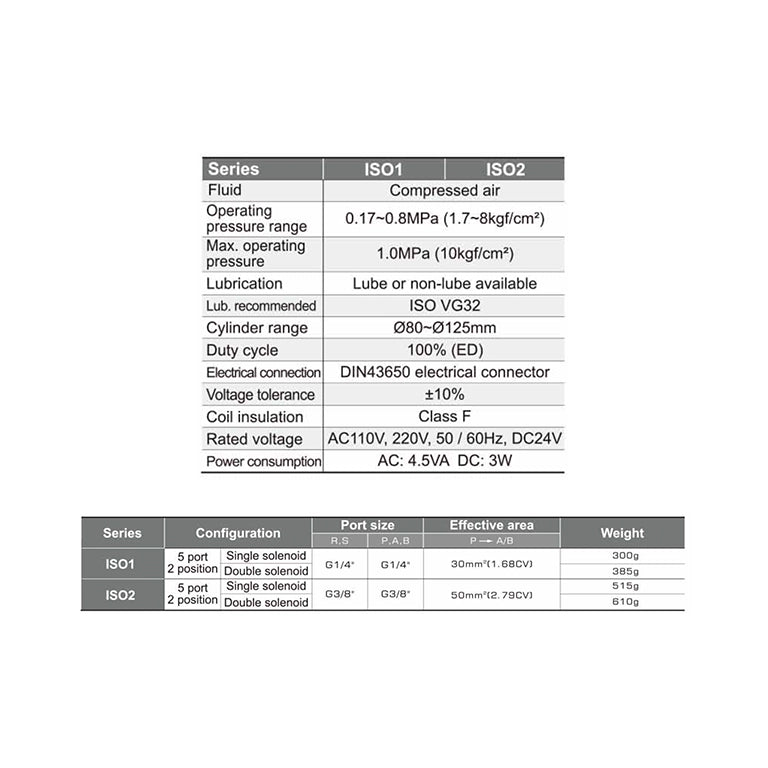

General Specifications

Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)

Fluid Medium: 40-micron filtered compressed air (lubricated or non-lubricated options)

Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)

Ambient & Fluid Temperature: -5°C to 60°C (Prevent freezing conditions)

Interface Interface: Built to global ISO dimensional interface patterns

Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz operations)

Electrical Entry Formats: Industry standard DIN 43650 connector block with integrated surge LED

Maximum Operating Frequency: Up to 4 cycles per seconds

Material

Main Valve Body: High-tensile precision die-cast Aluminum Alloy (Anodized surface coating)

Internal Spool: Hard-anodized ground Aluminum Alloy treated with a low-friction wear compound

Seals & O-Rings: High-durability Nitrile Butadiene Rubber (NBR) and specialized Viton composite seals

Pilot Guide Components: Corrosion-resistant Stainless Steel guide tubes and low-fatigue internal springs

Solenoid Coil Housing: Glass-reinforced Thermoplastic resin encapsulation with high-purity copper windings

View full details

Product Knowledge

Areas of Application

Global Automotive Assembly: Operating large-bore clamping cylinders, heavy welding jigs, and robotic tool changers.

Primary Steel Processing: Actuating heavy-duty pneumatic positioning blocks, gate stops, and air sorting doors.

Bulk Concrete Batching Plants: High-flow air distribution for slide doors, material chutes, and silo aeration rings.

Heavy Machinery Press Lines: Powering safety break loops, heavy pneumatic clutches, and part ejection gates.

Process Plant Piping Assemblies: Centralized sub-pilot control blocks driving massive process butterfly or ball valve actuators.

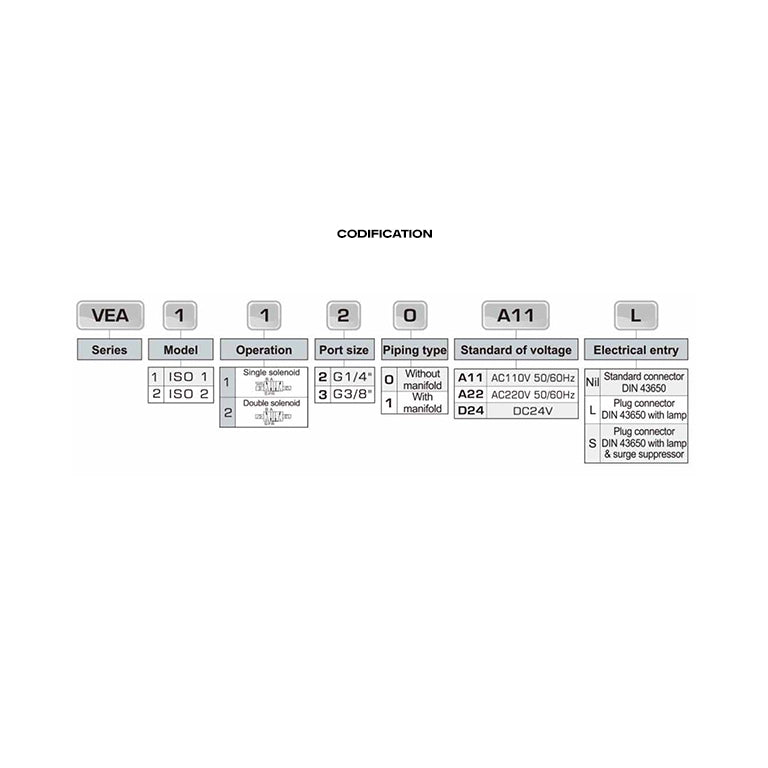

Part Numbers

CHANTO VEA1000 SERIES

1. VEA1100 Series (ISO Interface, 5/2 Way, Single Solenoid)

VEA110A11 • VEA110A22 • VEA110D12 • VEA110D24
VEA110A11L • VEA110A22L • VEA110D12L • VEA110D24L
VEA110A11S • VEA110A22S • VEA110D12S • VEA110D24S

2. VEA1200 Series (ISO Interface, 5/2 Way, Double Solenoid)

VEA120A11 • VEA120A22 • VEA120D12 • VEA120D24
VEA120A11L • VEA120A22L • VEA120D12L • VEA120D24L
VEA120A11S • VEA120A22S • VEA120D12S • VEA120D24S

3. VEA1300 Series (ISO Interface, 5/3 Way, Closed Center)

VEA130A11 • VEA130A22 • VEA130D12 • VEA130D24
VEA130A11L • VEA130A22L • VEA130D12L • VEA130D24L
VEA130A11S • VEA130A22S • VEA130D12S • VEA130D24S

4. VEA1400 Series (ISO Interface, 5/3 Way, Exhaust Center)

VEA140A11 • VEA140A22 • VEA140D12 • VEA140D24
VEA140A11L • VEA140A22L • VEA140D12L • VEA140D24L
VEA140A11S • VEA140A22S • VEA140D12S • VEA140D24S

5. VEA1500 Series (ISO Interface, 5/3 Way, Pressure Center)

VEA150A11 • VEA150A22 • VEA150D12 • VEA150D24
VEA150A11L • VEA150A22L • VEA150D12L • VEA150D24L
VEA150A11S • VEA150A22S • VEA150D12S • VEA150D24S
