VE3000 Series
VE3000 Series

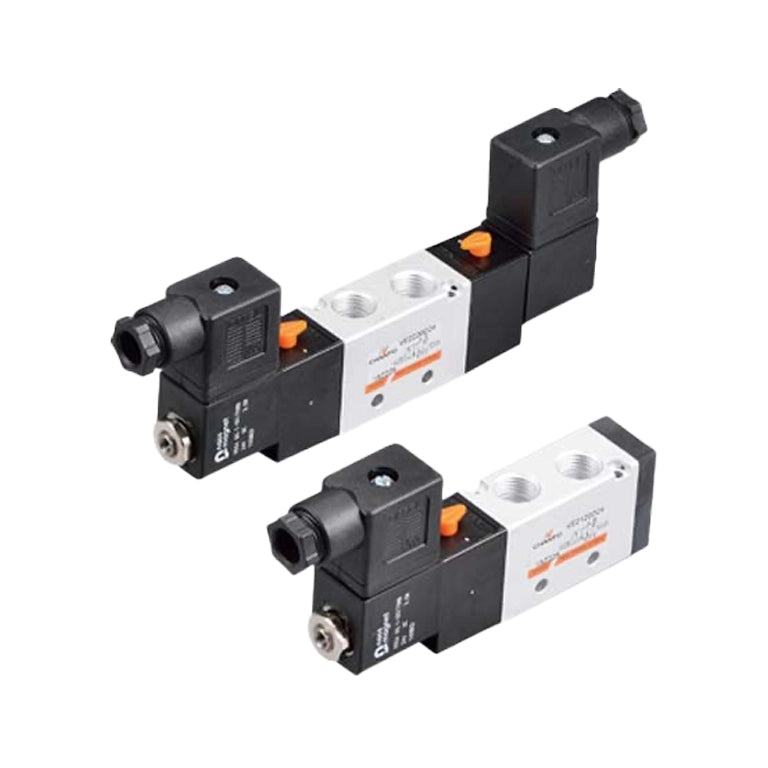

The Chanto VE3000 Series is a high-flow, body-ported pneumatic solenoid valve family engineered for demanding industrial environments requiring substantial air volume distribution. It is designed to actuate larger linear cylinders and rotary actuators swiftly without causing system pressure drops.
Built around a low-wattage, pilot-assisted spool design, these valves combine high structural reliability with exceptionally fast response times. They can be installed as standalone inline units or grouped onto high-density sub-base manifolds, offering excellent integration flexibility for heavy-duty automated machinery.
Ardee Hi-Tech Pvt Ltd. is the official and authorized distributor of Chanto Solenoid Valves in India.
General Specifications
General Specifications
Valve Function Type: 5-Port, 2-Position (5/2-Way) or 5-Port, 3-Position (5/3-Way)
Fluid Medium: Filtered compressed air (lubricated or non-lubricated, 40-micron rating recommended)
Operating Pressure Range: 1.5 to 8.0 bar (0.15 to 0.8 MPa)
Ambient & Fluid Temperature: -5°C to 60°C (Avoid freezing environments)
Standard Port Sizes: G 3/8" threaded main connection ports (Exhaust: G 1/4")
Available Coil Voltages: DC 12V, DC 24V, AC 110V, AC 220V (50/60Hz options)
Electrical Entry Formats: DIN plug connector block or direct grommet lead wires
Maximum Operating Frequency: Up to 4 cycles per second
Material
Material
Main Valve Body: Premium heavy-duty anodized Aluminum Alloy for optimal wear resistance
Internal Spool: High-precision ground Aluminum Alloy treated with a low-friction wear layer
Seals & O-Rings: Industrial-grade Nitrile Butadiene Rubber (NBR) and resilient Viton elements
Pilot Guide Components: Corrosion-resistant Stainless Steel core armature and internal springs
Solenoid Coil Housing: Impact-resistant PBT Thermoplastic encapsulation with premium copper windings
Share
Product Knowledge
Areas of Application
Heavy Automation & Robotics: Driving large-bore pneumatic cylinders, high-capacity welding fixtures, and industrial stamping presses.
Primary Metal Processing: Operating pneumatic air gates, cooling line diverters, and raw material positioning stops.
Bulk Material Handling: Controlling large pneumatic discharge valves, vibratory feeders, and material routing chutes.
Cement & Mining Industries: Actuating heavy-duty pneumatic dust-collector pulse loops and slide gates.
Process Manufacturing: Powering large scale double-acting actuator manifolds on process piping networks.
Part Numbers
CHANTO VE3000 SERIES
1. VE3100 Series (5/2 Way, Single Solenoid Body-Ported)
VE310A11 • VE310A22 • VE310D12 • VE310D24
VE310A11L • VE310A22L • VE310D12L • VE310D24L
VE310A11S • VE310A22S • VE310D12S • VE310D24S
2. VE3200 Series (5/2 Way, Double Solenoid Body-Ported)
VE320A11 • VE320A22 • VE320D12 • VE320D24
VE320A11L • VE320A22L • VE320D12L • VE320D24L
VE320A11S • VE320A22S • VE320D12S • VE320D24S
3. VE3300 Series (5/3 Way, Closed Center Body-Ported)
VE330A11 • VE330A22 • VE330D12 • VE330D24
VE330A11L • VE330A22L • VE330D12L • VE330D24L
VE330A11S • VE330A22S • VE330D12S • VE330D24S
4. VE3400 Series (5/3 Way, Exhaust Center Body-Ported)
VE340A11 • VE340A22 • VE340D12 • VE340D24
VE340A11L • VE340A22L • VE340D12L • VE340D24L
VE340A11S • VE340A22S • VE340D12S • VE340D24S
5. VE3500 Series (5/3 Way, Pressure Center Body-Ported)
VE350A11 • VE350A22 • VE350D12 • VE350D24
VE350A11L • VE350A22L • VE350D12L • VE350D24L
VE350A11S • VE350A22S • VE350D12S • VE350D24S
