TE Series
TE Series

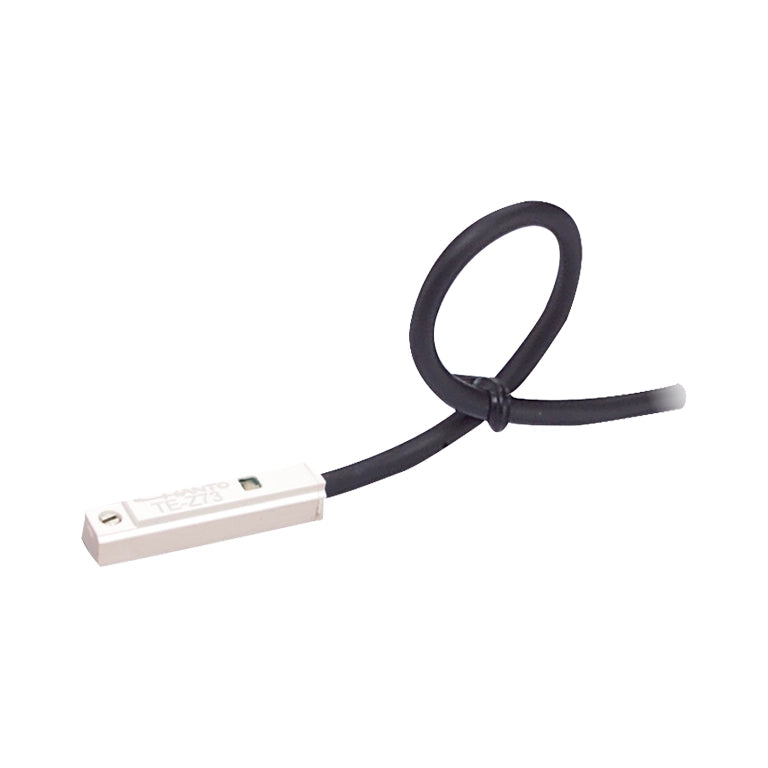

The CHANTO TE Series Reed Switch is a compact magnetic cylinder sensor designed to provide accurate piston position detection in compatible CHANTO pneumatic cylinders. Utilizing reliable reed switch technology, the TE Series delivers consistent switching performance, dependable cylinder position feedback, and seamless integration with industrial automation systems. Its compact slide-in design, integrated LED operation indicator, and durable construction enable quick installation, simplified maintenance, and long-term operational reliability in demanding industrial environments.
As an authorized distributor, Ardee Hi-Tech Pvt. Ltd. supplies genuine CHANTO TE Series Reed Switches across India for OEMs, machine builders, automation system integrators, and maintenance professionals.

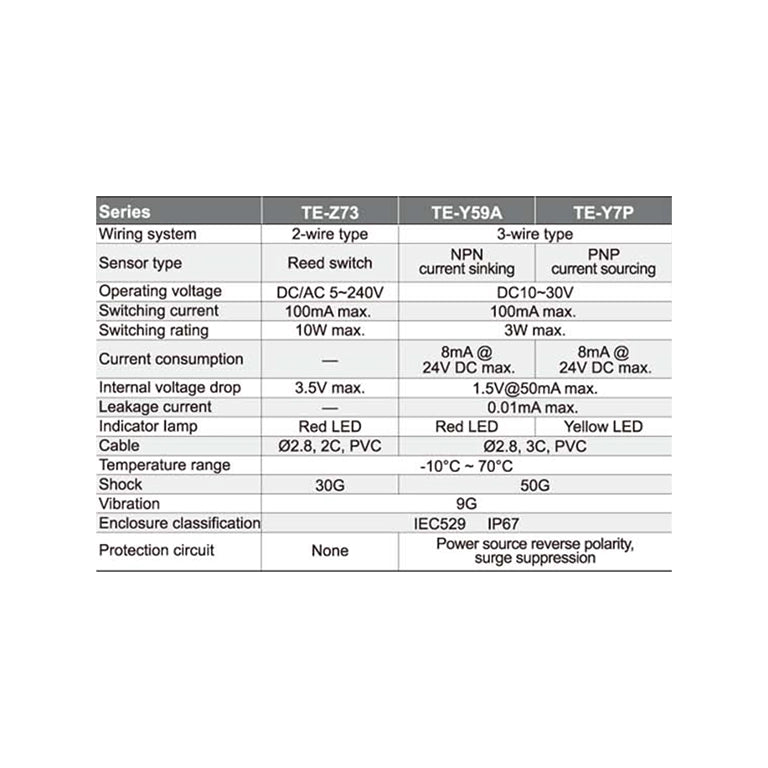

General Specifications
General Specifications
Sensing Technology: Magnetic reed contact
Operating Principle: Detects the magnetic field generated by a cylinder piston
Cylinder Compatibility: Suitable for CHANTO magnetic cylinder series
Mounting Configuration: Integrated groove-mount design for rapid installation

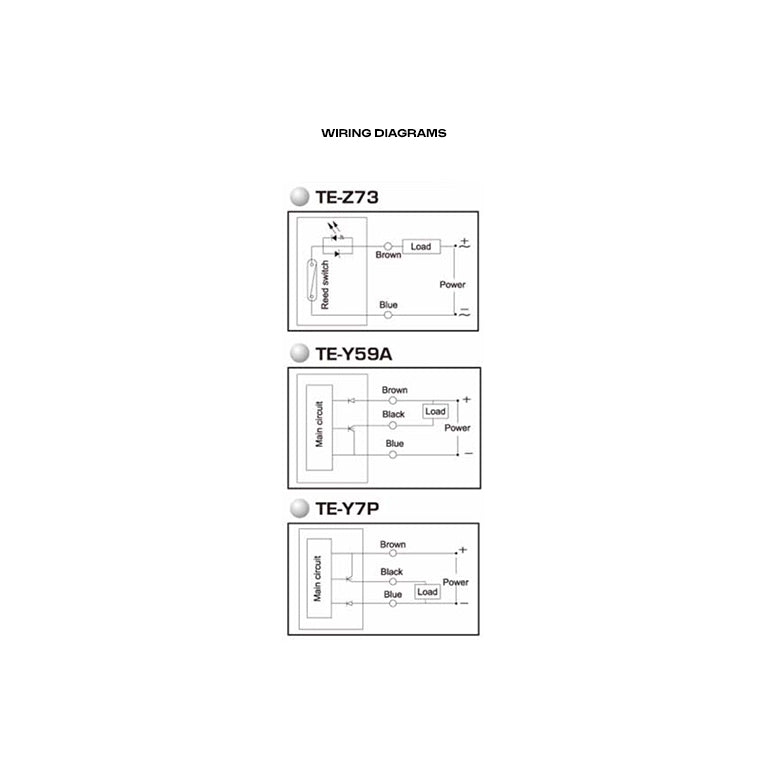

Electrical Output: Two-wire reed contact output
Visual Indicator: Built-in LED operation status light
Cable Type: Factory-fitted lead wire connection
Application: Cylinder position monitoring and stroke confirmation in pneumatic automation
Housing Design: Compact industrial construction for space-saving installations
Serviceability: Easy sensor replacement and maintenance
Origin: Manufactured by CHANTO AIR HYDRAULICS CO., LTD., Taiwan
Material
Material
Engineering-grade plastic housing
Hermetically sealed reed switch element
Industrial-grade electrical lead cable
Durable internal electrical components
Sealed construction for industrial automation environments
Share
Product Knowledge
Areas of Application
Factory Automation: Automated production lines, conveyor systems, indexing tables, transfer systems, pneumatic workstations.
Packaging Machinery: Carton erecting machines, filling machines, sealing machines, labeling systems, wrapping machines, palletizing equipment.
Assembly & Manufacturing: Automated assembly lines, component feeding systems, clamping and pressing stations, pick-and-place systems, inspection stations.
Material Handling: Conveyor automation, pneumatic lifters, sorting systems, transfer arms, loading and unloading equipment.
Robotics: Pneumatic grippers, end-of-arm tooling (EOAT), robotic assembly cells, robotic material handling.
Machine Tools: CNC machining centers, workholding fixtures, tool changing systems, chip handling equipment.
Food & Beverage Processing: Filling and dispensing equipment, packaging lines, bottling systems, conveying equipment.
Pharmaceutical Manufacturing: Tablet and capsule production, packaging machines, inspection systems, automated handling equipment.
Electronics Manufacturing: PCB assembly lines, component placement machines, test fixtures, semiconductor handling equipment.
Textile Industry: Fabric feeding machines, cutting systems, clamping mechanisms, material transfer equipment.
Automotive Industry: Assembly lines, welding fixtures, painting systems, component handling, quality inspection equipment.
OEM & Special Purpose Machinery: Custom automation machines, pneumatic fixtures, testing equipment, industrial process automation, machine building, system integration.

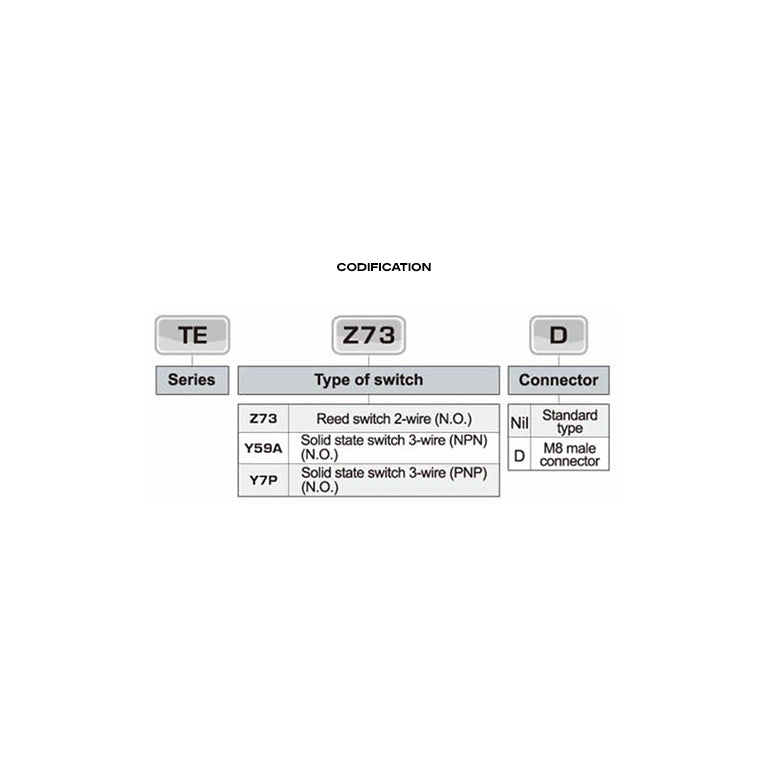

Part Numbers
CHANTO TE Series
TE-Z73 • TE-Z73-D • TE-Y59A • TE-Y59A-D • TE-Y59B • TE-Y59B-D • TE-Y7P • TE-Y7P-D
