Chanto
SH Series
SH Series

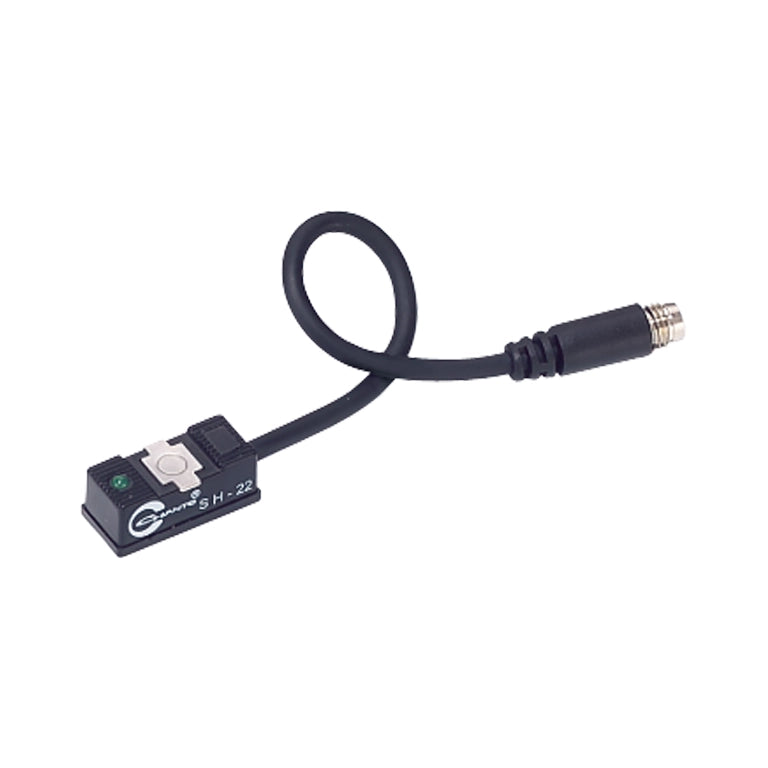

The CHANTO SH Series Solid State Switch is a non-contact magnetic cylinder sensor designed to detect the position of the magnetic piston in compatible CHANTO pneumatic cylinders. Utilizing solid-state sensing technology, the SH Series delivers fast response, high reliability, and extended service life without mechanical contact. Its compact design, LED operation indicator, and easy installation make it an ideal solution for modern industrial automation systems requiring accurate and repeatable cylinder position feedback.
As an authorized distributor, Ardee Hi-Tech Pvt. Ltd. supplies genuine CHANTO SH Series Solid State Switches across India for OEMs, machine builders, automation integrators, and maintenance professionals.
General Specifications
General Specifications
Product Type: Solid State Switch
Operating Principle: Non-contact magnetic sensing
Sensor Type: Electronic solid-state sensor
Switching Element: Semiconductor sensing element
Compatible Cylinders: CHANTO magnetic pneumatic cylinders
Mounting Style: Groove-mounted, slide-in installation
Indicator: LED operation indicator
Connection Type: Flying lead cable
Output Type: Electronic solid-state output
Application: Pneumatic cylinder position sensing and end-of-stroke detection
Compact design for space-saving installations
Easy installation and replacement
Material
Material
- Engineering-grade plastic housing
- Solid-state semiconductor sensing element
- Industrial-grade electrical lead cable
- Durable internal electronic circuitry
- Sealed construction for industrial automation environments
Share
Product Knowledge
Areas of Application
Factory Automation: Automated production lines, conveyor systems, indexing tables, transfer systems, pneumatic workstations.
Packaging Machinery: Carton erecting machines, filling machines, sealing machines, labeling systems, wrapping machines, palletizing equipment.
Assembly & Manufacturing: Automated assembly lines, component feeding systems, clamping and pressing stations, pick-and-place systems, inspection stations.
Material Handling: Conveyor automation, pneumatic lifters, sorting systems, transfer arms, loading and unloading equipment.
Robotics: Pneumatic grippers, end-of-arm tooling (EOAT), robotic assembly cells, robotic material handling.
Machine Tools: CNC machining centers, workholding fixtures, tool changing systems, chip handling equipment.
Food & Beverage Processing: Filling and dispensing equipment, packaging lines, bottling systems, conveying equipment.
Pharmaceutical Manufacturing: Tablet and capsule production, packaging machines, inspection systems, automated handling equipment.
Electronics Manufacturing: PCB assembly lines, component placement machines, test fixtures, semiconductor handling equipment.
Textile Industry: Fabric feeding machines, cutting systems, clamping mechanisms, material transfer equipment.
Automotive Industry: Assembly lines, welding fixtures, painting systems, component handling, quality inspection equipment.
OEM & Special Purpose Machinery: Custom automation machines, pneumatic fixtures, testing equipment, industrial process automation, machine building, system integration.

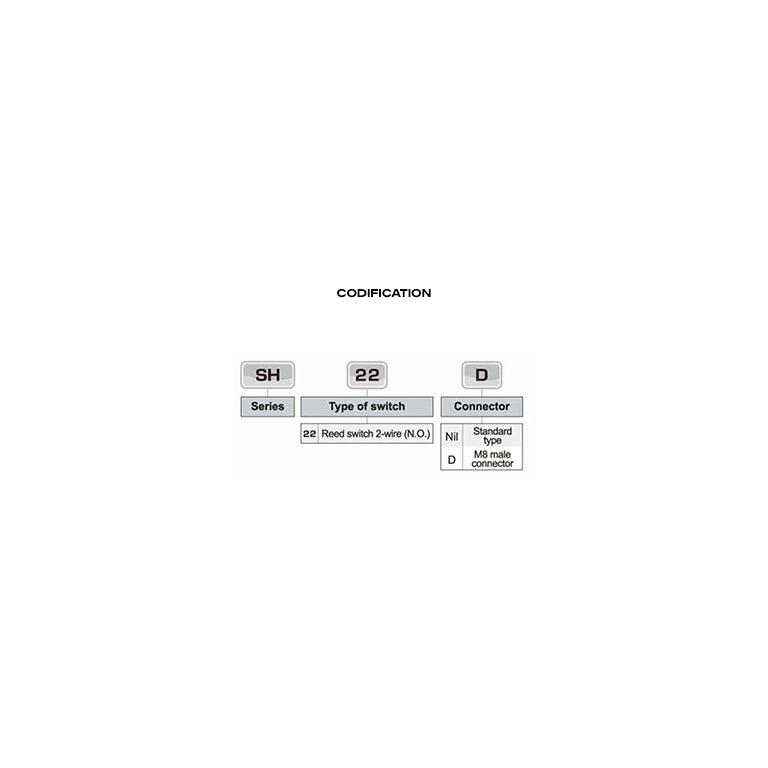

Part Numbers
CHANTO SH Series
SH-22 • SH-22-D
