Pisco
Anti-Spatter Brass Fittings
Anti-Spatter Brass Fittings

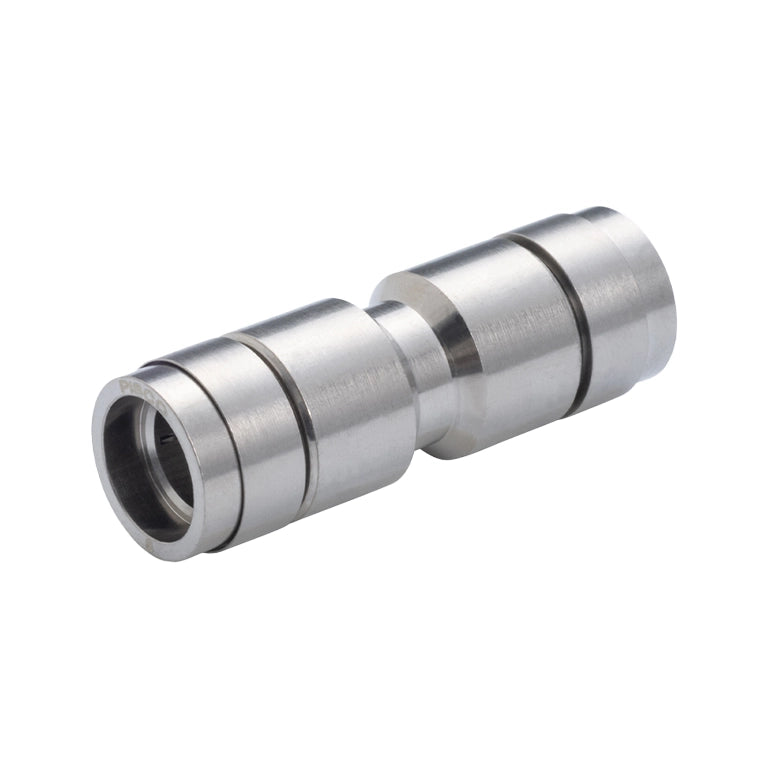

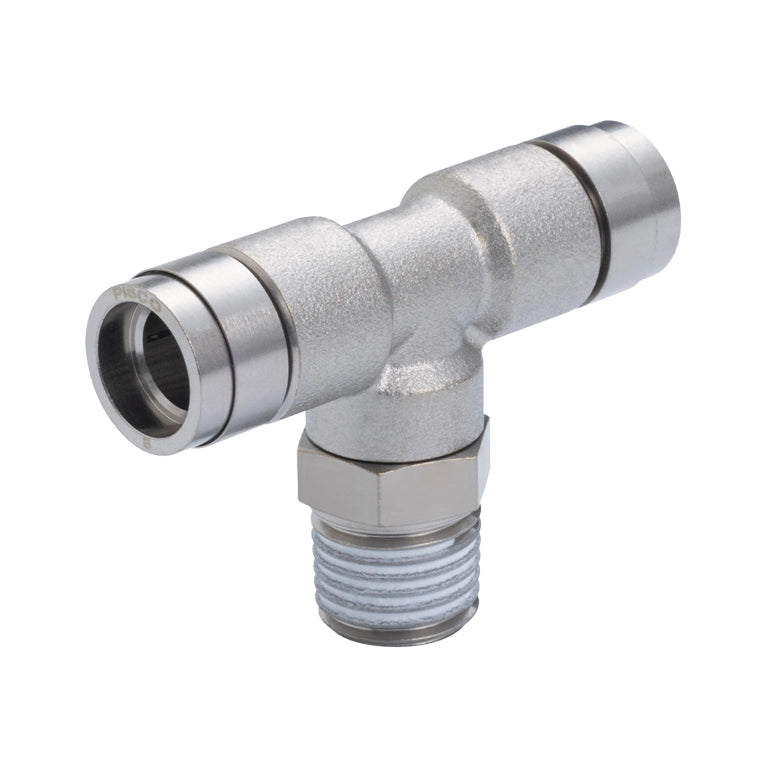

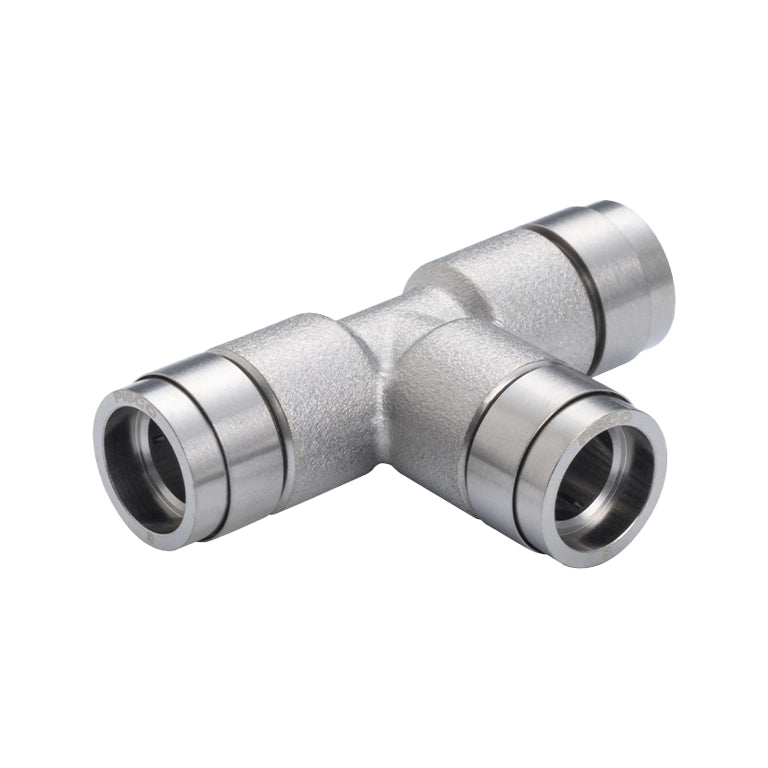

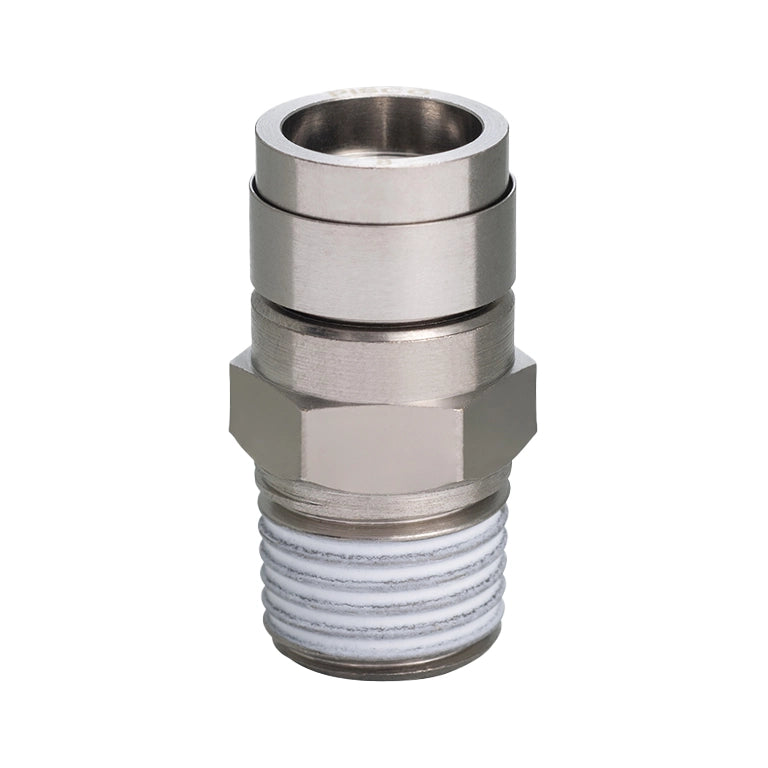

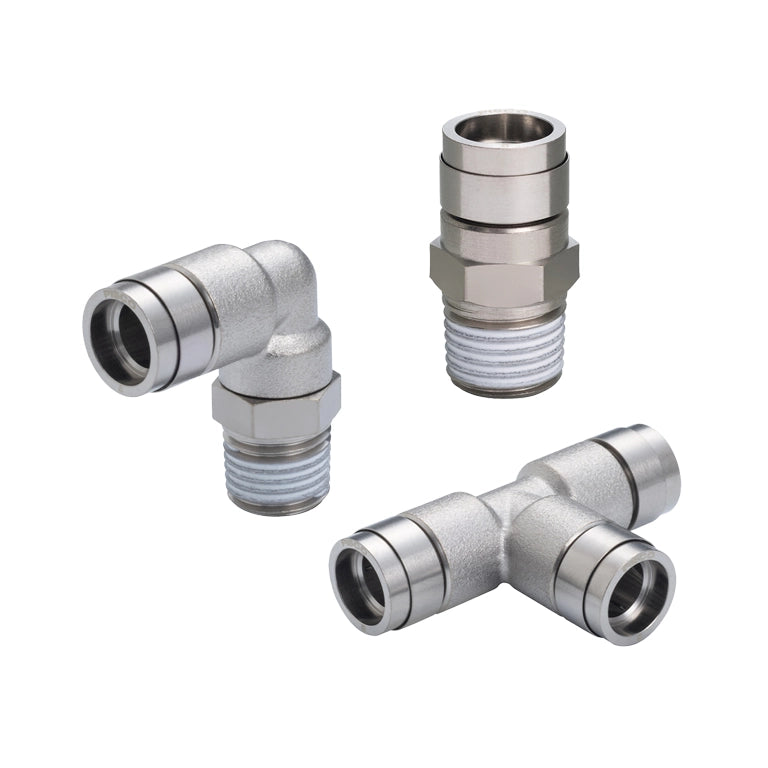

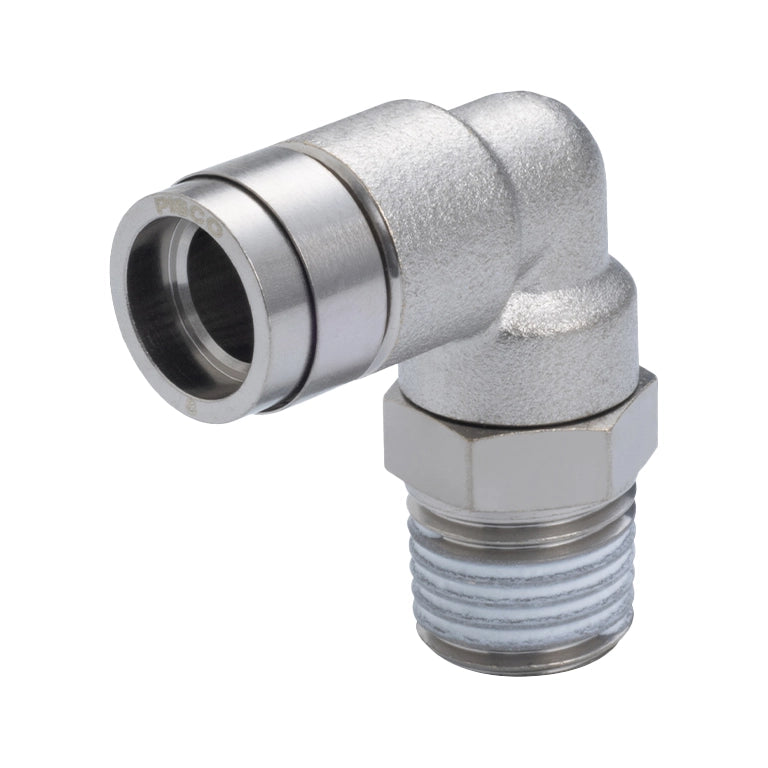

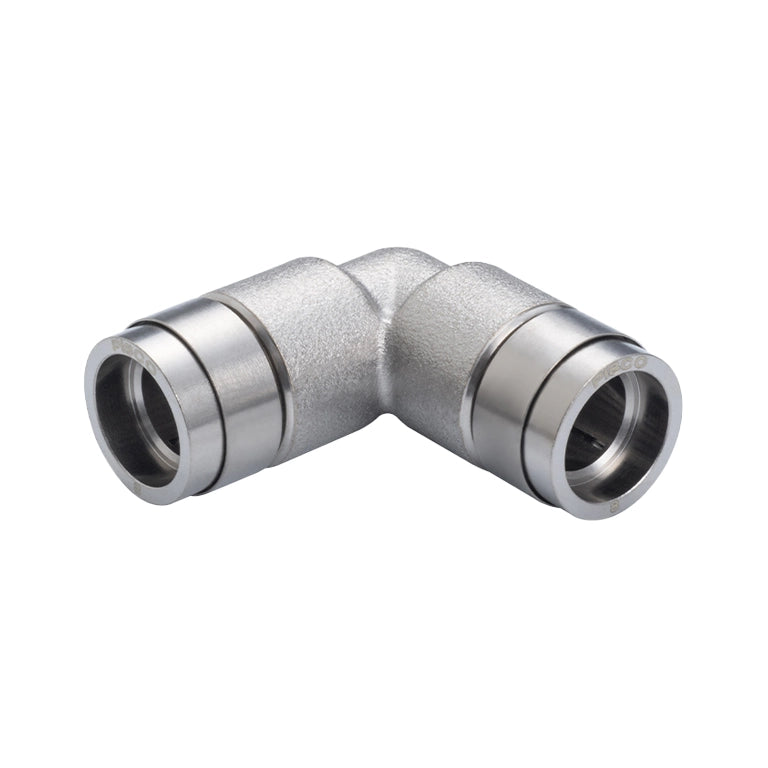

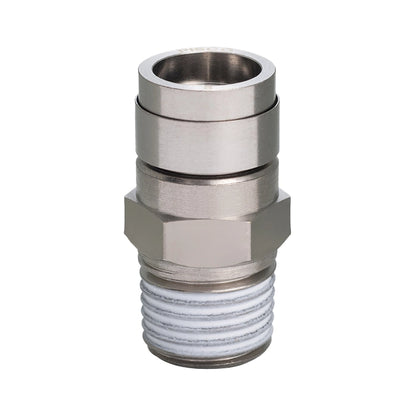

PISCO Spatter-Resistant Brass Tube Fittings are ultra-durable one-touch fittings feature a 100% brass body and metallic release ring configuration to defeat molten weld spatter, high thermal radiation, and extreme ambient sparks. Designed to eradicate resin melting and release ring failures, they ensure uninterrupted industrial fluid paths. The protective metal covers block debris from entering the internal lock claws, making them the ultimate flame-retardant choice for harsh heavy-industry setups.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of PISCO Anti-Spatter Fittings in India.
General Specifications
General Specifications
Operating Pressure: Performs reliably at a maximum system pressure of 1.0 MPa.
Vacuum Threshold: Rated for negative suction forces down to -100 kPa.
Thermal Tolerance: Extends across a wide operational spectrum from 0°C up to 100°C.
Media Versatility: Certified for use with Compressed Air, Water, and Heat Carrier Oil.
Cover Alternatives: Shipped as open configurations or equipped with integrated spatter-proof covers.
Debris Blockage: Optional release ring shields completely stop fine dust and slag intrusion.
Material
Material
Main Housing: Built entirely from premium, non-corrosive, heavy-duty nickel-plated industrial brass alloy.
Release Mechanism: All-metal Brass release ring avoids structural melting or cracking.
Internal Elastic Seals: Configurable with high-end HNBR, FKM (Fluororubber), or NBR seals.
Surface Finish: Treated with a robust, flame-proof layer for optimal sputtering resistance.
Static Dissipation: Metallic matrix naturally provides excellent properties to ground structural static.
Share
Product Knowledge
Areas of Application
Robotic Welding Cells: Withstands intense molten metal droplets and direct spark impacts inside heavy automotive assembly zones.
High-Temperature Mold Piping: Safely channels high-temperature heat carrier oils and fluids without thermal fatigue or
fitting failure.
Heavy Dust & Foundries: Utilizes protective cover-type designs to prevent airborne slag, grit, and industrial dust clogging.
Flame-Proximate Automation: Replaces vulnerable plastic connections in high-risk zones near factory furnaces, torches, or thermal cutters.
Part Numbers
FAQ
1. Does Ardee Hi-Tech Pvt Ltd supply products across India?
Yes, Ardee Hi-Tech Pvt Ltd serves customers across India with reliable supply and distribution support.
2. Does Ardee Hi-Tech Pvt Ltd supply products internationally?
Yes, Ardee Hi-Tech Pvt Ltd serves customers across Asia with reliable supply and distribution support. Please get in touch with our team to help guide you further.
3. How do I choose the right pneumatic fitting or automation component?
Product selection depends on operating pressure, tubing size, media compatibility, temperature conditions, and application requirements. Get in touch with our specialists to help guide you based on your specific requirements.
4. Does Ardee Hi-Tech Pvt Ltd provide technical support for product selection?
Yes, Ardee Hi-Tech Pvt Ltd assists customers with product selection, technical consultation, and application-specific automation solutions.
5. Can I purchase replacement parts and accessories from Ardee Hi-Tech?
Yes, replacement fittings, tubing, valves, connectors, accessories, and other automation components are available. Our team of specialists can help find the right replacement part depending on your industrial needs.
6. How do I place an order?
Visit the Ardee Hi-Tech Pvt Ltd official website to explore products, request quotations and connect with our technical sales team. You can also add products to the “Quote Cart” and submit your request for quotation.
