Vacuum Pump Exhaust Muffler
Vacuum Pump Exhaust Muffler

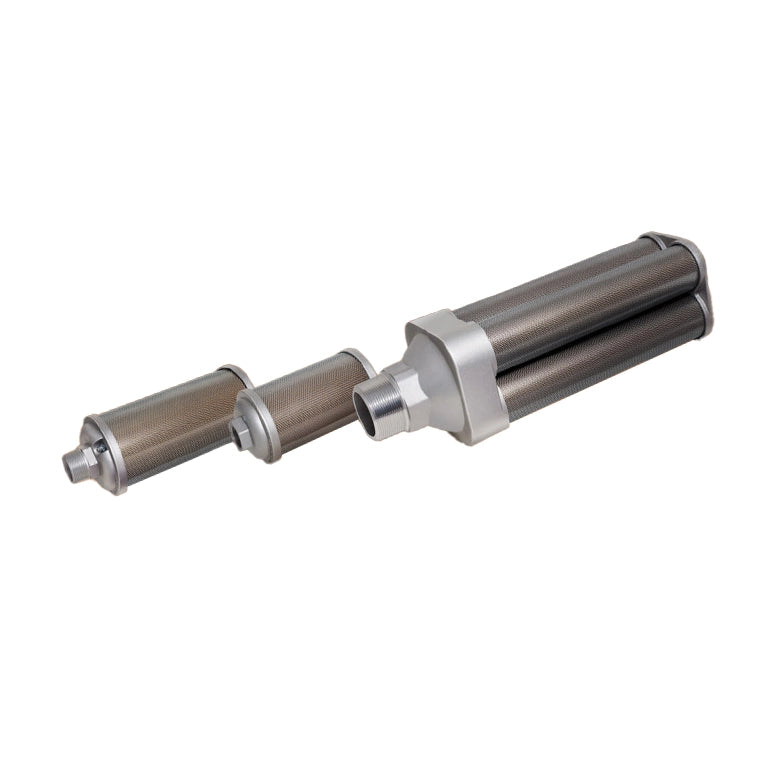

The ALWITCO Vacuum Pump Exhaust Muffler, engineered by Allied Witan Company, is a specialized high-performance silencer designed to quiet the aggressive sound profiles and irritating pulsations common to vacuum pump discharge lines. These industrial silencers optimize workspace safety by lowering perceived exhaust noise by up to 85%. The design integrates a completely obstruction-free internal expansion chamber. This design allows high-velocity exhaust blasts to quickly expand, shedding momentum and kinetic energy before venting smoothly through a wide-surface outer cylinder wall disseminator. This specialized architecture mitigates heavy noise without introducing critical mechanical impedance or backpressure that could hurt overall pump efficiency.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Noise Suppression: Lowers Exponentially Perceived Noise (EPNdB) by up to 85%.
Pressure Tolerance: Safely rated to withstand pressures up to 125 PSI (8.6 Bar).

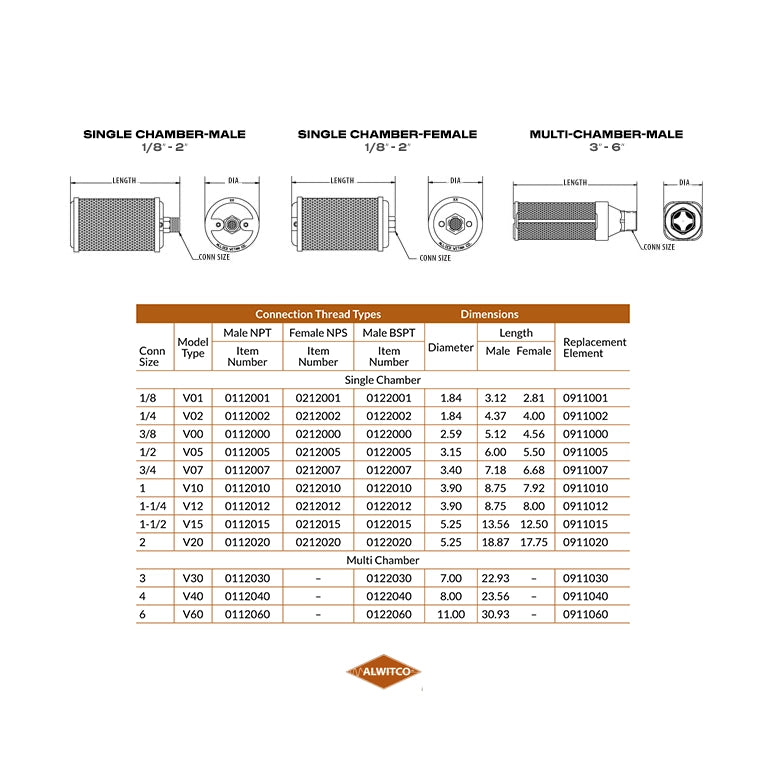

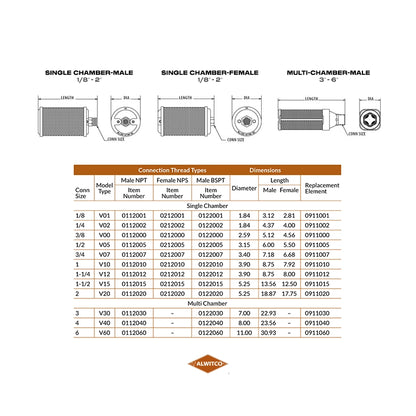

Connection Formats: Manufactured in both Single Chamber-Male and Single Chamber-Female plumbing configurations.
Dimensional Range: Available in standard thread sizes ranging from 1/8" up to 2" ports to align with diverse systems.
Threading Standards: Standardized pipe threading (NPT/NPS) for simple installation directly onto factory discharge lines.
Flow Performance: Engineered to drop exhaust velocities softly into the surrounding atmosphere with zero mechanical restriction.
Material
Material
Industrial Aluminum: Used for structural housing and end covers to provide lightweight durability.
Specialized Epoxy Coating: Applied directly to the aluminum end caps for defense against chemical alkalis.
Zinc-Plated Steel: Utilized for heavy-duty internal structural framing, rivets, and hardware reinforcement.
Porous Sintered Bronze: Formulated into the acoustic filtration elements for uniform, multi-directional air distribution.
Cellular Acoustic Media: Embedded within the double-wall variations to damp specific low-to-mid frequency vibrations.
Share
Product Knowledge
Areas of Application
Medical & Laboratory Systems: Installed on medical aspirators, surgical suction apparatuses, and blood-fractionation vacuum lines where low-noise operation is critical.
Printing & Packaging: Deployed on automated pick-and-place lines, vacuum frames, and matrix-holding systems to protect workers from constant pump pulsations.
Environmental & Research Chambers: Used on altitude simulation chambers, vacuum drying ovens, and thermal-vacuum test enclosures.
Pneumatic Process Piping: Integrated into heavy transfer systems, control devices, and material handling vacuum lines to provide clean, quiet operations.
Part Numbers
V01 0112001 • V01 0212001 • V01 0122001 • V01 0911001 • V02 0112002 • V02 0212002 • V02 0122002 • V02 0911002 • V00 0112000 • V00 0212000 • V00 0122000 • V00 0911000 • V05 0112005 • V05 0212005 • V05 0122005 • V05 0911005 • V07 0112007 • V07 0212007 • V07 0122007 • V07 0911007 • V10 0112010 • V10 0212010 • V10 0122010 • V10 0911010 • V12 0112012 • V12 0212012 • V12 0122012 • V12 0911012 • V15 0112015 • V15 0212015 • V15 0122015 • V15 0911015 • V20 0112020 • V20 0212020 • V20 0122020 • V20 0911020 • V30 0112030 • V30 0122030 • V30 0911030 • V40 0112040 • V40 0122040 • V40 0911040 • V60 0112060 • V60 0122060 • V60 0911060
