Alwitco
Steam Exhaust Muffler
Steam Exhaust Muffler

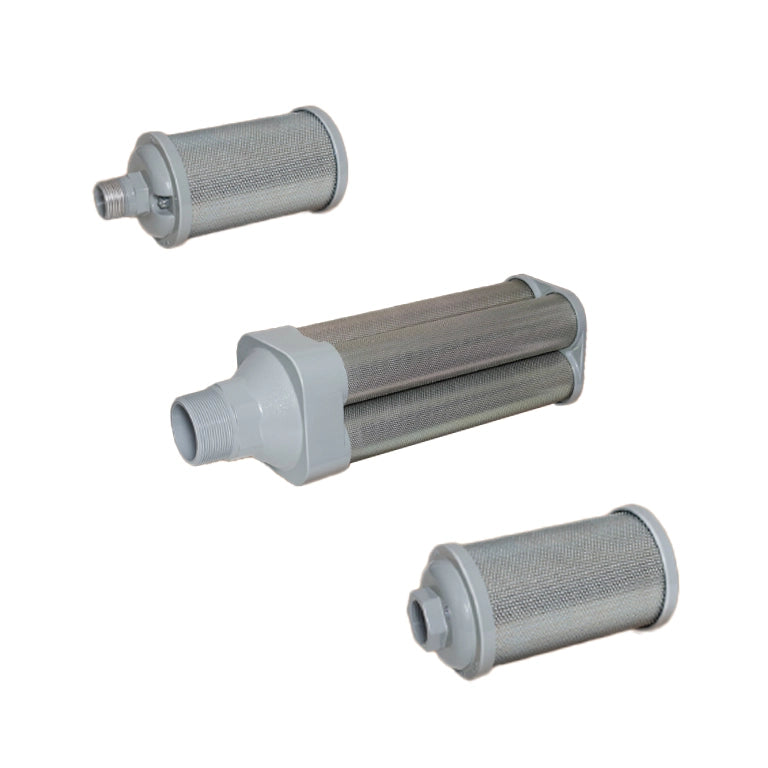

The Alwitco Steam Exhaust Muffler, part of the Atomuffler® line, is a high-efficiency noise control device specifically designed to suppress explosive noise generated by steam exhaust outlets. This specialty silencer targets the extreme decibel levels produced during intermittent steam venting without restricting the critical flow path of the system. It features a unique, obstruction-free internal expansion chamber that breaks up violent steam blasts into smaller, low-velocity streams. This multi-stage diffusion technique reduces Exponentially Perceived Noise (EPNdB) by up to 85%, ensuring workplace safety and strict environmental compliance during high-velocity venting cycles
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Noise Reduction: Up to 85% of perceived exhaust noise.
Flow Efficiency: Maintains an optimal 94% flow factor to prevent system backpressure.
Maximum Pressure: Rated up to 125 PSI (8.6 Bar).
Connection Sizes: Standard port configurations ranging from 1/8" to 6" sizes.
Thread Types: Available in Male NPT, Female NPS, and Male BSPT to fit diverse piping systems.
Flow Capacity: Varies by scale; larger 4-inch variants handle up to 14,400 SCFM.
Duty Cycle: Engineered specifically for intermittent venting and temporary cycle testing.
Material
Material
Corrosion Resistance: Built entirely with heavy-duty, corrosion-resistant metals designed to survive intense thermal cycling and moisture.
Epoxy-Coated End Caps: The rugged aluminum end covers feature a specialized protective epoxy treatment. This shielding protects against chemical attacks from alkalis and heavy industrial condensates.
Structural Framing: Reinforced with zinc-plated steel hardware components to resist physical deformation under sudden pressure shocks.
Diffusion Media: Outfitted with specialized porous acoustic elements engineered to allow smooth steam vapor migration while trapping noise frequencies.
Share
Product Knowledge
Areas of Application
Boiler Start-ups & Testing: Installed on relief lines during initial plant heat-ups, water-pipe blowdowns, and safety valve testing phases.
Food Processing Facilities: Ideal for low-pressure steam cooking vats, sterilizers, and jacketed pan venting where alkaline cleaning agents are present.
Power Generation Utilities: Deployed on intermittent exhaust vents, blowdown tanks, and purge lines to shield plant technicians from hearing damage.
Manufacturing Plants: Utilized on process steam headers, autoclaves, and localized steam-actuated machinery ports.

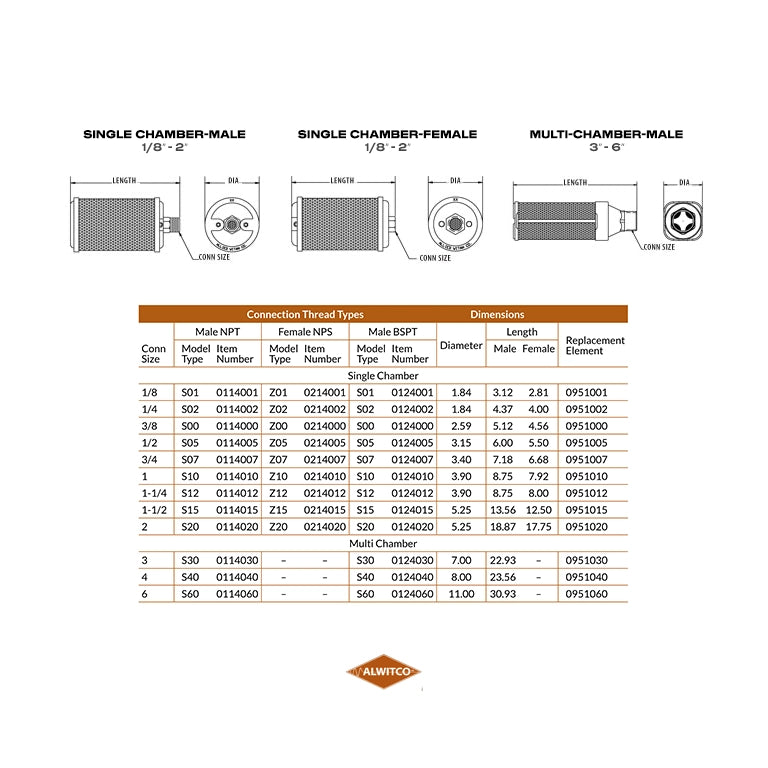

Part Numbers
S01 0114001 • Z01 0214001 • S01 0124001 • S01 0951001 • S02 0114002 • Z02 0214002 • S02 0124002 • S02 0951002 • S00 0114000 • Z00 0214000 • S00 0124000 • S00 0951000 • S05 0114005 • Z05 0214005 • S05 0124005 • S05 0951005 • S07 0114007 • Z07 0214007 • S07 0124007 • S07 0951007 • S10 0114010 • Z10 0214010 • S10 0124010 • S10 0951010 • S12 0114012 • Z12 0214012 • S12 0124012 • S12 0951012 • S15 0114015 • Z15 0214015 • S15 0124015 • S15 0951015 • S20 0114020 • Z20 0214020 • S20 0124020 • S20 0951020 • S30 0114030 • S30 0124030 • S30 0951030 • S40 0114040 • S40 0124040 • S40 0951040 • S60 0114060 • S60 0124060 • S60 0951060
