Alwitco
Relief Valve Muffler
Relief Valve Muffler

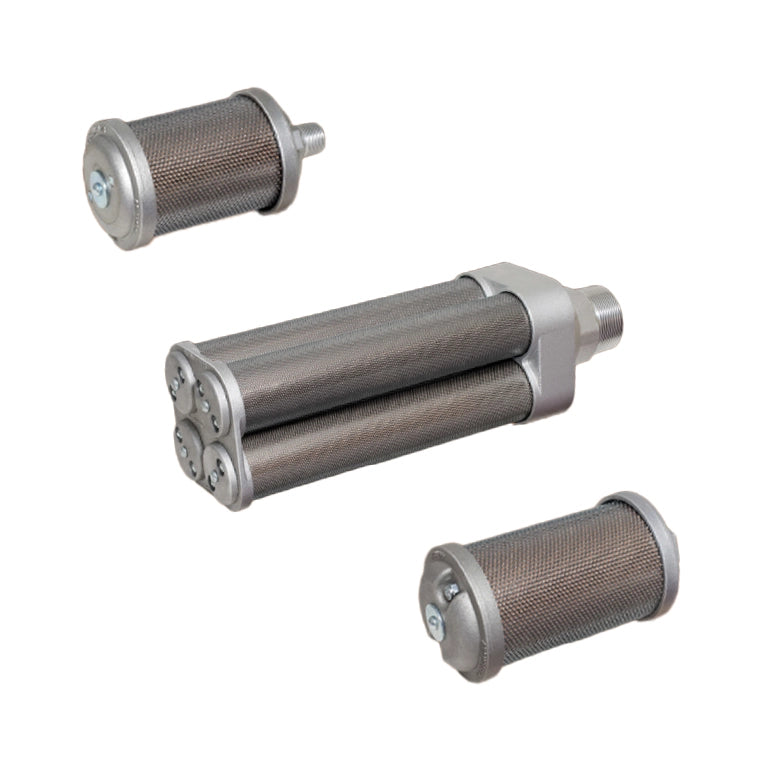

The ALWITCO Atomuffler® Relief Valve Muffler integrates the acoustic dampening features of the industry-standard Atomuffler® line with a specialized, built-in pressure equalization relief valve. Designed explicitly for heavy-duty systems requiring an uninterrupted, continuous outflow of air, this device actively detects variations in airflow exhaust. When an sudden pressure differential or outflow spike occurs, the mechanical relief mechanism opens dynamically to compensate for the demand, maintaining precise backpressure balance while effectively neutralizing distracting exhaust noise
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Operating Pressure: Engineered for high-demand industrial setups, safely supporting pressure ratings up to 175 PSI (12 Bar).
Safety Integration: Features a responsive, internal spring-loaded pressure relief mechanism to automatically handle overpressure risks.
Functional Modality: Continuously balances pressure profiles by matching real-time system outflow deviations.
Connection Profile: Built with standardized male or female NPT and BSP pipe thread configurations.
Sizing Parameters: Available across extensive sizes, ranging from compact fractional 1/8" ports to massive 2" NPT (such as the X20/0375020 series) or multi-chamber options spanning up to 6".
Material
Material
Heavy-Duty Metallic Framework: Constructed from premium, corrosion-resistant metals and zinc-plated alloy steels to combat high structural fatigue.
Calibrated Spring Alloys: Utilizes wear-resistant internal metal springs calibrated for repeatable pop-open and reseat sealing operations.
High Chemical Endurance: Inner elements remain completely dimensionally stable when exposed to continuous inline water vapor, desiccant dust, and synthetic oil fog.
Rugged Outer Protection: Includes heavy structural guards over the sound-dampening core to resist sudden external impact and prevent crushing in industrial environments.
Share
Product Knowledge
Areas of Application
Desiccant Air Dryers: Extensively used as direct exhaust mufflers on large industrial desiccant compressed air dryers to purge air silently while avoiding backpressure system stalls.
Continuous Outflow Devices: Perfect for automated equipment where uninterrupted, steady pressure equalization is mandatory to protect downstream machinery.
Overpressure Protection Lines: Installed on relief ports of primary air reservoirs, vessel manifolds, and surge tanks to act as a secondary safety and silencing layer.
Large Compressors: Dampens explosive cyclic pop-offs on large-scale rotary screw or reciprocating industrial compressors.

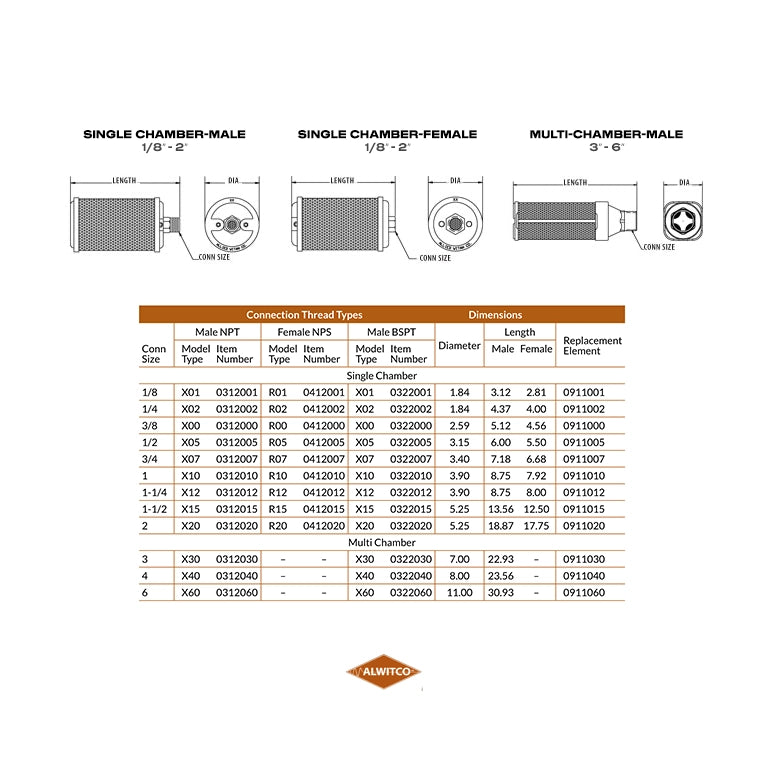

Part Numbers
X01 0312001 • R01 0412001 • X01 0322001 • X01 0911001 • X02 0312002 • R02 0412002 • X02 0322002 • X02 0911002 • X00 0312000 • R00 0412000 • X00 0322000 • X00 0911000 • X05 0312005 • R05 0412005 • X05 0322005 • X05 0911005 • X07 0312007 • R07 0412007 • X07 0322007 • X07 0911007 • X10 0312010 • R10 0412010 • X10 0322010 • X10 0911010 • X12 0312012 • R12 0412012 • X12 0322012 • X12 0911012 • X15 0312015 • R15 0412015 • X15 0322015 • X15 0911015 • X20 0312020 • R20 0412020 • X20 0322020 • X20 0911020 • X30 0312030 • X30 0322030 • X30 0911030 • X40 0312040 • X40 0322040 • X40 0911040 • X60 0312060 • X60 0322060 • X60 0911060
