Porous Breather-Vent-Filter
Porous Breather-Vent-Filter

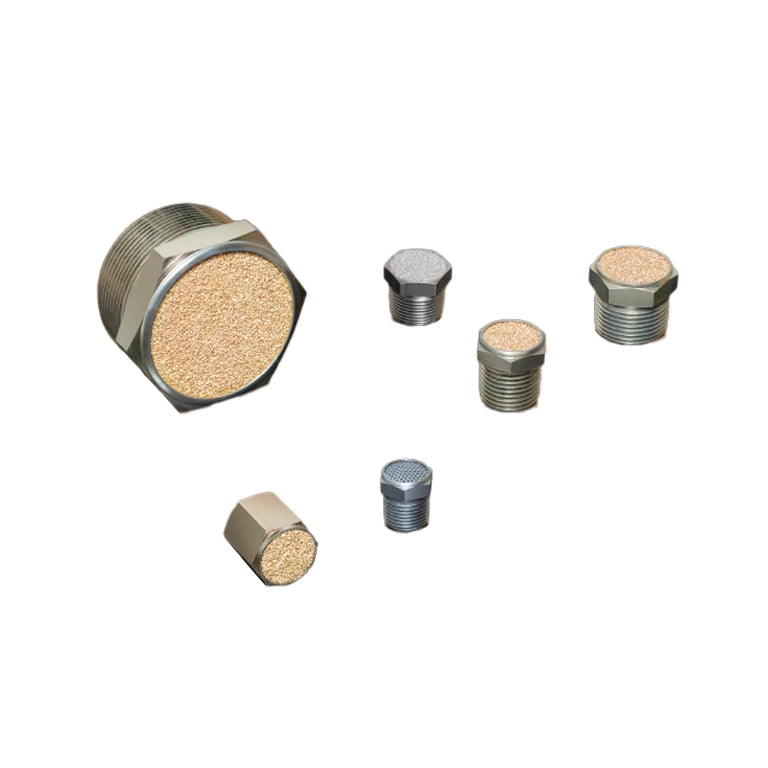

ALWITCO Porous Breather Vent-Filter is a high-durability, low-profile safety component designed for vacuum and pressure equalization in confined pneumatic environments. Manufactured by the Allied Witan Company and supplied by Ardee Hi-Tech Pvt. Ltd., these compact vents serve as an excellent, cost-effective alternative when standard filter-mufflers cannot fit into restricted machine boundaries. These flat-profile units allow unrestricted bi-directional airflow to prevent pressure buildup or vacuum collapse, while acting as a barrier to keep external debris out of internal mechanical chambers.
Ardee Hi-Tech Pvt Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Connection Types: Male NPT, BSPT, Metric, and ultra-compact 10-32 threads.
Available Sizes: Port ranges spanning 1/16” up to 2” male threads (Standard models F08 through F88).
Recommended Pressure: Ideal for system equalization pressures up to 125 PSI (8.6 Bar).
Filtration Efficiency: Standard porosity ratings available at 40-micron, 90-micron, and 100-micron configurations.
Body Design: Hexagonal base configuration with an integrated flush-mount porous filtration faceplate.
Material
Material
Standard Bronze Media: Sintered porous bronze disc providing uniform 90-micron filtering pathways.
Stainless Steel Variant: All-Stainless Steel construction with a 100-micron porous SS disc for extreme environments.
Base Fittings: Machined corrosion-resistant solid brass, zinc-plated steel, or 316 stainless steel.
Alternative Polymers: High-density porous polyethylene or polypropylene composites for light chemical applications.
Share
Product Knowledge
Areas of Application
Gearboxes & Crankcases: Equalizing thermal pressure variations while keeping dirt out of the lubrication oil.
Pneumatic Cylinders: Serving as a breather exhaust filter on single-acting cylinders to keep contaminants out during the return stroke.
Storage Tanks & Vessels: Balancing internal fluid levels without exposing the stored medium to atmosphere particles.
Chemical Process Systems: Venting gas lines and pneumatic control panels safely in corrosive environments (using the Stainless Steel variant).

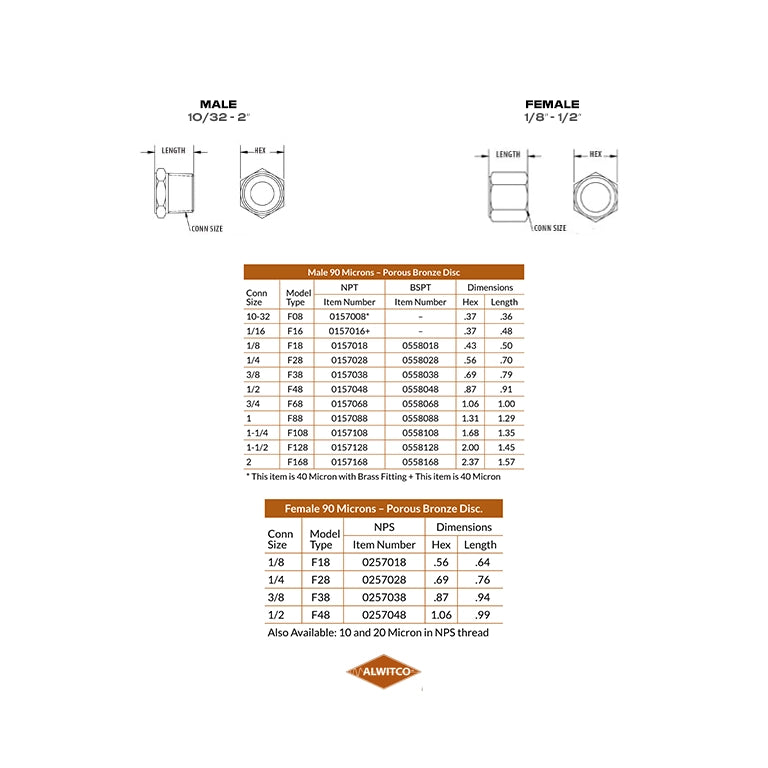

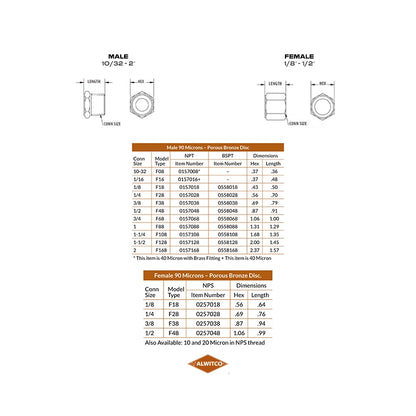

Part Numbers
F08 0157008 • F16 0157016 • F18 0157018 • F18 0558018 • F28 0157028 • F28 0558028 • F38 0157038 • F38 0558038 • F48 0157048 • F48 0558048 • F68 0157068 • F68 0558068 • F88 0157088 • F88 0558088 • F108 0157108 • F108 0558108 • F128 0157128 • F128 0558128 • F168 0157168 • F168 0558168 • F18 0257018 • F28 0257028 • F38 0257038 • F48 0257048
