Porous Adjust-A-Flow Muffler
Porous Adjust-A-Flow Muffler

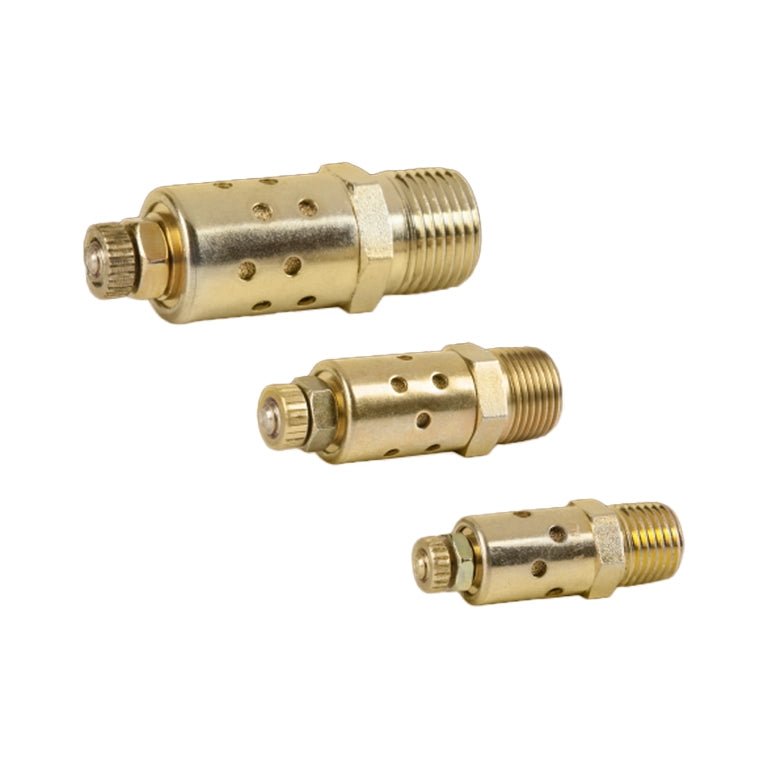

The ALWITCO Porous Adjust-A-Flow Muffler is a dual-function pneumatic noise-dampening and fluid-metering component. It features a manually adjustable, tapered needle valve built directly inside a porous metal body. This design delivers micro-precise, needle-point flow regulation for both pressure-driven exhaust pathways and vacuum relief setups. By unifying multi-stage sound diffusion with an integrated speed control mechanism, the valve eliminates the need for separate inline flow controllers, lowering system costs and saving valuable installation space.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Operating Pressure: Recommended for compressed air and industrial gas setups up to 125 PSI (8.6 Bar).
Flow Regulation: Continuously adjustable metering between fully closed and fully open states.
Positional Security: Integrated external locknut safely secures the targeted flow setting against machine vibration.
Filtration Threshold: Utilizes a standard 40-micron element matrix for positive micro-particle diffusion.
Adjustment Interface: Tapered metering valve managed via an external slotted adjustment screw.
Connection Profile: Standard male NPT and BSP pipe thread variants available in sizes from 1/8" up to 1".
Material
Material
Sintered Porous Bronze: Constructed using premium 40-micron sintered porous bronze to ensure long-term durability and superior acoustic dampening.
Zinc-Plated Steel Casing: Built with rugged zinc-plated steel or industrial brass alloys to protect threads from strip-out and mechanical wear.
High Vibration Resistance: Heavy-duty internal structural bonding prevents the metering needle from drifting out of calibration during violent mechanical impacts.
Chemical Endurance: Highly stable metallic composition resists breakdown from persistent synthetic compressor oil carryover, solvents, and ambient humidity.
Share
Product Knowledge
Areas of Application
- Cylinder Speed Regulation: Mounts directly to air cylinder exhaust ports to provide precise control over extend and retract stroke velocities.
- Vacuum System Relief: Serves as a manually tuned vacuum relief gate to regulate suction pressures and prevent system implosions.
- Air Tool Speed Control: Attenuates harsh air blasts on pneumatic tools while allowing operators to dial in rotating speeds.
- Manifold Speed Mufflers: Installs onto compact pneumatic control manifolds to regulate individual directional control valve exhaust profiles.
- Packaging & Conveying Machinery: Fine-tunes high-frequency sorting and diverting pneumatic pushers to prevent product damage.

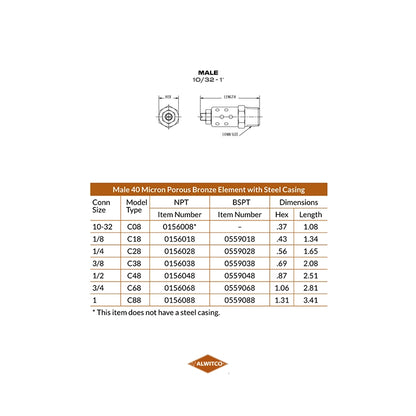

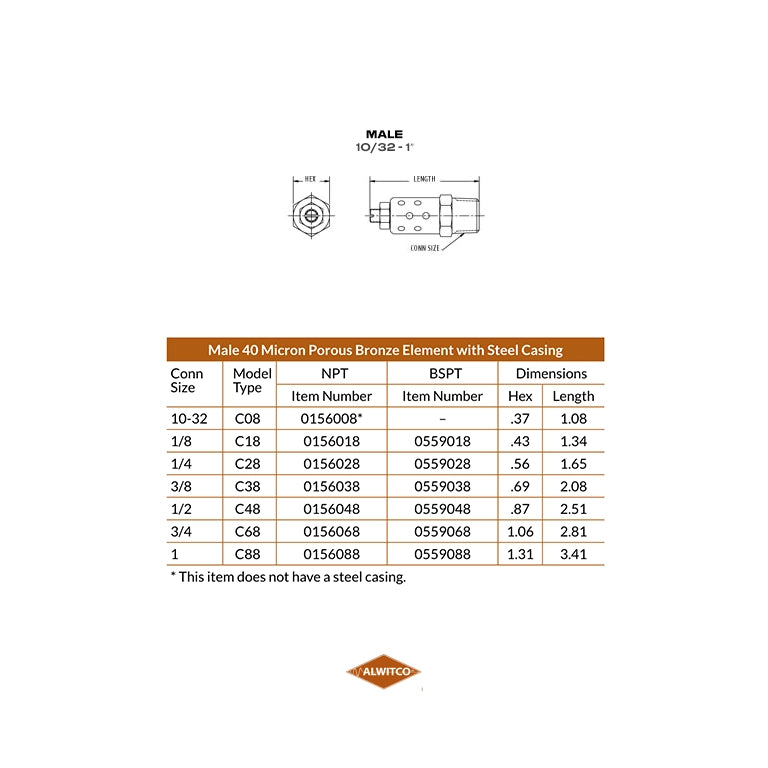

Part Numbers
C08 0156008 • C18 0156018 • C18 0559018 • C28 0156028 • C28 0559028 • C38 0156038 • C38 0559038 • C48 0156048 • C48 0559048 • C68 0156068 • C68 0559068 • C88 0156088 • C88 0559088
