Micro Miniature Muffler
Micro Miniature Muffler

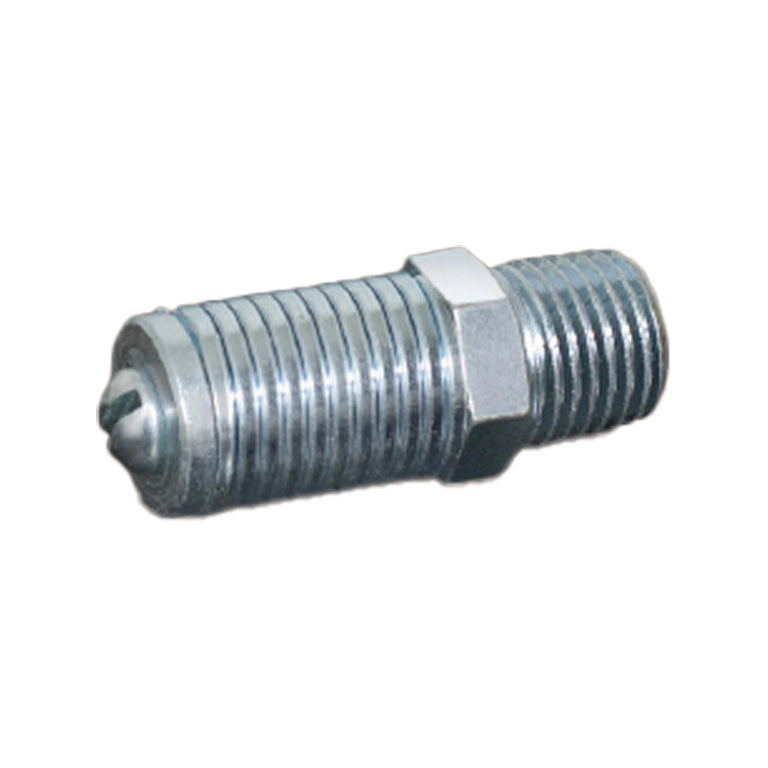

The ALWITCO Micro Miniature Muffler is an ultra-compact noise control and flow-metering device engineered specifically for pneumatic logic applications. Its minimized physical footprint allows it to be threaded directly into small exhaust ports located in extremely tight industrial quarters. The valve works by dividing and dispersing compressed air streams radially, effectively lowering high-frequency acoustic intensity with near-zero flow resistance. Because it features integrated adjustable control, this components functions simultaneously as an acoustic silencer and a precise micro-speed controller to regulate exhausting airflow rates.
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Operating Pressure: Rated for stable operation in low-volume circuits up to 125 PSI (8.6 Bar).
Acoustic Airflow Dispersion: Spreads high-velocity exhaust gases radially to eliminate linear air shockwaves.
Flow Impedance: Delivers excellent noise abatement with negligible backend flow resistance.
Flow Capacity Example: The standard M18 configuration supports up to 32 SCFM of flow capacity.
Connection Profile: Standard male NPT or BSP thread paths available across compact size options.
Primary Models & Sizes: Features the space-saving M18 (1/8") and M28 (1/4") configurations to match miniature port standards.
Material
Material
All-Steel Construction: Crafted entirely from rugged, heavy-duty zinc-plated steel to combat rust and thread strip-out.
High Component Rigidity: Heavy metallic architecture preserves total dimensional stability during repeated high-frequency logic cycles.
Wear-Resistant Threads: Machine-cut male thread patterns resist deformation from continuous vibration and automated cabinet impacts.
Chemical Compatibility: Metallic base materials avoid degradation when exposed to common synthetic compressor lubricants, ambient oil vapors, and humidity.
Share
Product Knowledge
Areas of Application
Pneumatic Logic Controls: Silences and regulates delicate pilot valves, limit switches, relay sensors, and zone control blocks.
Compact Control Panels: Fits easily inside dense, overcrowded high-frequency automated control enclosures where standard silencers cannot clear space limitations.
Micro-Cylinder Speed Tuning: Serves as an integrated exhaust metering needle to precisely calibrate the stroke speed of micro-actuators.
Robotic End-Effectors: Mounts on lightweight pick-and-place automation arms where adding excess component weight or physical volume is prohibited.
Medical Packaging Systems: Controls low-volume pressure bleeding on fast-cycling diagnostic, test, and packaging machinery without creating backpressure lag.

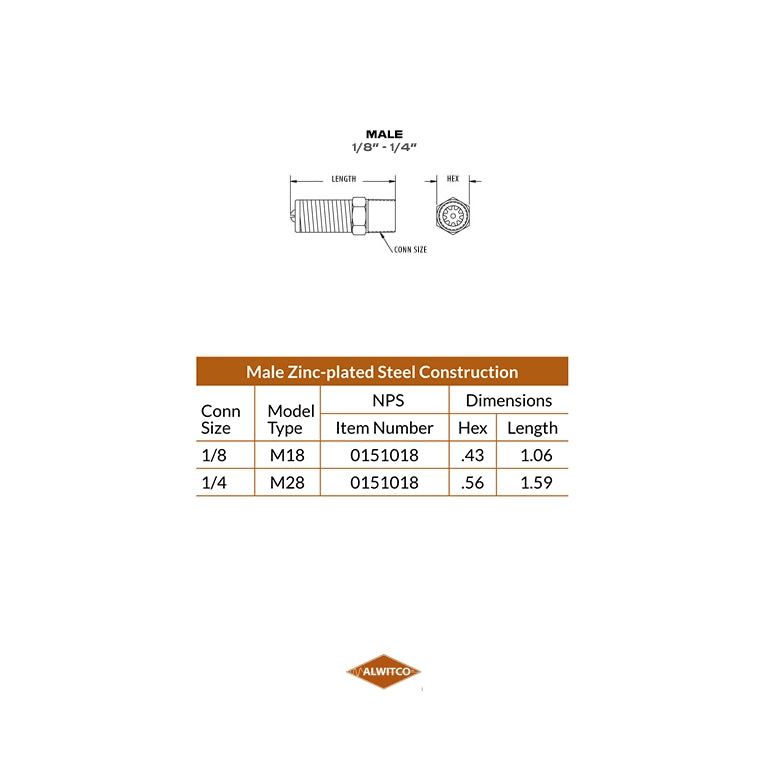

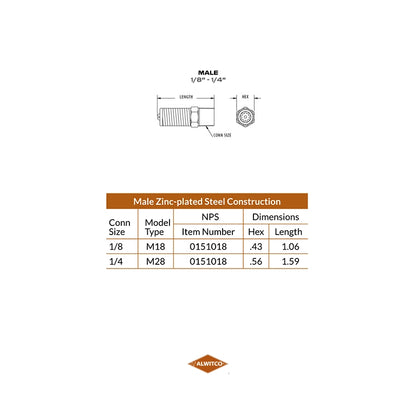

Part Numbers
M18 0151018 • M28 0151028
