High Pressure Muffler
High Pressure Muffler

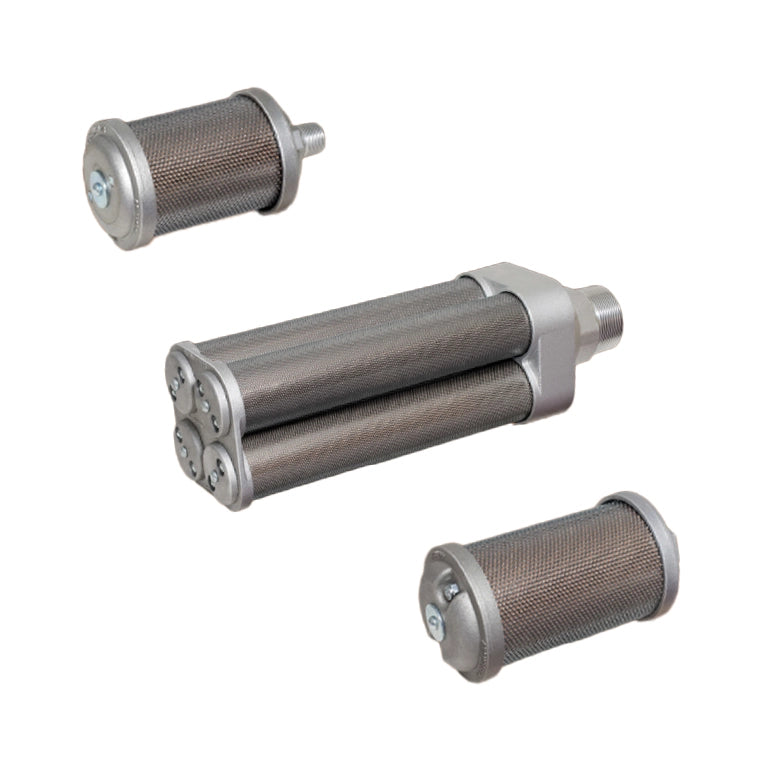

Atomuffler® High Pressure Muffler, from Allied Witan Co., is a heavy-duty, custom-tailored sound-control solution designed specifically to regulate noise and handle high-velocity air streams. Operating on an internal collision mechanism, the muffler takes dense, high-velocity incoming exhaust streams, divides the air, and redirects it back on itself within the internal chambers. As the smaller air streams collide head-on, their velocity drops sharply, allowing the air to softly disperse across the dissemination surface area without sacrificing machine performance
Ardee Hi-Tech Pvt. Ltd. is the official and authorized distributor of ALWITCO products in India.
General Specifications
General Specifications
Operating Pressure Threshold: This specialized line is expressly recommended for general-purpose air exhaust applications running at pressures exceeding 150 psi (10.3 Bar).
Connection Profiles: The structural mounting base natively interfaces with standard Male NPT or Male BSPT thread patterns.
System Component Requirements: When submitting or establishing an order directly with Alwitco, the user must specify the exact pipe size connection and the exact operating air pressure of the target machinery.
Ordering Rule: These custom units are built to order based on individual industrial criteria and are strictly non-returnable.
Material
Material
- Housing Frame: Constructed entirely from reinforced, corrosion-resistant metals engineered to handle high-velocity air impacts and systemic shocks without fracturing.
- Disseminator Elements: Internal flow paths feature a replaceable filtering and diffusion layer designed to safely split up explosive blasts.
- Service Elements: The internal assembly supports routine plant maintenance via fully replaceable internal elements (disseminators), enabling field service without discarding the main metallic housing.
Share
Product Knowledge
Areas of Application
Extreme High-Pressure Relieves: Screwed directly into heavy industry relief valve systems to silence explosive air bursts when pneumatic pressure thresholds trip.
Dual-Tower Air Dryers: Integrated directly into industrial air desiccant dryer systems to quiet the intense, high-velocity exhaust blasts typical during purge and regeneration cycles.
Combined Thru-Flow Systems: Installed inline within automated manufacturing architectures that demand steady, uninterrupted continuous outflow paired with robust sound reduction.
Heavy Factory Safety Systems: Stationed across plant environments to shield assembly personnel from hearing injuries or industrial distractions caused by open high-pressure venting paths.

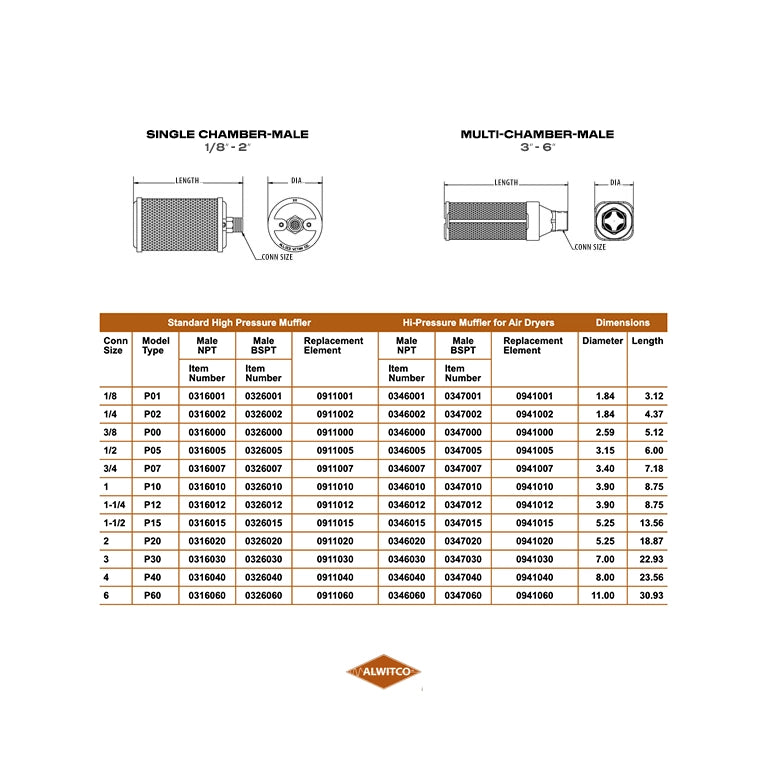

Part Numbers
P01 0316001 • P01 0326001 • P01 0911001 • P01 0346001 •P01 0347001 • P01 0941001 • P02 0316002 • P02 0326002 • P02 0911002 • P02 0346002 • P02 0347002 • P02 0941002 • P00 0316000 • P00 0326000 • P00 0911000 • P00 0346000 • P00 0347000 • P00 0941000 • P05 0316005 • P05 0326005 • P05 0911005 • P05 0346005 • P05 0347005 • P05 0941005 • P07 0316007 • P07 0326007 • P07 0911007 • P07 0346007 • P07 0347007 • P07 0941007 • P10 0316010 • P10 0326010 • P10 0911010 • P10 0346010 • P10 0347010 • P10 0941010 • P12 0316012 • P12 0326012 • P12 0911012 • P12 0346012 • P12 0347012 • P12 0941012 • P15 0316015 • P15 0326015 • P15 0911015 • P15 0346015 • P15 0347015 • P15 0941015 • P20 0316020 • P20 0326020 • P20 0911020 • P20 0346020 • P20 0347020 • P20 0941020 • P30 0316030 • P30 0326030 • P30 0911030 • P30 0346030 • P30 0347030 • P30 0941030 • P40 0316040 • P40 0326040 • P40 0911040 • P40 0346040 • P40 0347040 • P40 0941040 • P60 0316060 • P60 0326060 • P60 0911060 • P60 0346060 • P60 0347060 • P60 0941060
