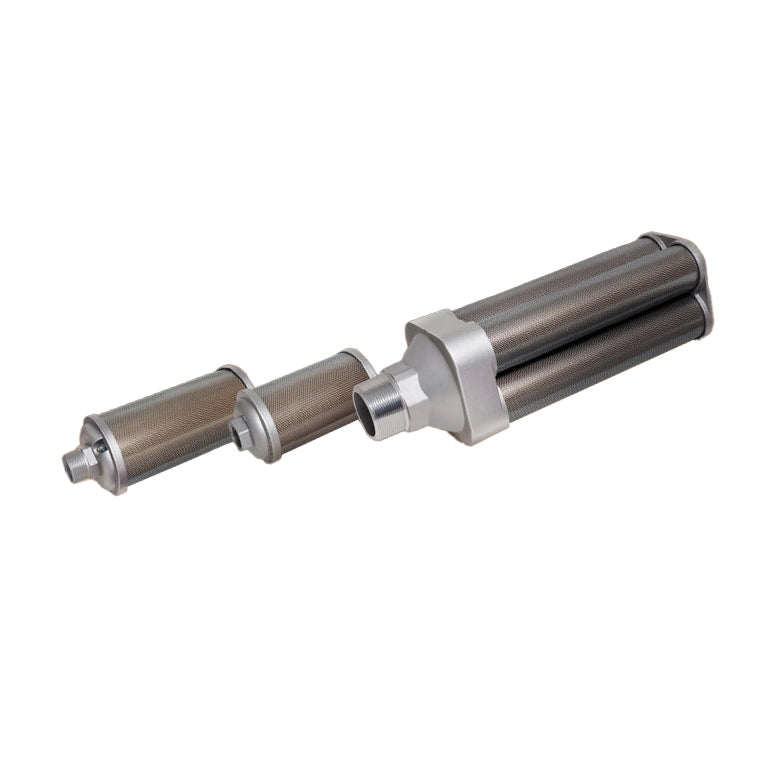

Air Exhaust Muffler

The design framework integrates high sound attenuation with specialized flow dynamics to withstand rigorous manufacturing conditions:

• Maximum Operating Pressure: The standard single-chamber configuration accommodates a continuous workload of up to 125 psi (8.6 bar).
• Noise Reduction Performance: This series achieves up to an 85% reduction in Exponentially Perceived Noise (EPNdB) by breaking up harsh air shockwaves.
• Flow Efficiency: It delivers a 94% flow factor using an optimized Constant Velocity (CV) design that prevents backpressure and ensures steady internal system exhaust.

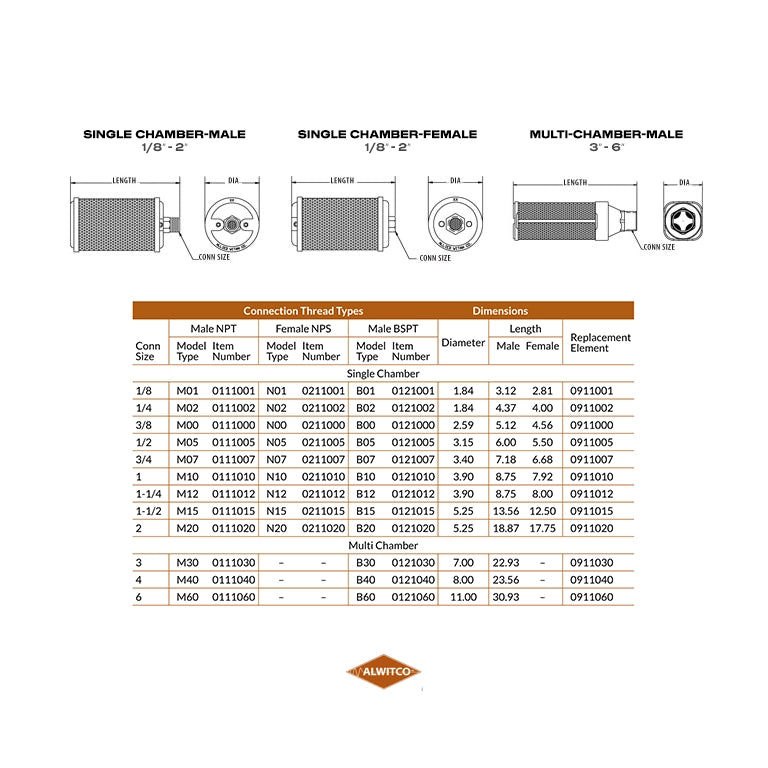

• Port Connection Sizes: Features standard male connection threads ranging from compact sizes like 1/8" NPT, 1/4" NPT, 3/8" NPT, and 1/2" NPT, up to heavy-duty industrial sizes like 1" NPT and larger.
• Internal Expansion Architecture: Built around a unique obstruction-free single-chamber model that guides escaping air to turn back on itself, canceling out high-frequency acoustics before dispersion.

The physical construction utilizes durable, low-maintenance materials tailored to resist wear under high-frequency factory cycling:

• External Shell Structural Parts: Built using heavy-duty, corrosion-resistant materials to guarantee a long product lifecycle.
• Muffler End Covers: Manufactured using corrosion-resistant aluminum panels.
• Internal Structural Hardening: Features internal support components constructed from zinc-plated steel.
• Dissemination Filter Media: Employs an internal cellulose fiber element that diffuses escaping air to help ensure it flows out free of industrial noise and oil fog.
• Replaceable Internal Elements: The product line supports field maintenance via available replacement filter elements (disseminators).
